Ground pool heat pump — 4 kW(5.36hp), power source Electric. The complete factory specification follows. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ground Pool Heat Pump
- Model Number: PW08-CY-DCF
- Power Source: Electric
- Heating Capacity: 4 kW(5.36hp)
- Housing Material: Galvanized Sheet
- Material: Galvanized Sheet
- Refrigerant: R32
Technical Specifications
| Type | Air Source Heat Pump |
|---|---|
| Heating Capacity | 4 kW(5.36hp) |
| Energy Efficiency Rating | Class A |
| Application | Outdoor, Hotel, Commercial, Household |
| Refrigerant | R32 |
| Storage / Tankless | Instant / Tankless |
| Compressor | Scroll Compressor |
| Installation | Freestanding |
| App-Controlled | Yes |
| Housing Material | Galvanized Sheet |
| Power Source | Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Free Spare Parts, Return and Replacement, Overseas Call Centers |
| Operating Language | English, German, French, Dutch, Spanish |
| Private Mold | Yes |
| Logo/Graphic Design | Silk Screen Printing, Laser Printing, Hot Stamping, Inkjet Printing, UV printing, Heat-Transfer Printing, 3D Printing |
| Packaging Types | Corrugated Box, Color Box, Gift Box |
| Place Of Origin | Guangdong, China |
| Brand | Pool World |
| Model Number | PW08-CY-DCF |
| Function | Swimming Pool Heating Cooling |
| Heat Exchanger | Titanium Heat Exchanger |
| COP | 5 |
| Heat Source | Air Source 75%+electricity25% |
| Sound Level | 52dB(1m) |
| Material | Galvanized Sheet |
| Evaporator | Finned Tube Heat Exchanger |
| Certification | CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

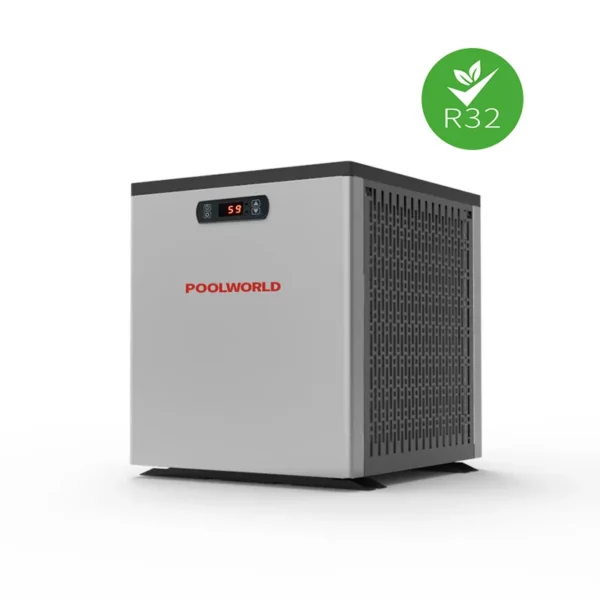

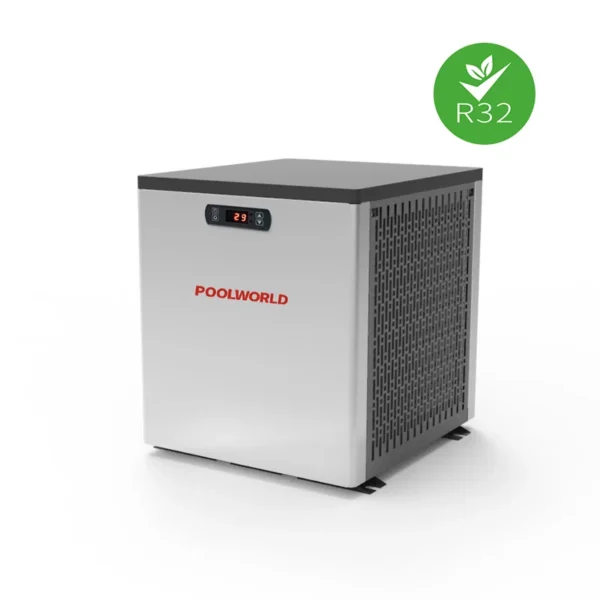

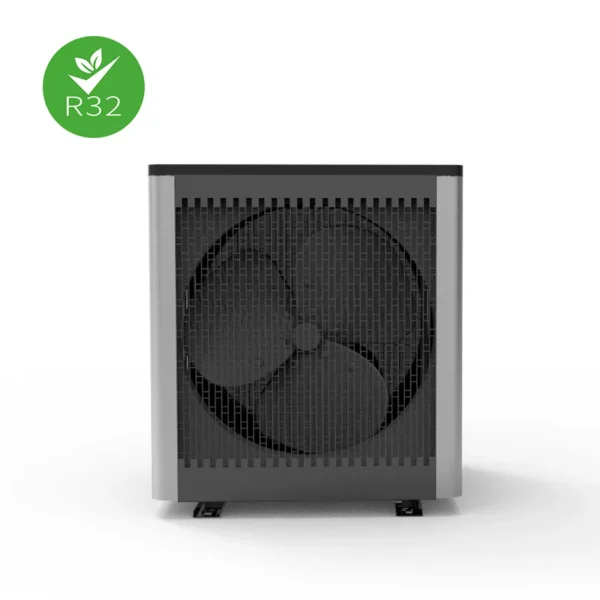

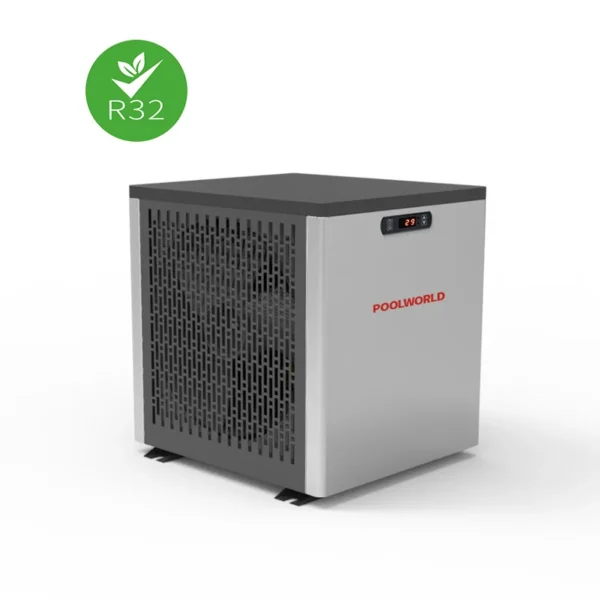

Mini Pro Series Swimming Pool Heat Pump
The Mini Pool Heat Pump is a new model available in the pools & spa market. It is featured by quick installation without previous installation or specifying a by-pass.
It is a Plug & Play product that is placed on the same circuit as the pool filtration.
They are very economic and effective pool heat pumps.
The range of ON/OFF Mini Pro Series, which is featured by quick start & fast heating, is composed of 4 models for pools & spas up to 15m³, 20m³, 22m³, and 25m³. It can be installed for any type of pool: wood, steel, composite, inflatable, or tubular and also adapts to small and medium pools.
Main Features

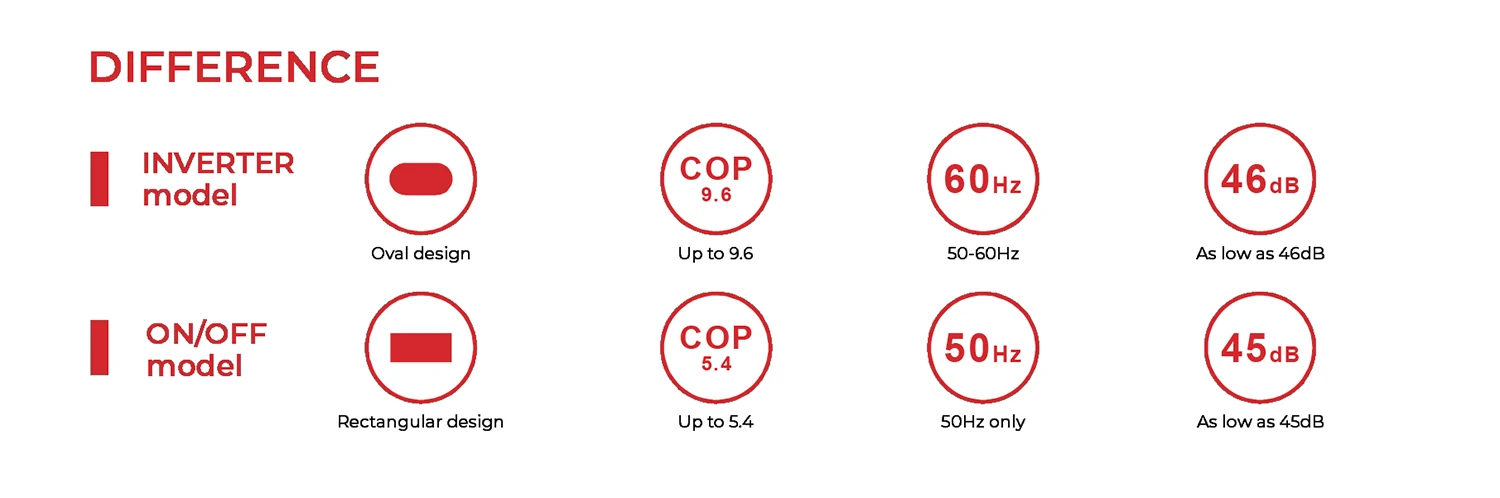

INVERTER VS ON/OFF
* Different control panel, ON/OFF model is a rectangular design, while INVERTER model is an oval design.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
* Different COP, ON/OFF model reaches as high as 5.4, INVERTER model reaches as high as 9.6.
* Different frequency, ON/OFF model can only be 50Hz, while INVERTER model can reach 60Hz.
* Different noise level, ON/OFF model is 45dB, while INVERTER model is 46 dB.
Our Advantages

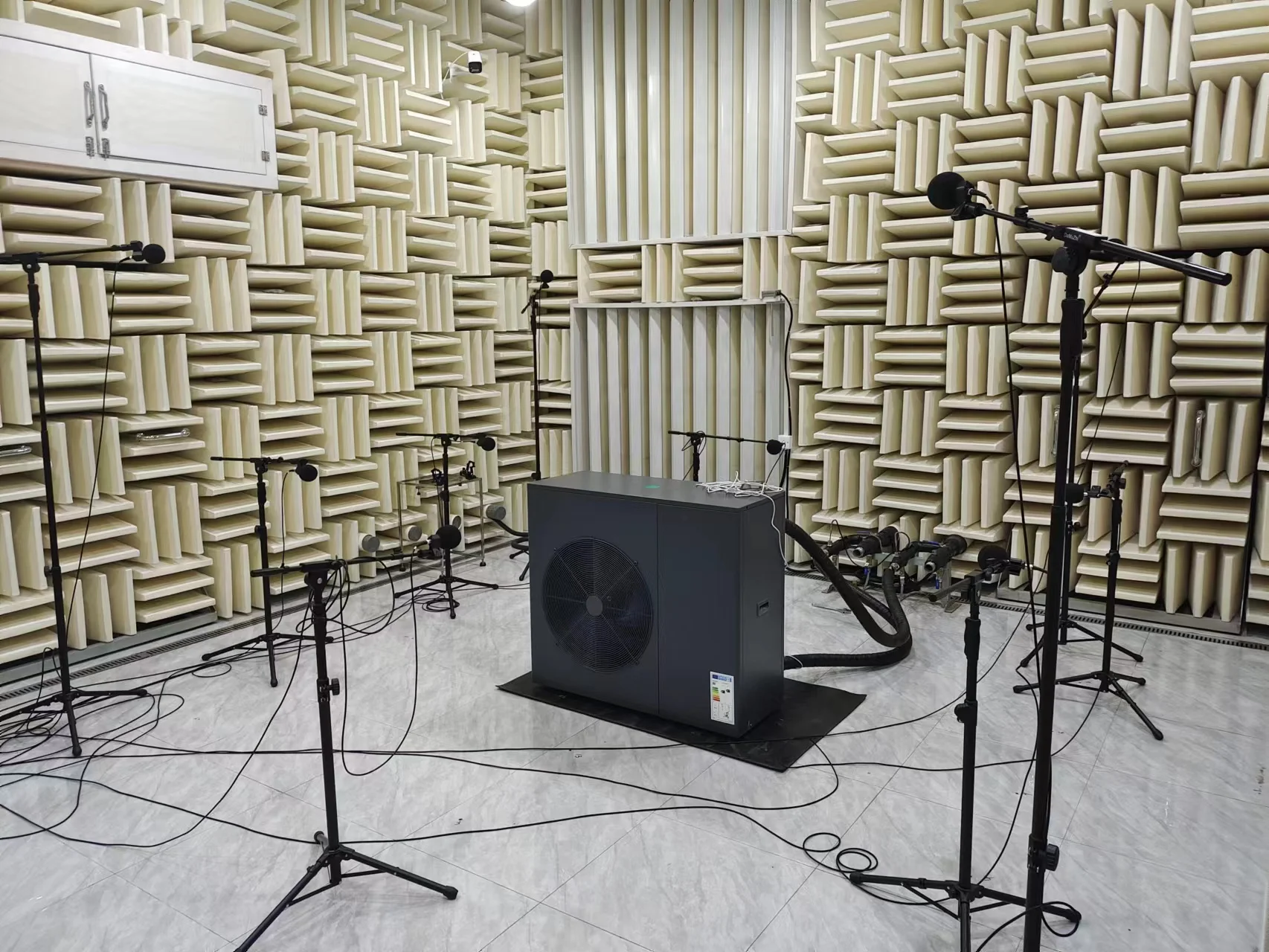

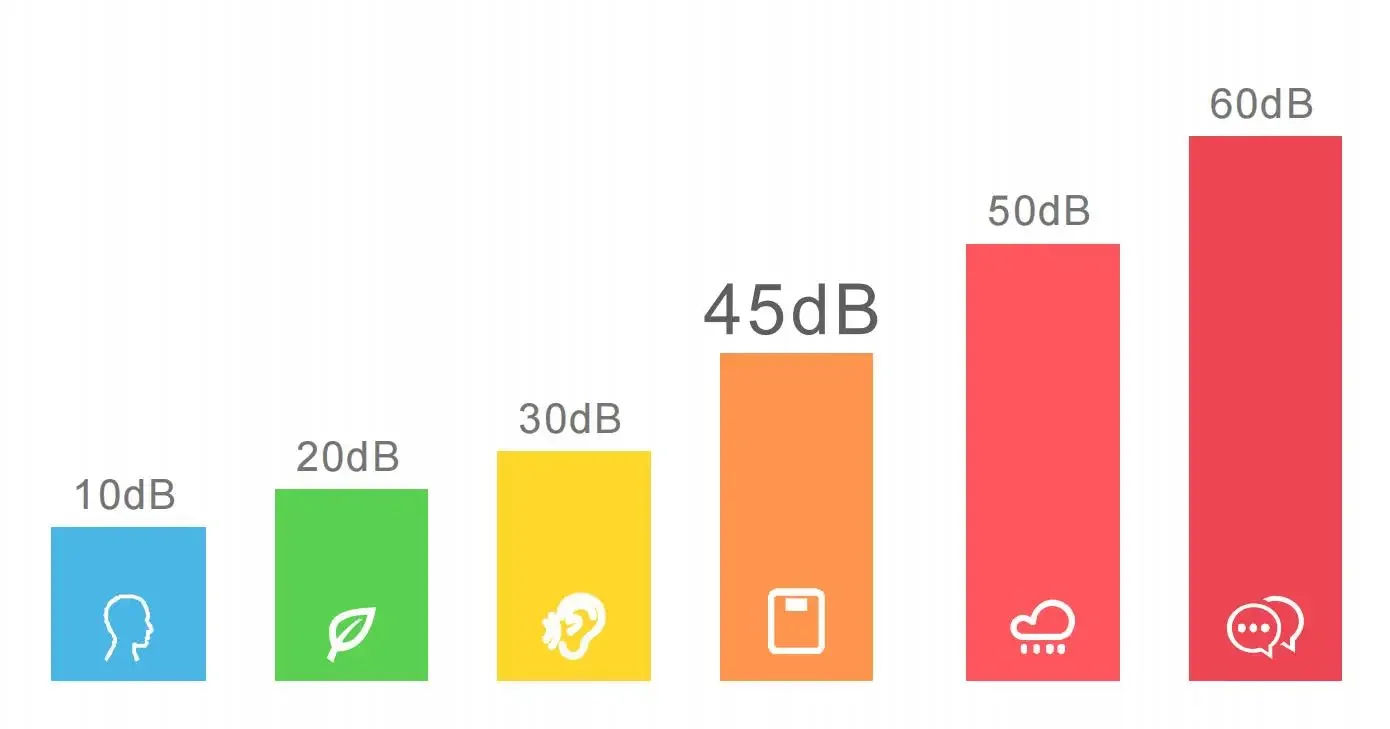

Thanks to the patented silent design, it makes a quieter swimming environment and a friendly neighborhood for you. The sound level is only 45 dB.

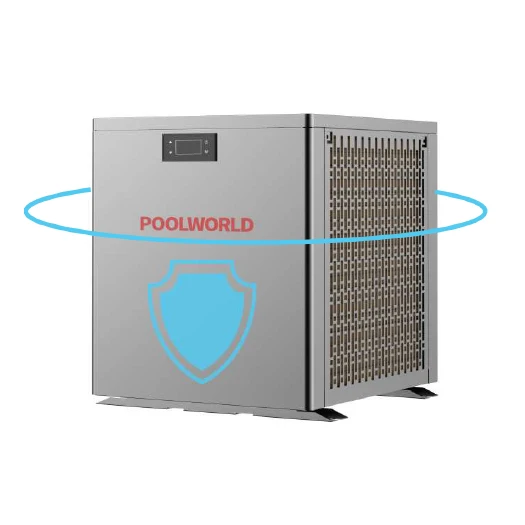

ANTI-CORROSION CASING
The product adopts a screwless design as a whole. The color of the unit is uniform, which means a minimalist design style. Regarding the color of the unit, it also provides customers with several colors of anti-corrosion spraying materials to choose from. With the precise spraying process, the galvanized steel unit has ultra-high corrosion resistance.

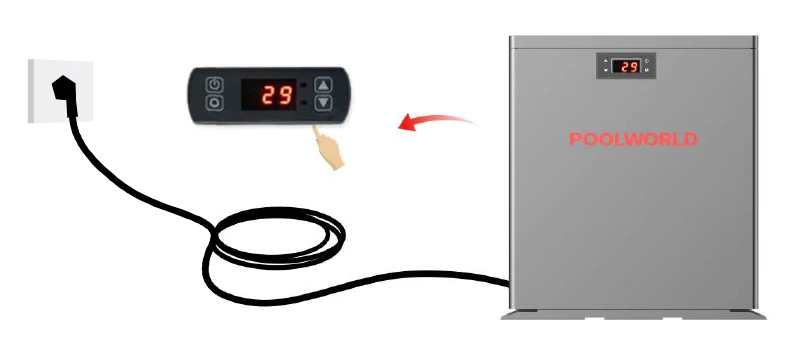

PLUG & PLAY
With the compact size and powerful LED panel, the plug & play and quick installation & start of this product bring a more comfortable and more convenient experience to our customers.

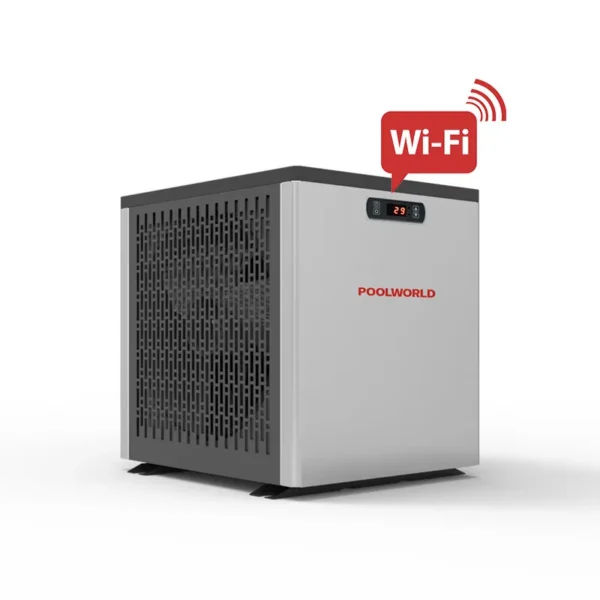

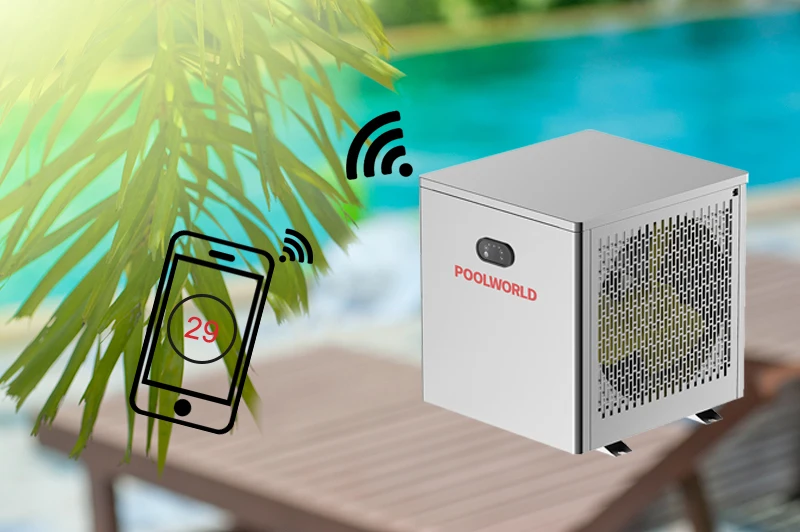

APP CONTROL
The Wi-Fi function is built into the control panel.
When you want to adjust the temperature of the swimming pool from a certain distance, as long as you configure the network for the unit when you use it for the first time, just click on the APP on your phone, and then you can control it from anywhere on the earth, but you need to make sure that your phone is connected to the Internet, and then you can change the temperature or other settings as needed.
Product Paramenters
Model | PW08-CY-DCF | PW15-CY-DCF | ||
Advised pool volume (m3) | 10~20 | 15~25 | ||
Operating air temp. (℃) | -5~43℃ | |||
Performance Condition: Air 27°C, Water 26°C, Humidity 80% | ||||
Heating capacity (kW) | 4.0~1.0 | 5.5~1.4 | ||
Heating capacity(Btu) | 13600~3400 | 18700~4760 | ||
Consumed power (kW) | 0.8~0.11 | 1.1~0.15 | ||
COP | 5.0~9.5 | 5.0~9.6 | ||
Performance Condition: Air 15°C, Water 26°C, Humidity 70% | ||||
Heating capacity (kW) | 2.5~0.65 | 3.7~0.8 | ||
Heating capacity(Btu) | 8500~2210 | 12580~2720 | ||
Consumed power (kW) | 0.6~0.1 | 0.9~0.13 | ||
COP | 4.0~6.1 | 4.0~6.0 | ||
Performance Condition: Air 35℃,Water 28℃, Humidity 80% | ||||
Cooling capacity (kW) | 2.0 | 3.3 | ||
Sound pressure at 1m dB(A) | 46 | 48 | ||
Sound pressure at 10m dB(A) | 30 | 32 | ||
Heat exchanger | Spiral titanium tube in PVC | |||
Casing | Metal Casing | |||
Power supply | 220 ~240V/1Ph/50Hz~60Hz | |||
Water connection (mm) | Φ32 | |||
Rated input current at air 15℃(A) | 2.6~0.4 | 3.9~0.57 | ||
Water flow volume(m³/h) | 1.5-2.0 | 2.0-2.5 | ||
Water pressure drop (max) kPa | 2 | 4 | ||
Net weight/Gross weight(kg) | 26/28 | 34/37 | ||
Net size(mm) | 394*444*435 | 498*499*500 | ||
Package size(mm)(carton) | 420*510*485 | 555*576*542 | ||
Package size(mm)(Polywood) | 437*510*475 | 572*576*545 | ||
Loading QTY (20GP/40GP/40HQ) | 208/416/520 | 144/288/288 | ||
Refrigerant consumption(g) | 180 | To be pending | ||
Refrigerant | R32 | |||
Compressor type/QTY | Rotary type/1 | |||
Defrosting | By four-way valve | |||
Throttle device | Electronic expansion valve | |||
Operating water temp. (℃) heating | 9 ~43 | |||
Operating water temp. (℃) cooling | 9 ~35 | |||
Note: The data above is for reference only. Please refer to the nameplate on the unit for more specific data. | ||||
Company Profile

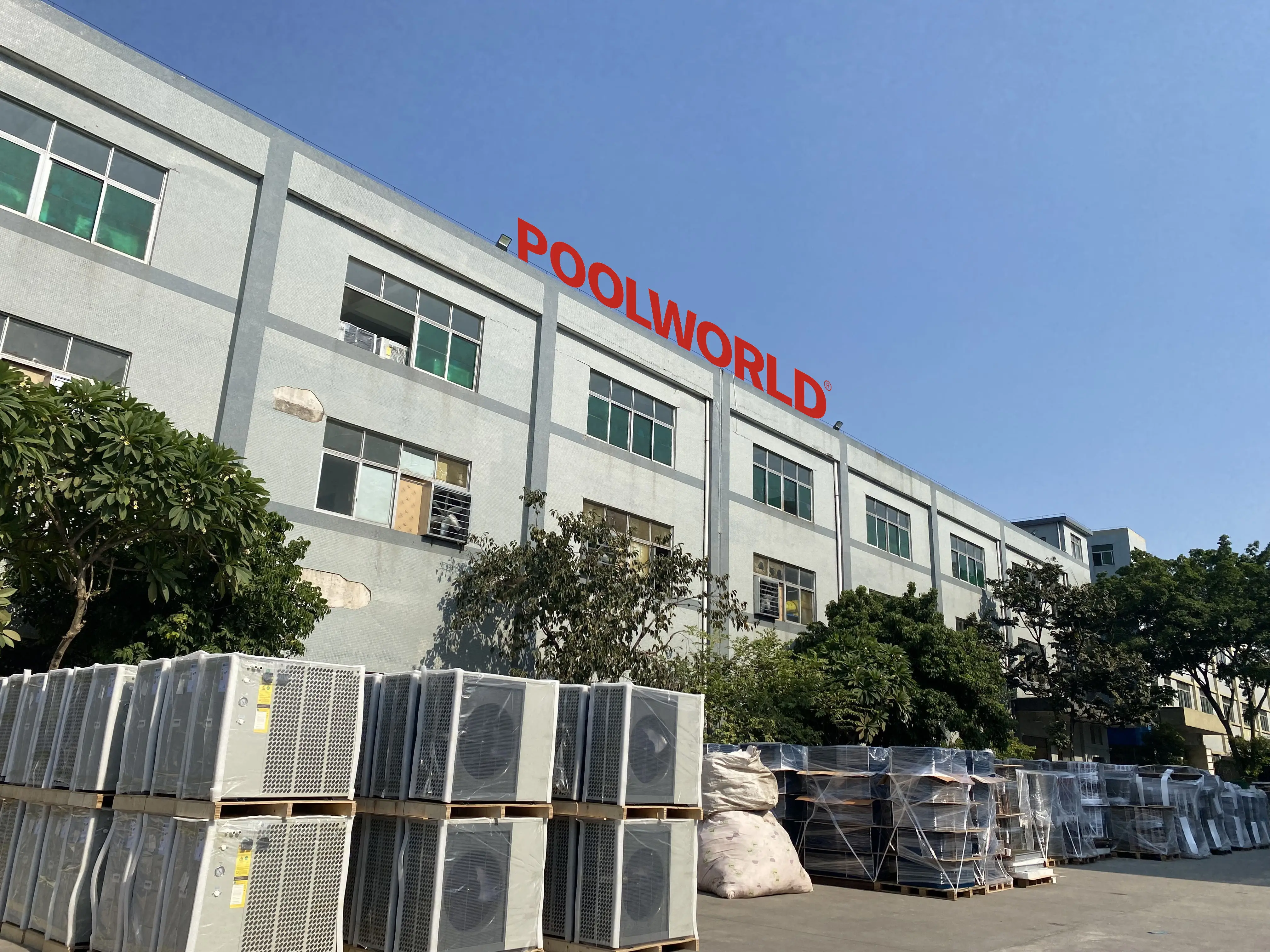

Guangzhou Pool World Environmental Technology Co., Ltd

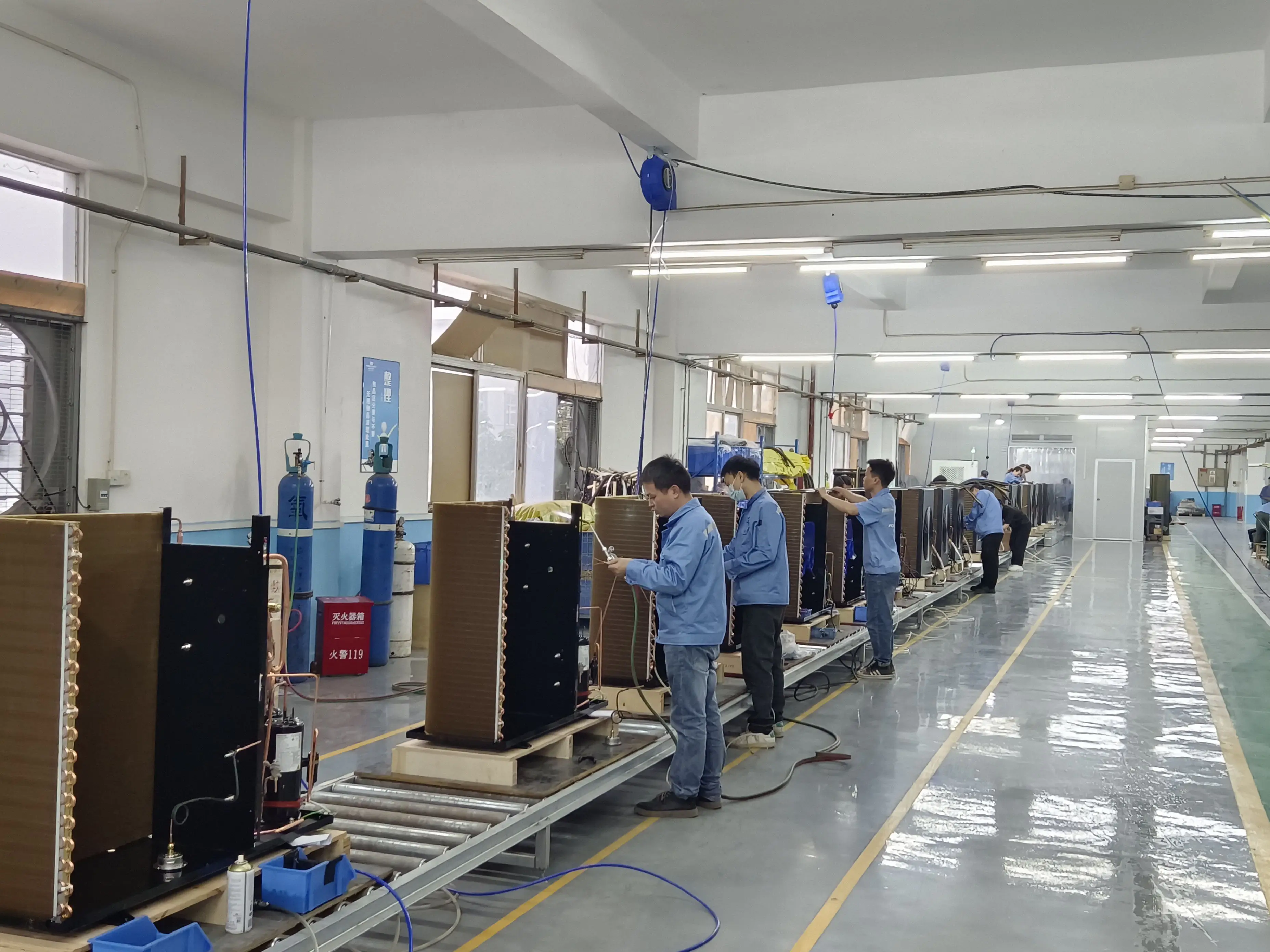

Guangzhou Pool World Environmental Technology Co.,Ltd specializes in heat pump R&D, manufacturing and providing comprehensive energy-saving heating solutions to worldwide market since 2008, our factory is located in Dongguan, China,which respectively manufacture heat pumps including pool heat pumpsHeating&Cooling&DHW Heat Pump etc., covering an area of 30,000 square meters, with 4 international laboratory attained EN14511 certificate(TUV certificated) and more than 50 R&D professional engineers, Pool World has obtained 416 patents, the products were certificated by CE,CB, ROHS, and passed the European EN14825 and EN14511 energy efficiency certificate which is complied strictly based on the latest EHPA requirement,most products are exported to Europe, Southeast Asia, South America, Middle East markets.
With over 13 years export experience,Pool World has the rich experience and the good knowledge with our professional, worldwide and customer oriented team are trained to support our partners in finding the right solution that satisfies their requirements. We are conscious that our customers are the most valuable part of our business. Therefore, we focus on giving the product quality and service that exceeds your expectations, with integrity, professionalism, and a teamwork approach.
We will strive to exceed expectations,boost the enterprise energy conservation and keep promoting the environment protection all the time.
OEM & ODM Support
01. OEM
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
POOLWORLD provides high efficiency air source heat pumps for your brand.
02. ODM
POOLWORLD custom manufactures heat pumps to your design.
03.POOLWORLD Provides the Following Services for Your OEM/ODM:
√ Produce European standard products with your brand/logo.
√ Shape, color and material can be customized according to your needs.
√ Customized parameter specifications according to your architecture.
√ Produce heat pump with competitive ex-factory price to guarantee your satisfactory profit.
√ Sign a non-disclosure agreement!
We will implement your heat pump OEM/ODM strategy. Let us hear from you and start your project.
Pre-sales service
01. EXPO Participation
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
Even during the epidemic, we participated in various exhibitions around the world, rain or shine, to promote the concept of
environmental protection to the world.
02. Marketing Support
Provide promotional materials of various media, including catalogs, brochures, data, videos, etc. Through various forms, customers can feel the high quality of POOLWORLD products in all directions.
In-sales service
01. Instant Answer and Model Selection
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
24-hour online customer service provides global customers with answers to various questions including model selection, technology,etc.
02. Certificate Application
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
According to your market, apply for the required certification to ensure that your buying and selling process is smooth.
After-sales service
01. Warranty Service
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.
From the moment the customer receives the product, we will provide various warranty services including spare parts, maintenance,
and repairs according to different situations.
02. After-sales Center
24 hours global customer service. Professional technicians in overseas markets, plus the after-sales center built in Germany,
provide you with detailed technical assistance from online to offline.
03. Marketing Guidance
Experienced marketing experts will provide you with a marketing career in your market and help every dealer enter the heat pump
environmental protection industry and grow together.

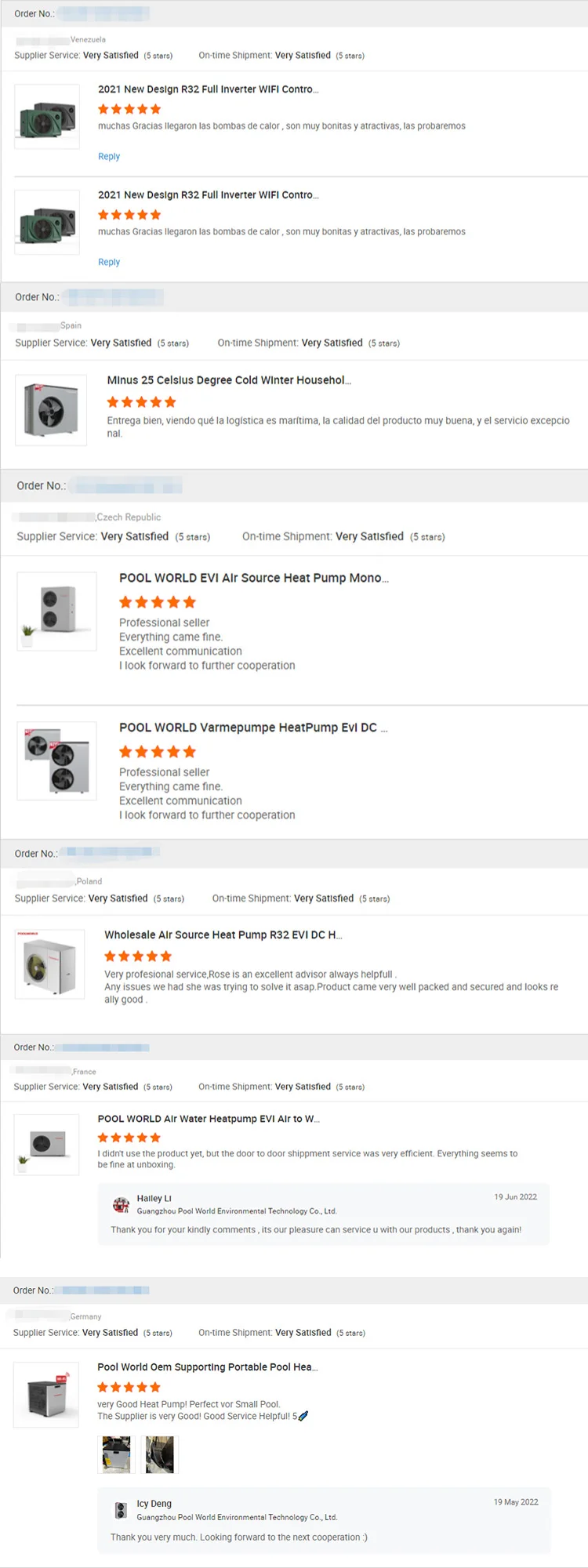

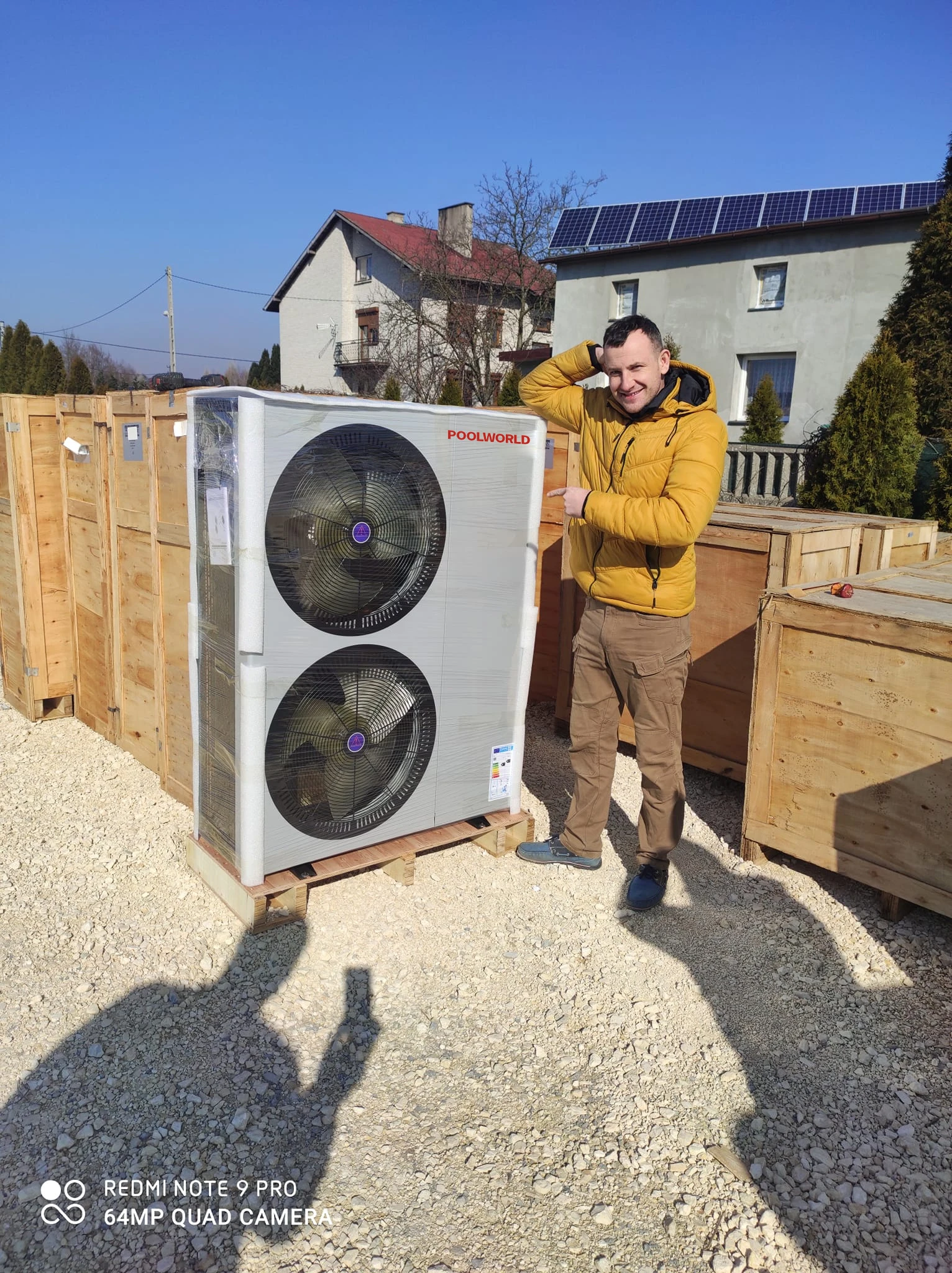

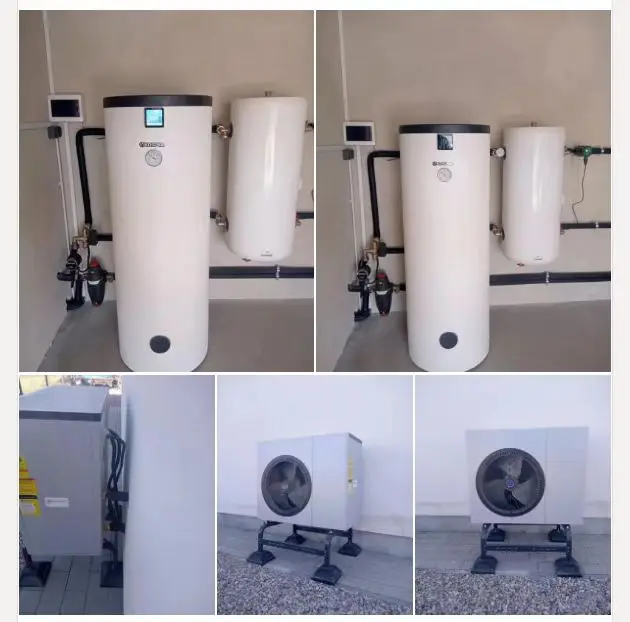

Client feedback
FAQ
Q: Are you heat pump supplier of trading company or manufacturer ?

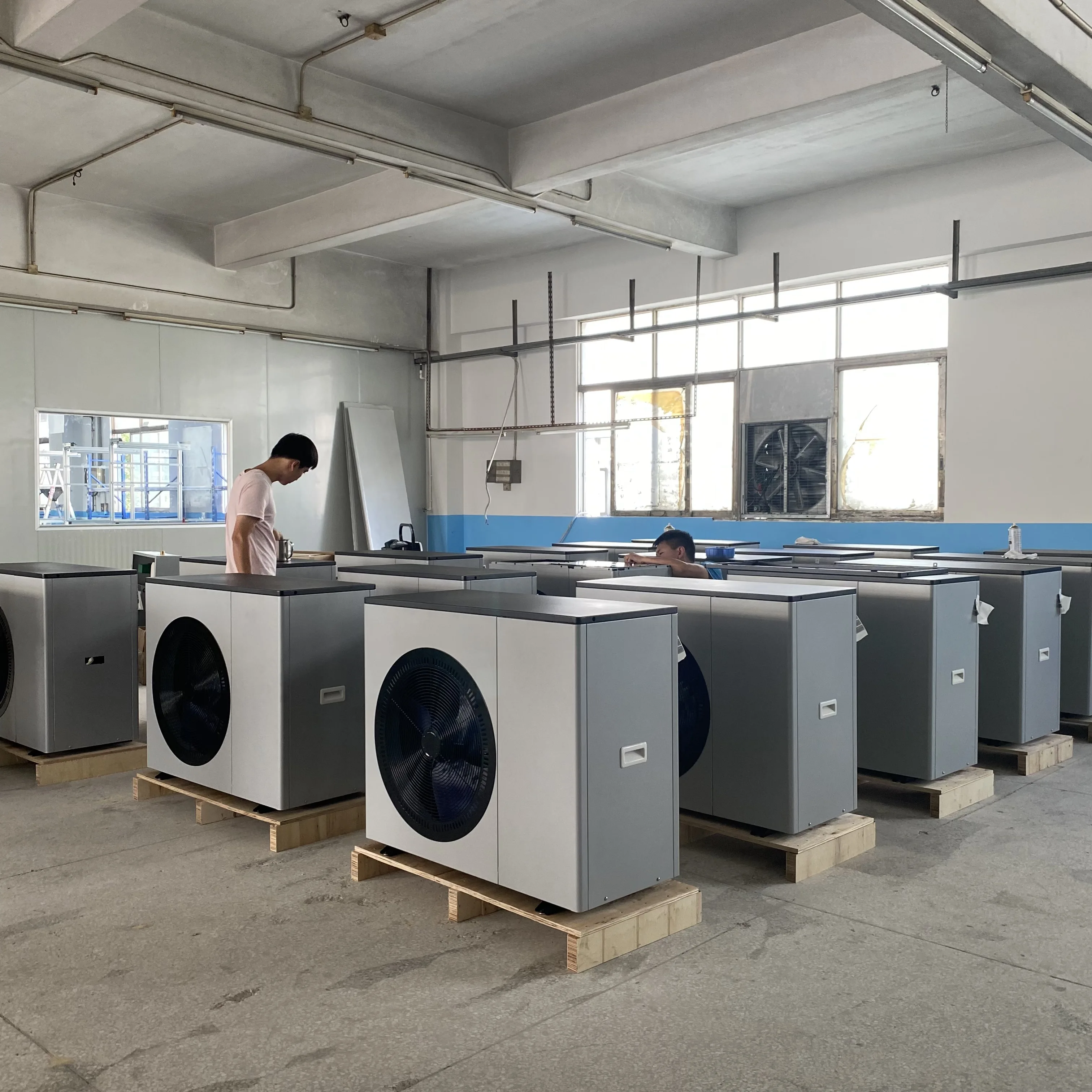

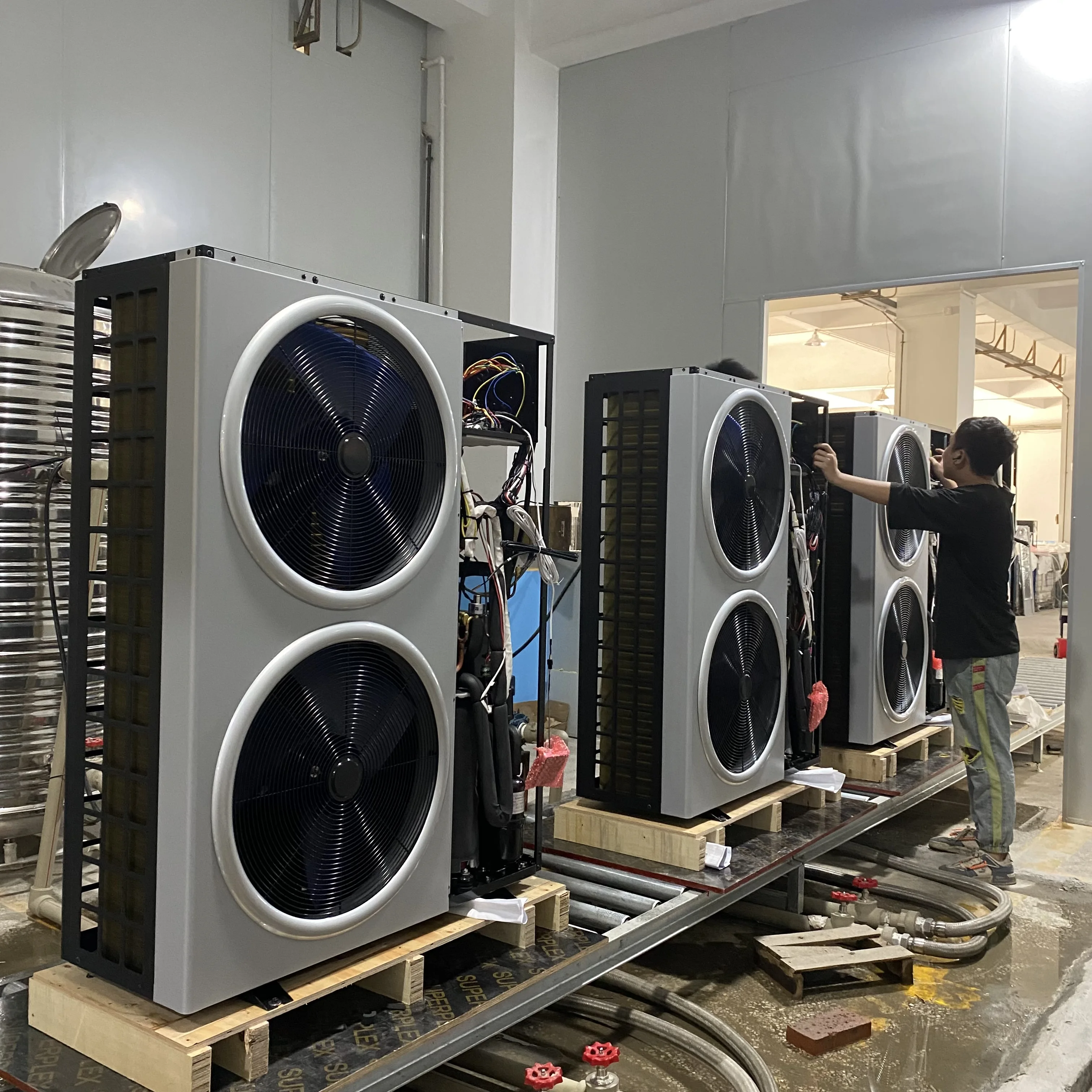

A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.
A: We are R&D and manufacturer factory with 15,000 sq meters modern factory.
Q: Do you accept OEM & ODM?
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
A: Yes. We can produce Pool World standard products under clients' brand, modify the products to satisfy client's personalized requirements and work together with clients to design and produce a totally new products.
Q: What support do you offer to clients?
A: We can provide product certification requirements for local markets; provide catalogs,technical manuals; co-exhibit with the clients in leading industry exhibitions; do promotion on the local market’s media by our news release resources.
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
Q: How long is your Heat Pump delivery time?
A: Generally it is 1-5 working days if the goods are in stock. or it is 15-25 working days if the goods are not in stock, it is
according to quantity.
Q: How about the channel management?
A: We are willing to give the A-level agent rights, or even exclusive agent rights to clients with strong sales and service capability for certain market/product, who would enjoy our most competitive product price and tiered special discount for substantial order. Last but not least, for specific markets, we prefer to operate as a co-brand with our clients, or offer Pool World’s own brand products and services to dealers.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
Q: How long can I get the salesman's contact after sending the inquiry?
A: The customer service will check the inquiry message every day and match the right sales manager for every inquiry. The sales manager will contact you within 12 hours after receiving the sales leads. Please complete your email and contact number in your personal information so that we can contact you soon.
My friend,if you are interested in our heat pumps,please don't hesitated to send us your inquiry ,we will send you the latest product catalog and price within 1 hour! Pool World looking forward to cooperating with you!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $352 / piece
- 10–49 piece: US $338 / piece
- 50+ piece: US $265 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ground pool heat pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ground pool heat pump carry?
It is supplied with CB/CE/EMC/Emf/GS/LFGB/RoHS/SASO, etc documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
