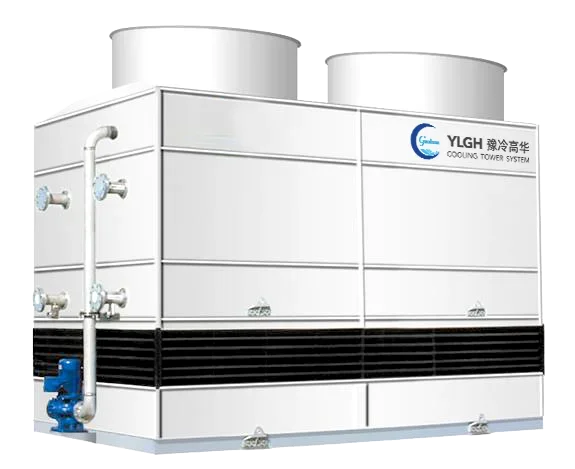

This closed type cooling tower is published with the manufacturer’s full specification — 240V, 38OV, 440V, 7.5kw. For a binding price and lead time, send the volume you need and where it ships to.

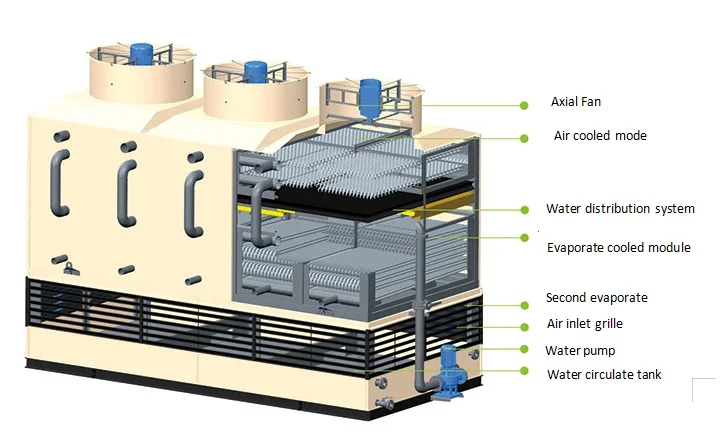

A closed type cooling tower keeps the process fluid sealed inside a coil while the evaporative cooling happens outside it, so the process circuit never sees the fouling, algae and chemical treatment an open tower requires. Counter flow arrangement extracts more heat per unit of airflow than cross flow. 7.5kW at 240V, 380V or 440V with PLC control, finned tube and filling, in metal construction.
Key Features of This Closed Type Cooling Tower
- Power(W): 7.5kw
- Voltage: 240V, 38OV, 440V
- Material: Metal
- Warranty: 1 Year
- Place Of Origin: Henan, China
- Cooling Type: Counter Flow
Technical Specifications
| Key Selling Points | High-Accuracy |
|---|---|
| Power(W) | 7.5kw |
| Voltage | 240V, 38OV, 440V |
| Cooling Type | Counter Flow |
| Warranty | 1 Year |

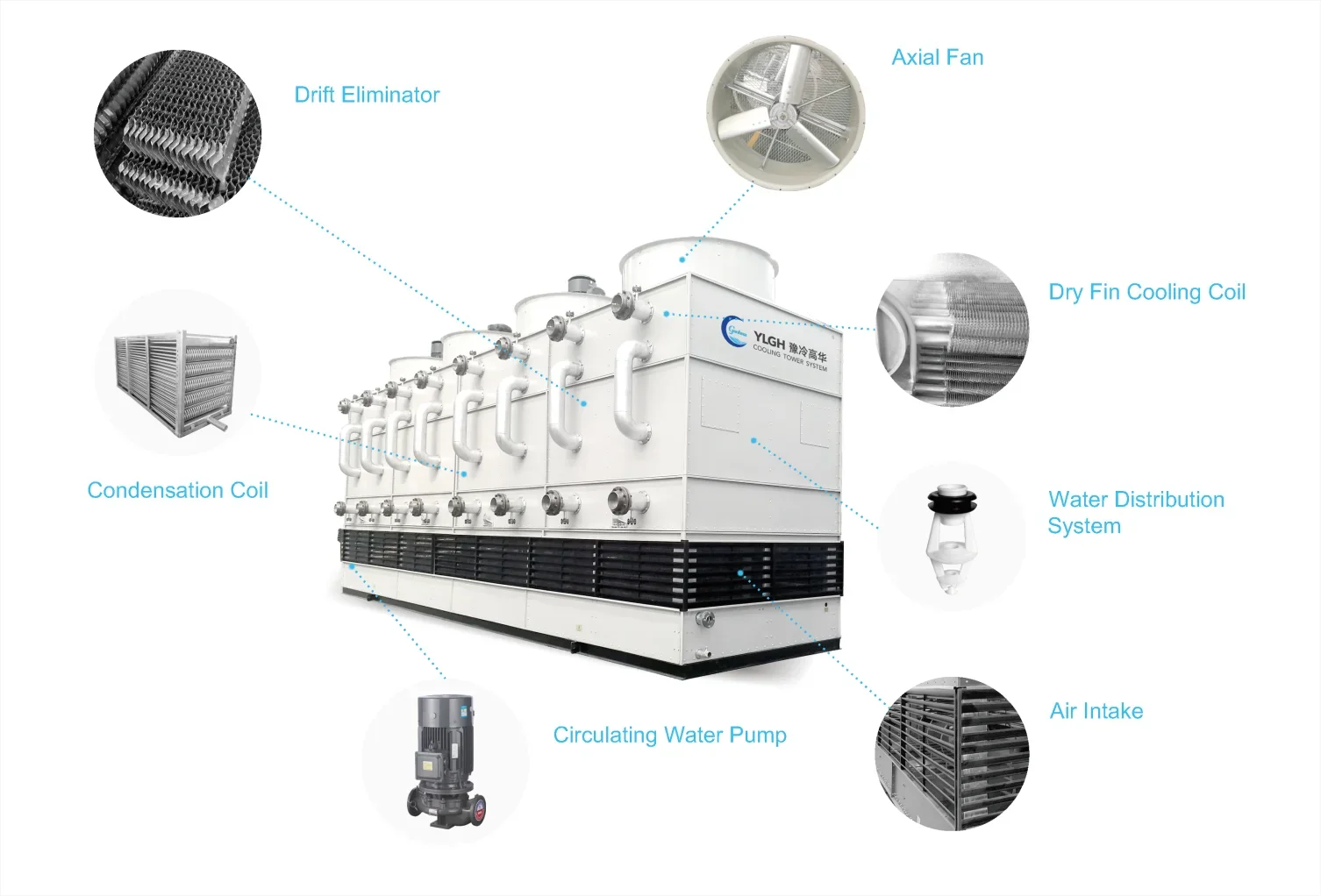

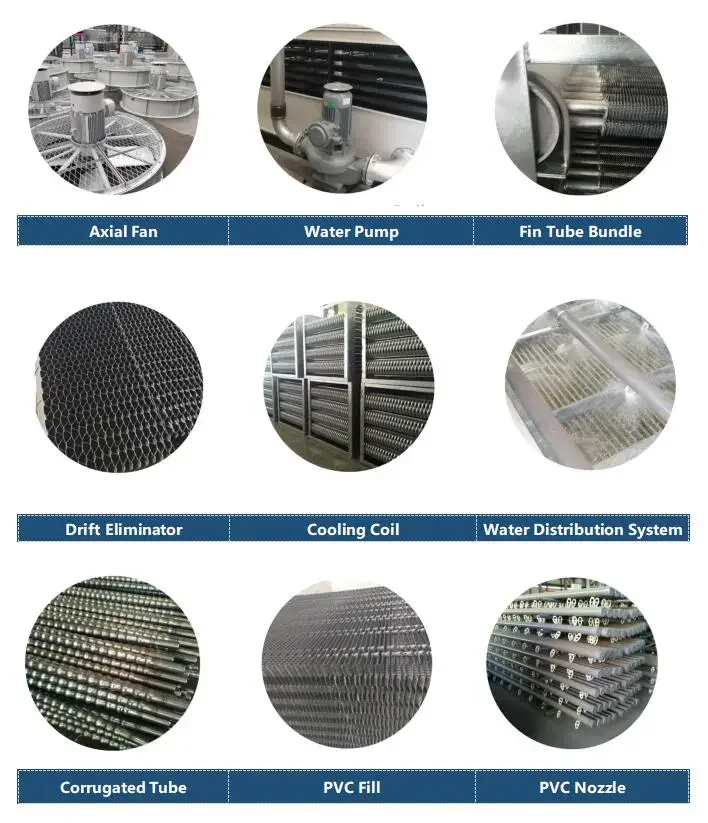

| Core Components | PLC, Engine, Motor, Pump, Fan, Filling, Finned tube |
| Material | Metal |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Brand Name | YLGH |
| Dimension(L*W*H) | 2600*2720 |
| Selling Units | Single item |
| Single Package Size | 20X20X20 cm |
| Single Gross Weight | 4.000 kg |

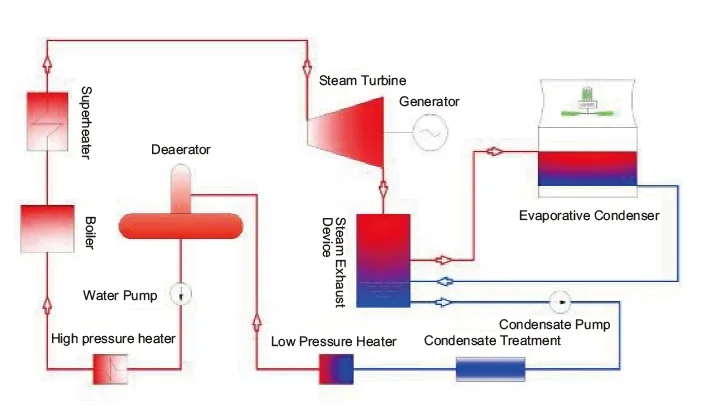

Product Description of Evaporative Condenser
|
Model
|
Dimension W×L
|
Coil Specifications
|
Axial fan
Model
|
Fan power
(KW)
|
Air volume
|
Pump model
|
Water flow
m3/h
|
Inlet/Outlet Size
|
|
NBT-27
|
1430×1180
|
1260×1000*6
|
6.3#
|
1.1
|
15000
|
80/125-0.75/4
|
25
|
DN150/DN150
|
|
NBT-36
|
1430×1180
|
1260×1000*8
|
6.3#
|
1.1
|
15000
|
80/125-0.75/4
|
25
|
DN150/DN150
|
|
NBT-45
|
1430×1180
|
1260×1000*10
|
6.3#
|
1.5
|
18500
|
80/125-0.75/4
|
25
|
DN150/DN150
|
|
NBT-48
|
2600×1430
|
1260×2430*4
|
6.3#
|
1.1*2
|
15000*2
|
80/160-1.1/4
|
35
|
DN150/DN150
|
|
NBT-72
|
2600×1430
|
1260×2430*6
|
6.3#
|
1.1*2
|
15000*2
|
80/160-1.1/4
|
35
|
DN150/DN150
|
|
NBT-93
|
2600×1430
|
1260×2430*8
|
9#
|
2.2*2
|
26000*2
|
80/160-1.1/4
|
35
|
DN150/DN150
|
|
NBT-120
|
2600×1430
|
1260×2430*10
|
9#
|
2.2*2
|
26000*2
|
125/125-2.2/4
|
60
|
DN150/DN150
|
|
NBT-145
|
2600×1430
|
1260×2430*12
|
9#
|
2.2*2
|
26000*2
|
125/125-2.2/4
|
60
|
DN150/DN150
|
|
NBT-96
|
2620×2720
|
1260×2430*4
|
13#
|
4
|
55000
|
125/125-2.2/4
|
60
|
DN150/DN150
|
|
NBT-145
|
2620×2720
|
1260×2430*6
|
15#
|
5.5
|
78000
|
125/125-2.2/4
|
60
|
DN150/DN150
|
|
NBT-193
|
2620×2720
|
1260×2430*8
|
15#
|
5.5
|
78000
|
125/125-2.2/4
|
60
|
DN150/DN150
|
|
NBT-241
|
2620×2720
|
1260×2430*10
|
16#
|
5.5
|
80000
|
125/150-3/4
|
78
|
DN150/DN150
|
|
NBT-290
|
2620×2720
|
1260×2430*12
|
16#
|
7.5
|
10000
|
125/160-4/4
|
78
|
DN150/DN150
|
|
NBT-181
|
3190×2720
|
1260×2430*6
|
16#
|
7.5
|
10000
|
125/160-4/4
|
120
|
DN150/DN150
|
|
NBT-241
|
3190×2720
|
1260×3000*8
|
16#
|
7.5
|
10000
|
125/160-4/4
|
120
|
DN150/DN150
|
|
NBT-302
|
3190×2720
|
1260×3000*10
|
18#
|
11
|
125000
|
125/160-4/4
|
120
|
DN150/DN150
|
|
NBT-362
|
3190×2720
|
1260×3000*12
|
18#
|
11
|
125000
|
125/160-4/4
|
120
|
DN150/DN150
|
(2) High Heat Exchange Ability;
(3) Easy to install;
(4) Low maintenance cost;
(5) Long lifetime.
You may like
FAQ
Frequently Asked Questions
What is the minimum order quantity for this closed type cooling tower?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this closed type cooling tower?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 240V, 38OV, 440V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
