This window air conditioner is published with the manufacturer’s full specification — airflow 18000m³/h, 1.1Kw. Made by Aolan (Fujian) Industry Co., Ltd. (14 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Window Air Conditioner
- Model Number: AZL18-ZC10E
- Power: 1.1Kw
- Airflow: 18000m³/h
- Fan Speed: Multi-speed,Silicon Control
- Warranty: 1 Year
- Place Of Origin: Fujian, China
Technical Specifications
| Type | EVAPORATIVE AIR COOLER |
|---|---|
| Mounting Type | Floor Standing |
| Compressor Brand | Performer |
| Fan Motors Type | AC |
| Key Selling Points | Low Noise Level |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Fujian, China |
| Weight (Kg) | 130 |
| Brand Name | aolan |
| Model Number | AZL18-ZC10E |
| Dimension(L*W*H) | 1210*1150*950mm |
| Fan Type | Axial |
| Control | LCD Control |
| Fan Speed | Multi-speed,Silicon Control |
| Rated Current | 5.6 A |
| Pressure | 190 Pa |
| Airflow | 18000m³/h |
| Vent Size | 650*650mm |
| Power | 1.1Kw |
| Noise | ≤76dBA |
| QTY/FULL(40HQ) | 40 |
| Selling Units | Single item |
Product Details

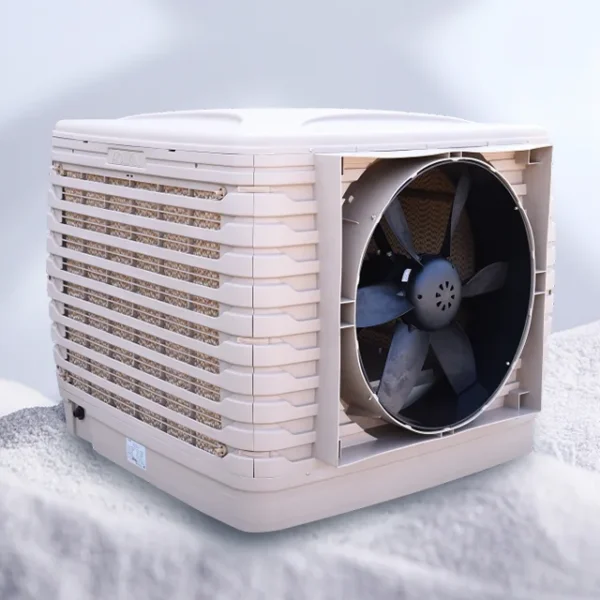

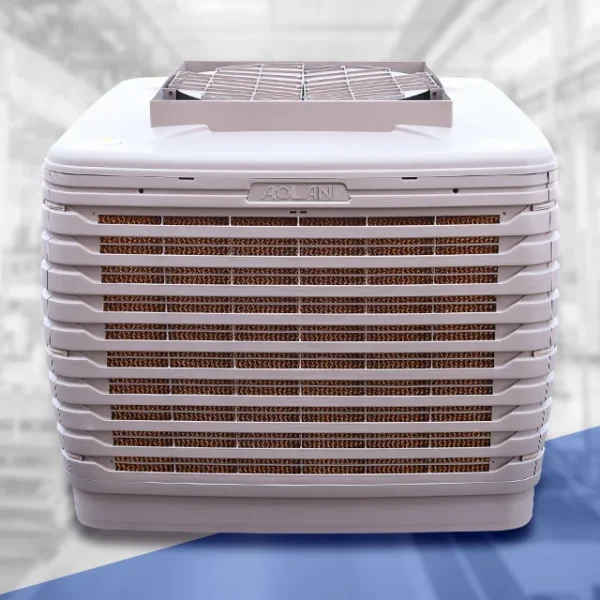

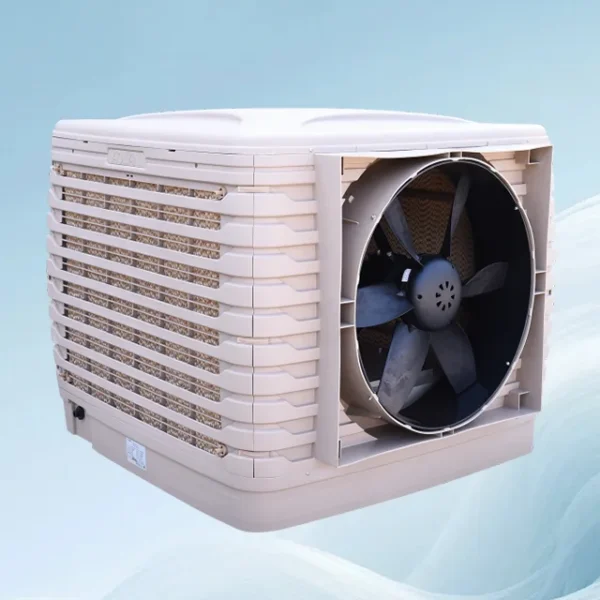

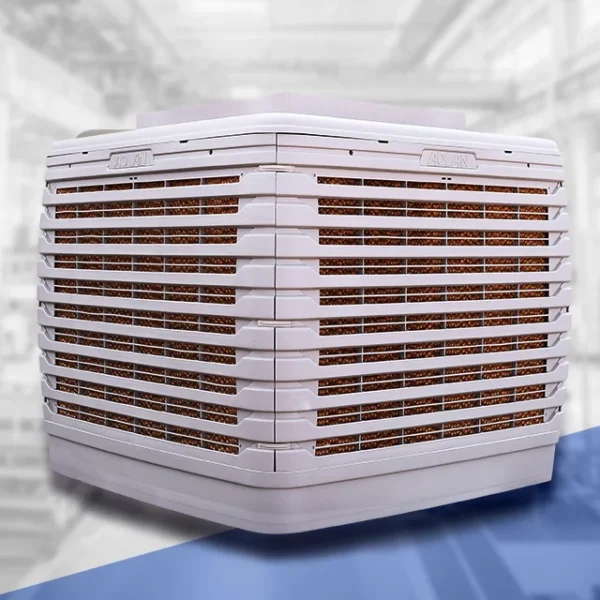

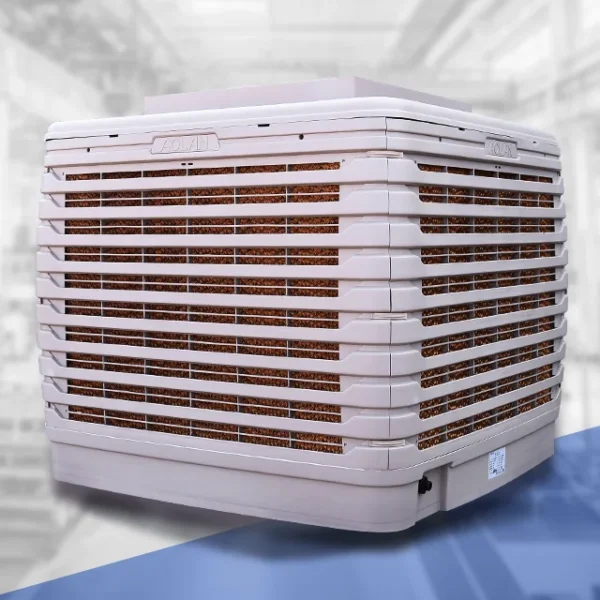

Airflow 18000m3/h industrial air cooler systems for broiler DC MOTOR for garment factory
Characteristics:
1. Reasonable design with strong structure.
2. Slant water tank with drain valve in lowest place, while drainage, water-flow can wash tank.

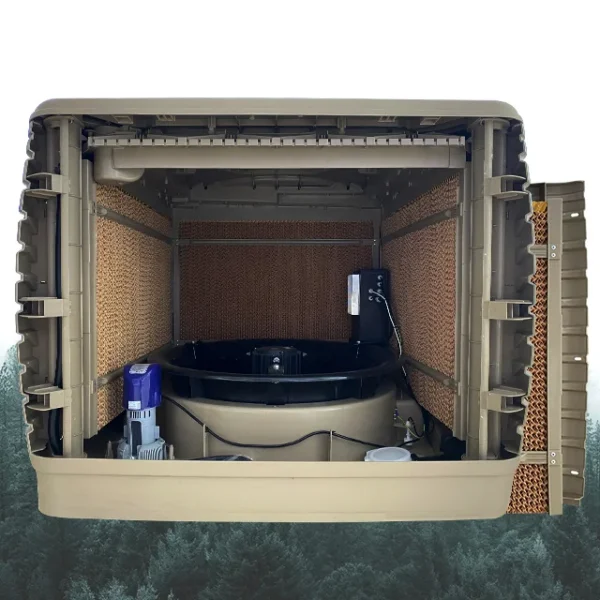

3. Integrated water distributor with only one built-in pipe -no risk for water leakage.
4. With air damper to avoid hot air outlet in winter.
5. Easy installation filter.
6. LCD or LED controller optional.
7. Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
Product Advantage:
1.In different climates, the supply air difference is 5-15℃.
2.Efficiency for cooling pads used is 90%.
3.Motor applied is moistureproof, waterproof with tiny temperature rise.

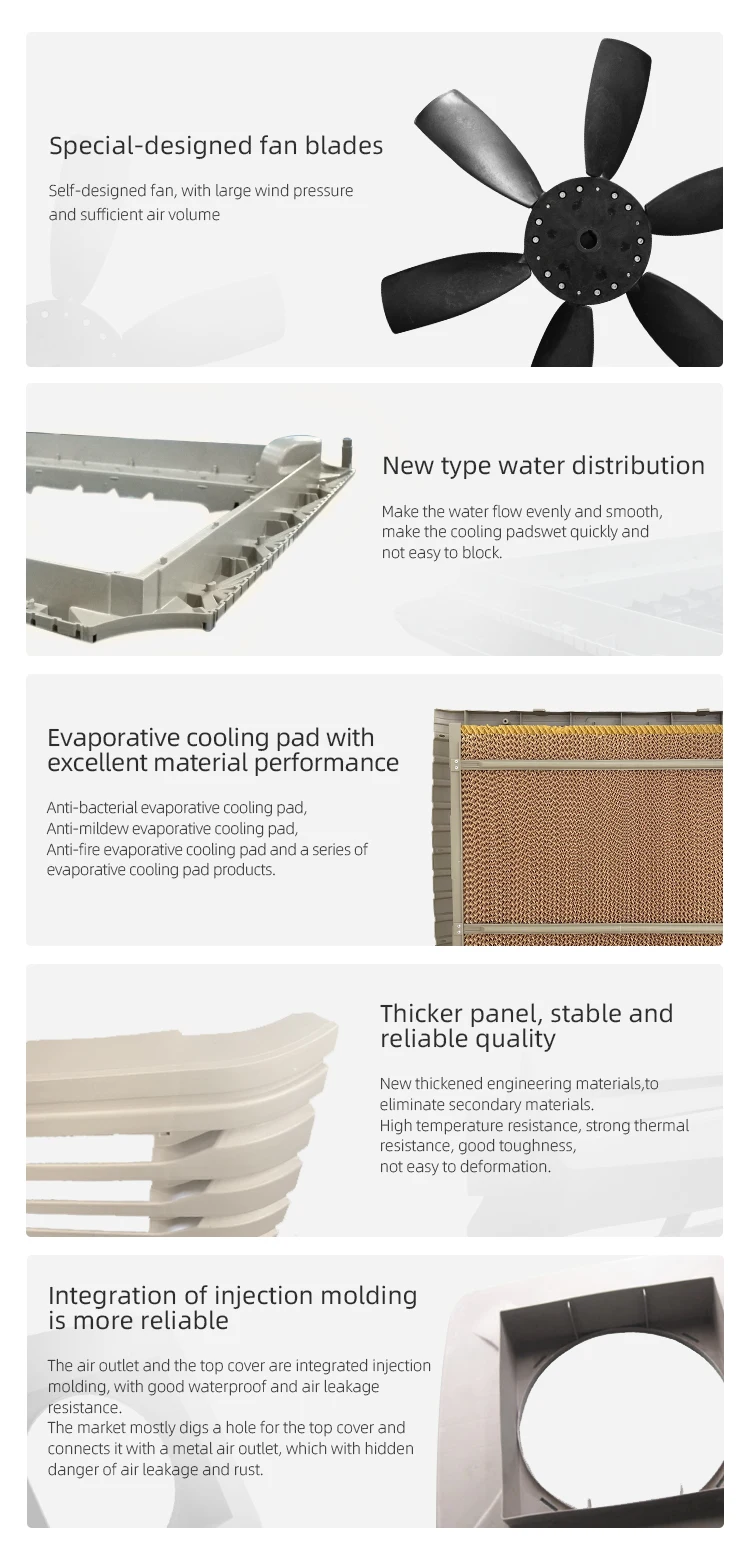

4.Fan impeller is special designed to allow large airflow but lower noise.
5.Even non-professionals can disassemble and clean cooling pads easily.
6.Integrated water distribution system–reduce water block risk.
7.1-99 hours auto clean can be made to extend cooler's life.
8.Water lack protection allows long pump life.
1. Reasonable design with strong structure.
2. Slant water tank with drain valve in lowest place, while drainage, water-flow can wash tank.
3. Integrated water distributor with only one built-in pipe -no risk for water leakage.
4. With air damper to avoid hot air outlet in winter.
5. Easy installation filter.
6. LCD or LED controller optional.
7. Materials for casing are anti-UV, anti-corrosion, anti-aging, and no deformation.
Product Advantage:
1.In different climates, the supply air difference is 5-15℃.
2.Efficiency for cooling pads used is 90%.
3.Motor applied is moistureproof, waterproof with tiny temperature rise.
4.Fan impeller is special designed to allow large airflow but lower noise.
5.Even non-professionals can disassemble and clean cooling pads easily.
6.Integrated water distribution system–reduce water block risk.
7.1-99 hours auto clean can be made to extend cooler's life.
8.Water lack protection allows long pump life.
Specification
Model/Specs | AZL18-ZX10E | AZL18-ZX10G | AZL18-ZX32E | ||
AZL18-ZS10E | AZL18-ZS10G | AZL18-ZS32E | |||
AZL18-ZC10E | AZL18-ZC10G | AZL18-ZC32E | |||
X-down discharge,S-up discharge,C-side discharge | |||||
Electrial Source(V/Hz) | 110/60 220/50(V/Hz) 1-phase | 110/60 220/50(V/Hz) 1-phase | 380-415/50-60(V/Hz) 3-phase | ||
Power(kw) | 1.1 | 1.1 | 1.1/0.37 | ||
Rated Currency(A) | 5.6 | 4.8 | 2.0/0.85 | ||
Airflow(m3/h) | 18000 | 18000 | 18000/11000 | ||
Fan Type | Axial | Axial | Axial | ||
Fan speed | Multi-speed,Silicon control | Multi-speed,Inverter | 3-phase,2-speed | ||
Pressure(Pa) | 170 | 170 | 170/63 | ||
Vent Size(L*W)(mm) | 650*650mm(down/up) 647*647(side) | 650*650mm(down/up) 647*647(side) | 650*650mm(down/up) 647*647(side) | ||
Noise (dBA) | ≤76 | ≤76 | ≤76 | ||
Dimension(L*W*H)(mm) | 1150*1150*950(down) 1150*1150*982(up) 1210*1150*950(side) | 1150*1150*950(down) 1150*1150*982(up) 1210*1150*950(side) | 1150*1150*950(down) 1150*1150*982(up) 1210*1150*950(side) | ||
Pad Size(L*W*H)(mm) | 620*825*100 | 620*825*100 | 620*825*100 | ||
Net Weight (±3kg) | 80(down) 86(up) 100(side) | 80(down) 86(up) 100(side) | 80(down) 86(up) 100(side) | ||
Operation Weight (kg) | 110(down) 116(up) 130(side) | 110(down) 116(up) 130(side) | 110(down) 116(up) 130(side) | ||
Controller | LCD Control | LCD Control | Botton +Knob switch | ||
Pre-dust Filter | Optional | Optional | Optional | ||
Exhaust | Optional | Optional | Optional | ||
Pre-cooling | Optional | Optional | Optional | ||
Group- control | Optional | Optional | Optional | ||
Damper | Optional | Optional | Optional | ||
Tem&hum Control | Optional | Optional | Optional | ||
QTY/FULL(40HQ) | 40 | 40 | 40 | ||
QTY/SKD(40HQ) | 70(down)/65(up)/40(side) | 70(down)/65(up)/40(side) | 70(down)/65(up)/40(side) | ||
Product Description
Company Profile
Aolan (Fujian) Industry Co., Ltd. is one of the largest manufacturers of evaporative air coolers in China. As a leader in the field of international evaporative air cooler industry, so far, Aolan has developed 11 series and more than 80 kinds of air coolers, with airflow from 800m3/h to 80,000m3/h. And they have been used in different fields, including domestic, commercial, industrial areas. Aolan holds the belief of Being Scientific, Strict and Extending, and led by board directors, Aolan has been exporting products to more than 50 countries and regions, including countries from Europe, America, Korea, Japan, South America, Africa, etc. What's more, Aolan drafted and made the National Standards of Evaporative Air Cooler. By building the only national lab for evaporative air coolers, Aolan is becoming an important training place for advanced talents in the field.
FAQ
1. who are we?
We are based in Fujian, China, start from 2006,sell to Domestic Market(48.00%),Southeast Asia(15.00%),South America(10.00%),Africa(10.00%),Mid East(8.00%),North America(5.00%),Western Europe(4.00%),South Asia(0.00%),Eastern Asia(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Evaporative Air Cooler, Air Cooler, Evaporative Cooling Pad, Portable Air Cooler, Swamp Cooler
4. why should you buy from us not from other suppliers?
AOLAN is chosen as the drafting unit of the national standards for evaporative air cooler (desert cooler or swamp cooler) and the first national comprehensive laboratory for testing standard performance is under construction by AOLAN..
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
We are based in Fujian, China, start from 2006,sell to Domestic Market(48.00%),Southeast Asia(15.00%),South America(10.00%),Africa(10.00%),Mid East(8.00%),North America(5.00%),Western Europe(4.00%),South Asia(0.00%),Eastern Asia(0.00%),Oceania(0.00%),Southern Europe(0.00%),Central America(0.00%),Northern Europe(0.00%),Eastern Europe(0.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Evaporative Air Cooler, Air Cooler, Evaporative Cooling Pad, Portable Air Cooler, Swamp Cooler
4. why should you buy from us not from other suppliers?
AOLAN is chosen as the drafting unit of the national standards for evaporative air cooler (desert cooler or swamp cooler) and the first national comprehensive laboratory for testing standard performance is under construction by AOLAN..
5. what services can we provide?
Accepted Delivery Terms: FOB；
Accepted Payment Currency:USD,EUR,GBP;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Japanese
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–39 unit: US $972.18 / unit
- 40+ unit: US $574.99 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
