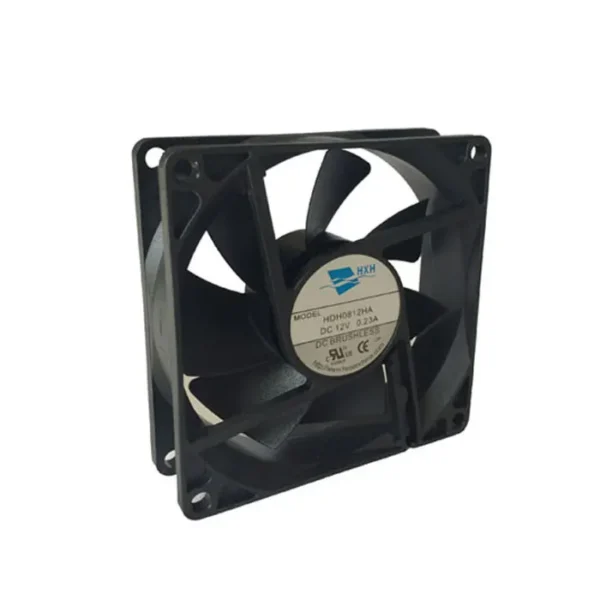

This cooling fan is published with the manufacturer’s full specification — 5V/12V/24V/48V, power 1.0~6.72W. Made by Shenzhen Haixinghe Electroincs Co., Ltd. (17 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cooling Fan
- Model Number: HDH0812EA
- Power: 1.0~6.72W
- Voltage: 5V/12V/24V/48V
- Blade Material: Plastic
- Noise Level: 22.1~42.0dBA
- Speed: 2000~5000RPM
Technical Specifications
| Voltage | 5V/12V/24V/48V |
|---|---|
| Speed | 2000~5000RPM |
| Blade Material | Plastic |
| Electric Current Type | DC |
| After-Sales Service Provided | Overseas service center available |
| Place Of Origin | Guangdong, China |
| Power | 1.0~6.72W |
| Air Volume | 26.13~63.50CFM |
| Brand Name | HXH |
| Model Number | HDH0812EA |
| Poduct | Cooling Fan |
| Bearing Type | Ball/Sleeve/hydraulic bearing |
| Fan Dimension | 80x80x25mm |
| Static Pressure | 1.75~9.40mmH2O |
| Noise Level | 22.1~42.0dBA |
| Applications | Server cabinet,UPS power,computer,CPU,etc. |
| Packaging Details | 135pcs cooling fan/carton |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Supply Ability | 30000 pieces per Day Cooling Fan |

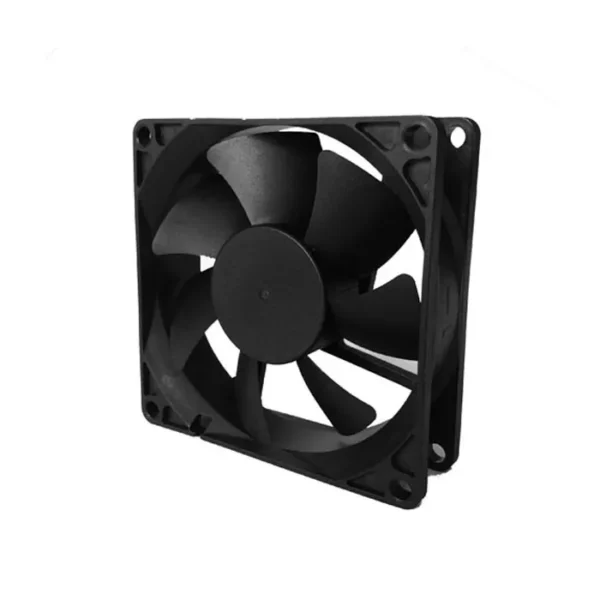

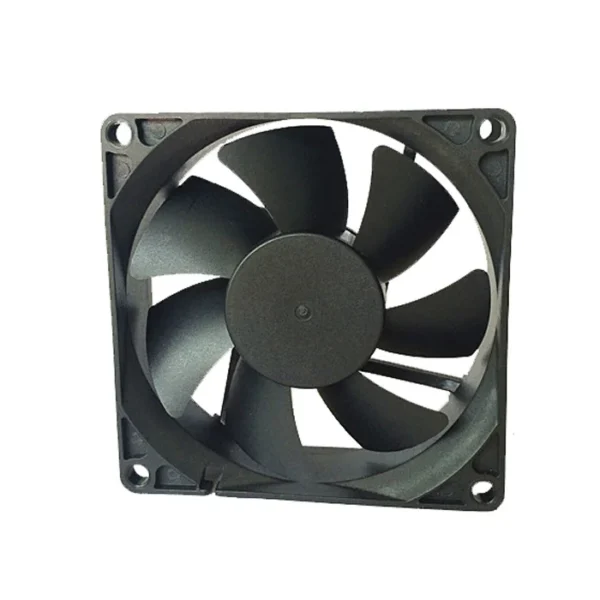

Product Details
1" 2" 3" 4" 5" 6" 5v 12v 24v 48v dc cooling fan with fans size from 20mm to 254mm

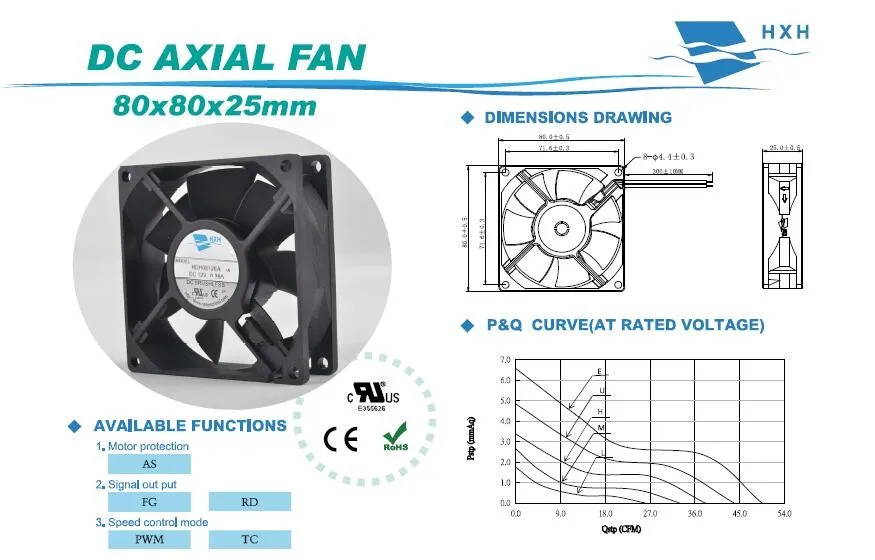

- 1. frame size(mm): 80X80X25
- 2. bearing system type: Ball/Hydraulic bearing
- 3. rated voltage: 5V/12V/24V/48V
- 4. rated speed: 2000/2500/3000/3500/4000/5000RPM
- 5. maxiam air flow: 26.13/33.02/38.10/43.90/49.50/63.50CFM
- 6. maxiam pressure: 1.75/2.65/3.38/4.85/6.58/9.40mmH2O
- 7. maxiam noise: 22.1/26.7/30.9/37.2/40.9/42.0dBA
- 8. function: by impedance,by IC, by IC with FG
- 9. safety approvals: CE,UL
80*80*25mm dc fans with different specifications for your choice:
| 80×80×25MM | ||||||||||||
| Model | Bearing | Rated Voltage | Startup Voltage | Current | Power | Speed | Air Flow | Static Pressure | Noise | |||
| Part NO. | Function | System | VDC | VDC | A | W | RPM | M3/min | CFM | mmH2O | INH2O | dBA |
| HDH0805UA | -A | Hydraulic | 5 | 4 | 0.60 | 3.00 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 |
| HDH0805HA | -A | 4 | 0.45 | 2.25 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDH0805MA | 4 | 0.25 | 1.25 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0805LA | 4 | 0.20 | 1.00 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDB0805UA | -A | Ball | 4 | 0.60 | 3.00 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | |
| HDB0805HA | -A | 4 | 0.45 | 2.25 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDB0805MA | 4 | 0.25 | 1.25 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0805LA | 4 | 0.20 | 1.00 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDH0812HA | Hydraulic | 12 | 5 | 0.23 | 2.76 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |
| HDH0812MA | 5 | 0.16 | 1.92 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0812LA | 5 | 0.09 | 1.08 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDB0812VA | -A | Ball | 5 | 0.55 | 6.60 | 5000 | 1.80 | 63.50 | 9.40 | 0.37 | 42.0 | |
| HDB0812EA | -A | 5 | 0.38 | 4.56 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | ||
| HDB0812UA | -A | 5 | 0.28 | 3.36 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0812HA | 5 | 0.23 | 2.76 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |||
| HDB0812MA | 5 | 0.16 | 1.92 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0812LA | 5 | 0.09 | 1.08 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDH0824HA | Hydraulic | 24 | 12 | 0.14 | 3.36 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |
| HDH0824MA | 12 | 0.09 | 2.16 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDH0824LA | 12 | 0.06 | 1.44 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDB0824EA | -A | Ball | 12 | 0.28 | 6.72 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | |
| HDB0824UA | -A | 12 | 0.18 | 4.32 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0824HA | 12 | 0.14 | 3.36 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | |||
| HDB0824MA | 12 | 0.09 | 2.16 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | |||
| HDB0824LA | 12 | 0.06 | 1.44 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | |||
| HDH0848HA | -A | Hydraulic | 48 | 24 | 0.08 | 3.84 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 |
| HDH0848MA | -A | 24 | 0.06 | 2.88 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | ||
| HDH0848LA | -A | 24 | 0.04 | 1.92 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | ||
| HDB0848EA | -A | Ball | 24 | 0.10 | 4.80 | 4000 | 1.40 | 49.50 | 6.58 | 0.26 | 40.9 | |
| HDB0848UA | -A | 24 | 0.09 | 4.32 | 3500 | 1.24 | 43.90 | 4.85 | 0.19 | 37.2 | ||
| HDB0848HA | -A | 24 | 0.08 | 3.84 | 3000 | 1.08 | 38.10 | 3.38 | 0.13 | 30.9 | ||
| HDB0848MA | -A | 24 | 0.06 | 2.88 | 2500 | 0.93 | 33.02 | 2.65 | 0.10 | 26.7 | ||
| HDB0848LA | -A | 24 | 0.04 | 1.92 | 2000 | 0.74 | 26.13 | 1.75 | 0.07 | 22.1 | ||
| Electric Strength | 5mA max at 1500VAC for 1 min between lead wire and frame |
| Insulation Resistance | 10M ohm between lead wire and frame(DC 500V) |
| Life Expectancy(Ball bearing) | 50000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life Expectancy(Hydraulic bearing) | >40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Life Expectancy(Fluid Dynamic bearing) | >60000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
| Operation Temperature | -10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F), specification |
| Storage Temperature | Storage Temperature: -40~75 degree C(-40~167 degree F) |
| Protection | Motor protection and polarity protection |
| Lead wire | UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
| Plastic Material | Black PBT(UL94V-0) |
Applications
1.Home appliance 2.Kitchen 3.Car industry 4.Telecom 5.Medical Equipment 6. UPS Power7. LED Lighting 8.Computer 9.Safety Equipment 10.Office Electrics
Thank you for clicking our product,And if this product couldn’t meet your requirements or if you have any other needs,please contact us!
- 1.We have a strong engineering design capabilities, we have cooperation with domestic and foreign many well-known fan factory partnership, has a strong technical support, we can design according to customer requirements and manufacture specialized products.
- 2.We understand the specific needs of various industries for fan, offers a variety of standard products for your choice.
- 3.Our fan is made of high quality bearing, silicon steel sheet, enameled wire, has higher reliability.
- 4.We provide considerate and meticulous service, and fast on time delivery.
Our goal: be the best cooling fan manufacturer, even in the world!
- 2012,7:Factory expansion again, Set up the radiator module division, passed UL certification.
- 2011.5:Factory expanded, moved to Dongguan and found Dongguan Hesen Industrial Co.,Ltd.
- 2007.4:Factory passed ISO9001 quality system certificate. CE certificate passed, manufacture all series of AC and DC FAN.
- 2004.5:Build Shenzhen Haixinghe Electronic Co., Ltd, creat our own brand "HXH".
- 2001.8:processing plant was given priority to with OEM, manufacture part of the model fan for part of the customers.
Cooling Fan
- 135pcs/carton.
- 2-3 weeks after confirm your order and receive your payment.
- We ship goods to worldwide! Product will be ship by EMS, FedEx, DHL, or UPS.
- Please check with your local agency as you might be required to pay custom duty/tax on import of this goods, all custom duty/tax pay by buyer. We HXH do not responsible for any custom duty or import tax.
- All items will be packed safely by our professional logistic department, please check the product before Signoff, if your item is damaged or lost by Express, please Reject. Meanwhile, please contact us immediately so we can assist with correcting the problem A.S.A.P, And we will report to the Express and ask for refund.
1. What is a DC Axial Fan?
An DC fan is usually powered by 3v, 5v, 12v, 24v, 36v and 48v. It blows air along the axis of the fan, or parallel to the track of the blade axis. Standard DC Axial fan sizes include 20mm, 30mm, 40mm, 50mm, 60mm, 70mm, 80mm, 92mm,120mm, 150mm, and 200mm.
2. How to choose a DC fan?
To choose a DC fan, you should consider the points below
a. fan voltage
b. fan current
c. fan speed
d. fan airflow
e. fan noise
f. fan lifespan
3. What is a bearing?
Fan bearing includes Sleeve Bearing and Ball Bearing, life expectancy of sleeve bearing fan is 30000hours, while ball bearing is 50000hours or more.
4. How do we carry out quality control?
Usually, there are two ways to monitor reliability during the manufacturing process.
a. Early Life Test
This is used as a mean of process control aimed at identifying any latent manufacturing problems and determining the effectiveness of burn-in. Every day, 5 samples will be picked up randomly from one of the production lines for burn in at 50°C+/-5°C for 24 hours.
b. On-going Reliability Demonstration
This is a longer-term program aimed at providing data on continuous basis to demonstrate the reliability of product. 10 units per month are randomly collected from one of the production lines for burn-in for 168 hours at 50°C+/-5°C. Units are monitored and tested on daily basis. Failed units will be analyzed and corrective actions taken where necessary.
5. What can I do if we can not find the suitable fan model in the fan list?
Please contact us for customized fans.
If you want to learn more and get latest price pls add my trademanager or send inquiry to me i will be happy to service with you !
Ordering and Pricing
- Minimum order quantity: 200 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 200 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 5V/12V/24V/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
