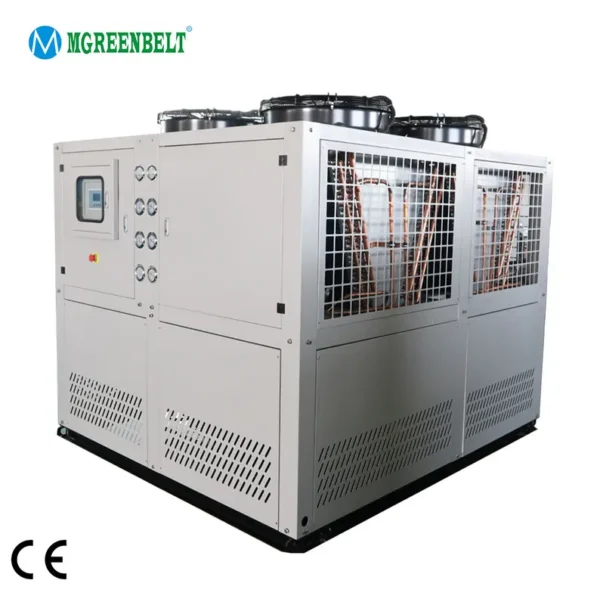

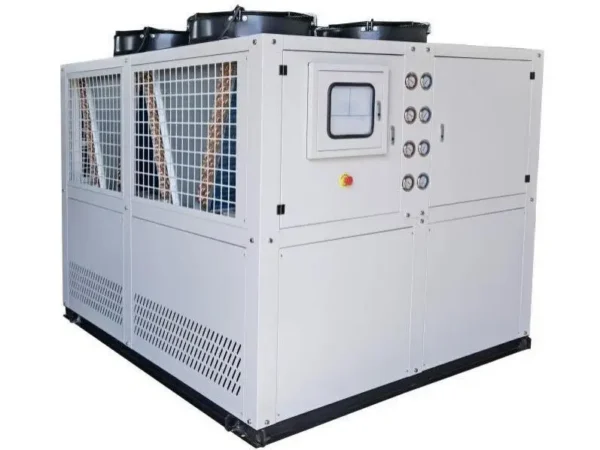

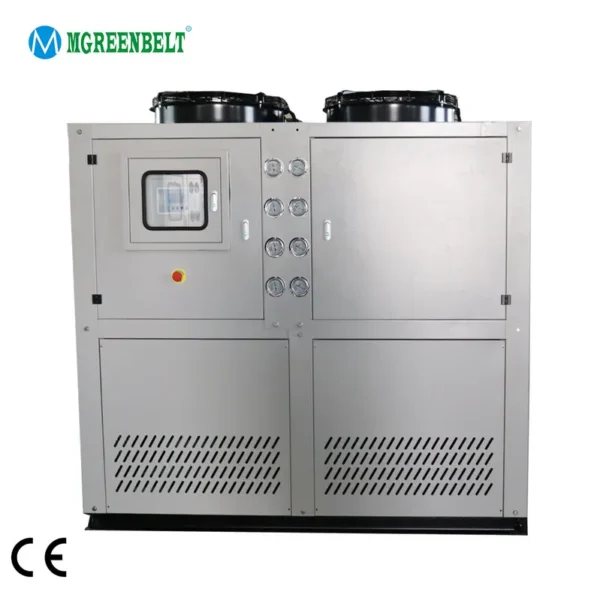

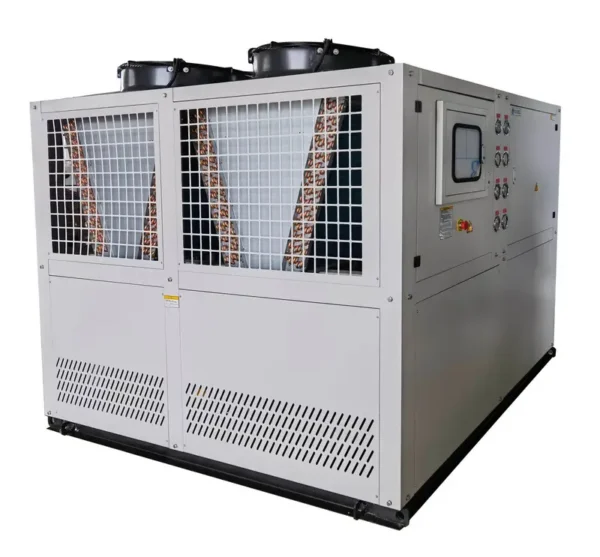

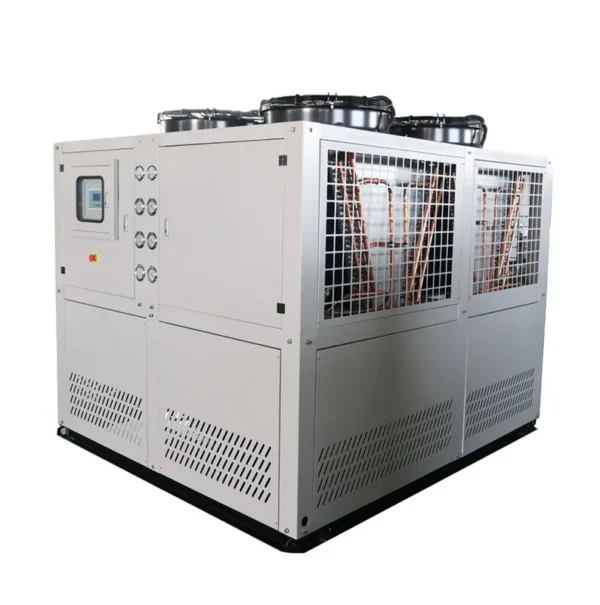

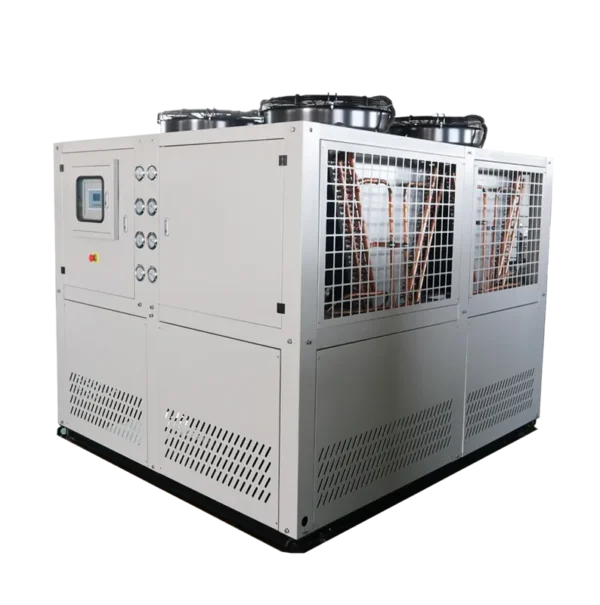

Cooled Water Scroll Chiller, 80kw, 100kw, 110kw, 128kw

Cooled water scroll chiller — voltage 3PH~220V/380/415V/460V~50HZ/60HZ, cooling capacity 100104 kcal/h, 116kw. The complete factory specification follows. Made by Jinan Mgreenbelt Machinery Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Cooled Water Scroll Chiller

• Power: 130kw
• Voltage: 3PH~220V/380/415V/460V~50HZ/60HZ
• Cooling Capacity: 100104 kcal/h, 116kw
• Tank Capacity: 580L
• Refrigerant: R-404A, R134a, R-410A, R-32, R-12, R-22
• Warranty: 1 Year

Technical Specifications

Product Details

Products Description

Air Cooled Water Chiller

Energy Saving Industrial Chiller is an efficient air-cooled vortex chiller that uses world-renowned compressors, V-shaped
air-cooled finned condensers, and built-in water pumps. This product combines advanced technology and reliable performance to provide sustainable cooling solutions for the industrial sector. Energy Saving Industrial Chiller can provide stable and reliable cooling performance under high temperature, high humidity, or harsh environmental conditions.

1).Brand and durable Screw type compressor: Hanbell, Bitzer
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson, Danfoss
5) .Iron and stainless steel pump for different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti-protection devices: Compressor inner protection, Over current protection, High/low pressure protection, Over temperature
protection, Flow switch,Phase sequence/phase missing protection, Low coolant level protection, Anti freezing protection, Exhaust overheat protection

Product Paramenters

Model			MG-5C	MG-10C	MG-15CD	MG-20CD	MG-25CD	MG-40CF	MG-50CF
Cooling capacity	Kcal/h	11266	24510	35948	47558	54352	100104	110424
		kw	13.1	28.5	41.8	55.3	63.2	116.4	128.4
power	kw	5.61	10.83	16.31	21.27	24.35	41.66	49.96
Power input			3PH-380V-50HZ
Refrigerant	Type	R22/R407C
		Control	Thermostatic expansion valve
Compressor	Type	Hermetic scroll type
		Power（kw）	4.2	9.05	6*2	9.05*2	10.6*2	9.05*4	9.79*4
Evaporator	Type	SS Tank with coil or Shell and tube
		Water flow m³/h	2.25	4.89	7.17	9.48	10.83	19.95	22.01
		Capacity L	70	200	270	350	350	580	930
		Inlet/Outlet	DN25	DN32	DN40	DN40	DN40	DN65	DN80
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
		Power	0.52	0.46*2	0.55*2	0.78*2	0.78*2	1.5*2	1.7*4
pump	Type	Centrigual water pump
		Power kw	0.37	0.55	1.5	1.5	1.5	3	4
		Lift m	25	20	20	20	20	21	23
Protection System			Compressor overheat protection, high/low pressure protection,phase missing/sequence protection, flow rate protection, anti-frozen protection.
Dimension	L mm	1220	1610	1870	2120	2120	2300	2380
		W mm	690	820	900	1000	1000	1860	1900
		H mm	1200	1500	1600	1720	1720	1800	1950
Wight	kg	200	450	750	850	900	1350	1600

Product Details

Air cooled scroll chiller.

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.

Compressors

Compressor brand: Sanyo, Copeland world-renowned scroll compressor brand, solid cast iron body provides a large heat dissipation area; in order to improve the cooling effect of the compressor, the lightweight aluminium piston reduces friction and vibration, further reducing the noise during operation.

Evaporator

Shell and tube evaporators with large heat exchange capacity and stable heat exchange effect. equipped with a new shell and tube evaporator, super-cooling; Multiple protection devices and abnormal state indication system,
to ensure safe and efficient operation of the equipment.

Controller

The whole machine adopts high-quality parts, the model all adopts Schneider, Siemens electronic components, LCD microcomputer controller, export standards, Chinese and English optional, easy to operate; can be displayed at the same time as the cold water inlet, cold water outlet and set the temperature; can be accurately control the water temperature in the 3 ℃ ~ 5 ℃ between.

Condenser

Standard configuration of copper tube set aluminium fin condenser, equipped with a large number of heat sinks with excellent thermal conductivity, increasing the heat dissipation area; installation of cooling fan to accelerate the heat dissipation speed of the equipment and enhance the heat dissipation effect of the equipment.

Water Pump

Adopt southern vertical pipeline pump, low noise, no leakage, maintenance-free.

Expansion Valve

Expansion valve role is the export of high-pressure liquid coolant condensers to reduce and regulate the flow of relief.

Application

Energy Saving Industrial Chiller is widely used in various industrial fields, including but not limited to:
1. Manufacturing: Can be used for cooling needs in manufacturing processes such as metal processing, injection molding, plastic products, rubber products, etc.
2. Chemical industry: Suitable for cooling and temperature control requirements in chemical reactors, chemical agents, and chemical processes.
3. Food and beverage industry: It can be used in fields such as food processing, beverage production, and food refrigeration to ensure product quality and safety.
4. Pharmaceutical industry: Suitable for cooling needs in pharmaceutical processes, such as drug synthesis, storage, and
formulation processes.

It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality and over one hundred different models.

Our Company

Customer Photo

Packing & Delivery

PACKAGE:

LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.

SHIPPING TERMS:

1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.

Certificates

Our products

Our Service

Technical service
1.We calculate the capacity and recommend the best models.
2.We design and develop the new products according to your requirement besides our standard products
3.We supply you the professional refrigeration technical support and electronic technical support for your installation,
debugging and operation.
4.We supply the spare parts and technical support in & after the warranty time.
5.We supply the training course to your workers at our factory if you need.

After sale service
1.One-Year guarantee for whole unit and all parts free
2.Life time maintenance
3.Machines have to be strictly adjusted before delivery and deliver with firm & reliable packing and transportation.
4.Supply the professional refrigeration technical support and electronic technical support for your installation, debugging,
operation and maintenance.
5.Supply free training course to your workers at our factory if you need.
6.Supply the spare parts and technical support in & after the warranty time.
7.Spare parts and technical support at most economic prices after the warranty.
8.24 hours on line service each day by telephone.

FAQ

Q1: Are you trading company or manufacturer ?
A1: Our company is an integrated set of industry and trade company
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: What is your terms of payment ?
A3: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Q4: How to choose a suitable machine? And how to get a prompt quotation?

A4: Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information:

a) Chiller type: Air cooled or water cooled
b) Cooling capacity: Kcal/hr or KW
c) Refrigerant: R410A or others
d) Voltages and Frequency : V/PH/HZ

Contact me if you need !
Sales manager：Jessie Yang
whatsapp：+86 17686681003
email：Jessie@mgreenbelt.com

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1–1 unit: US $3599 / unit
  • 2+ unit: US $1899 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cooled water scroll chiller?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the cooled water scroll chiller be supplied for my local voltage?

The standard configuration is 3PH~220V/380/415V/460V~50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Mgreenbelt Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jinan Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
