Certified Chiller, 200Kw, 300Kw, 400kW, 380V

Certified chiller — 380 V, 300KW. The complete factory specification follows. Made by Jinan Mgreenbelt Machinery Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Certified Chiller

• Power: 300KW
• Voltage: 380 V
• Warranty: 1 Year
• Place Of Origin: Shandong, China
• Weight (Kg): 300
• Single Gross Weight: 0.0 kg

Technical Specifications

Product Details

Products Description

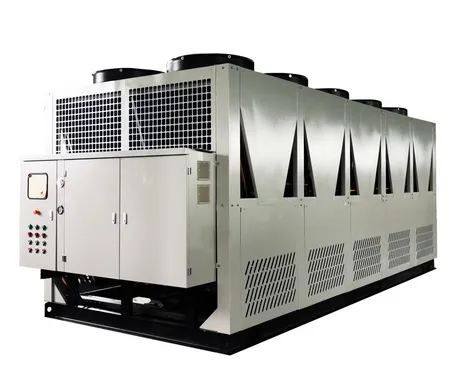

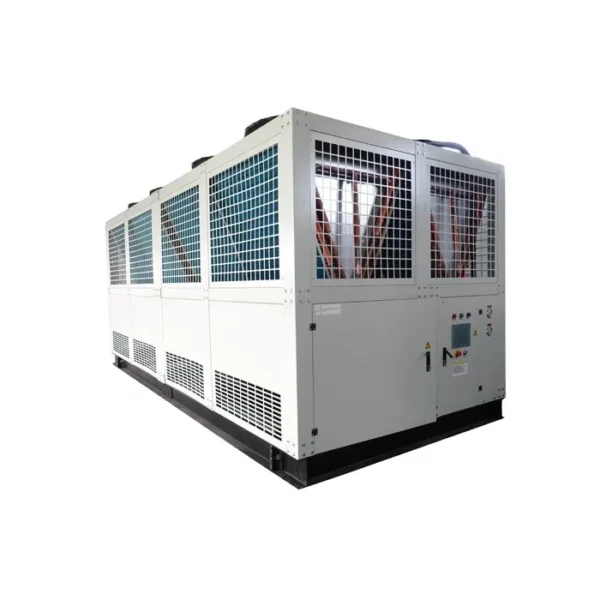

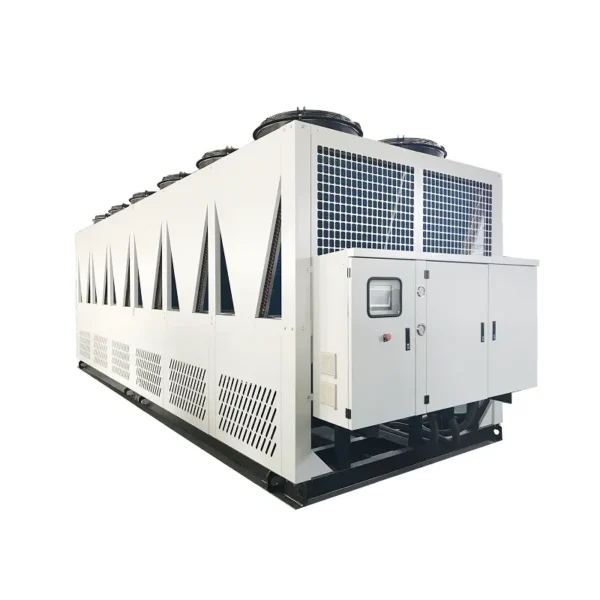

Air Cooled Screw Chiller

The air cooled chiller, also known as an air-cooled box-type industrial chiller unit, utilizes a air-cooled heat dissipation
design. It draws surrounding air into the equipment using built-in fans and dissipates heat through a condenser, thereby reducing the system temperature. It does not require an additional water cooling system and is relatively easy to install and maintain.

1) Adopt the top row of suction type finned radiator,low noise fan motor,strong air cooling and high efficiency heat exchanger.
2) Adopt the metal antirust type machine box which can suitable for waterproof which can work in outdoor.
3) Adopt micro-computer controller,display the temperature,protect,fault,code and etc to the control panel,easy operate.
4) Adopts world famous brand semi-hermetic screw compressor.With excellent efficiency,energy efficient,stable and quiet
running,super cooling.
5) Micro programming Control System.Industrial PLC centralized control combined with compressor capacity control system,built-in full intelligent monitoring and protection including thermal motor temperature monitoring,phase sequence monitoring, manual reset lock-out,oil temperature sensor.
6) V shape aluminum fin type condenser, assuring adequate heat exchanging area within smaller unit size.High efficient evaporator with internal thread copper tube.Large air volume axial fan with metal blades.

Product Paramenters

Air Cooled Screw Chiller
Model			MG-80C	MG-110C	MG-140C	MG-155C	MG-200C	MG-260C	MG-300C	MG-420C
Cooling Capacity	USRT	22.5	31.0	40.7	43.5	58.6	72.8	87.3	120.6
		Kcal/h	67940	93740	122980	131580	177160	220160	264020	364640
		KW	79	109	143	153	206	256	307	424
Power			3PH-380V-50Hz
Refrigerant	Type	R22/R407C
		Control	Thermostatic expansion valve
Comperssor	Type	semi-closed screw type
		kw Power	28	37	46	51	66	79	94	127
		Start	Y-△
		Capacity	33%-66%-100%					25%-50%-75%-100%
Evaporator	Type	High efficiency copper tube shell and tube type
		m³/h Flow	14	19	25	26	35	44	53	73
		Inlet/outlet	DN65	DN65	DN80	DN80	DN80	DN80	DN80	DN100
Condenser	Type	High efficiency hydrophilic aluminum foll finned type
		m³/h Flow	30000	40000	50000	60000	80000	100000	120000	160000

Product Details

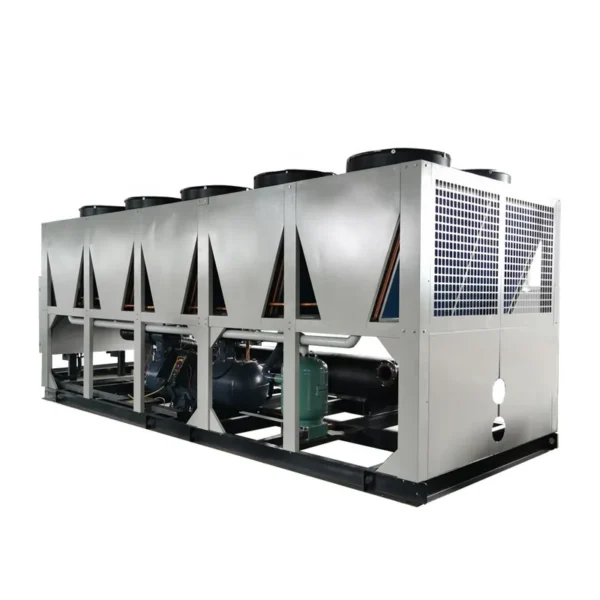

Air cooled screw chiller

The unit adopts semi-hermetic screw compressor of Germany BITZER or Taiwan HANBEL brand. The latest 5-6 patented screw rotor profile with excellent efficiency. Adjustable stepless or stepped capacity control, energy efficient, stable and quiet operation.

Compressor starts in stages to minimise the impact on electricity. Stable, safe and low vibration operation. The most advanced

high-precision patented manufacturing process.

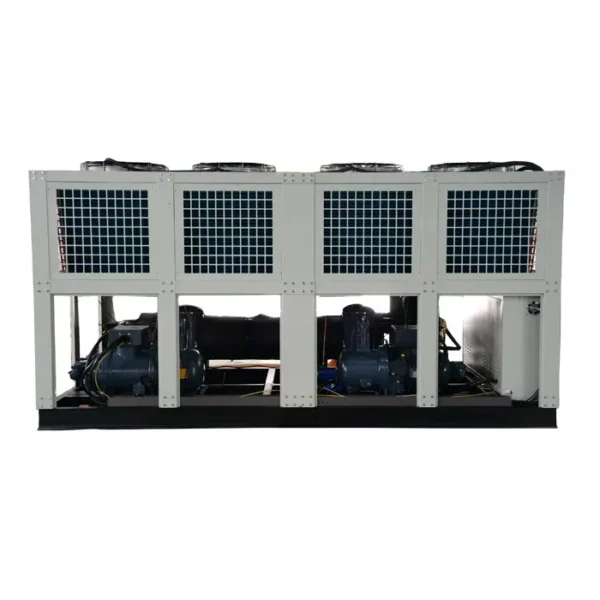

Compressors

(1)Air cooled screw chiller can make with one compressor system, also can make to two compressor system; more energy saving,and
conveneint for mainteance.

(2)25%-50%-75% 100% energy control, when temperature to the temperature set point, it will unloading,when water become warmer, compressor start loading automatic.
(3)Bitzer, Hanbell, Refcom, etc brandoptional, Quality first, Service first.

Evaporator

(1)Shell and tube type; copper pipe working with refrigerant, and the shell is working with cold water which is supply to user.
(2)Inlet and outlet diameter: DN 80
(3)Connection with Flange, ASME standard optional.
(4)2.5cm Heat preservation cotton protect, make sure it heat exchange efficiency
(5)Flow rate meter and temperature sensor.

Control System

(1)SIMENS PLC control system, R485 OR Ethernet Connection support.

(2)Simple Punpu micro-computer controlsystem, more stable,easy to operate.

Condenser&Air Fan

1)Low noise ,high efficiency motor,
2)large air volume, small vibration,
3)good heat dissipation effect

Application

The Air-cooled Screw Water Chiller is suitable for various industrial applications,including:

* Manufacturing plants
* Data centers
* Chemical and pharmaceutical industries
* Food and beverage processing
* Plastics and rubber industries

Our company

Shandong Mgreenbelt Machinery Co., Ltd.

Shandong Mgreenbelt Machinery Co., Ltd. was founded in 2010, mainly engaged in the R&D and manufacturing of industrial chillers, refrigeration units and other refrigeration equipment. With more than ten years of innovative development, we has successively passed the inspection and testing of ISO9001 quality system and CE certification, accept BV, SGS and other third-party certification agencies inspection. It has gradually grown into a manufacturer dedicated to one-stop refrigeration solutions, providing the matching complete chilling system for our clients. Industrial chillers are exported to more than 100 countries and regions around the world, have market layouts along "the Belt and Road". We provide stable, efficient, intelligent and environmentally friendly solutions for industries such as food,beverages, plastics, chemicals, electroplating, medical, electronics, concrete, vacuum pumps, power generation equipment and
ultrasonic cleaning. "Professionalism creates quality, technology creates value." Mgreenbelt looks forward to kindly cooperating with you.

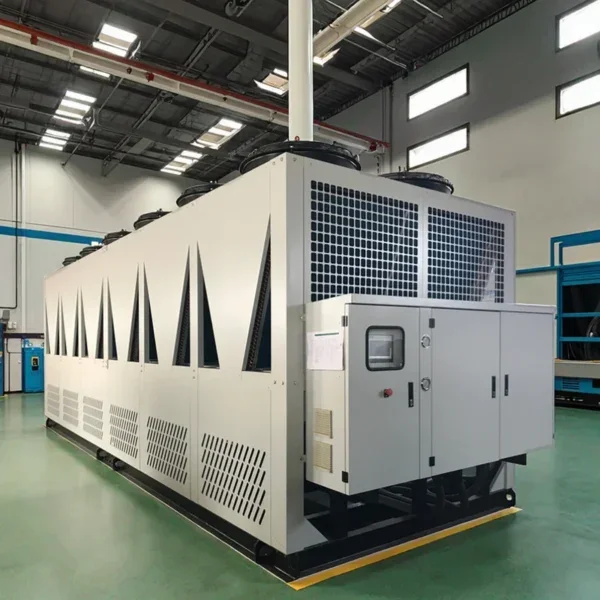

Customer site

Technical support:

Man-machine interface ：Man-machine interfaceLarge screen Chinese touch control display (can switch English display), menu management, unit operation parameters at a glance, easy to operate simple.You can quickly obtain parameters such as inlet and outlet temperature, current set temperature, and compressor running time through the control menu.
Control function：Control functionProvides local control, on-line control, RS485 communication (optional) three operation control modes.Multiple units can form an RLAN network. Each unit can be connected to remote monitoring equipment such as the building control center through a networking interface.Safety features
Safety features：Provides password protection to prevent misoperation.Compressor failure, cold water temperature is too low, low oil pressure, high and low refrigerant, motor overload, low water flow, lack of inverse phase protection, etc.Unit configuration

Unit configurationI：mported brand compressor, imported brand electrical parts, high efficiency low noise fan, high efficiency heat exchanger.Each compressor is equipped with an independent refrigeration system, and each system can operate independently,increasing the reliability of unit operation.

Experience efficient and reliable cooling for your industrial applications with our Air-cooled Screw Water Chiller. Contact us now for more information, pricing details, and personalized solutions tailored to your specific cooling requirements. We are committed to delivering high-quality products and excellent customer service.

Exhibition

Our company has passed ISO9001 quality system certification, EU CE certification, international BV,SGS and other third-party certification bodies inspection and testing.

Packing & Delivery

PACKAGE:

LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.

SHIPPING TERMS:

1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.

Customer Feedback

Our company's cold water machines have been highly praised and exported to various parts of the world, catering to different industries. Our after-sales service is exemplary, ensuring long-lasting use of our machines.The durability of our machines is a result of the top-notch materials and advanced technologies utilized during production. We are proud to have witnessed the satisfaction of our clients from different parts of the world, as they have reported improved productivity, energy efficiency, and cost savings with the use of our cold-water machines. We remain committed to providing only the best products and services,supported by our world-class technical team and customer-focused approach.

Hot Products

According to the different working conditions and customers' requierments, we recommend customized product models.

1.Advanced Noise Reduction: Incorporates innovative noise reduction technology to minimize
operational noise levels.
2.High Cooling Efficiency: Delivers powerful and efficient cooling performance to meet the demands of diverse applications.
3.User-Friendly Interface: Equipped with an intuitive control panel for easy operation and monitoring of temperature settings.
4.Energy Efficiency: Utilizes energy-saving components and smart control systems to optimize energy consumption.
5.Robust Construction: Built with high-quality materials and durable components for long-lasting performance and reliability.
6.Temperature Control: Offers precise temperature control within a defined range to meet specific cooling requirements.
7.Environmental Friendly: Designed to comply with environmental regulations and standards, ensuring minimal environmental impact.

FAQ

Q1: Are you trading company or manufacturer ?
A1: Our company is an integrated set of industry and trade company
Q2: How long is your delivery time?
A2: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3: What is your terms of payment ?
A3: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance ,balance before shippment.
Q4: How to choose a suitable machine? And how to get a prompt quotation?

A4: Please let us know the machine usage, we have professional design team who will make a reasonable scheme. When you send the inquiry to us, please kindly provide the below technical information:
a) Chiller type: Air cooled or water cooled
b) Cooling capacity: Kcal/hr or KW
c) Refrigerant: R410A or others
d) Voltages and Frequency : V/PH/HZ

Contact me if you need !

sales manager：Jessie Yang
whatsapp：+86 17686681003
email：Jessie@mgreenbelt.com

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $12000 / set
  • 10+ set: US $8000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this certified chiller?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the certified chiller be supplied for my local voltage?

The standard configuration is 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Jinan Mgreenbelt Machinery Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jinan Mgreenbelt Machinery Co., Ltd. range on HVACR Nexus.
