Key specification for this air conditioning swamp cooler: 220V/380V/50HZ, airflow 25000m³/h(882866.67ft3/h). Everything below is reproduced from the factory data sheet. Made by Jiangsu Lai Shi Environmental Protection Technology Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Conditioning Swamp Cooler
- Power: 1.5KW
- Operating Voltage: 220V/380V/50HZ
- Voltage: 220V/380V/50HZ
- Airflow: 25000m³/h(882866.67ft3/h)
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Axial Flow |
|---|---|
| Airflow | 25000m³/h(882866.67ft3/h) |
| Operating Voltage | 220V/380V/50HZ |

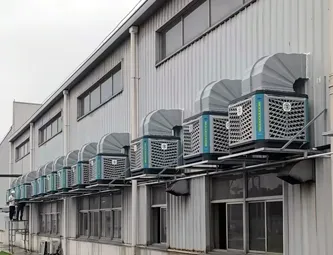

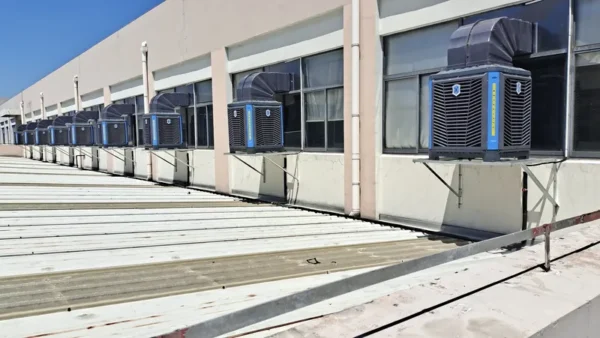

| Mounting Type | Wall / Roof Mount |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Pump |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 75 KG(165.35lb) |
| Brand Name | Hawai Fan |
| Dimension(L*W*H) | 1140x1140x1358mm(44.88×44.88×53.46in) |

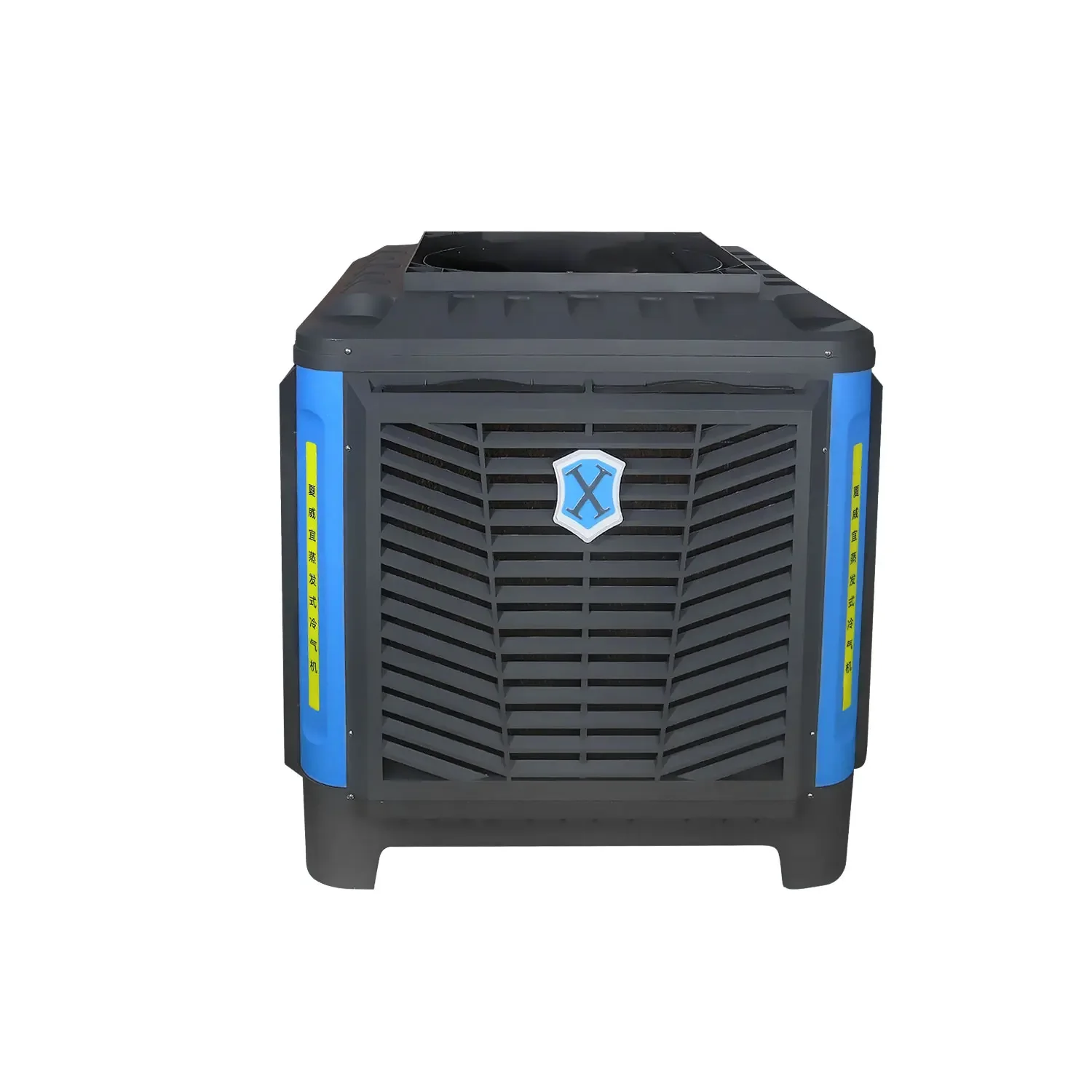

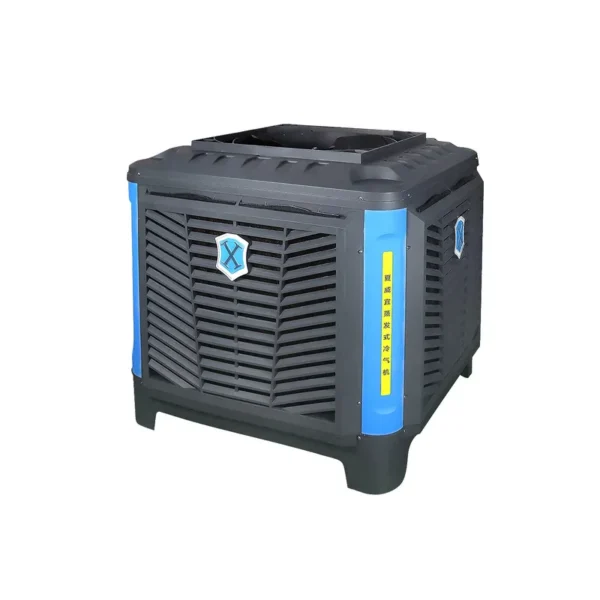

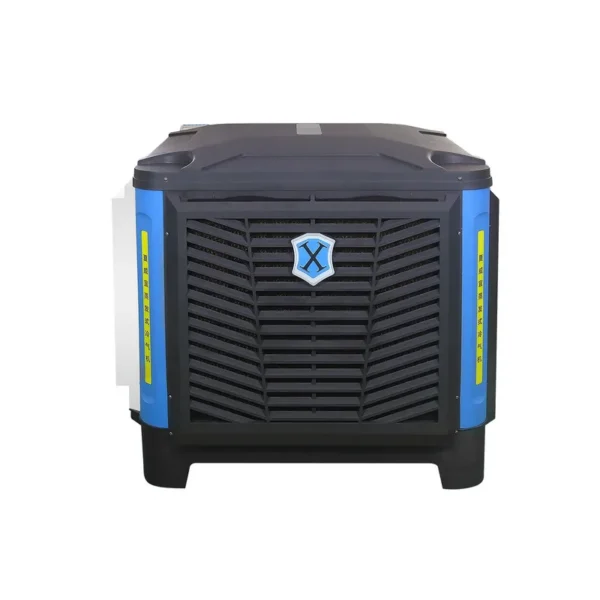

| Product Name | Hawai KT-25K Evaporative Air Cooler |
| Application | Warehouse/Factory/Greenhouse etc |
| Function | Air Conditioning Ventilation |
| Voltage | 220V/380V/50HZ |
| Noise | ≤80dB |
| Outlet Size | 670x670mm |
| Air Volume | 25000m³/H |
| Power | 1.5KW |
| Vaporization | 75-90L/H |
| Shape Size | 1140x1140x1358mm |
| Packaging Details | Wooden pallets with Packaging bag or Safety carton packing for marine air condioner 25000 cmh water Evaporative Air Cooler industrial energy saving with axial flow fan For workshop Warehouses |
| Port Of Dispatch | Shanghai Port or Ningbo Port |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 100 sets per Month |
Product Details
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
VR
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
Product Description

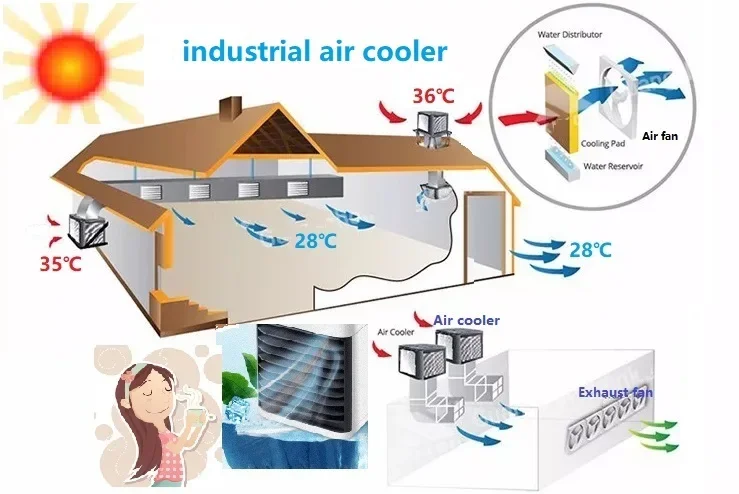

Cooling Principle
Water evaporation absorbs heat. According to this principle, when water flows down from the upper part of wet curtain under the action of gravity, a water film will form on the surface of corrugated fiber material. When the flowing air passes through the wet curtain, the water in the water film will absorb the heat in the air and then evaporate, so as to take away a large amount of latent heat and reduce the temperature of the air passing through the wet curtain, so as to achieve the purpose of cooling, refrigeration and humidification.
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
Shell fuselage features
The whole fuselage shell is made of new engineering materials with high strength and weatherability. Anti ultraviolet, anti aging, anti deformation, corrosion resistance, long service life and other characteristics, and has a dust filter screen template, evaporating wet curtain full edge, the frame fuselage adopts blue black color matching system, so that the equipment is more advanced. After installation, the overall image effect is more beautiful and texture, which is more in line with the requirements of high-end enterprises for the overall image of high quality.

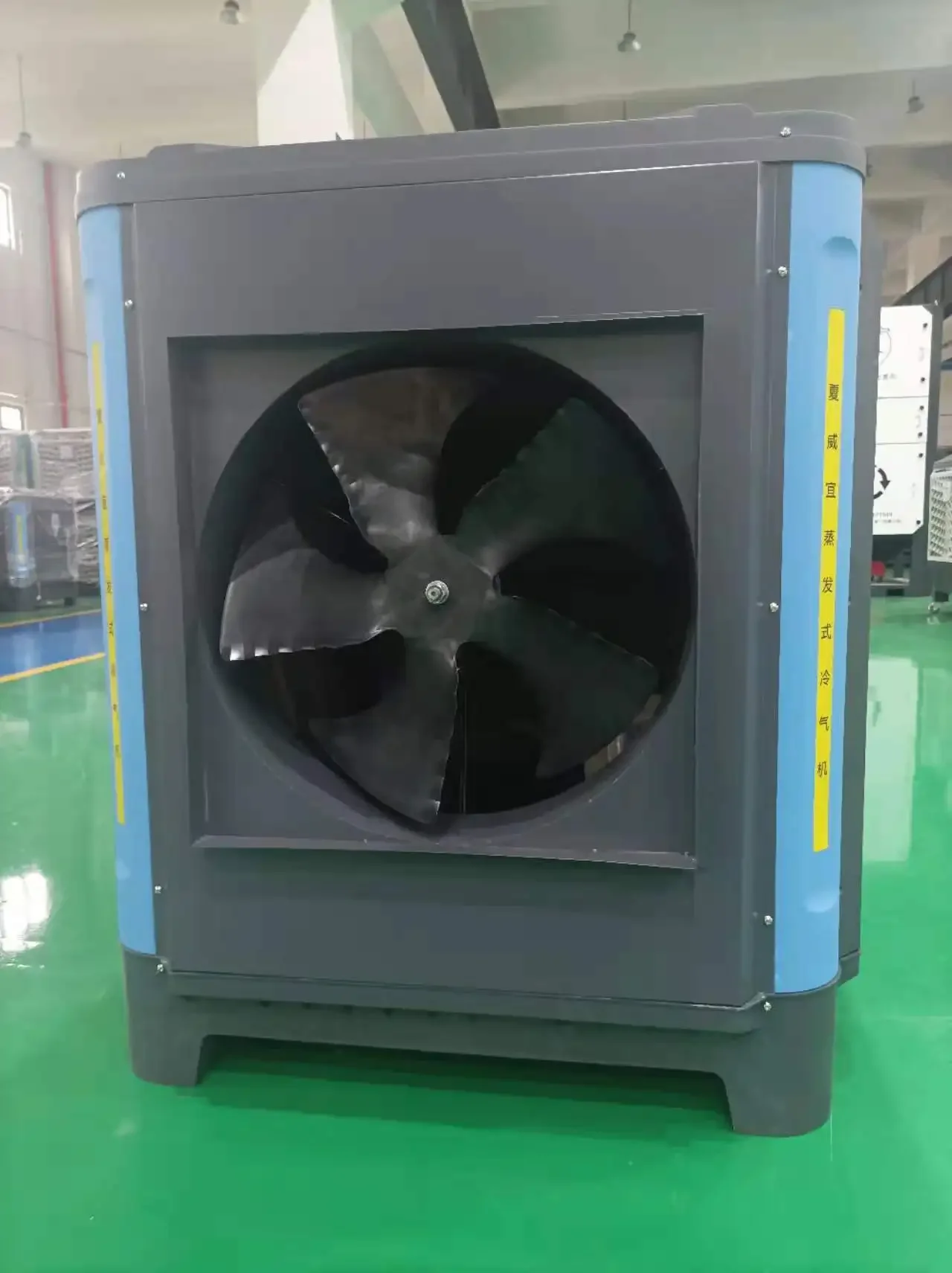

Power components

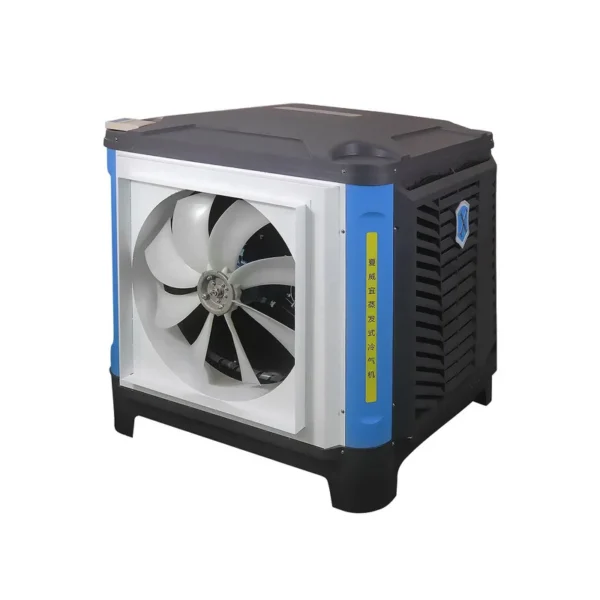

The core power component adopts cast iron / cast aluminum fully enclosed pure copper brand motor, with IP55 protection grade, waterproof and moisture-proof, F-class insulation protection, ensuring that the temperature rise of the motor is still stable under the continuous working state. Motor can be stepless frequency control (220 V / 380 V), to meet the needs of more working conditions.

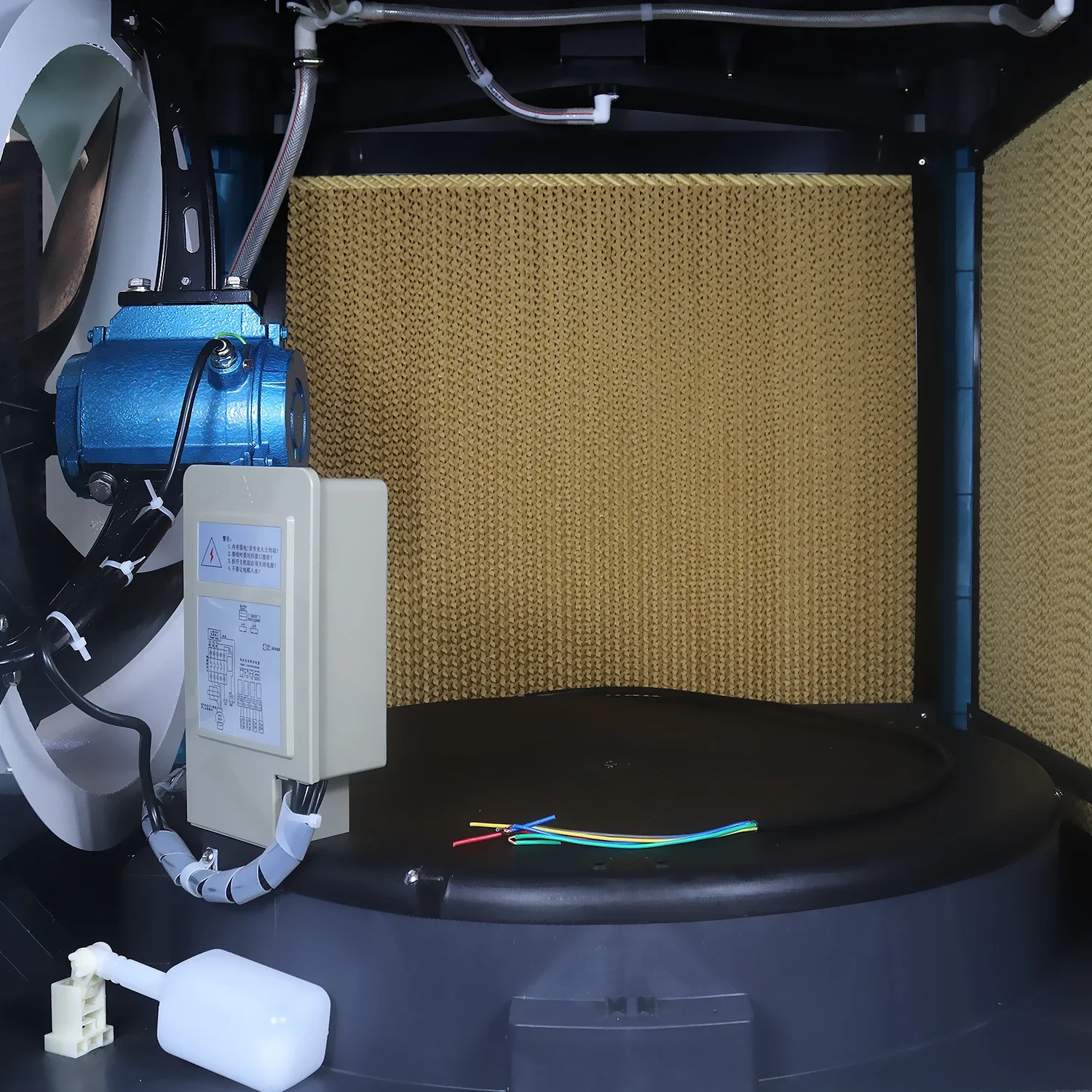

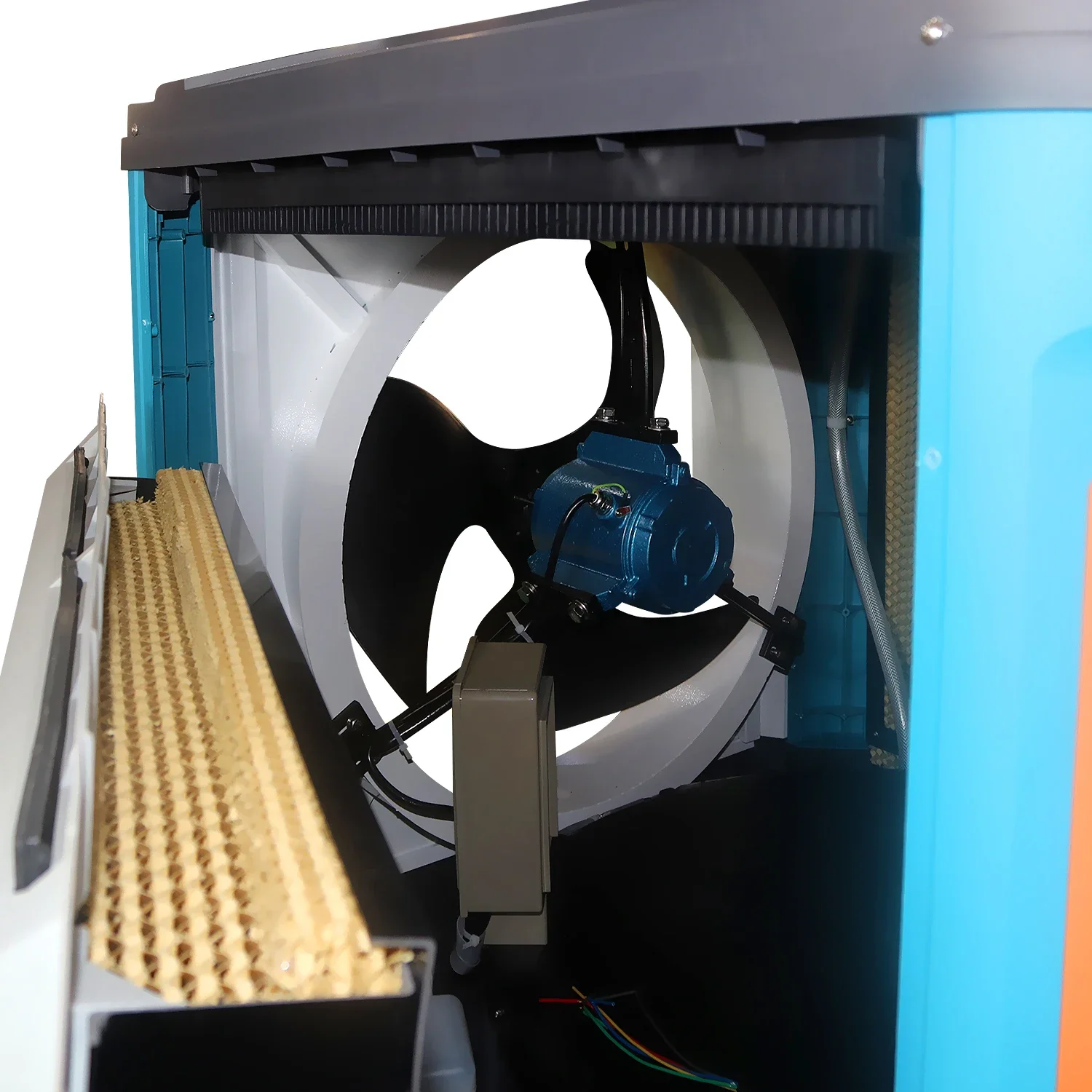

High efficiency evaporator
The environmental protection air conditioning evaporation wet curtain adopts high-quality base paper material, 5090 type has the characteristics of fine density, good water absorption, high wet stiffness, low shrinkage, no mildew and long service life. In the working process, it has the advantages of large evaporation area, more than 90% evaporation rate, high cooling efficiency and small pressure loss. It can also effectively remove dust particles in the air. The removal efficiency of PM10 is more than 90%, and that of PM25 is more than 40%
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
Specification
Product Number | KT-25K |
Product Name | Hawai KT-25K Evaporative Air Cooler |
Type | Axial Flow |
Mounting | Wall / Roof Mount |
Dimension(L*W*H) | 1140x1140x1358mm |
Air Volume | 25000m³/h |
Function | Air Conditioning Ventilation |
Voltage | 220V/380V/50HZ |
Noise | ≤80dB |
Outlet Size | 670x670mm |
Power | 1.5KW |
Water Consumption | 75-90L/H |
Hawai KT-25K Evaporative Air Cooler provides you with 3 different directions of air outlets, you can choose according to your needs. door mount air condioner 25000 cmh water Evaporative Air Cooler industrial energy saving axial flow fan For workshop Warehouses
Type1-Upper Air Outlet (top discharge)
Type 2–Side Air Outlet (side discharge)
Type 3-Lower Air Outlet (bottom discharge)
marine air condioner 25000 cmh water Evaporative Air Cooler industrial energy saving with axial flow fan For workshop WarehousesWe also have the following other models to choose from：
Model | Shape Size | Power | Outlet Size | Noise | Air Volume | Water Consumption |
KT-20K | 1140*1140*1100mm | 1.1kw | 670x670mm | ≤75dB | 20000m³/H | 75-85L/H |
KT-25K | 1140*1140*1358mm | 1.5kw | 670x670mm | ≤80dB | 25000m³/H | 75-90L/H |
KT-30K | 1350*1350*1260mm | 3kw | 760x760mm | ≤80dB | 30000m³/H | 80-100L/H |
KT-40K | 1350*1350*1260mm | 4kw | 760x760mm | ≤80dB | 40000m³/H | 95-120L/H |
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
2023 air cooler manufacturer 25000 cmh water Evaporative price air cooler industrial energy saving fan For workshop Warehouses
Company Profile
marine air condioner 25000 cmh water Evaporative Air Cooler industrial energy saving with axial flow fan For workshop Warehouses

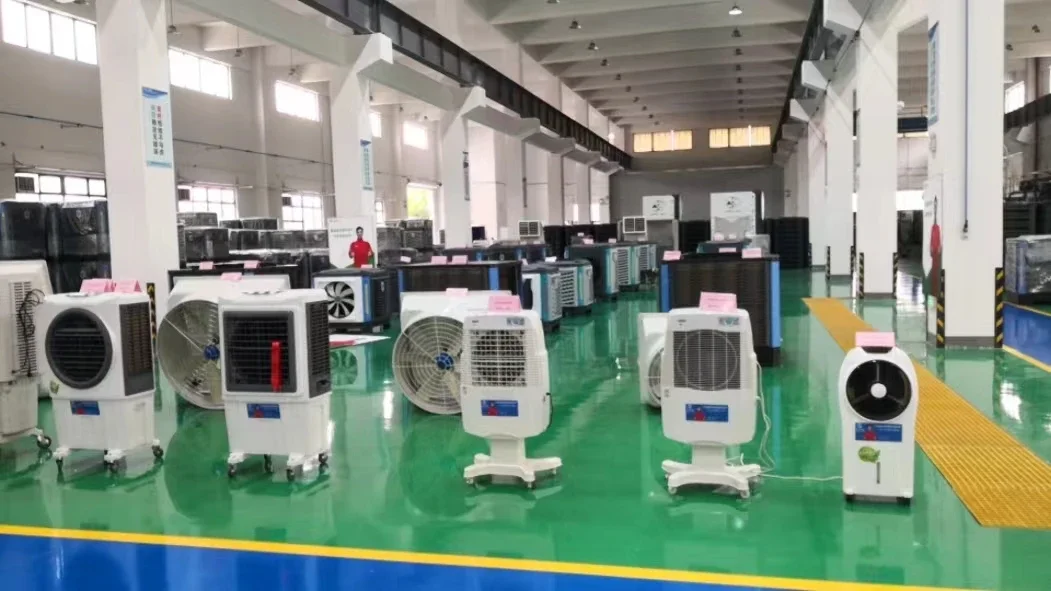

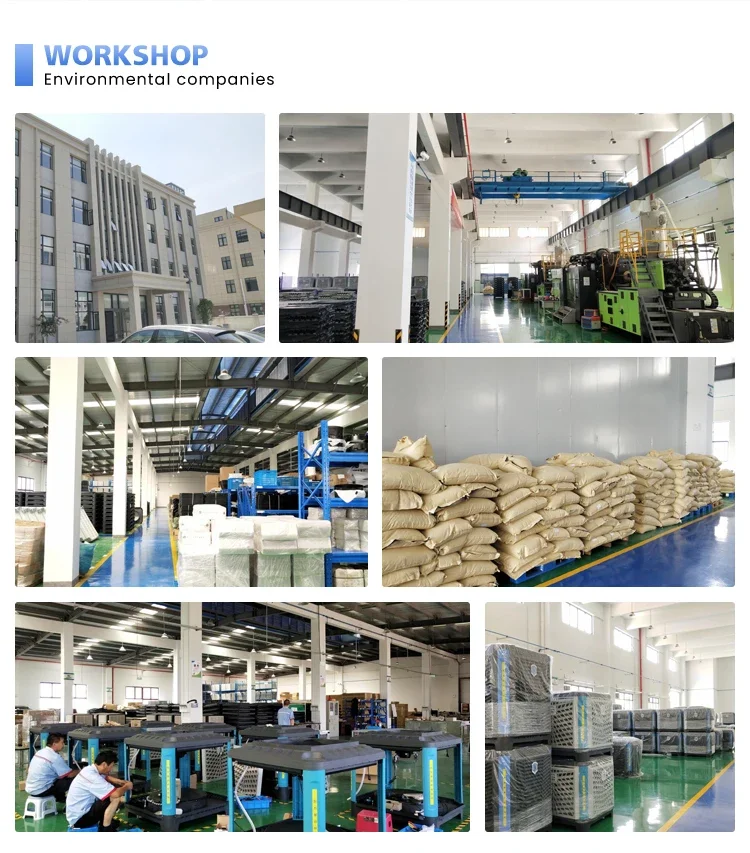

Workshop
marine air condioner 25000 cmh water Evaporative Air Cooler industrial energy saving with axial flow fan For workshop Warehouses
Certifications
Exhibition
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.2022 hot sale energy saving Evaporative Air Cooler industrial VFD control Axial Flow 25K cmh For Loading Docks Warehouses
FAQ
Q1: Is your company a manufacturer or a trading company? A: We are manufacturers, we have own trade company, we also have our own factory and design, sales team. Q2: Can I be your agent? A: Yes, welcome to deep cooperation. We have big promotion of LAISHI brand in the market now. For the details please contact with our overseas manager. Q3: What is the minimum order quantity? A: Usually, MOQ of exhaust fan, industrial ceiling fan, environmental protection air conditioner and air cooler is 10 sets. Small quantity we also can do, but the cost will be high. Q4: How to get samples to check the quality? How long can I get the samples? A: After the price is confirmed, samples can be provided for your evaluation, after confirming the sample details, the samples will be ready for delivery within 3-7 days, and sent to you by courier, then arrive within 5-7days. Q5: What's your quality guarantee? A: We will offer client one year quality guarantee time. Q6: Do you have a discount? A: we will do our best to provide you with these services at the best price and quality service. Q7: What venue is suitable for installing industrial fans? A: Generally used in large workshops, warehouses, logistics transfer centers, livestock farms, etc. Q8: What are the benefits of installing industrial fans? A: The diameter of the ceiling fan in the industrial plant can reach 7.3m, and its unique streamlined fan blade can push a large amount of air to the ground at a low speed, thereby forming a breeze airflow. The human body feels a cooling of 3-5 degrees, which is as comfortable as natural wind. The traditional small fan will feel dizzy after blowing it for a long time. The energy-saving industrial fan solves this problem well.
2022 low watt 25000 cmh water Evaporative Air Cooler industrial with energy saving axial flow fan For workshop Warehouses
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $600 / set
- 10–99 set: US $500 / set
- 100+ set: US $400 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air conditioning swamp cooler?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air conditioning swamp cooler be supplied for my local voltage?
The standard configuration is 220V/380V/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jiangsu Lai Shi Environmental Protection Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Jiangsu Lai Shi Environmental Protection Technology Co., Ltd. range on HVACR Nexus.
