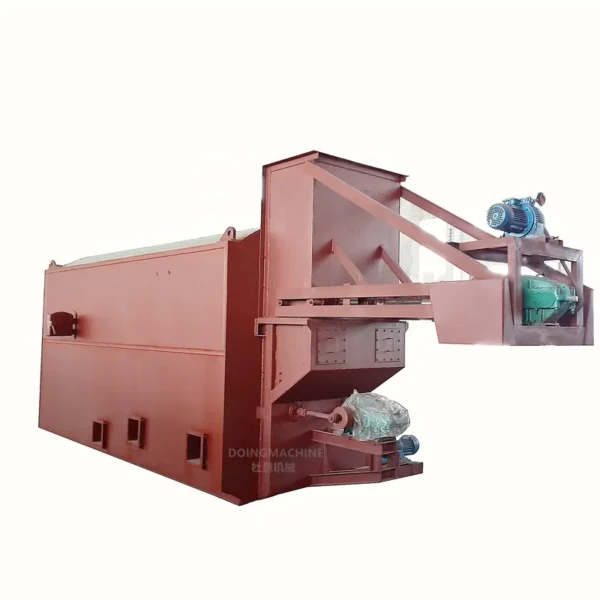

The air generator listed here carries type Once Through, model GL series, documented exactly as the manufacturer publishes it. Made by Changzhou Doing Machine Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Air Generator
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Type: Once Through
- Grate Type: reciprocating grate
- Weight: 10-50 tons
- Dimension(L*W*H): 4000x2500x3000mm
Technical Specifications
| Output | hot air |
|---|---|
| Usage | Industrial |
| Fuel | biomass fuels |
| Pressure | Low Pressure |
| Structure | Fire Tube |
| Type | Once Through |
| Key Selling Points | Long Service Life |
| Style | Horizontal |
| Warranty | 1 Year |
| Place Of Origin | Jiangsu, China |
| Brand Name | DOINGMACHINE |
| Dimension(L*W*H) | 4000x2500x3000mm |
| Product Name | Industrial biomass wood fired hot air generator furnace |
| Model | GL series |
| Heat Output | 600,000-12,000,000 kcal/h |
| Grate Type | reciprocating grate |
| Fuels | biomass fuels |
| Hot Air Temperature | 80-800 degree C adjustable |
| Temperature Control Accuracy | +/- 15 degree C |
| Dimension | 4000x2500x2500 mm |
| Weight | 10-50 tons |

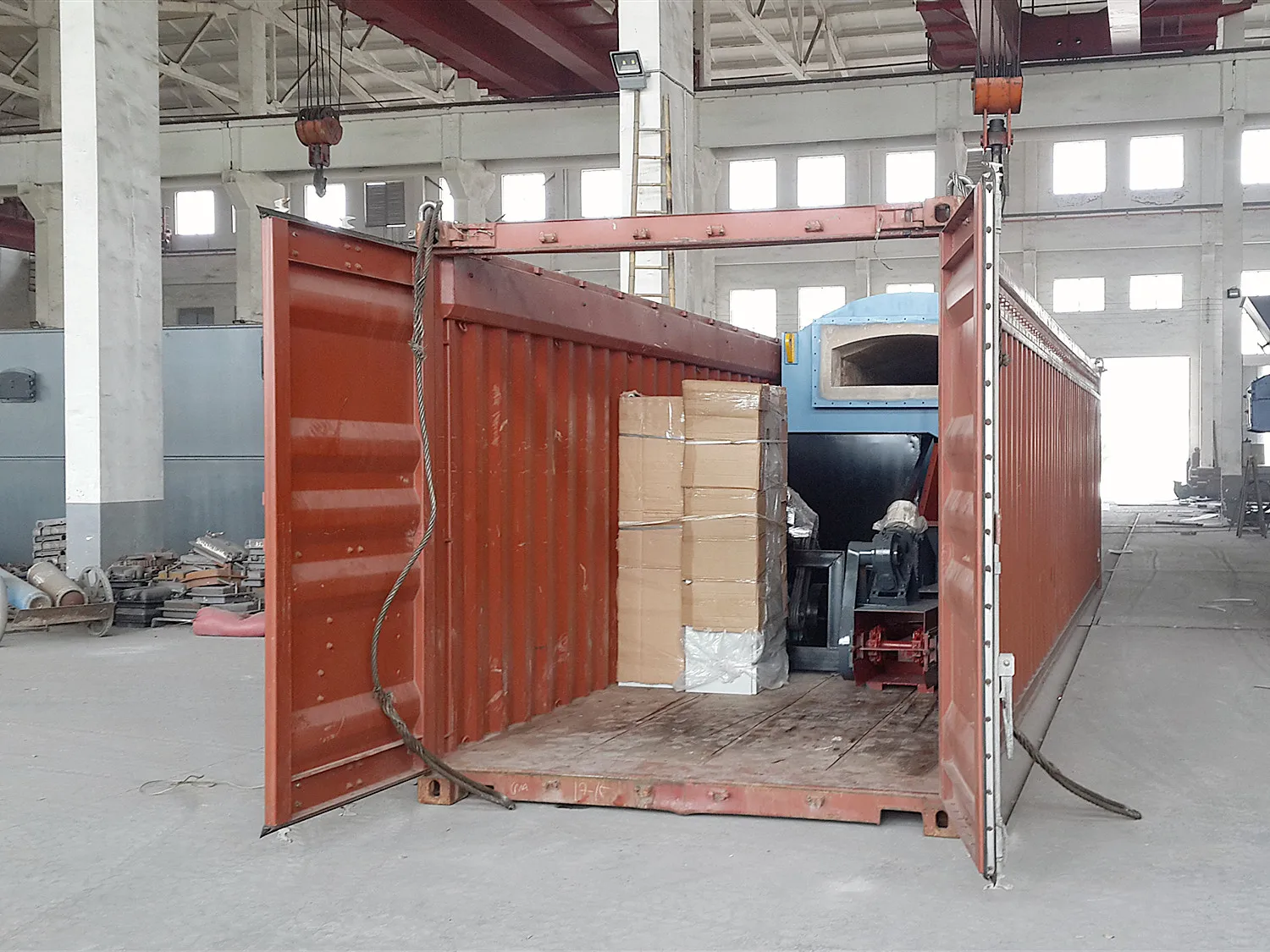

| Packaging Details | Our reciprocating grate biomass hot air generator is well protected by plastic film suitable for sea transportation. |
| Port Of Dispatch | Shanghai Port |
| Selling Units | Single item |
| Supply Ability | 5 sets per Month |
Product Details
Main features
2) Hot air temperature: 80-800 degree C (adjustable)
3) Heat output: 600,000-12,000,000 kcal/hour;
4) Temperature control accuracy: +/- 15 degree C
5) Clean hot air is available by using tubular heat exchanger
Working principle

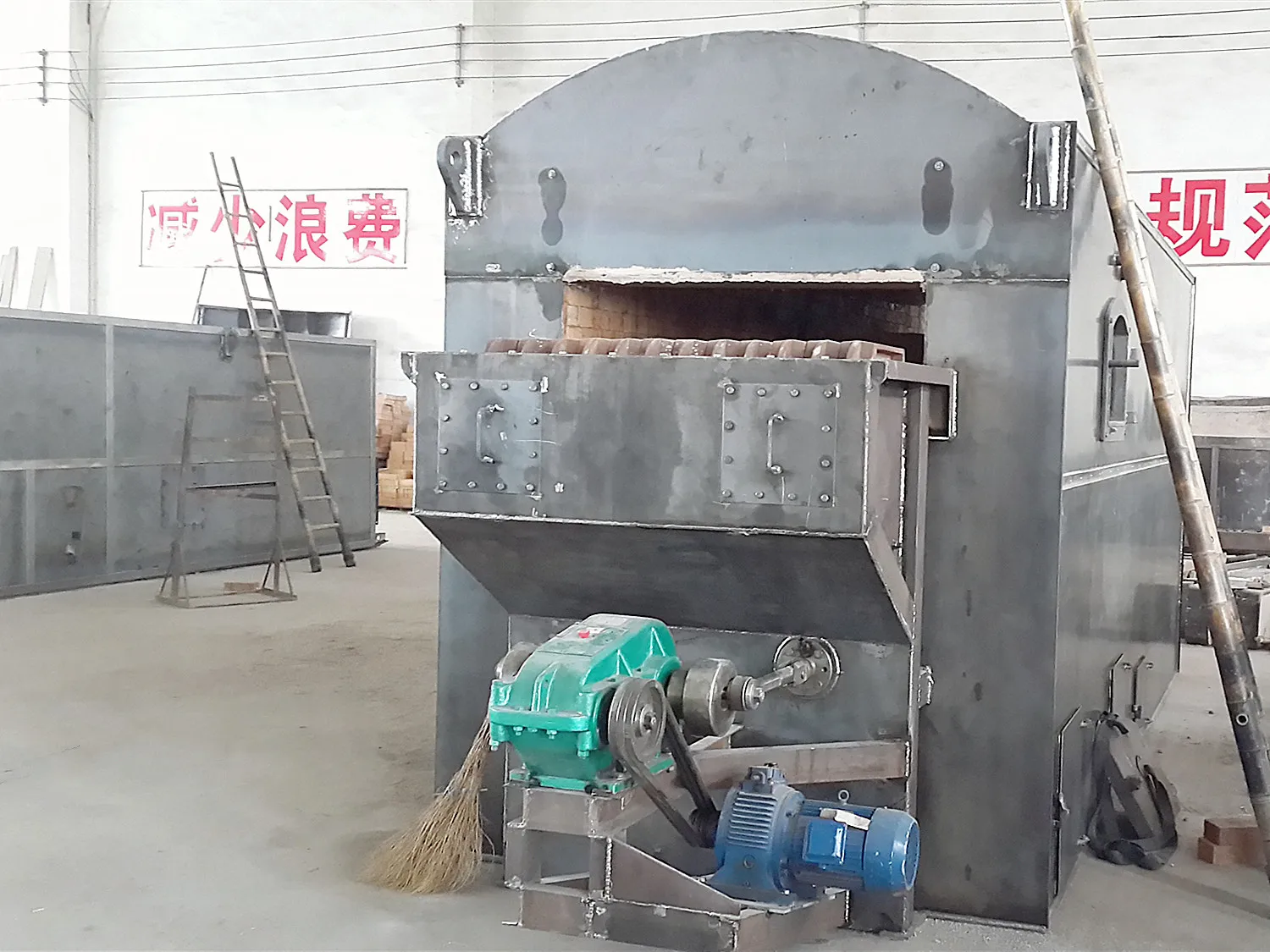

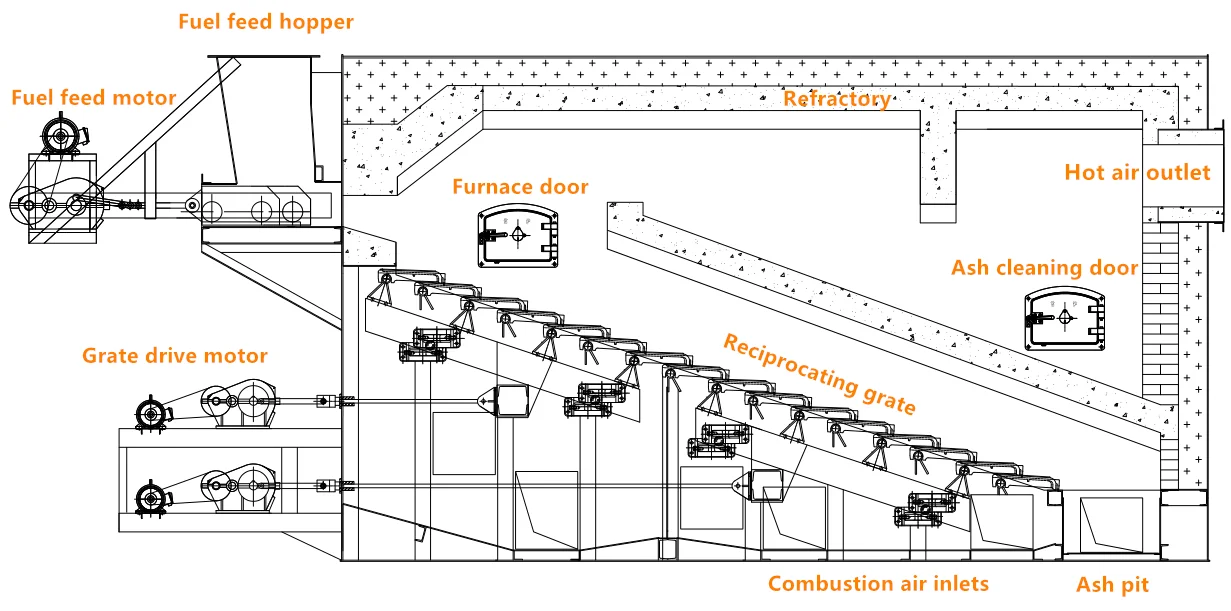

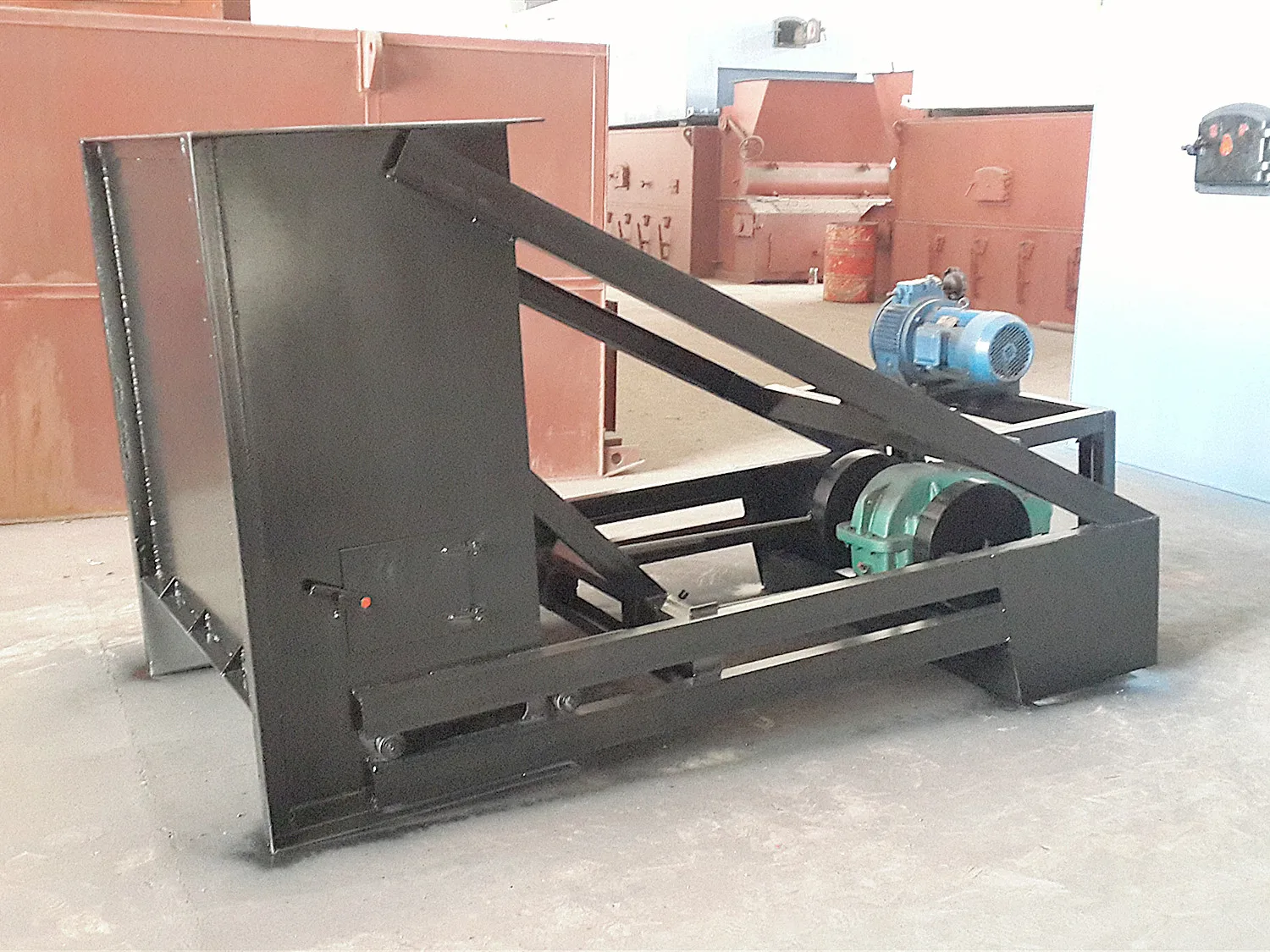

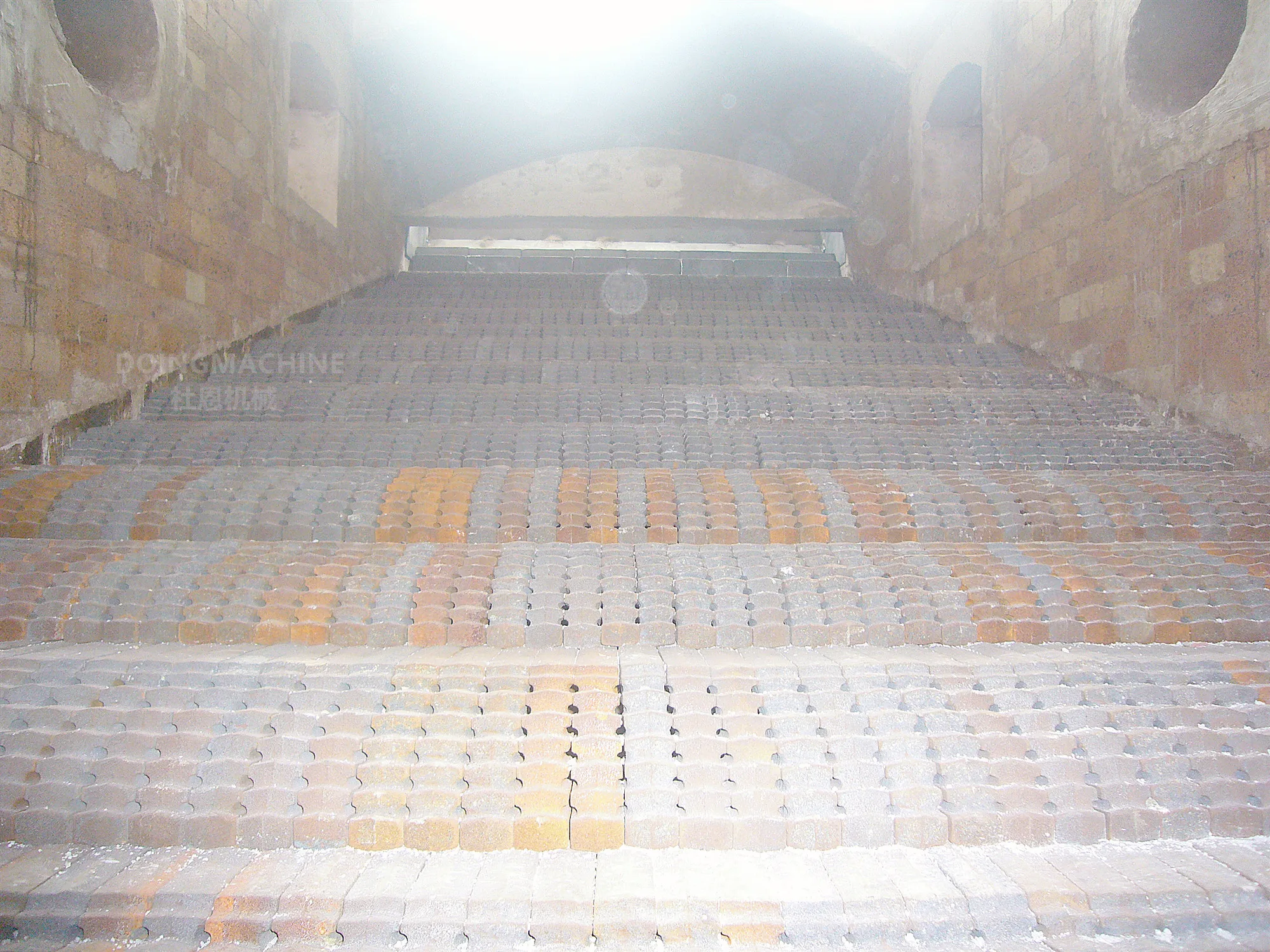

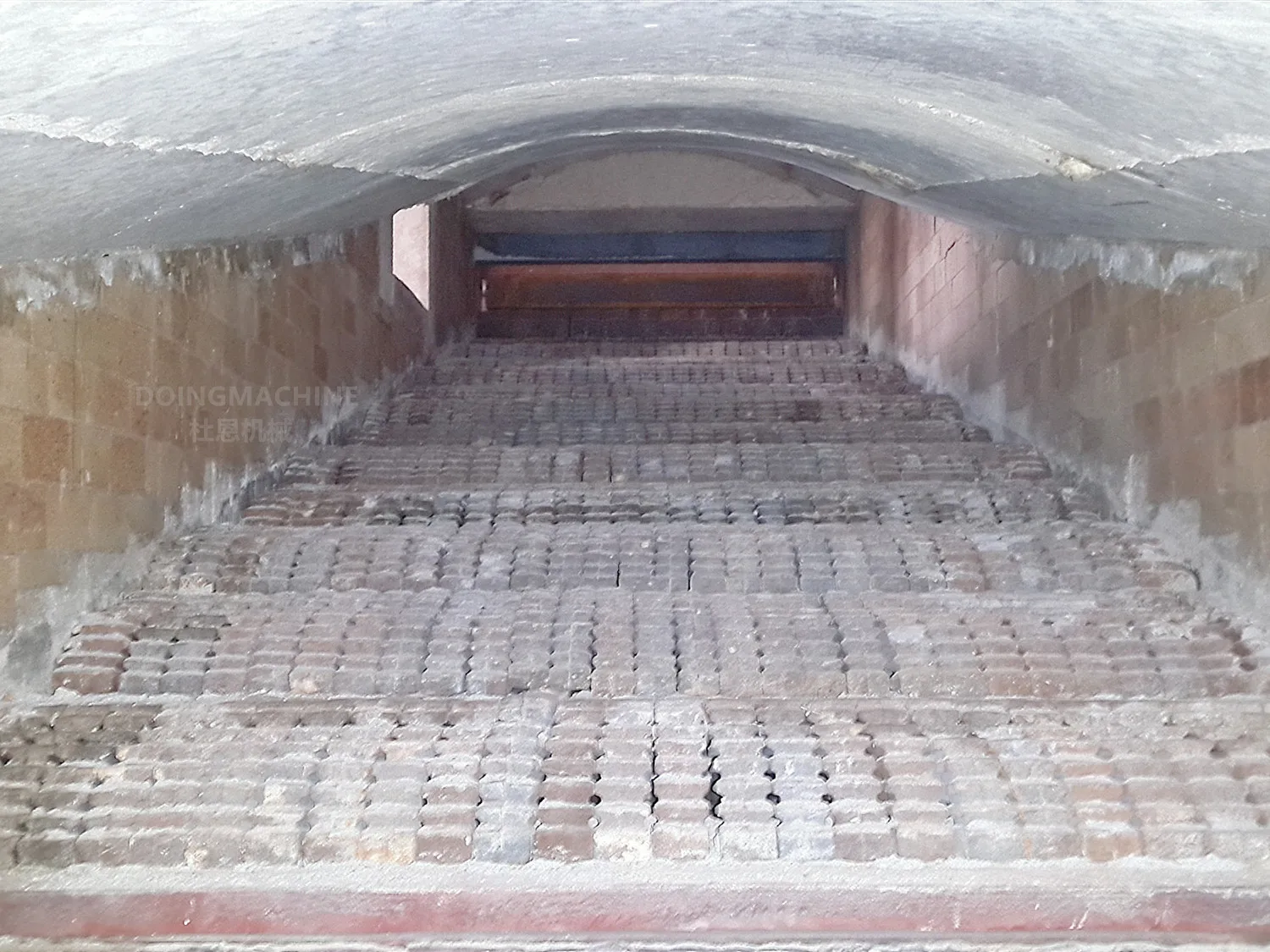

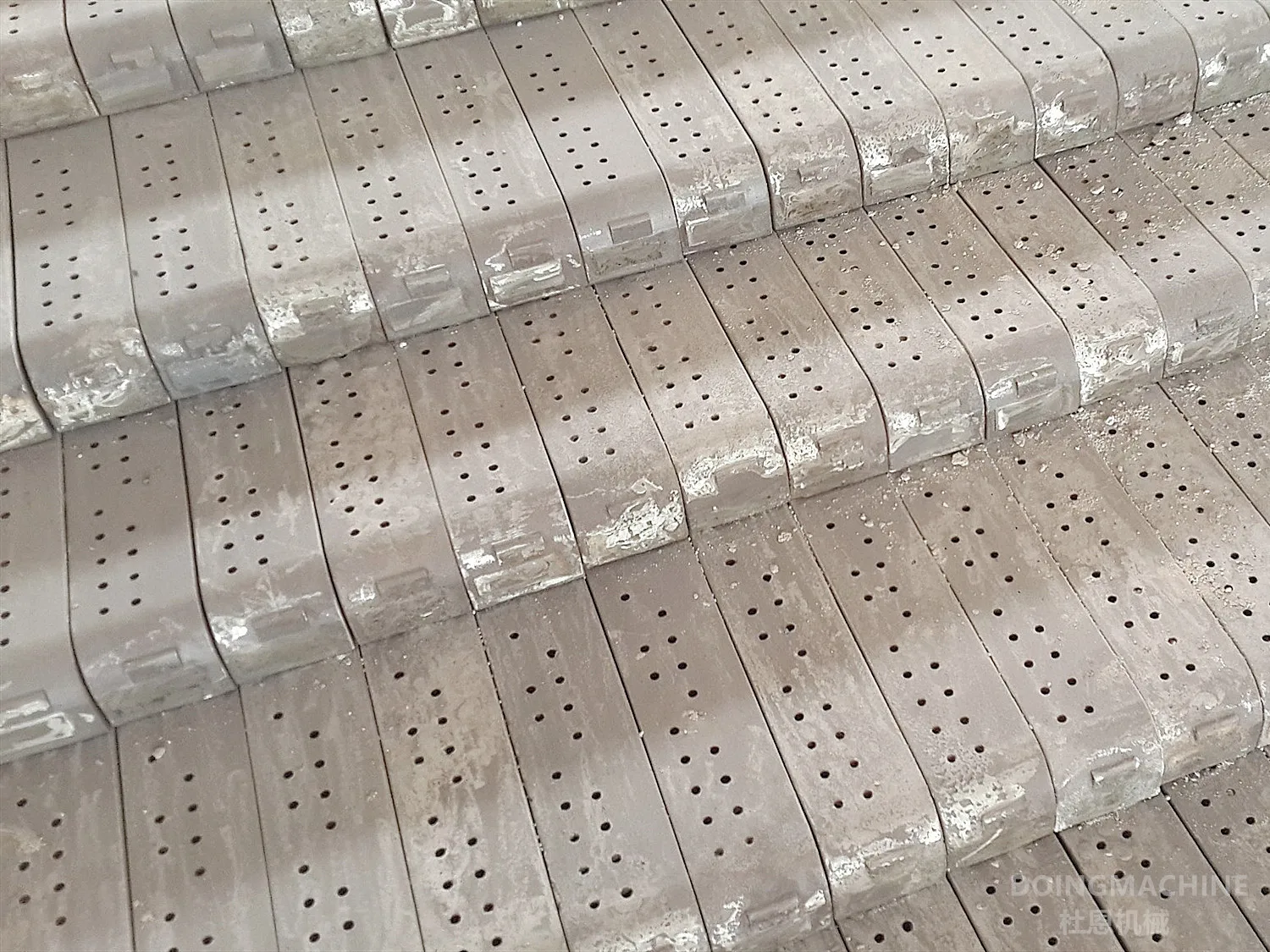

The air-cooled reciprocating grate is inclined stair-like grate of which each stair is removable. When biomass fuel is fed onto the top stair via the feeding hopper, it pushes the fuel down the length of the grate through distict drying,gasification, combustion and burn-out zones. The combustion air is blown into the combustion chamber from the grate bottom through the holes in each grate bar. The ash is automatically discharged off at the end of grate into an ash conveying system. After heated, the hot air (800-1000 ℃) is discharged by the exhaust fan for drying or heating process. Tubular type heat exchanger can be installed after the furnace to get clean hot air.
Technical advantages:
chips, bark, sawdust, forest waste, agriculture waste, rice husk etc. with low heat value and high ash content.
a. Drying zone: preheating and dispersing the fuel
b. Gasification zone : gasifying fuel surface for easy burning
C. Combustion zone: fuels completely combusted
c. Burn-out zone: ash discharging and collecting
3) Perfect and complete combustion: the reciprocation movement can perfectly disperse and turn over the fuels during combustion, so the combustion is perfect and complete.
4) Good insulation and high heat efficiency: the heat insulation layer is 600 mm. Less heat loss and complete combustion can guarantee 90% heat efficiency.

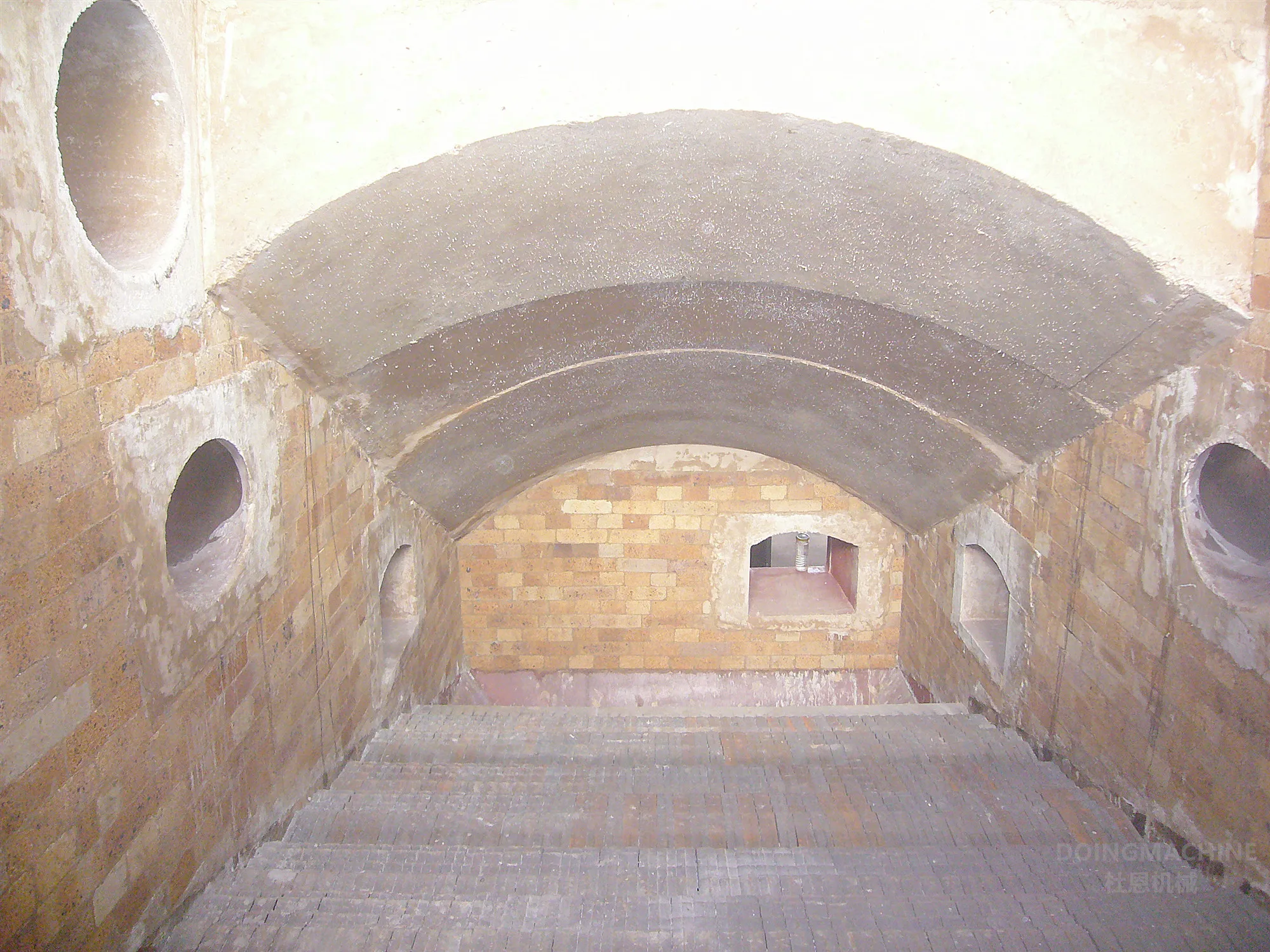

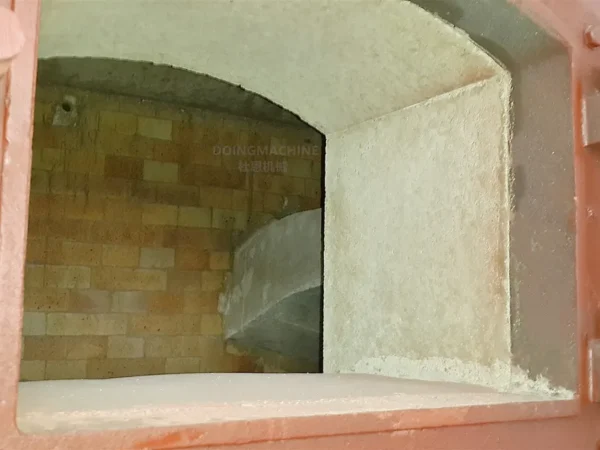

5) Long life-span: the combustion chamber frame is made by high strength steel and lined by casting heat resistant cement and firebricks. The grate bar is made by heat resistant alloy steel. The normal life-span can reach 10 years.
6) Automatic operation: fuel feeding, ash discharging and grate moving are fully automatic.

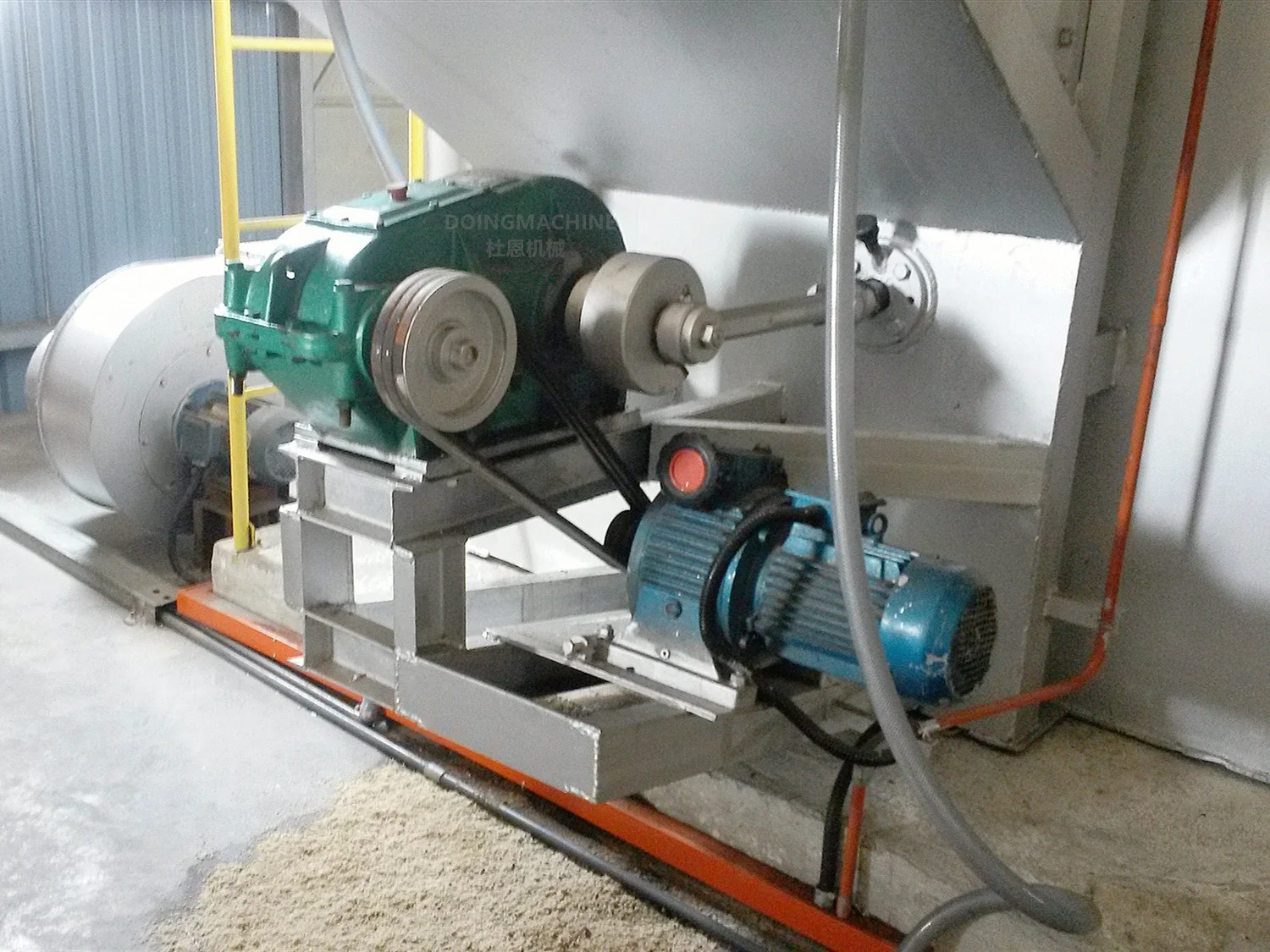

7) Stable output temperature: Temperature control is achieved by accurately regulating the combustion air, grate movement and feeding speed.Grate drive motors are stepless speed regulating type.
8) Safety measures: exhaust fan is equipped to create negative pressure burning condition. Ash removing port is water sealed. The negative pressure and sealed burning chamber can make sure operation safety as well as cooling the grate.
|
Heat output
|
600,000-12,000,000 Kcal/h
|
||||||
|
Outlet hot air temp.
|

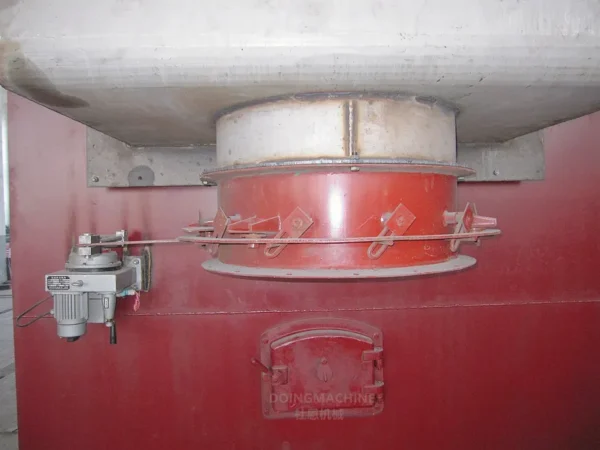

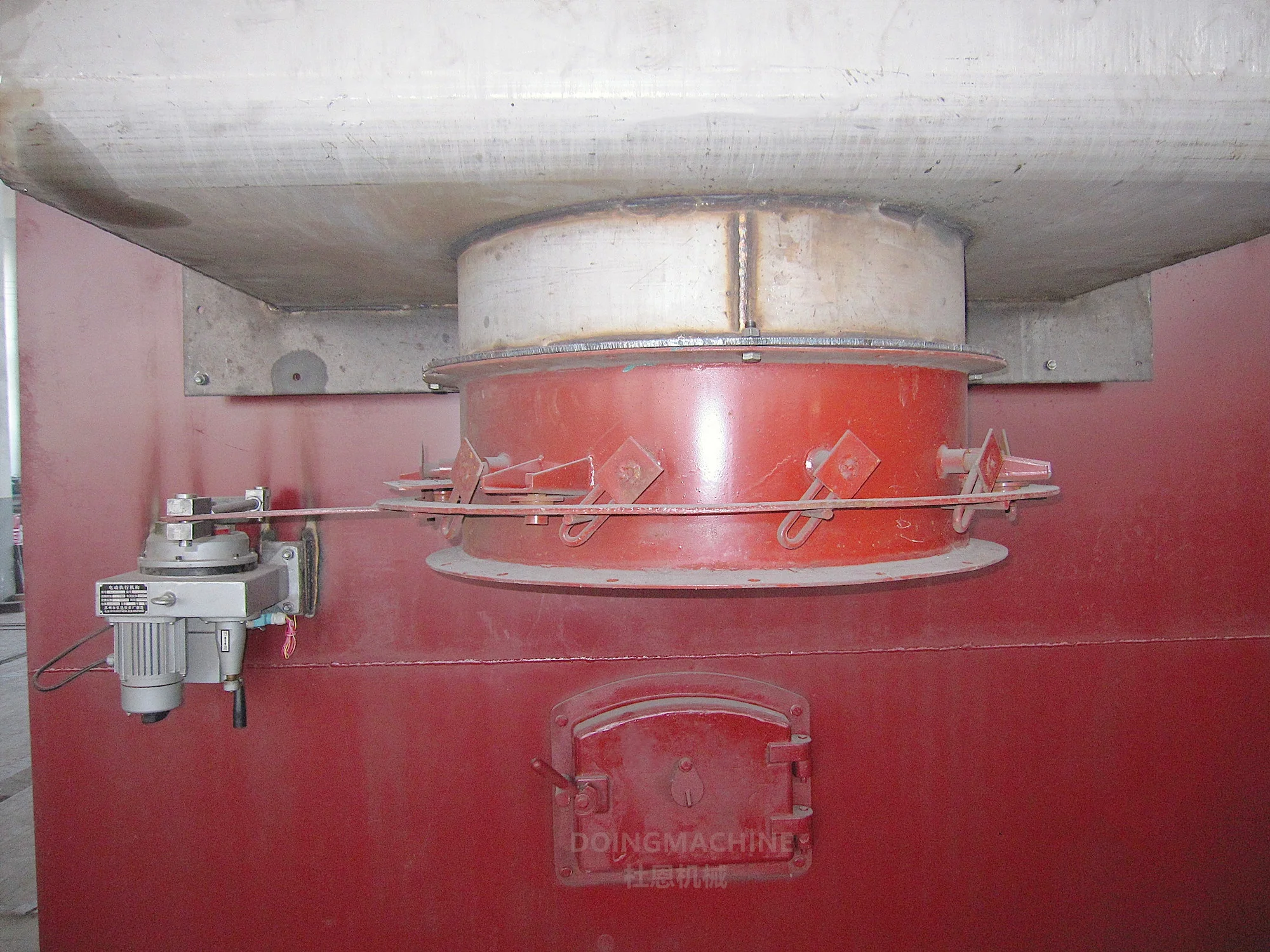

80-800 ℃ (adjustable via electric cool-air damper)
|
||||||
|
Temp. control accuracy
|
±15 ℃
|
||||||
|
Grate type
|
Air cooling reciprocating grate
|
||||||
|
Grate material
|
Alloy steel or high silicon cast iron
|
||||||
|
Grate drive method
|
Drive motor (600,000-8,000,000 Kcal/h)
Hydraulic cylinder ( more than 8,000,000 kcal/h)
|
||||||
|
Refractory thickness
|
400-750mm
|
||||||
|
Max working temp.
|
Inside combustion chamber 1500 ℃
|
||||||
|
Heat exchanger
|
High-temperature air-to-air heat exchanger can be equipped to get clean hot air
Max clean hot air temperature: 800 ℃
|
||||||
|
Basic configuration
|
Fuel feeder, combustion chamber, grate drive system, combustion air blower, electric cool-air damper, ash remover, draft fan and contorl cabinet
|
||||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air generator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
