Key specification for this air heater: 220V/380V, power source Electric. Everything below is reproduced from the factory data sheet. Made by Shanghai Zhangoco Electric Appliances Co., Ltd. (13 years on the platform, typical reply ≤12h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Air Heater
- Power Source: Electric
- Power: Electric
- Voltage: 220V/380V
- Material: Plastic
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
Technical Specifications
| Type | Air Heater |
|---|---|
| Power Source | Electric |
| Voltage | 220V/380V |
| Material | Plastic |
| Key Selling Points | High-Accuracy |
| Warranty | 1 Year |
| Place Of Origin | Shanghai, China |
| Brand Name | Suntech |
| Dimension(L*W*H) | 850*600*500 |
| Working Temperature Range | 200 – 650 ℃ |
| Application | Drying system |
| Heating Element | Nichrome Resistance Wire |
| Function | Adjustable Thermostat |
| Name | Air heater |
| Max Temperature | 750 Deg.C |
| Operate Temperature | 300-800 |
| Feature | Stable |
| Power | Electric |
| Heating Core | Ceramics |
| Packaging Details | Wooden case |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Air Heater
1. Application
The air heater is an electrically controlled heater which is driven by the fan. It is electric heated and uses the air as a media. By driving the impeller with the fan, it realizes heated air circulation, finally heating the whole space.
2. Parameters
| Item | Model | Heating power | Blower power | Maximum air flow | Maximum pressure |
| No. | KW/h | KW/h | M³/min | Pa | |
| 1, | DR-1220-BX-801 | 1-3KW | 0.025 | 2 | 100 |
| 2, | DR-1220-PF-801 | 3-5KW | 0.04/0.09 | 4/6 | 150/300 |
| 3, | DR-3380-PF-802 | 6KW | 0.2 | 13 | 600 |
| 4, | DR-3380-PF-803 | 10KW | 0.20/0.55 | 13/15 | 600/1100 |
| 5, | DR-3380-PF-804 | 15KW | 0.55/0.75 | 15/22 | 1100/1500 |
| 6, | DR-3380-PF-805 | 20KW | 0.75/1.10 | 22/26 | 1500/1200 |
| 7, | DR-3380-PF-806 | 25KW | 1.1 | 26 | 1200 |
| 8, | DR-3380-PF-807 | 30KW | 1.1 | 26 | 1200 |
| 9, | DR-3380-PF-808 | 40KW | 1.1/2.20 | 26/35 | 1200/1600 |
| 10, | DR-3380-PF-809 | 50KW | 5.5 | 53 | 3407 |
| 11, | DR-3380-PF-810 | 60KW | 7.5 | 61 | 4776 |
| 12, | DR-3380-PF-811 | 70KW | 11 | 79 | 4256 |
| 13, | DR-3380-PF-812 | 80KW | 15 | 99 | 5553 |
| 14, | DR-3380-PF-813 | 100KW | 18 | 112 | 5180 |
| 15, | DR-3380-PF-814 | 120KW | 22 | 120 | 7400 |
| 16, | DR-3380-PF-815 | 150KW | 30 | 248 | 4736 |
| 17, | DR-3380-PF-816 | 200KW | 45 | 328 | 4181 |
| 18, | DR-3380-PF-817 | 250KW | 55 | 357 | 5920 |
| 19, | DR-3380-PF-818 | 300KW | 75 | 501 | 5065 |
| 20, | DR-3380-PF-819 | 500KW | 132 | 703 | 6382 |

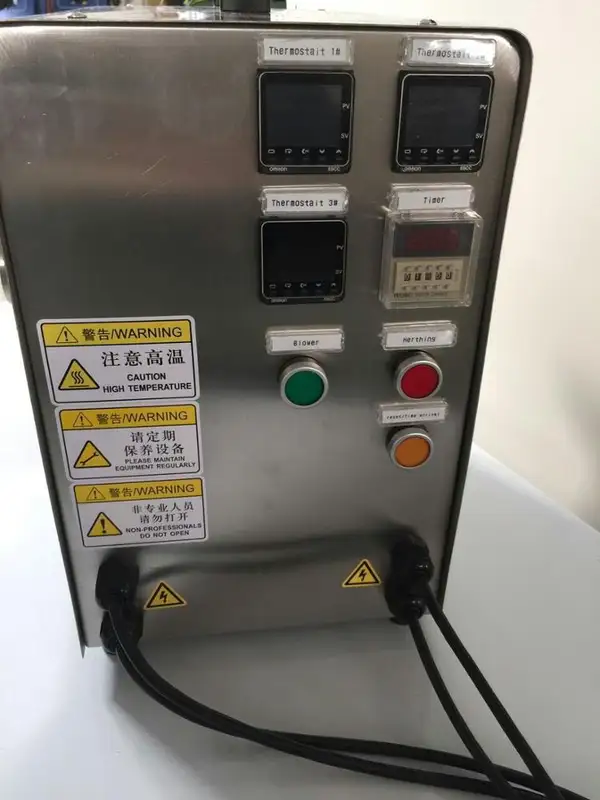

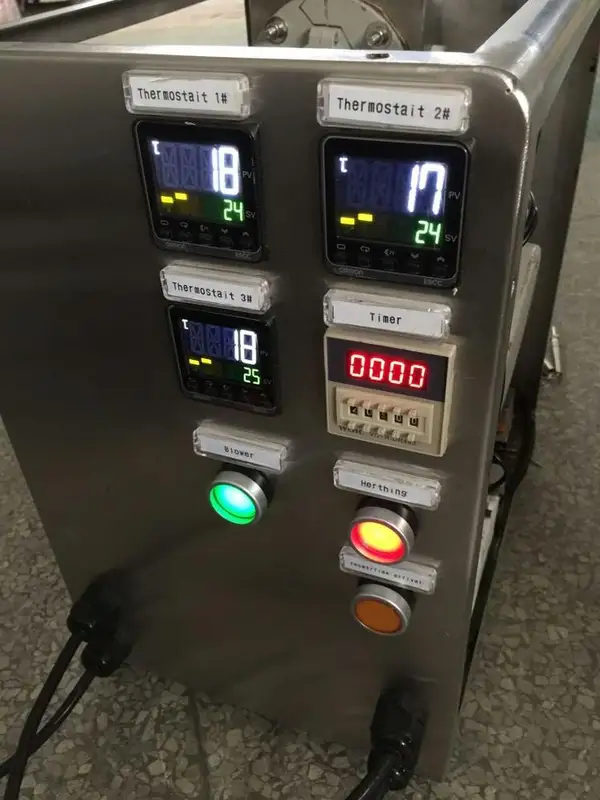

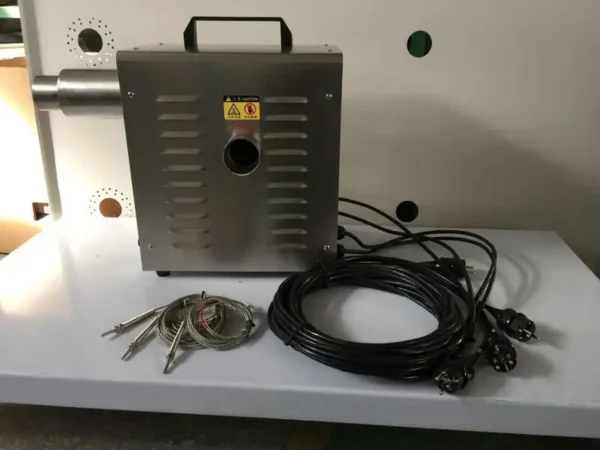

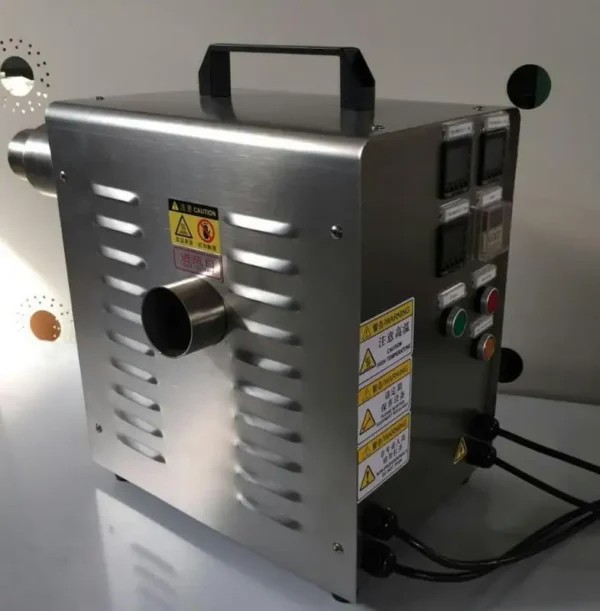

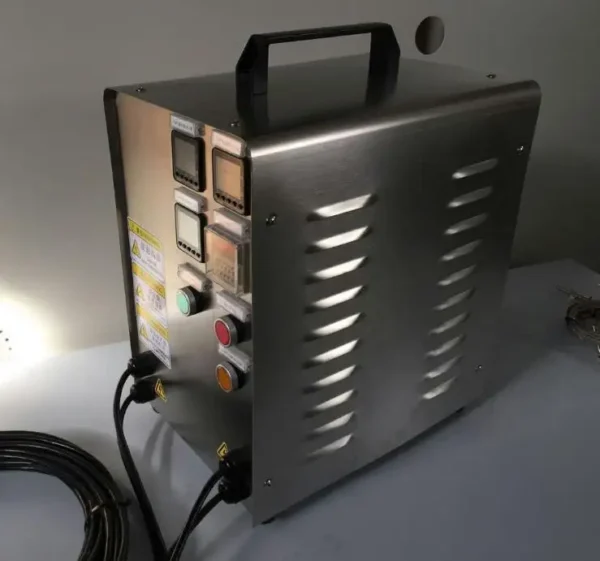

3. Photos
4. Contact information
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $1000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this air heater?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the air heater be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Zhangoco Electric Appliances Co., Ltd., based in China. The company 13 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shanghai Zhangoco Electric Appliances Co., Ltd. range on HVACR Nexus.
