The axial flow fan listed here carries voltage 115, 230V, air flow 30~36 CFM, documented exactly as the manufacturer publishes it. Made by LIANG HERNG ELEC MACH CO., LTD. (21 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Axial Flow Fan
- Model Number: A9C25T
- Power Source: Electric
- Voltage: 115, 230V
- 230V Type Voltage Range: 185VAC to 245VAC
- 115V Type Voltage Range: 85VAC to 125VAC
- Air Flow: 30~36 CFM
Technical Specifications
| Voltage | 115, 230V |
|---|---|
| Speed | 2700/3200rpm |
| Type | ac axial fan |
| Material | Thermoplastic PBT, UL94V-0 and Die-Cast Aluminum |
| Blade Material | Plastic |
| Mounting Type | Wall Fan |
| Bearing Type | DUAL BALL BEARING |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Taiwan, China |
| Brand Name | SHYUAN YA |
| Model Number | A9C25T |
| Air Flow | 30~36 CFM |
| Housing | Die-Cast Aluminum |
| Impeller | Thermoplastic PBT |
| Motor | Shaded-Pole Motor |
| Bearing | Ball or Sleeve |

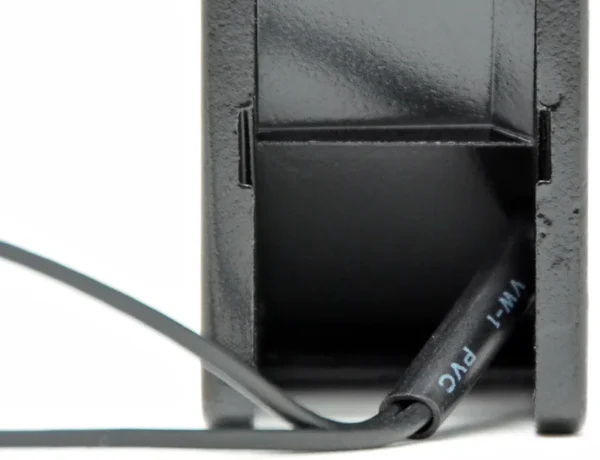

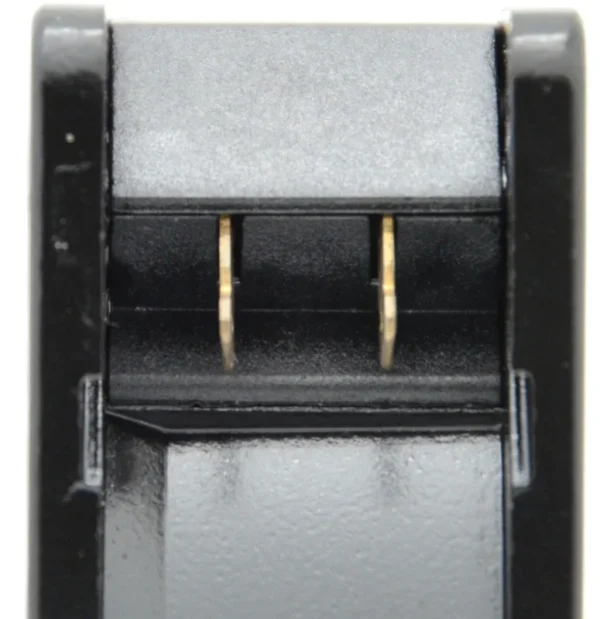

| Termination | Terminals or Lead Wire |
| Insulation | Class "B" or "F" |
| 230V Type Voltage Range | 185VAC to 245VAC |
| 115V Type Voltage Range | 85VAC to 125VAC |
| Applicable Industries | Manufacturing, Machinery and Industrial Plant |
| Core Components | Bearing and Motor |
| Selling Units | Single item |
| Single Package Size | 9.2X9.2X2.5 cm |
| Single Gross Weight | 0.300 kg |
Product Details
Specification | ||
Air Flow | 30 ~ 36 CFM | |
Housing | Die-Cast Aluminum | |
Impeller | Thermoplastic PBT | |
Motor | Shaded-Pole Motor | |
Bearing | Ball or Sleeve | |
Termination | Terminals or Lead Wire | |
Insulation | Class “B” or “F” | |
230V Type Voltage Range | 185VAC to 245VAC | |
115V Type Voltage Range | 85VAC to 125VAC | |
Certification | ce, RoHS | |
Product Name | AXIAL FAN A8C25T | AXIAL FAN A8C38T | AXIAL FAN A9C25T | ||
Air Flow | 18 ~ 22 CFM | 26 ~ 31 CFM | 30 ~ 36 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | ||||
Product Name | AXIAL FAN A9C38T | AXIAL FAN A12C25T | AXIAL FAN A12C38T-1 | ||
Air Flow | 42~49 CFM | 61 ~ 72 CFM | 103 ~ 117 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | ||||
Product Name | AXIAL FAN A13C38T | AXIAL FAN A15C38T | AXIAL FAN A15C51T | ||
Air Flow | 107 ~ 123 CFM | 198 ~ 229 CFM | 178 ~230 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Thermoplastic PBT, UL94V-0 | ||||
Motor | Shaded-Pole Motor | Capacitor Start Motor | Capacitor Start Motor / Shaded-Pole Motor | ||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -10°C to +70°C for Sleeve Type / -20°C to +80°C for Ball Type | -20°C to + 90°C | -20°C to + 80°C | ||
Product Name | AXIAL FAN A16C62T-1CB | AXIAL FAN A18C65T | AXIAL FAN A17C51T | ||
Air Flow | 261 ~ 307 CFM | 342 ~ 394 CFM | 100 ~ 225 CFM | ||
Housing | Die-Cast Aluminum, Painted Black | ||||
Impeller | Injection Molded of Flame Retardant Polycarbonate, Black | Thermoplastic PBT, UL94V-0 | Thermoplastic PBT, UL94V-0 | ||
Motor | Capacitor Start Motor | ||||
Insulation | Class “B” or “F” | ||||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||||
Operating Temperature | -20°C to + 80°C | ||||
Product Name | AXIAL FAN A18C90T | AXIAL FAN A25C89T | |
Air Flow | 376 ~ 434 CFM | 443 ~ 529 CFM | |
Housing | Die-Cast Aluminum, Painted Black | ||
Impeller | Injection Molded of Flame Retardant Polycarbonate, Black | Thermoplastic PBT, UL94V-0 | |
Motor | Capacitor Start Motor | ||
Insulation | Class “B” or “F” | ||
Operating Voltage Range | 85VAC to 125VAC for 115V Type / 185VAC to 245VAC for 230V Type | ||
Operating Temperature | -20°C to + 80°C | -30°C to + 80°C | |
Questions & Answers
Ordering and Pricing
- Minimum order quantity: 50 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 115, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by LIANG HERNG ELEC MACH CO., LTD.. The company 21 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full LIANG HERNG ELEC MACH CO., LTD. range on HVACR Nexus.
