The axial flow fan listed here carries voltage 12/24/48V, blade material Plastic, documented exactly as the manufacturer publishes it. Made by Shenzhen Feng Huishun Technology Development Co., Ltd. (4 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Axial Flow Fan
- Model Number: FH9232ABH1
- Voltage: 12/24/48V
- Blade Material: Plastic
- Material: Plastic Blade Plastic Frame
- Warranty: 1 Year
- Certification: Ce RoHS
Technical Specifications
| Voltage | 12/24/48V |
|---|---|
| Blade Material | Plastic |
| Electric Current Type | DC |
| Mounting Type | Free Standing |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | FH/ODM/OEM |
| Model Number | FH9232ABH1 |
| Product Name | DC Brushless Fan |
| Size | 92x92x32mm |
| Bearing Type | Dual Ball Bearing |
| Motor | DC Brushless Motor |
| Usage | Air Cooling System |
| Function | Customer’s Requirement |
| Material | Plastic Blade Plastic Frame |
| Application | Industrial Equipment,Computer,Air Purifier |
| Certification | Ce RoHS |
| Keyword | Large Air Flow Cooling Fan |
| Packaging Details | Fan packed in cartons or individual box if required. |
| Port Of Dispatch | SHENZHEN/HK |
| Selling Units | Single item |
| Single Package Size | 22X14X15 cm |
| Single Gross Weight | 0.250 kg |
| Supply Ability | 20000 pieces per Day |
Product Details

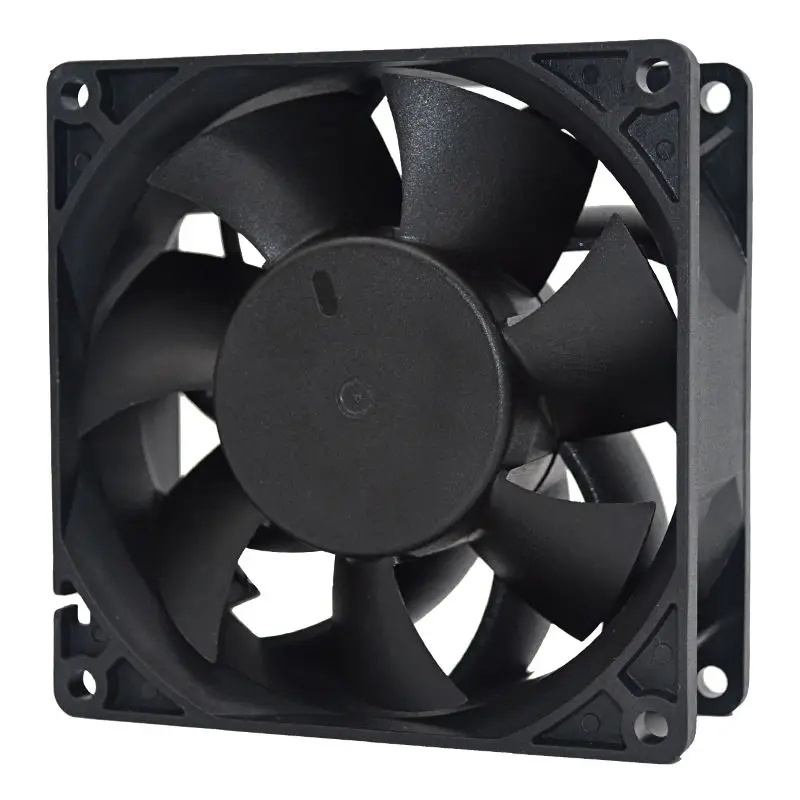

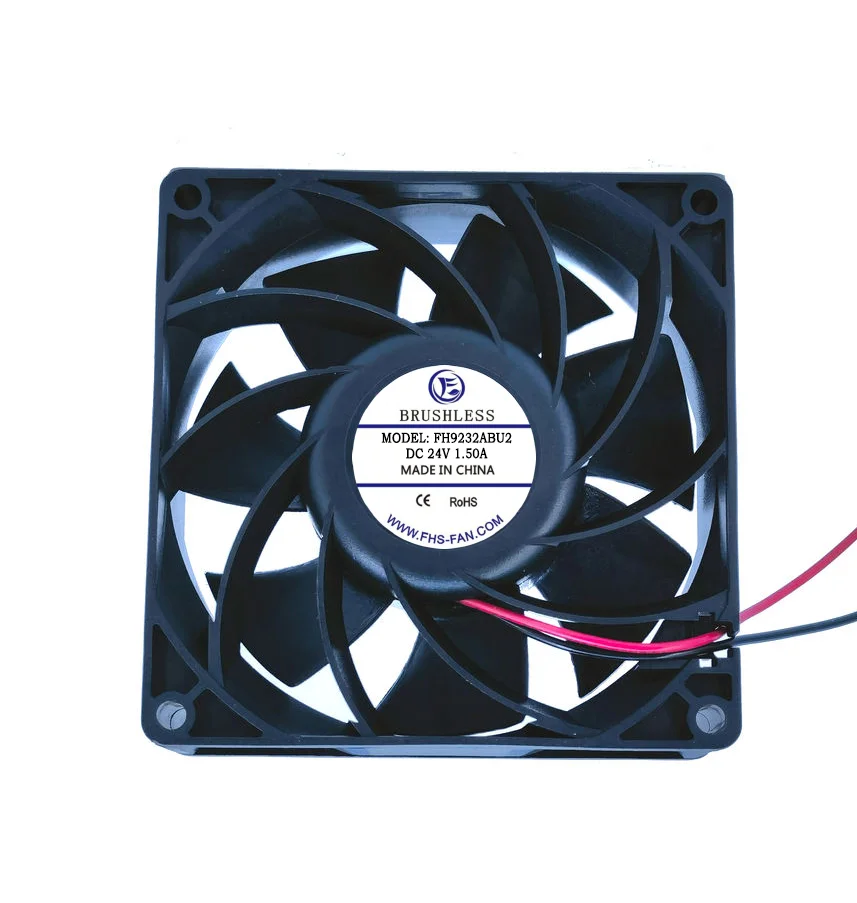

Product Name | DC Brushless Fan |

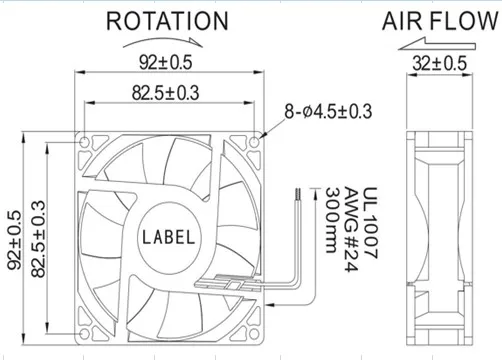

Product Dimension | 92x92x32mm(Length* Width *Thickness) |
Material | Plastic Blade and Plastic Frame |
Rated Voltage | 12V DC FAN (24V 48V Optional) |
Bearing Type | Ball Bearing (Sleeve Bearing Optional) |

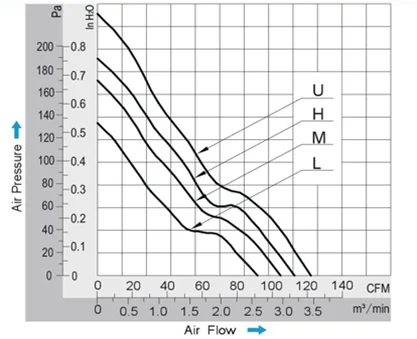

Rated Speed: 5500RPM(At rated Voltage,Measured after 3Mins.) Air Flow:113.08CFM (Maximum In Free Air) Air Pressure: 0.76Inch-H2O(Maximum When Air Flow = 0) Noise Level: 55dBA (At Rated Speed) | |
Operating Temperature & Life expectancy | Ball bearing: -30°C to +75°C @ 50000hours at 40°C Sleeve bearing: -10°C to +70°C @ 30000hours at 25°C |
Function (optional) | PWM Control / FG Tacho / RD Alarm |
Feature (optional ) | Locked Motor Protection,Auto Restart,Polarity Protection,Soft Start |
Wire & Connector & Tube | Wire length & Connector model ( as required ) |
Mounting | Screw mounting |

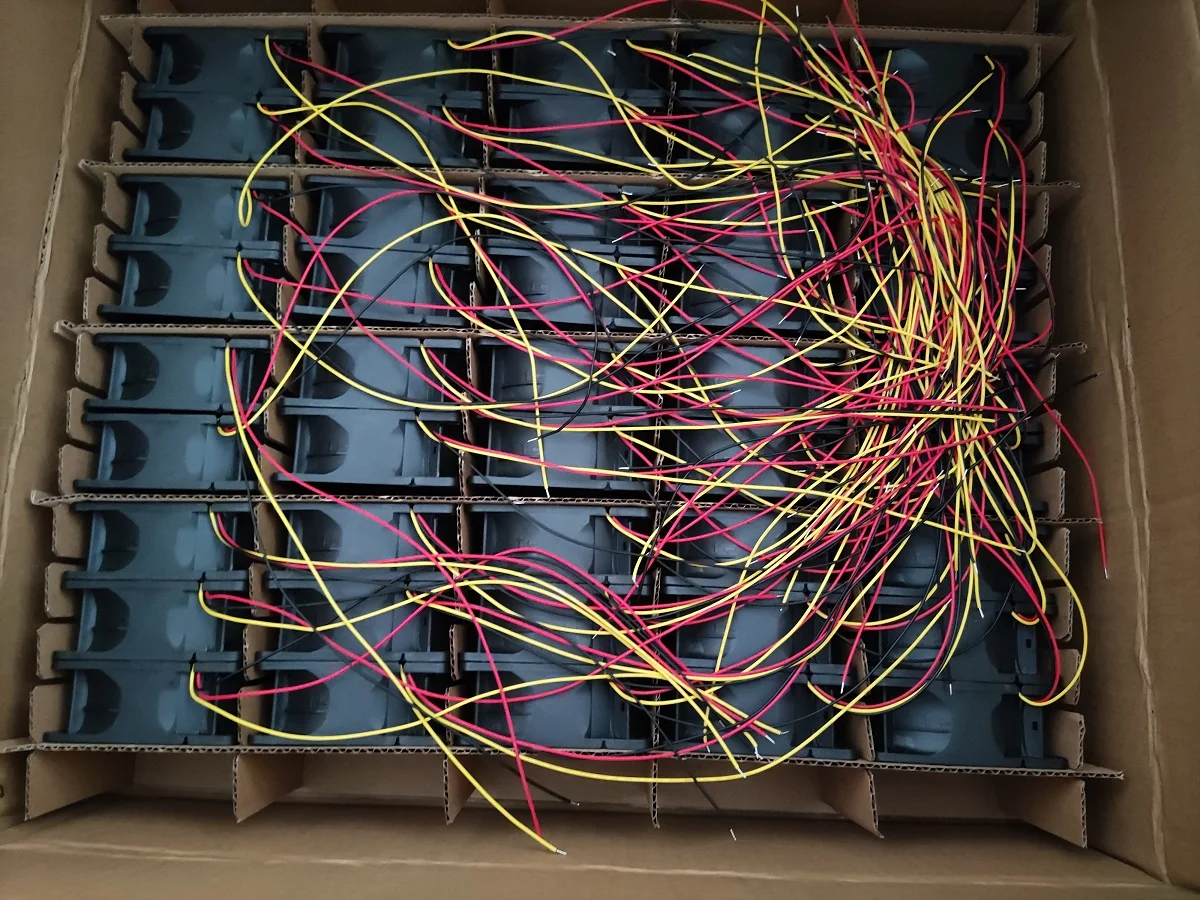

Package | Carton box,we can also according to the requirements of customers. |

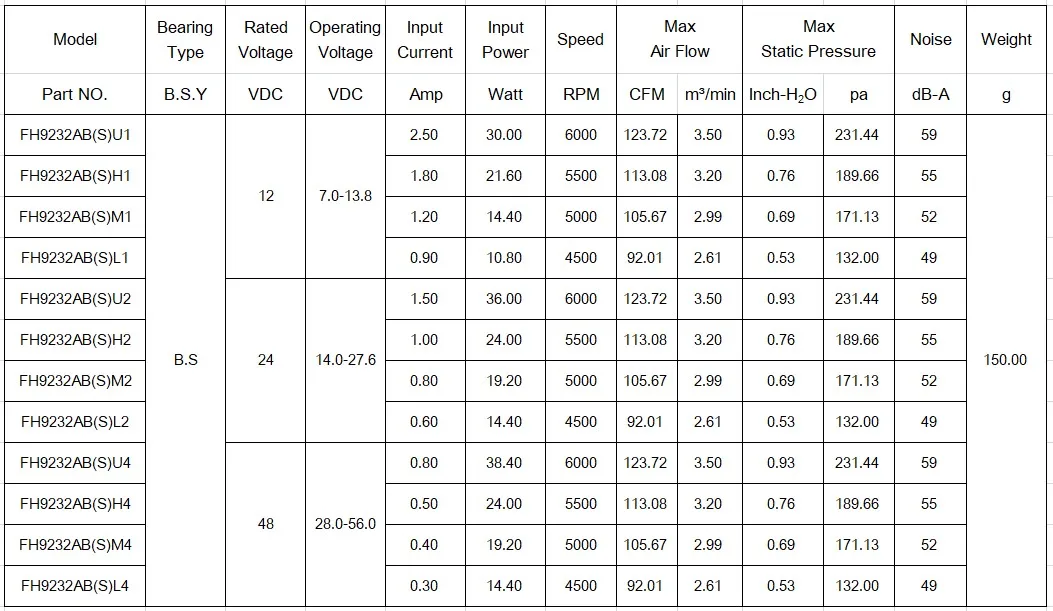

Product Specification
Others products：
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $4 / piece
- 500–4999 piece: US $3.8 / piece
- 5000–9999 piece: US $3.5 / piece
- 10000+ piece: US $3 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this axial flow fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this axial flow fan carry?
It is supplied with Ce RoHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the axial flow fan be supplied for my local voltage?
The standard configuration is 12/24/48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Feng Huishun Technology Development Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Feng Huishun Technology Development Co., Ltd. range on HVACR Nexus.
