The big industrial fan listed here carries 1.5KW, certification ce, documented exactly as the manufacturer publishes it. Made by Shanghai Yesen Ventilation Equipment Co., Ltd. (11 years on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Big Industrial Fan
- Power: 1.5KW
- Certification: ce
- Place Of Origin: Shanghai, China
- Drive Type: Gearbox Motor
- Motor Type: AC Motor
- Size: 7.3m/24ft
Technical Specifications
| After-Sales Service Provided | Online support |
|---|---|
| Place Of Origin | Shanghai, China |
| Weight | 160kg |
| Usable Acre | 600m2 |
| Blade Number | 10 |
| Drive Type | Gearbox Motor |
| Size | 7.3m/24ft |
| Power | 1.5KW |
| Usage | Big Space Cooling and Ventilation |
| Motor Type | AC Motor |
| Certification | ce |
| Selling Units | Single item |
| Single Package Size | 84X84X52 cm |
| Single Gross Weight | 145.0 kg |
Product Details
Product Description
8FT-24FT, AS YOU CHOOSE

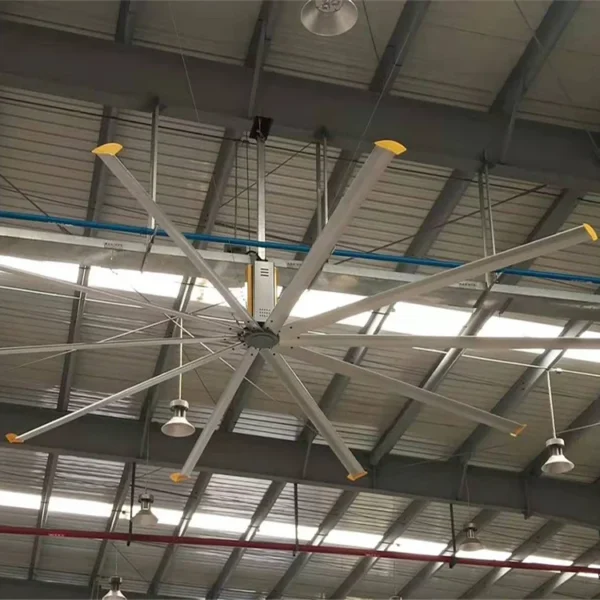

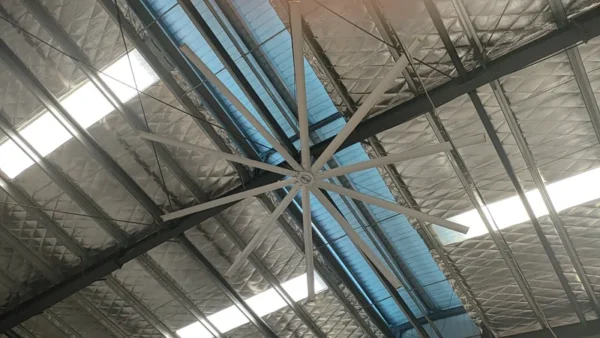

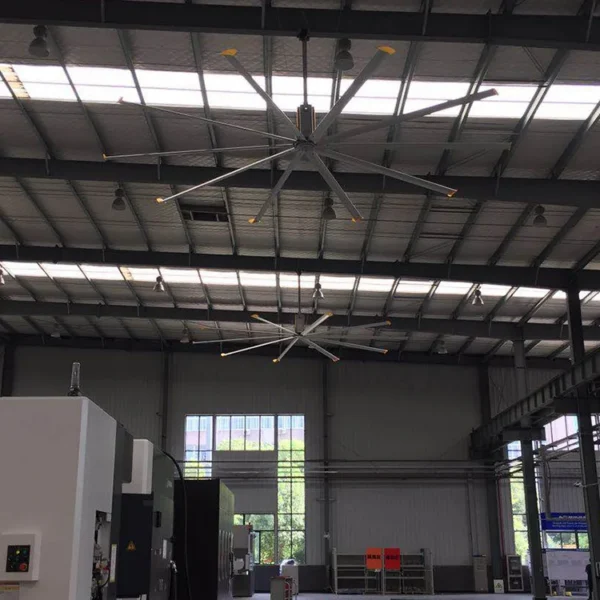

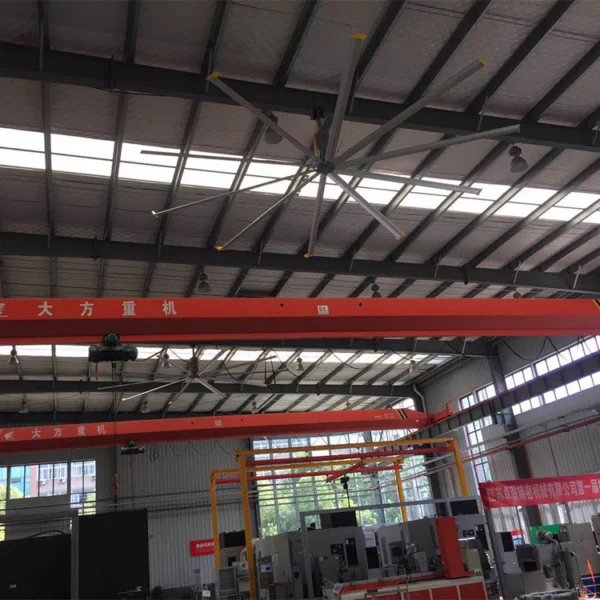

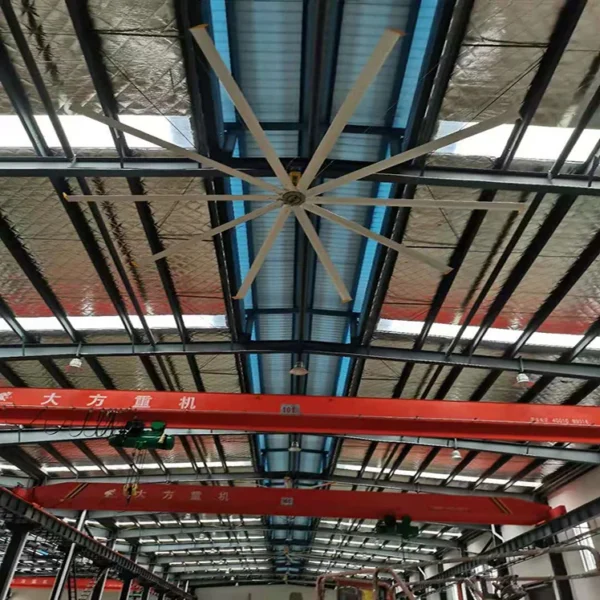

Yesen Industrial Ceiling Fan is our original and best-selling product. Suitable for factories, warehouses, large garages, etc. With fans ranging in diameter from 8 feet to 24 feet, these very powerful, energy efficient ceiling fans are suitable for buildings of all sizes. Its high performance, energy efficient design helps cool down in the summer and better ventilated areas in the winter. It helps to reduce humidity and condensation on floors and equipment, while creating a more comfortable working environment。
Save up to 30% on your HVAC bill while letting your employees feel the temperature drop by 16 degrees Fahrenheit. The six blades are constructed of very light, durable ultra-duralumin alloy to maximize performance and reduce weight.
Safety cables to secure the fan mounting structure and dual-pivot adjustable mounting hardware are included.
Specification
Model no | YS-7300 | YS-6100 | YS-5500 | YS-4900 | YS-3600 | YS-2500 |
Diameter | 24FT | 21FT | 18FT | 16FT | 12FT | 8FT |
Blade number | 6 | 6 | 6 | 6 | 6 | 6 |
Power | 1.5KW | 1.5KW | 1.5KW | 1.1KW | 1.1KW | 0.75KW |
Max speed | 20-50RPM | 20-50RPM | 20-50RPM | 20-72RPM | 20-72RPM | 20-100RPM |
Weight | 140KG | 130KG | 125KG | 120KG | 110KG | 85KG |
Air volume | 13500m3/min | 9000m3/min | 7500m3/min | 6000m3/min | 4500m3/min | 1600m3/min |
Cover area | 850m2 | 550m2 | 460m2 | 370m2 | 260m2 | 90m2 |
Main parts
big ceiling fan industrial ceiling fan using Toshiba/Danfoss/Schneider inverterwhich is the most famous inverter in worldwide. The overload protective device in controller box can automatically disconnect the power supply once accident occurs. So safety is assured. You can regulate the wind speed at will by rotary switch. What's more, the inverter can control the fan to rotate in forward and reversing direction. |
1.Low backlash assembly process and gear grinding technique,lower noise 2.Strength the bearing frame structure,increase oil seal and strength the motor structure with trapezoidal shaft structure,higher safety 3.Passed CCC,CE,UL certificates |
The blade is the core technique of the fan. We use simulation software ANSYS to make the blades with most reasonable transversal surface and inner limiting plate. HVLS fans have 6/8/10 PCS of blades and winglets to ensure maximum airflow and efficiency. Unique designed winglets at the airfoil tips greatly eliminate wind noise. The blades is made of aluminum alloy with plastic spraying finish, so it can resist corrosion and dust very well. |
Product safety
1 | Super thick steel wire rope passing through suspender and steel beam,When the ceiling fan falls off accidentally, lift it firmly |
2 | Four wire ropes pass through the motor shell, the tail end is fixed on the roof, balancing the ceiling fan, and preventing the ceiling fan from falling off accidentally |
3 | Laser cutting integrated molding,no longer have the risk of fracture, no longer have the risk of screw fall off |
4 | grade fastener:all the fasteners use high-intensity industrial bolt,and actualstress can reach more than 10 times, |
5 | Fan blade connector,It connects six individual blades together,To make them whole, and when one fan leaf falls off unexpectedly,Because of the presence of fan-blade connectors,The other blades will pull on the fallen ones |
Certificate
Packing and shipping
PACKAGE:Standard wooden cases
(Standard packing for ONE)
Motor and Accessories | 0.80M*0.80M*0.50M |
Blade | 3.52M*0.30M *0.30M |
Inventory details:
Off season: 150 units in stock
Peak season: 50-100 units in stock
If you need us to prepare goods in advance, please contact us in advance:
1-50 sets, 2 weeks
50-100 sets, 35 days
Off season: 150 units in stock
Peak season: 50-100 units in stock
If you need us to prepare goods in advance, please contact us in advance:
1-50 sets, 2 weeks
50-100 sets, 35 days
Company Profile
Shanghai Yesen Ventilation E quipment Co.,LTd was established in 2006, Located in Shanghai,China, is a professional companyspecialized in manufacturing roof fan,natural ventilation,evaporative air conditioners,suction fan and other products.Our company has strong technical force, advanced manufacturing technique, high specialization level, complete product series, andrich experience in manufacture and perfect detection methods, which enable our products to satisfy all customers' needs. Ourcompany can pass the certificate ISO9001:2000 Quality Management System.
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
A: Of course, we are a factory focusing on large ceiling fans based in Shanghai, China, be your direct fan supplier.
Q Where does your fan use in?
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
A: Ths fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electrcity?
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
A: Yes, it's power supply is electricity, but only 1.5KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is 12-15 years.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–19 set: US $1230 / set
- 20+ set: US $1050 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this big industrial fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Which certifications does this big industrial fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
