This blade electric exhaust fan is published with the manufacturer’s full specification — voltage 24/48VAC, power source Electric. Made by Ningbo Jigu Motor Technology Co., Ltd. (12 years on the platform, typical reply ≤4h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Blade Electric Exhaust Fan
- Model Number: A1SE200D
- Power Source: Electric
- Voltage: 24/48VAC
- Blade Material: Stainless Steel
- Speed Control: 0-10v or PWM signal
- Place Of Origin: Zhejiang, China
Technical Specifications
| Voltage | 24/48VAC |
|---|---|
| Type | exhaust fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | Sleeve Bearing |
| Power Source | Electric |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | GP MOTOR |
| Model Number | A1SE200D |
| Motor | External Rotor Motor |
| Mounting | Free standing |
| Bearing | NMB maintenance-free ball bearing |
| Impeller | PA66 Propylene with Fibreglass reinforce |
| Lead Wire | AWG#18 1007 |
| Type Of Protection | IP44 |
| Safety | Electronic protection |
| Insulation Class | Class "B" or "F" |
| Speed Control | 0-10v or PWM signal |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

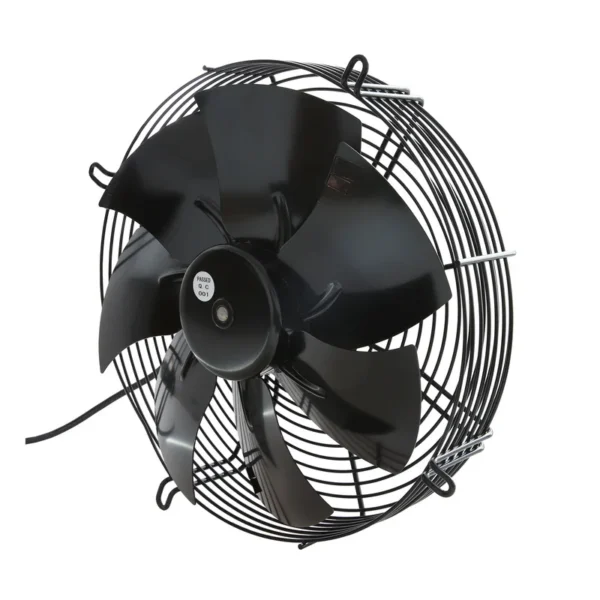

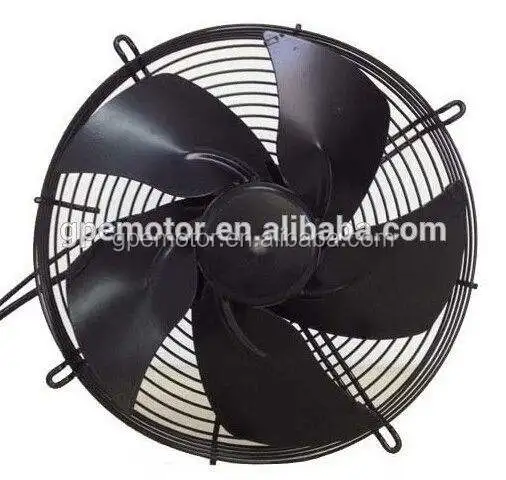

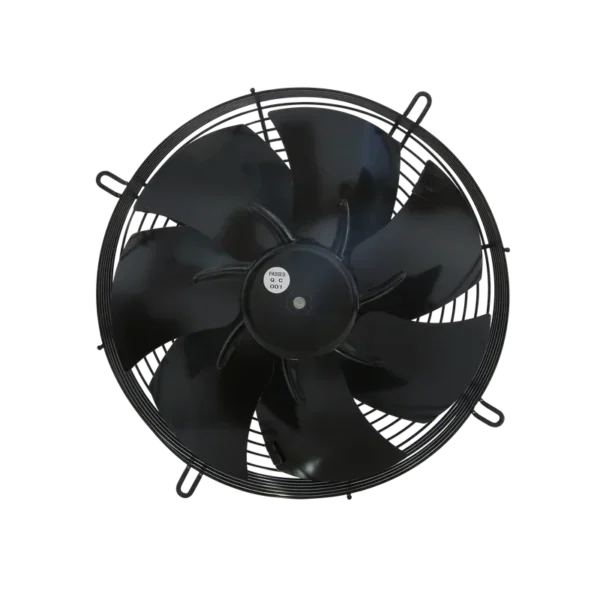

Factory Direct 300Mm 800Mm Ywf Wall Fan Ac External Rotor Motor Axial Fan
| Electrical Parameters | |
| Motor | External rotor brushless DC motor |
| Insulation Class | Class "B" |
| Motor Protection | Locked rotor protection & Reverse Polarity protection soft start & Automatic restart capability |
| Speed Control | 0~10VDC / PWM Input |
| Type of protection | IP42 |
| Operation Mode | S1 |
| Direction of Rotation | Clockwise, seen on rotor |
| Dielectric Strength | 5mA max. at 1500VAC 50Hz/s between frame and (+)terminal |
| EMC | EMC EN61000-6-3; EN 61000-6-1; EN61000-6-2/3 |
| Mechanical Parameters | |
| Impeller Dimension | Φ200mm |
| Material of Housing | Die-Cast aluminum |
| Mounting Position | Any |
| Bearing System | Dual NMB maintenance-free ball bearing |
| Life time | 30000 hours (L10) at 30°C room, humidity 5%~85%RH |
| Lead Wire | AWG#22 UL1007 (Controls), AWG#18 UL1007 (Mains) |
| Other Parameters | |
| Operating Temperature | -25°C to +60°C |
| Storaging Humidity | 5% to 85% RH |
| Approval | CE, CCC, ErP2015 and Rosh compliance |
| Warrent | 18 months after delivery |
| Specification | ||||||||
| Item Code: A1SE200D | ||||||||
| Rated | Frequency | Rated | Input | Speed | Air Flow | Air Flow | Noise | Net Weight (Kg) |
| 24/48V | / | ≤2.3/1.1 | 60 | 2900 | 647 | 1100 | 58 | 2.0 |

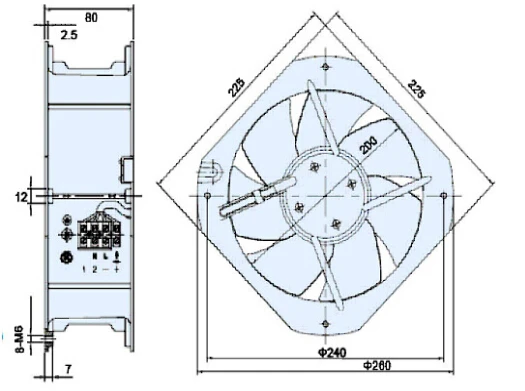

| Outline Drawing | |||||||||
| |

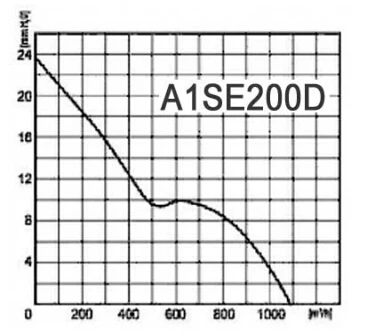

| Characteristic Curves | Wire Diagran | |
 | Cable Color | Function |
| Brown | L | |
| Blue | N | |
| Yellow/Green | PE | |
| Red | +10V output | |
| Yellow | 0-10VDC / PWM | |
| Blue | GND | |
| White | Tach output | |
| Customized Motor GP Motor specialize in design, custom and manufacture electric motors, including ECM Motor, PMDC Motor, Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Parts. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the motors in our Product Categories now! |
Since 1991, GP Motors has designed and manufactured the highest quality custom, ECM Motor, PMDC Motor,
Brushless Motor, Gear Motor, Servo Motor, AC Motor as well as Motor Parts in the industry. All of our custom
electric motors, electromechanical motor assemblies and components are engineered and manufactured in
our 120,000 square foot state-of-the-art manufacturing facility located in Ningbo, Zhejiang.
Factory Direct 300Mm 800Mm Ywf Wall Fan Ac External Rotor Motor Axial Fan
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2+ piece: US $59.9 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blade electric exhaust fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the blade electric exhaust fan be supplied for my local voltage?
The standard configuration is 24/48VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Jigu Motor Technology Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, Trading Company. Browse the full Ningbo Jigu Motor Technology Co., Ltd. range on HVACR Nexus.
