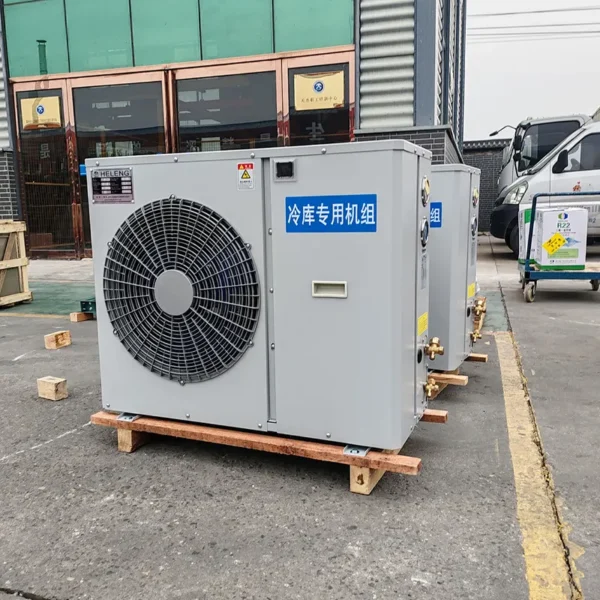

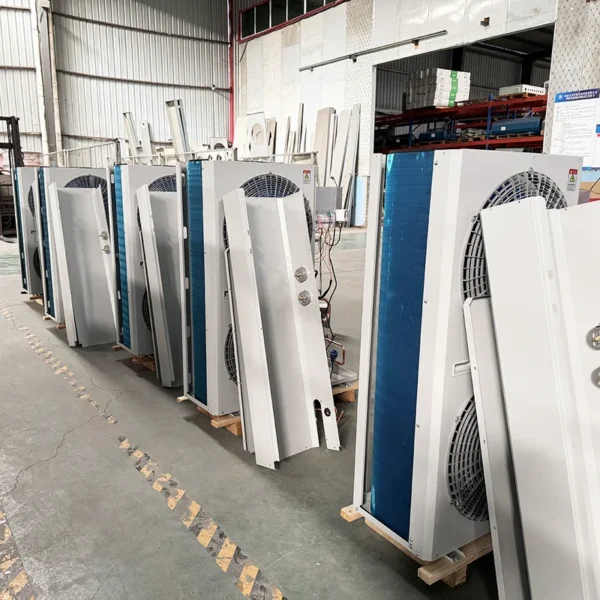

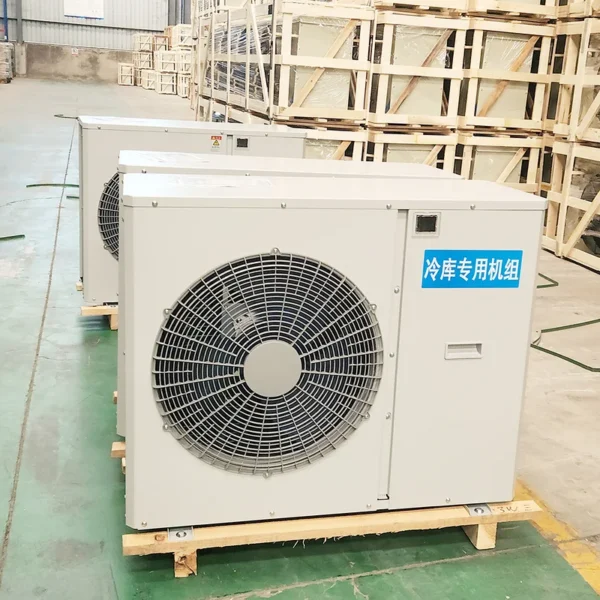

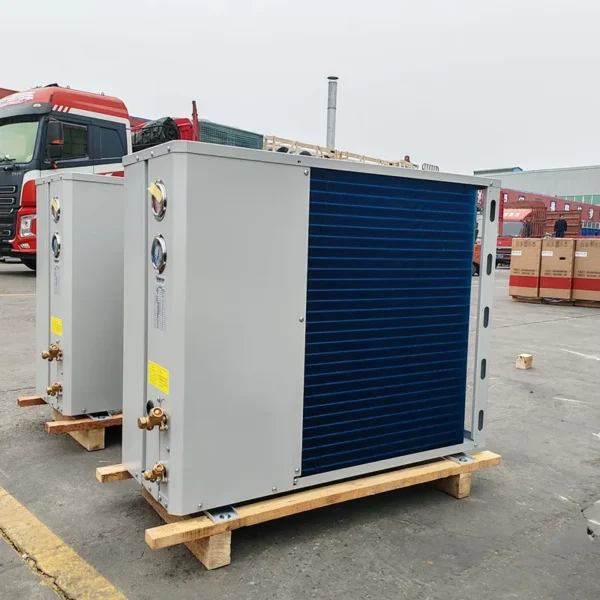

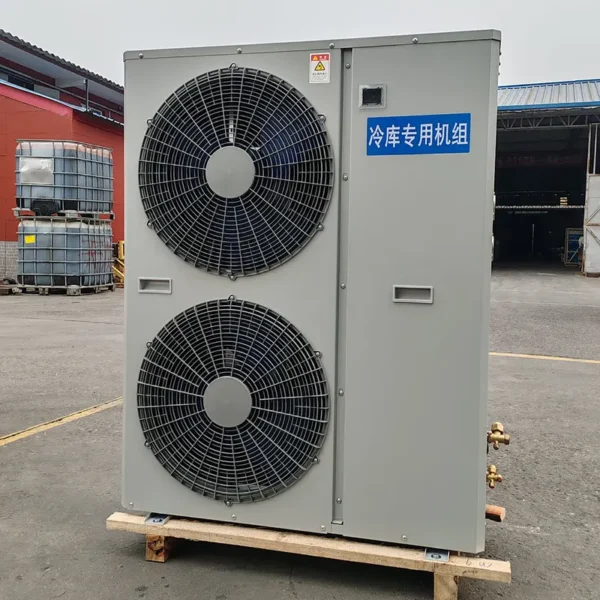

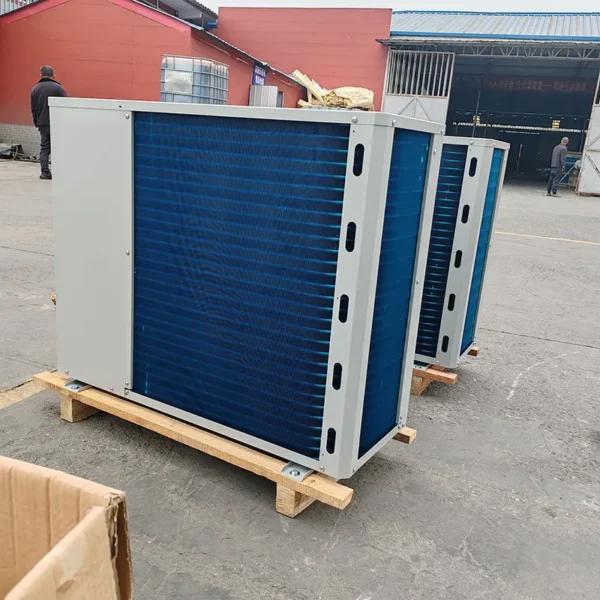

The blast freezer listed here carries voltage 440~380v/220~230v/110v, refrigerant R22,R404A or others, documented exactly as the manufacturer publishes it. Made by Sanmenxia Tianshun Refrigeration Equipment Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Blast Freezer
- Model Number: tj0803
- Voltage: 440~380v/220~230v/110v
- Refrigerant: R22,R404A or others
- Warranty: 2 Years
- Certification: CE UL
- Place Of Origin: Henan, China
Technical Specifications
| Temperature | -20-8c |
|---|---|
| Voltage | 440~380v/220~230v/110v |
| Compressor Type | Screw |
| Refrigerant | R22,R404A or others |
| Compressor Brand | Bitzer/Emerson |
| Core Components | Pressure Vessel, Motor, Bearing, PLC, Other |
| Warranty | 2 Years |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Energy Saving |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Weight (Kg) | 1000 |
| Model Number | tj0803 |
| Cooling Type | Air cooled |
| Application | Fresh-keeping, frozen food storage, quick-freezing |
| OEM Service | Yes |
| Packing | Plywood Case |
| Machinery Test Report | Provided |
| Certification | CE UL |
| Brand Name | Tianshun |
| Selling Units | Single item |
| Single Package Size | 70X32X56 cm |
| Single Gross Weight | 40.0 kg |
Product Details
| R22 MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | AOS-3.5HP | AOS-4HP | AOS-SHP | AOS-6HP | AOS-7HP |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5HP | 6HP | 7HP |
NOMINALCAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 955x365x1250 | |||||
GROSS WEIGHT(kg) | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ 16 OUTφ 10 | INφ19 OUTφ12 | ||||||
FANSIZE(mm) | 1Ad.450mm | 1Ad.450mm | 2Ad.450mm | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R22 | |||||||
| OIL | SUNISO3GS SUNISO4GS | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 63 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERATION VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| REFERENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
| R404A MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | A0S-3.5P | A0S-4HP | AOS-5HP | A0S-6HP | A0S-7HP. |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5H | 6HP | 7HP |
| NOMINAL CAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 55x365x1250 | |||||
| (kg) GROSS WEIGHT | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ16OUTφ 10 | INφ19OUTφ12 | ||||||
| FAN SIZE(mm) | 1Ad.400mm | 1Ad.450mm | 2Ad.450ms | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R404A | |||||||
| OIL | RL-32H | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 62 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERANT COOL VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| EFFRENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $340 / set
- 5–9 set: US $330 / set
- 10+ set: US $320 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this blast freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this blast freezer carry?
It is supplied with CE UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the blast freezer be supplied for my local voltage?
The standard configuration is 440~380v/220~230v/110v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Sanmenxia Tianshun Refrigeration Equipment Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Sanmenxia Tianshun Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
