Brushless motor — 48 V, power source Electric. The complete factory specification follows. Made by ACTIVA INC. (15 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Brushless Motor
- Model Number: D20070D-Y
- Power Source: Electric
- Voltage: 48 V
- Material: Aluminum/plastic
- Blade Material: Plastic
- Speed: 8,000 rpm
Technical Specifications
| Voltage | 48 V |
|---|---|
| Speed | 8,000 rpm |
| Type | High-Temperature Axial Fan |
| Material | Aluminum/plastic |
| Blade Material | Plastic |
| Mounting Type | Industrial Equipment |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | SYM BANG |
| Model Number | D20070D-Y |
| Certification | CE |
| Size | 200x70mm |
| Series | DC Fan |
| Applicable Industries | Manufacturing Plant/Machinery Repair Shops |
| Selling Units | Single item |
| Single Package Size | 25X25X10 cm |
| Single Gross Weight | 2.000 kg |
Product Details

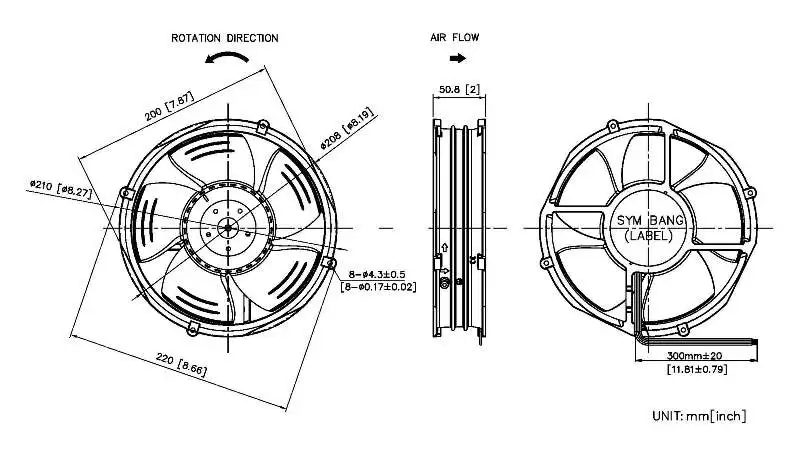

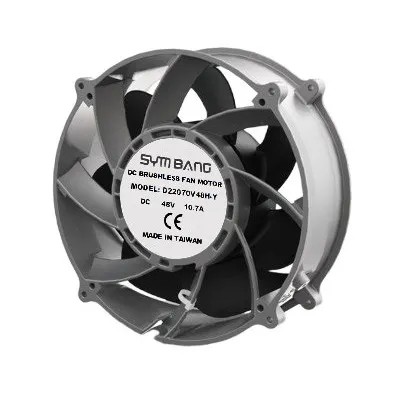

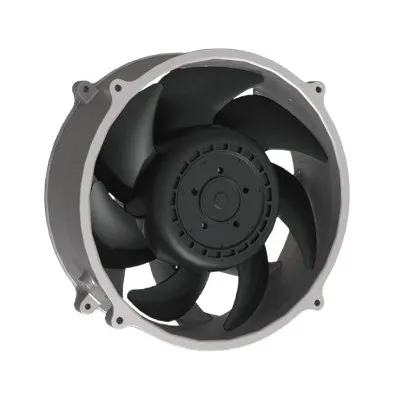

D20070D-Y 48V DC Brushless Motor for Axial Flow Fans for 200*70mm Fans
| HOUSING | Aluminum Die Casting, Painted Black |
| IMPELLER | PPE+PS+30%GF Black |
| BEARING | Ball |
| OPERATING TEMPERATURE | -20°C to +70°C |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| WEIGHT | 1.7 kg |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21(Special IP Rating On Request) |

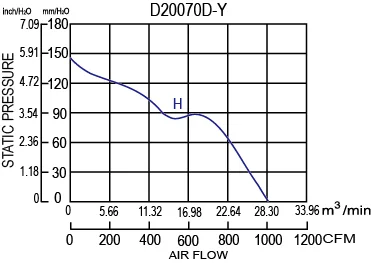

| Model No. | RATED | RATED | INPUT | SPEED | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A) | ||
| VOLTAGE | CURRENT | POWER | (RPM) | @1M | |||||
| (V) | (A) | (W) | inchH2O | mmH2O | CFM | m3/min | |||
| D20051V48H-Y | 48 | 2.5 | 120 | 6500 | 4.84 | 122.94 | 693 | 19.61 | 75 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Misting Fan |
|
Our factory:

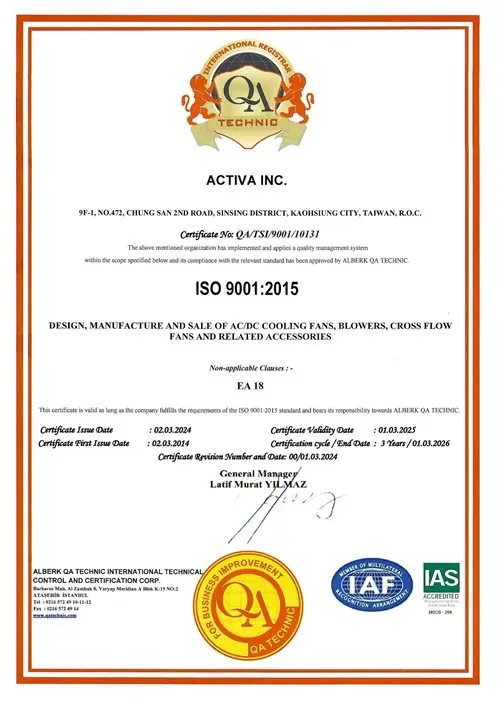

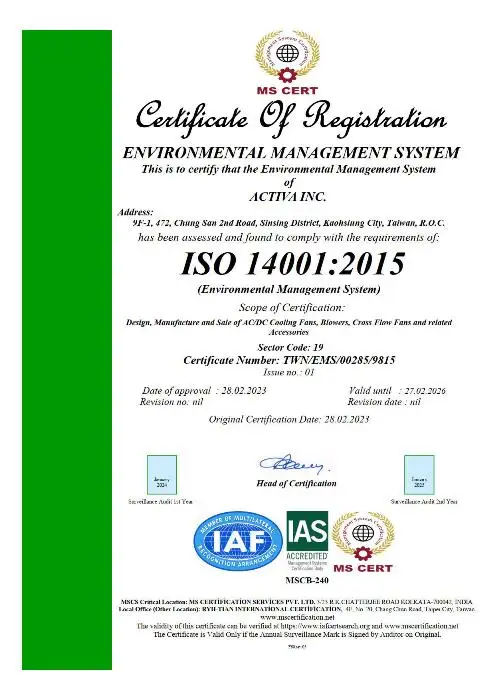

Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this brushless motor?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this brushless motor carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the brushless motor be supplied for my local voltage?
The standard configuration is 48 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
