Ceiling fan — type Synchronous Motor, model number TFM3370. The complete factory specification follows. Made by Ningbo Xingtai Technology Co., Ltd. (11 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Model Number: TFM3370
- AC Voltage: 220/380V
- Rated Speed: 65rpm
- Warranty: 2 years
- Certification: CE
- Place Of Origin: Zhejiang, China
Technical Specifications
| Phase | Three-Phase |
|---|---|
| AC Voltage | 220/380V |
| Type | Synchronous Motor |
| Protect Feature | IP55 |
| Efficiency | 1500W |
| Warranty | 2 years |
| Model Number | TFM3370 |
| Brand Name | XINGTAI |
| Place Of Origin | Zhejiang, China |
| Frequency | 50HZ |
| Application | Big ceiling fan |
| Rated Speed | 65rpm |
| Rated Torque | 250Nm |
| Weight | 32.5kgs |
| OD | 330mm |
| Height | 128mm |
| Certification | CE |
| Selling Units | Single item |
Product Details

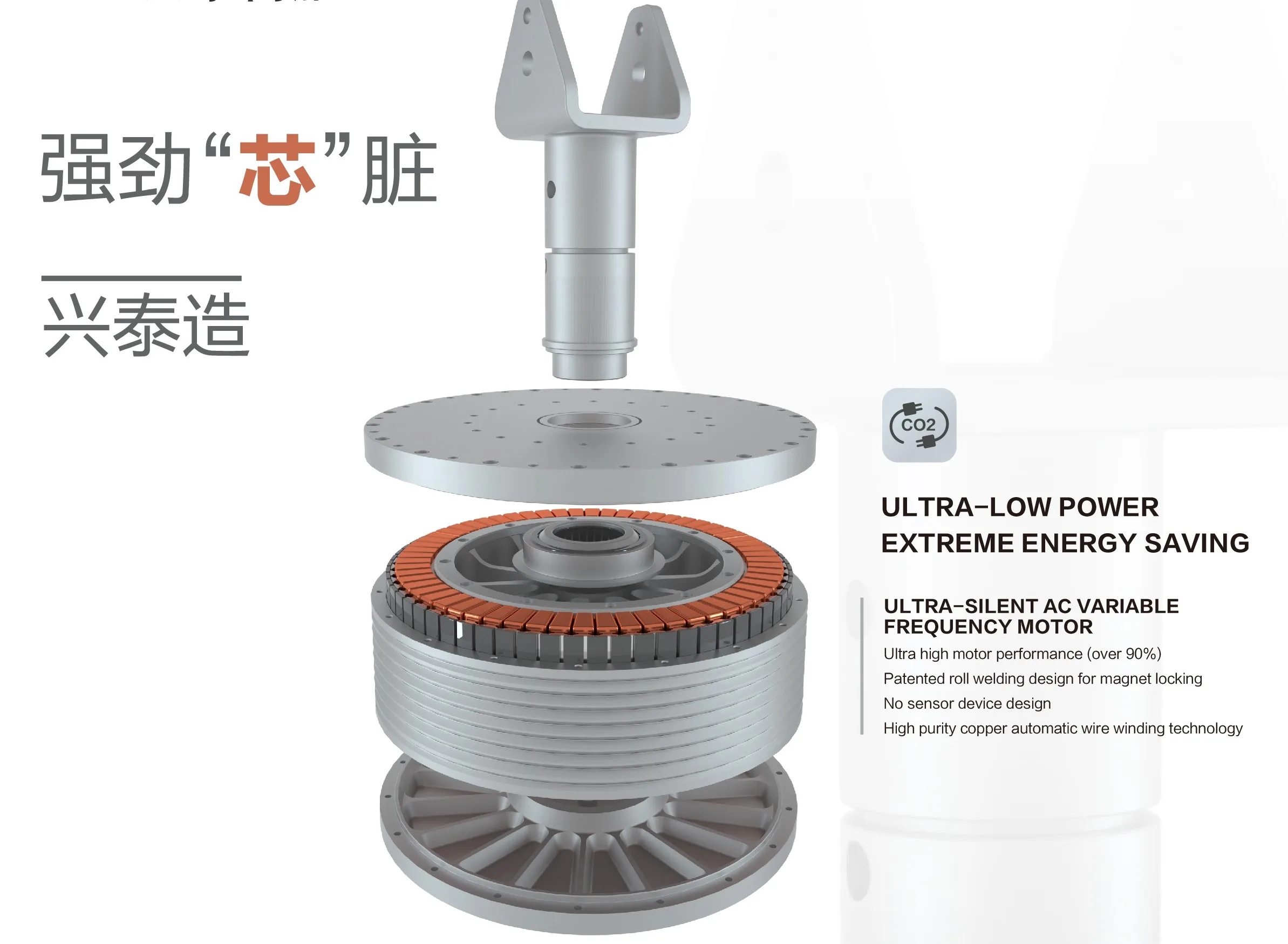

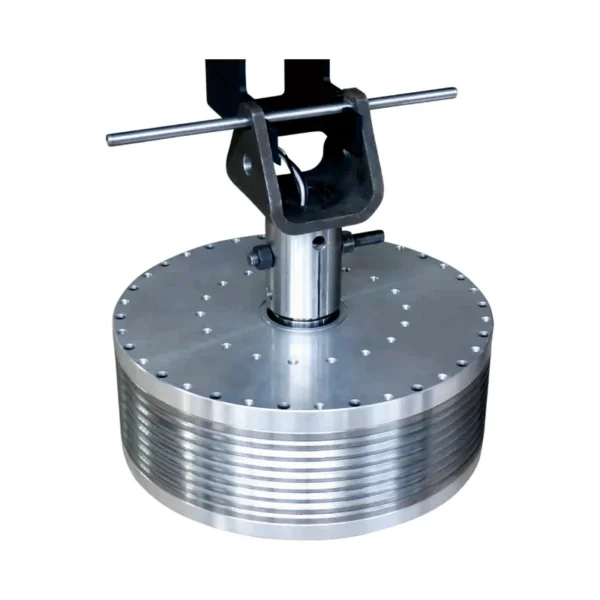

TFM3370 Direct Drive Motor Specification
Items | Data | Units | Remark |
Rated Voltage | 380 | Vac | 380-440Vac |
Rated Current | 2.7 | Amp | |
Rated Power | 1500 | Watt | |
Rated Efficiency | 85% | PCT | |
Rated Speed | 62 | RPM | Related to fan characteristic load |
Max Speed | 65 | RPM | |
Rated Torque S1 | 232 | Nm | |
Rated Torque S6 | 250 | Nm | |
Ke | 5800 | V/Krpm | |
KT | 86 | Nm/A | |
Temperature Sensor | KTY84-130 | N/A | Standard Feature |
Insulation Grade | 150 | ℃ | F-class Insulation |
IP Grade | IP55 | N/A |
TFM3370 Direct Drive Motor Specification
Items | Data | Units | Remark |
Rated Voltage | 220 | Vac | 380-440Vac |
Rated Current | 4.7 | Amp | |
Rated Power | 1500 | Watt | |
Rated Efficiency | 85% | PCT | |
Rated Speed | 62 | RPM | Related to fan characteristic load |
Max Speed | 65 | RPM | |
Rated Torque S1 | 232 | Nm | |
Rated Torque S6 | 250 | Nm | |
Ke | 3340 | V/Krpm | Related to fan characteristic load |
KT | 49.4 | Nm/A | |
Temperature Sensor | KTY84-130 | N/A | Standard Feature |
Insulation Grade | 150 | ℃ | F-class Insulation |
IP Grade | IP55 | N/A |

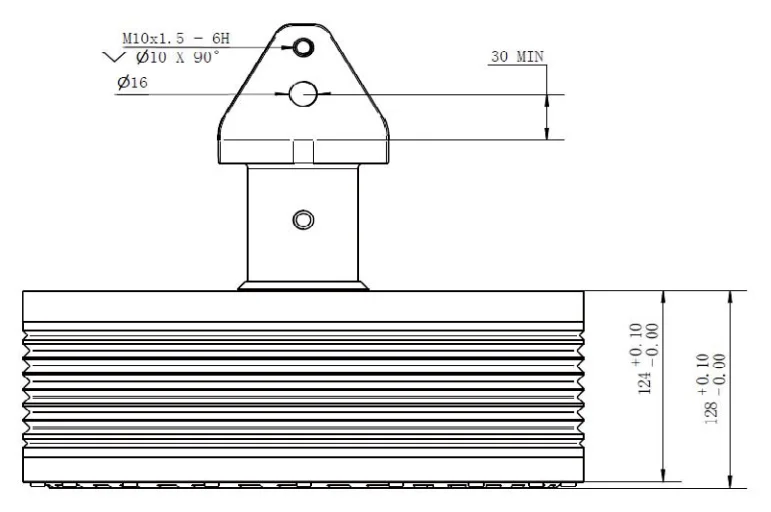

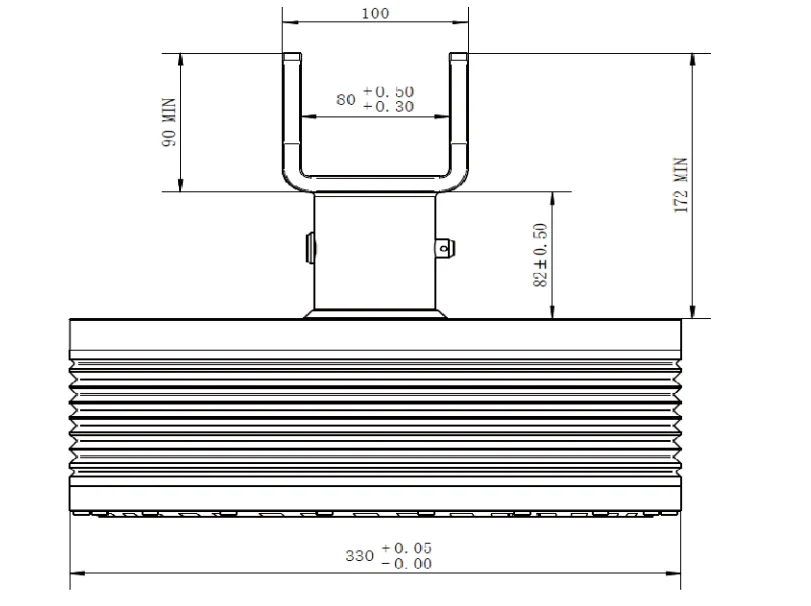

Motor Diemension
OD | 330 | mm | |
Height | 128 | mm | |
Fixed shaft OD | 52 | mm | Fixed shaft extension diameter |
Motor Weight | 32.5 | kgs | |
Motor Weight | 35 | kgs | With lifting lugs |

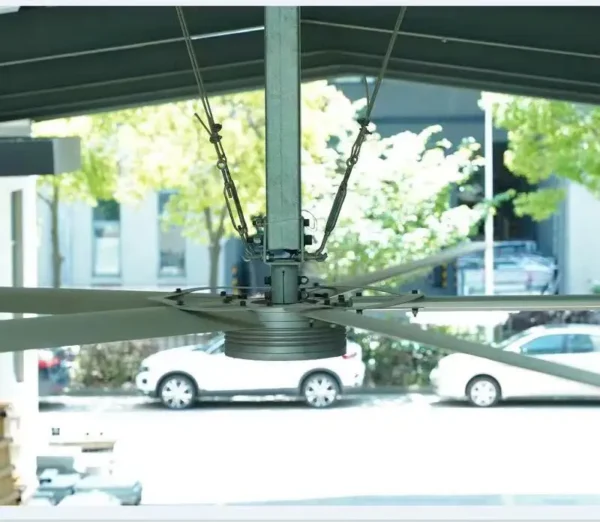

Application7.3m Large Industrial Ceiling Fan:
2) By optimizing the structural design, no traditional fan distribution box is needed to save investment and installation space for customers;
3) Designed and optimized software to achieve better electromagnetic noise control goals;
4) Developed corresponding protection programs according to the fan operating characteristics of various scenarios, enhancing safety Protective measures can realize overload protection, temperature protection and overvoltage protection, protection against collision and severe dynamic imbalance;
5) Intuitive operation interface allows users to directly operate without reading the user manual at a glance.

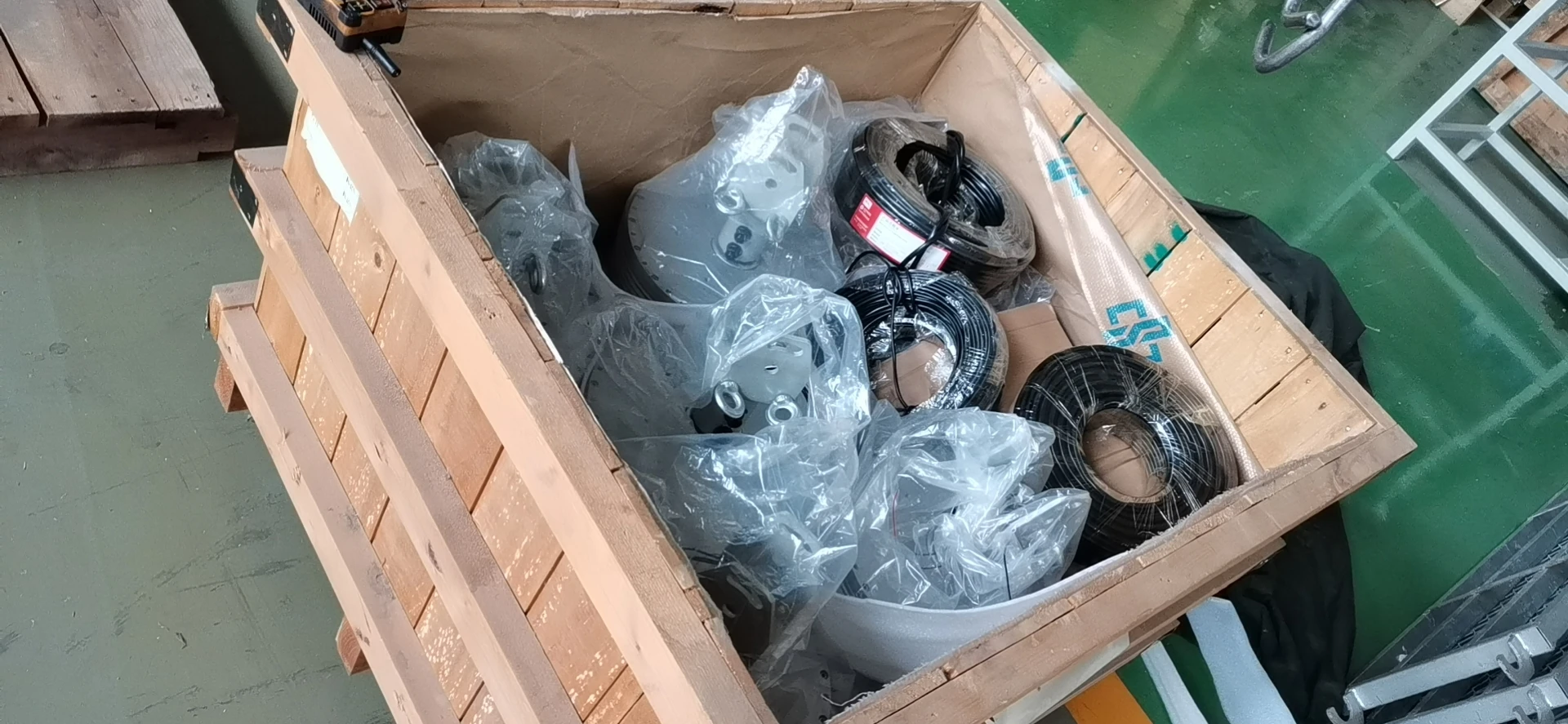

BLDC motor packing

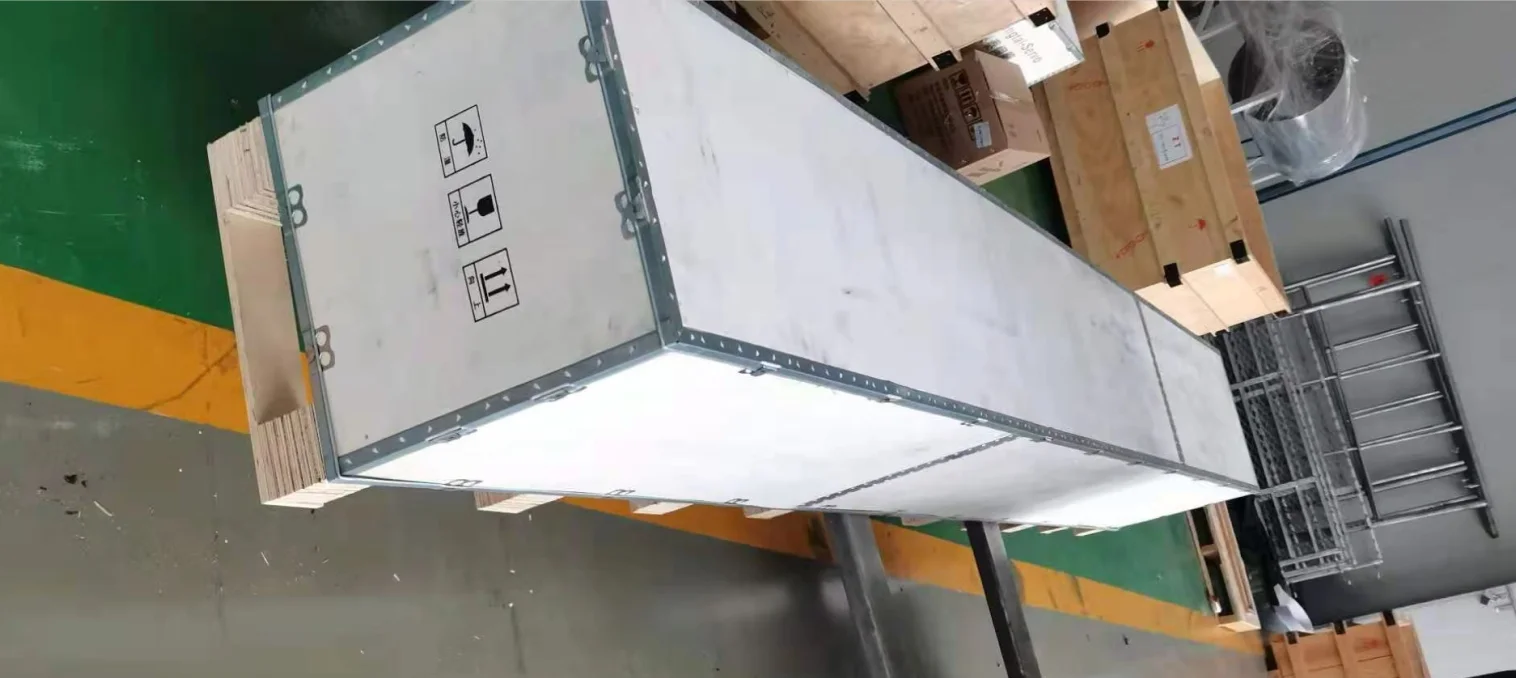

Fan blades packing
Two order choices for you:

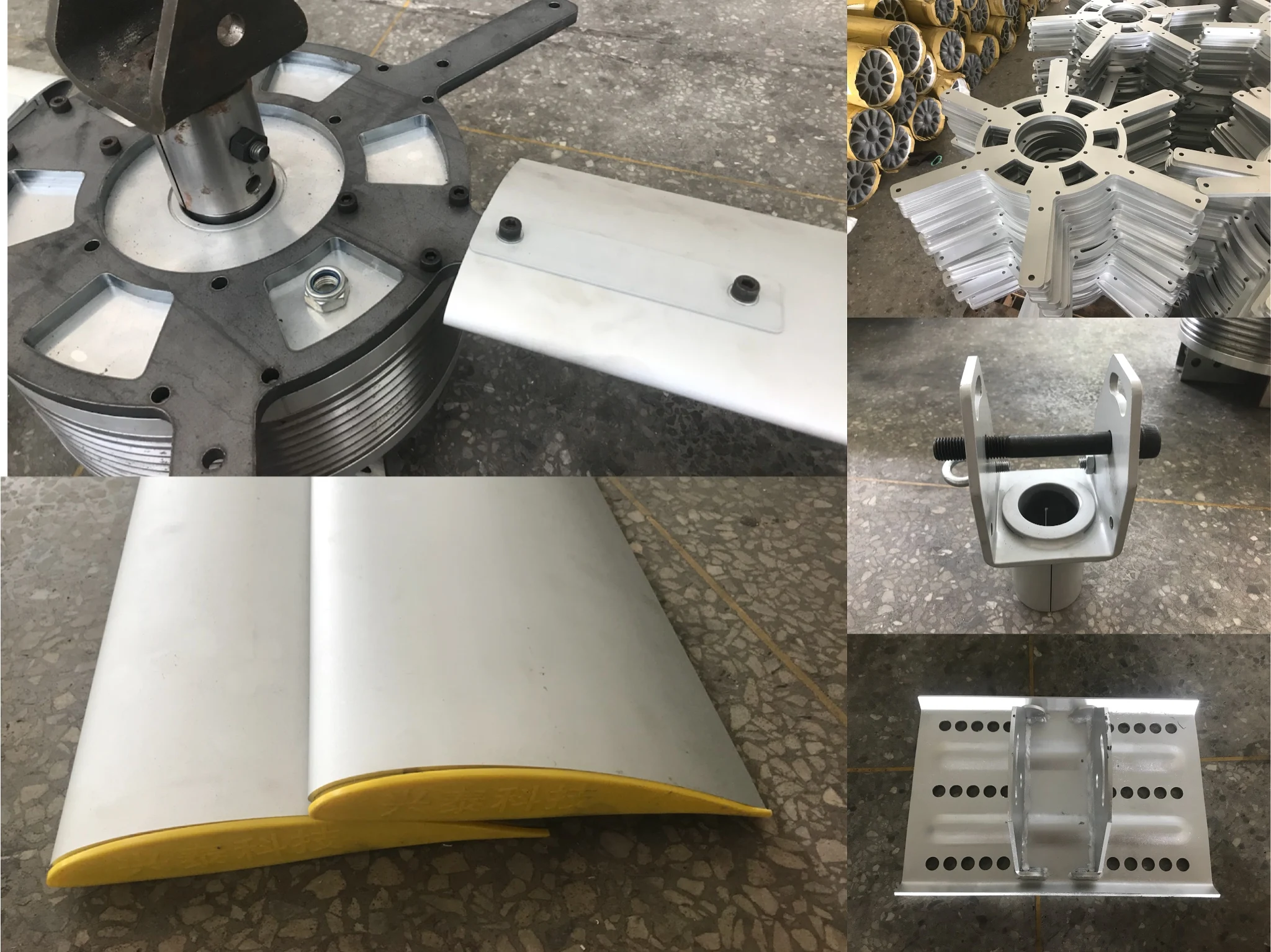

2.Order a whole set of fan (including connecting plate, blade holder, fan bldes etc.)

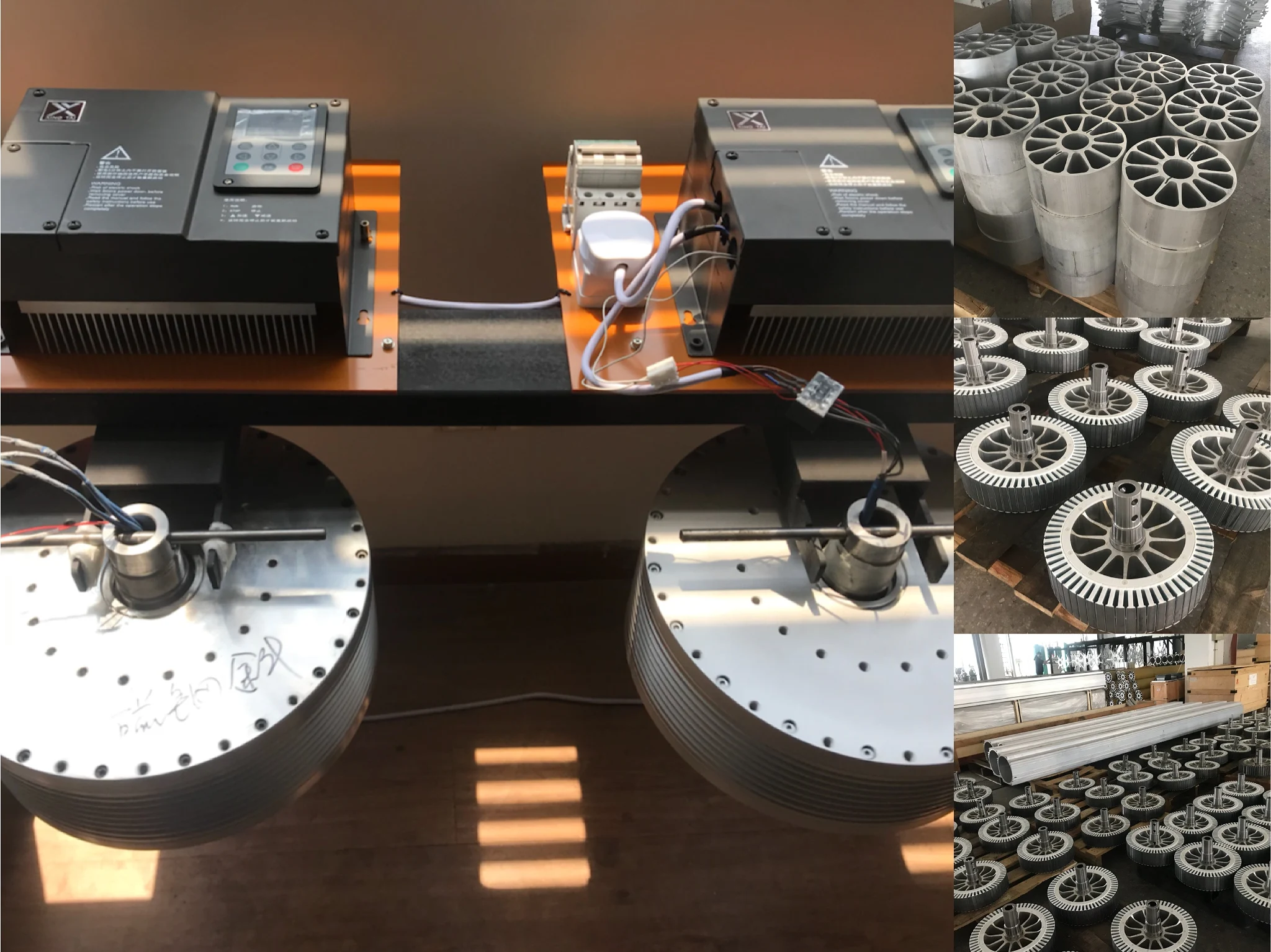

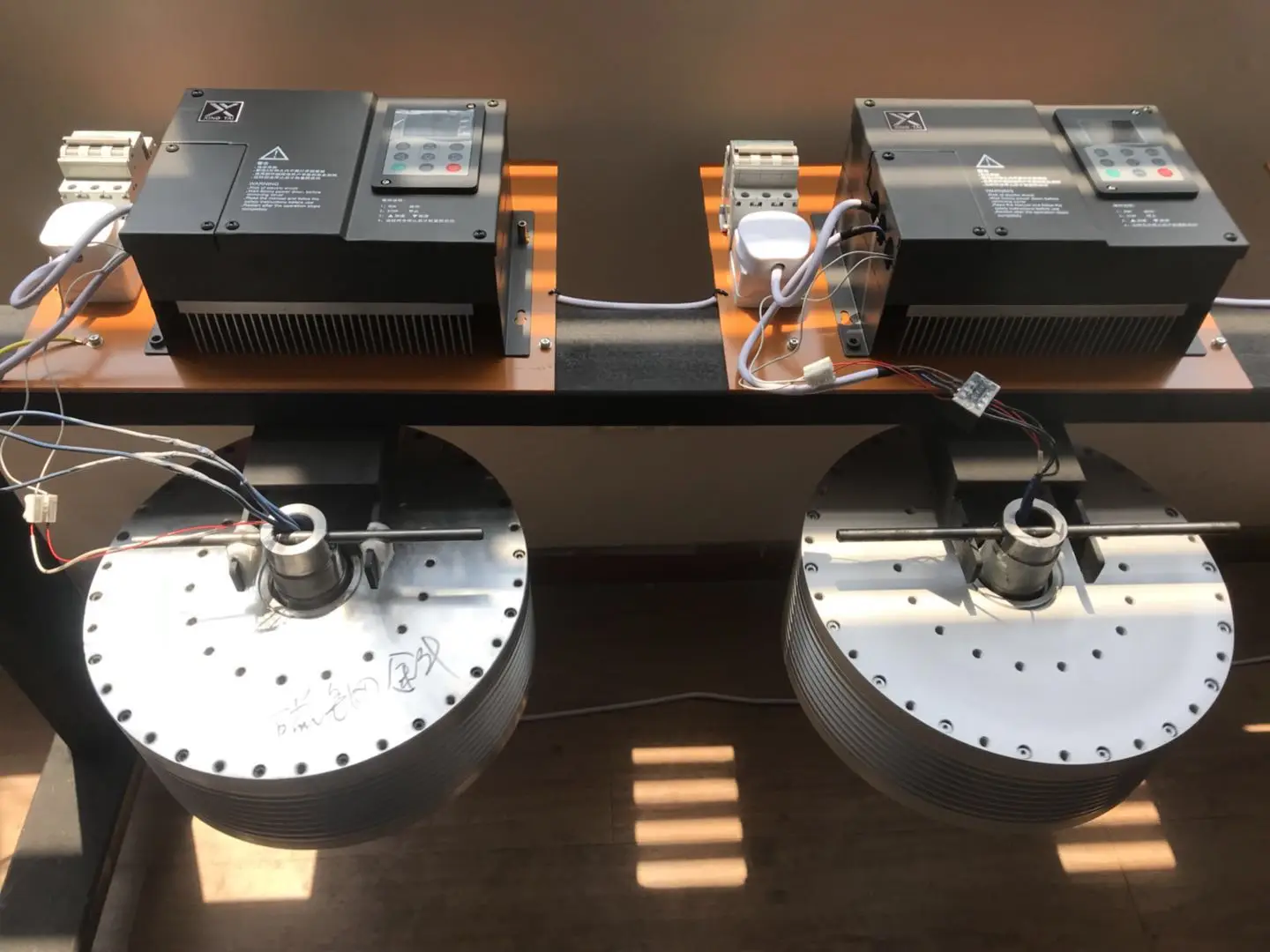

Order motor and drive only
Order a whole set of large ceiling fan
We are based in Zhejiang, China, start from 2002,sell to Domestic Market(70.00%),Eastern Asia(10.00%),Southeast Asia(10.00%),South America(5.00%),Mid East(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
industrial fan,servo motor,Servo system,hvls fan,brushless direct drive motor
4. why should you buy from us not from other suppliers?
We independent R&D,Manufacture high performance XT690 Series servo drive and servo motor for injection molding machine and Direct Drive motor for large industrial ceiling fan,. We also offer Hvls 24ft/7.3m large industrial ceiling fan !
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–19 piece: US $650 / piece
- 20–99 piece: US $620 / piece
- 100+ piece: US $600 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 220/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Xingtai Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Ningbo Xingtai Technology Co., Ltd. range on HVACR Nexus.
