Key specification for this ceiling fan: 380v/220v, 62rpm. Everything below is reproduced from the factory data sheet. Made by Ningbo Xingtai Technology Co., Ltd. (11 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Ceiling Fan
- Voltage: 380v/220v
- Blade Material: Anodizing Aluminum Alloy (Corrosion Resistant)
- Speed: 62rpm
- Max Speed: 65rpm
- Max Speed Noise: <60db@65rpm
- Warranty: 2 Years
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 380v/220v |
| Speed | 62rpm |
| Blade Material | Anodizing Aluminum Alloy (Corrosion Resistant) |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Xingtai |
| Max Speed | 65rpm |
| Max Speed Noise | <60db@65rpm |
| No.S Of Blade | 6 blades |
| Fan Total Weight | 110kgs |
| Service Area | 1000-1500m2 |
| Air Volume | 15000m3/min |
| Certification | CE |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

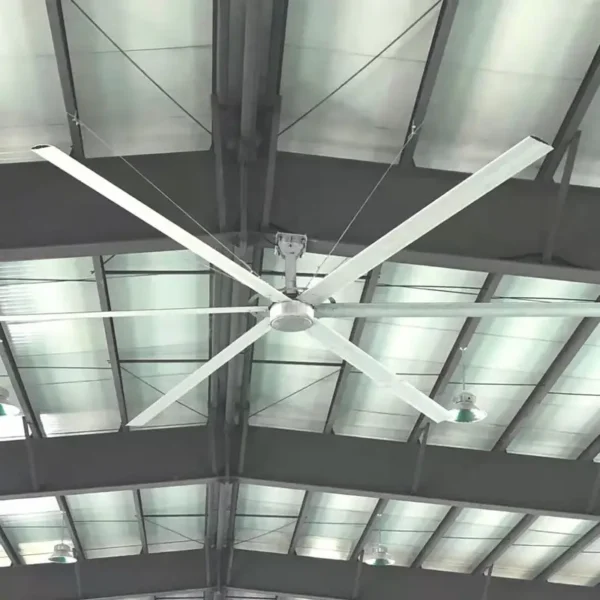

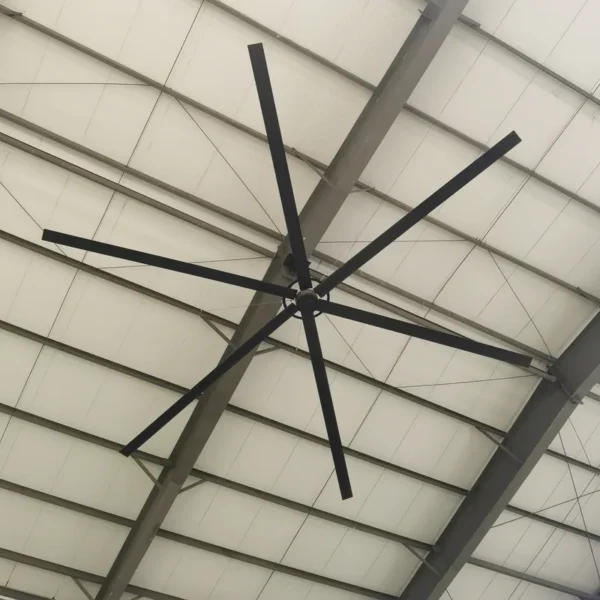

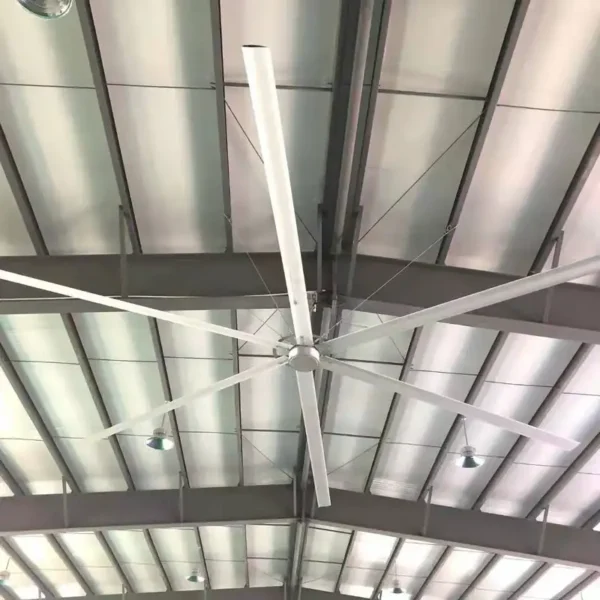

16ft 18ft 20ft 24ft big size HVLS fans, workshop fan, warehouse fan,
1. Large size of 4.9m-7.3m/16ft-24ft
2.With our own brand XINGTAI Independently R&D,produce gearless PMSM motor & Controller
3. High effient & energy saving of max 1.5KW power
4. Area coverage up to 1400m2 per fan
1)More energy saving effect 2)Operating noise is significantly reduced
3) Service life and reliability are significantly improved.
4)reduction gear box is eliminated ,pollution due to lubricant leakage does not occur
5)Maintenance-free for the entire life
6)A standard factory building of 10,000 square meters only needs to install 5-10 large-scale 7.3 meter fans, which is more than
70% energy-efficient than traditional distributed small fans.
Specification of 24ft hvls fan | ||
Fan size (D) | 24ft/ 7.3m | |
No of blades; | 6 | |
Fan blade width(W) | 187mm | |
Blade material | Aluminium alloy | |
Performance Index | ||
Max speed | 65RPM | Speed range 20-65rpm |
Maximum wind pressure (static pressure) | >20Pa | Related to installation environment and speed |
Air volume | 7500m3/min @16Pa | The volume of air at a reference static pressure |
Applying space 1 | >2000m2 Blade plane height≥11m 65rpm | Comfort index characteristic |
Applying space 2 | >1500m2 Blade plane height≥8m 62rpm | Comfort index characteristic |
Applying space 3 | >1300m2 Blade plane height≥6m 55rpm | Comfort index characteristic |
Applicable space height(H) | 8-18 m | Effective floor height inside the building |
Maximum speed noise | <60db@65rpm | Related to the fan installation environment |
Half speed noise | <45db@33rpm | Related to the fan installation environment |
Fan Weight | ||
Fan Total Weight | 110kg | |
Motor weight | 32.5kg | |
Sling weight | 20kg | Related to the length of the mounting boom |
Blade weight | 57.5kg | |
Max torque | 230Nm@65rpm | |
Max lift force | 225N@65rpm | |
Electrical parameter | ||
Motor rated power | 1.5Kw | |
Ambient Temp | 10-50ºC | |
Rated Voltage/Rated Current1 | 3Phase 380-440Vac/2.8A | |
Rated Voltage/Rated Current 2 | 3Phase 220-240Vac/4.9A | |
Installation condition | ||

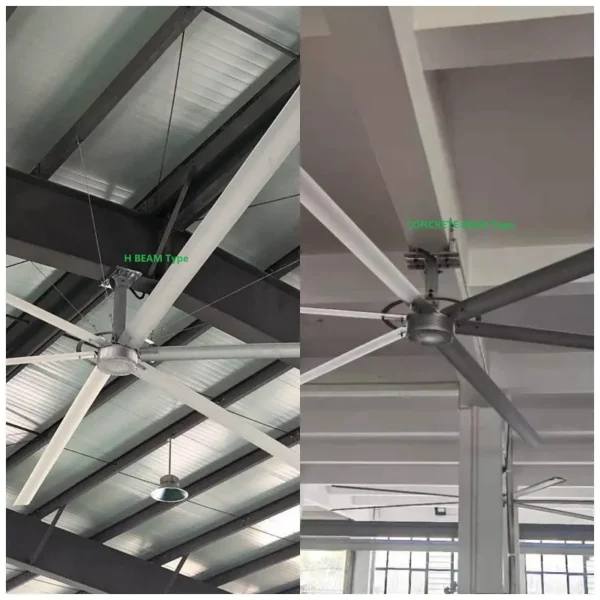

Fixed mode | Concrete roof beams or steel frames | Two types of fixed splint |
boom length | ≤3m | The length of the boom depends on the strength design |
Install interval(S) | 4D>S>6D | Two sets of fan installation interval |
installation space h1 | >1/4D | The distance of fan-blade plane from the roof |
installation spaceh2 | >D | The height of the flat blade plane from the ground |
Horizontal safe distance | >1/4D | Reduction in distance may increase in noise |
Vertical safety distance | >1/4D | The vertical distance between the highest point of the obstacle and the blade |
Remark
rotation plane of the fan blade is> 2.5 meters from the roof, the vertical distance of the vertical line of the fan is 7 meters,
and the sampling is carried out at a plurality of circumferentially distributed positions at a height of 1.7 meters on the ground ,Obtained reference noise data (the geometry of the roof and whether there are pillars around it will affect the noise test)
About the comfort index characteristics:
2. The ambient temperature is between 20 and 33ºC
3. The relative humidity of the environment is between 50% and 85%
Our advantages
Our fan with Permanent magnet Direct drive motor
2) Small size and light weight,Only 32.5kgs.
3) Low noise. 38db
4) Simple structure.
5) Frequency modulation width (0-50HZ)
6) Direct drive motor maintenance free
7) No running hazard.
Other fan with gear box.
2) Large and heavy.
3) Loud noise 60db.
4) Complex structure.
5) FM narrow (25-50HZ)
6) Need frequent daily maintenance (change seals, add gearbox oil.)
7)There are hidden dangers such as gearbox leakage.

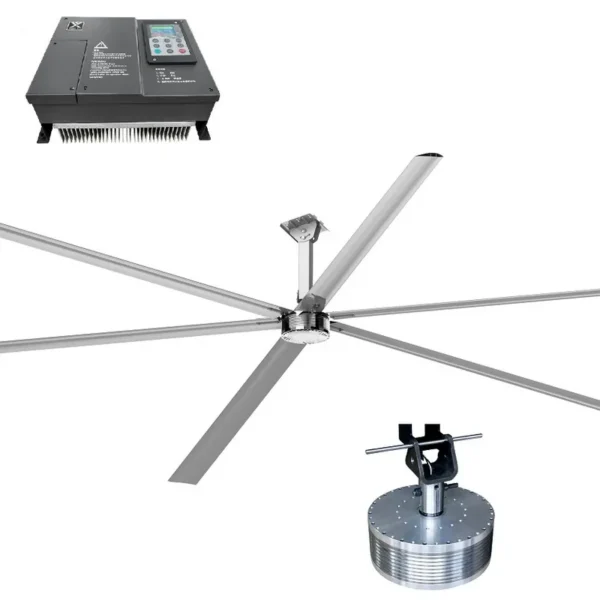

PMSM Direct Drive Motor and Control Drive Production

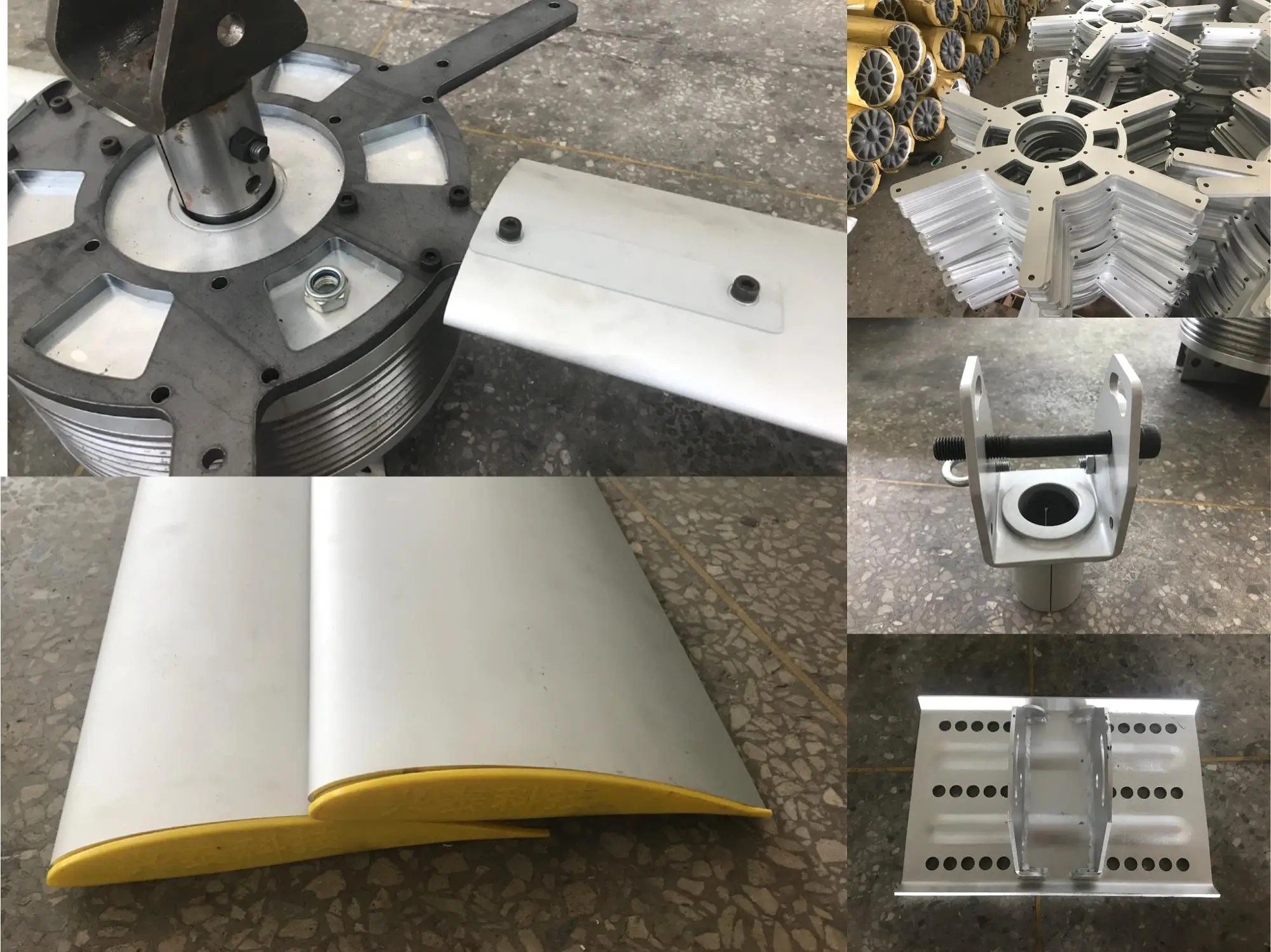

Industrial Ceiling Fan Accessoires and Parts
Factory
Area 30000m2 , located at Ningbo , China.
Q: What brand of motor and drive do you use for the industrial ceiling fan?
A: We R&D manufacturer both Permanent Magnet Direct Drive Motor and servo drive for industrial large fan ourselves, which have more reliable quality and best prices .
Q: What is your mainly delivery port?
A: Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.
Q: Is there a minimum quantity request?
A: 1set
Q: When can I except to receive my order?
A: Generally we have in stock, we will delivery out from factory within 3-10days after order confirmation.
Q: What is your WARRANTY ?
A: Generally we offer 3month warranty ,Any problems we are on the behind of you.
Q: Is there any possibility to be your partner in our country?
A: Yes,We are looking for agent in differrent countries and areas ,Please contact one of our sales manager for more business cooperation.
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9 piece: US $1350 / piece
- 10–49 piece: US $1150 / piece
- 50+ piece: US $1050 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this ceiling fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 380v/220v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
