The ceiling fan listed here carries 220 V, 380 V, 1.1kW, documented exactly as the manufacturer publishes it. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Ceiling Fan
- Power: 1.1kW
- Voltage: 220 V, 380 V
- Blade Material: Aluminum Alloy
- Fan Material: aluminum alloy
- Speed: 55rpm
- Warranty: 3 Years
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 220 V, 380 V |
| Speed | 55rpm |
| Blade Material | Aluminum Alloy |
| Warranty | 3 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM |
| Core Components | Motor |
| Place Of Origin | Fujian, China |
| Brand Name | Huada |
| Power | 1.1kW |
| Fan Diameter | 24ft/7.3m |
| Air Volume | 13000m³/min |
| Motor | permanent magnet |
| Noise | <38 dB |
| Blade | 6pcs |
| Coverage Area | 1500㎡ |
| Effective Area | 700㎡ |
| Fan Material | aluminum alloy |
| Selling Units | Single item |
| Single Package Size | 89X89X85 cm |
| Single Gross Weight | 168.5 kg |
Product Details
Industrial large ceiling fan for factory and warehouses
Permanent magnet large ceiling fan has the advantage of low noise,small volume,light weight,compact structure and beautiful appearance, which can create flow wind in large space, improve environmental comfort and improve labor efficiency of employees.
Diameters :3 m,3.7 m,4.3 m,5 m,6.1 m,6.7 m,7.3 m
Power:0.37 kw,0.75 kw,1.1 kw,1.5 kw
Application:logistics warehouse,super-large factory,public places,commercial areas,animal husbandry and so on.
Power:0.37 kw,0.75 kw,1.1 kw,1.5 kw
Application:logistics warehouse,super-large factory,public places,commercial areas,animal husbandry and so on.
Technical Data
Model | HDS-3 | HDS-3.7 | HDS-4.3 | HDS-5 | HDS-6.1 | HDS-6.7 | HDS-7.3 | HDS-6.7 | HDS-7.3 | ||||||||
Diameter | 3m | 3.7m | 4.3m | 5m | 6.1m | 6.7m | 7.3m | 6.7m | 7.3m | ||||||||
Diameter(ft) | 10 | 12 | 14 | 16 | 20 | 22 | 24 | 22 | 24 | ||||||||
Power | 0.37kW | 0.75kW | 1.1kW | 1.5kW | |||||||||||||
Voltage | 220V/380V | ||||||||||||||||
Frequency | 50Hz/60Hz | ||||||||||||||||
Air volume | 4000m³/min | 5000m³/min | 7000m³/min | 10000m³/min | 11500m³/min | 12000m³/min | 13000m³/min | 14000m³/min | 15500m³/min | ||||||||
Speed | ≤120rpm | ≤100rpm | ≤90rpm | ≤80rpm | ≤65rpm | ≤60rpm | ≤55rpm | ≤65rpm | ≤60rpm | ||||||||
Blades | 5pcs | 6pcs | |||||||||||||||
Blades width | 180mm | 200mm | |||||||||||||||
Noise | 38dB | ||||||||||||||||
Weight | 35kg | 38kg | 46kg | 49kg | 103kg | 107kg | 111kg | 118kg | 122kg | ||||||||
Coverage size | 8-12m | 9-14m | 12-18m | 12-20m | 20-25m | 20-28m | 20-28m | 20-35m | 20-35m | ||||||||
Effective area | 150㎡ | 230㎡ | 256㎡ | 300㎡ | 600㎡ | 650㎡ | 700㎡ | 750㎡ | 850㎡ | ||||||||
Coverage area | 250㎡ | 380㎡ | 450㎡ | 500㎡ | 1000㎡ | 1300㎡ | 1500㎡ | 1600㎡ | 1700㎡ | ||||||||
Above ground | 4-5m | 4-5m | 4-6m | 5-6.5m | 8-10m | 7-12m | 6-9m | 8-14m | 7-12m | ||||||||
Protection class | IP66 | ||||||||||||||||
Details Images

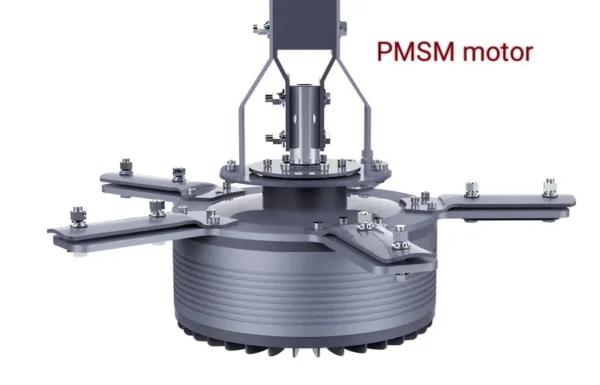

Direct Drive Motor System
The new self-developed external rotor motor with large torque and permanent magnet synchronization replaces the traditional motor+gearbox reducer, achieving a high degree of integration and improving reliability and transmission efficiency.
Aluminium alloy material is adopted in many parts to realize the lightweight design.
Aluminium alloy material is adopted in many parts to realize the lightweight design.

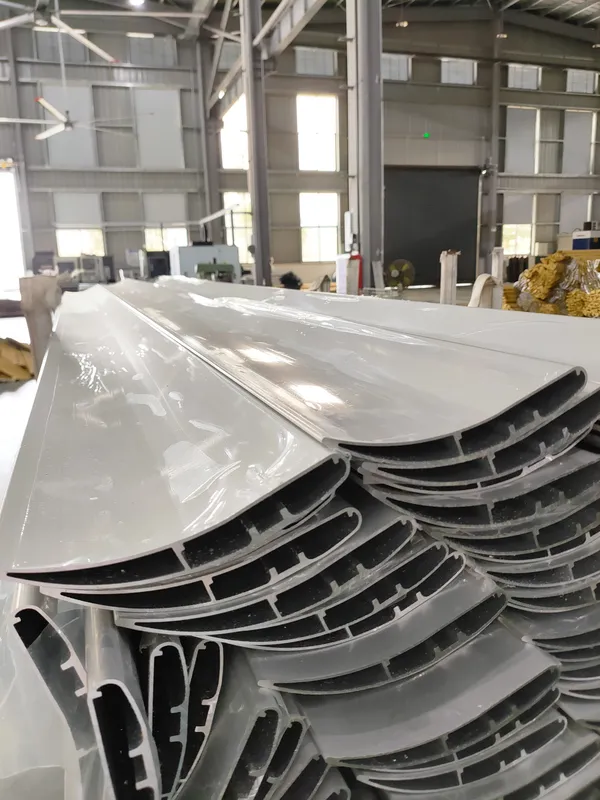

Streamlined Fan Blade
It is made of aluminium and magnesium alloy extruded and stretched, and has the advantages of high strength, good toughness,light weight, long life and safe operation. The fan blade surface is treated with T5+ bright surface oxidation treatment, which enhances the corrosion and oxidation resistance of the fan blade and can cope with special environmental operations.

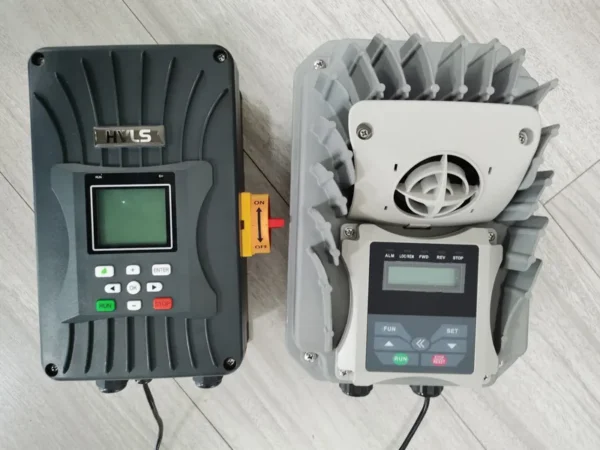

Smart Control System
1 It is a multifunctional and practical industrial fan controller.It has the characteristics of high protection, easy control, and stable operation. It supports rapid power on and off, and can also choose functions such as fast switching of forward and reverse rotation of the motor.
2 The system is anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
3 The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
2 The system is anti-electromagnetic interference, anti-radiation, small size, lightweight, beautiful appearance.
3 The system function is simple, 4 buttons easy to operation( start, stop, speed up, slow down).
Installation

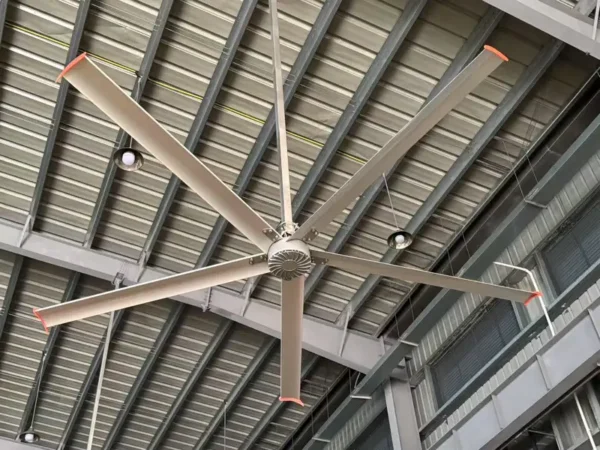

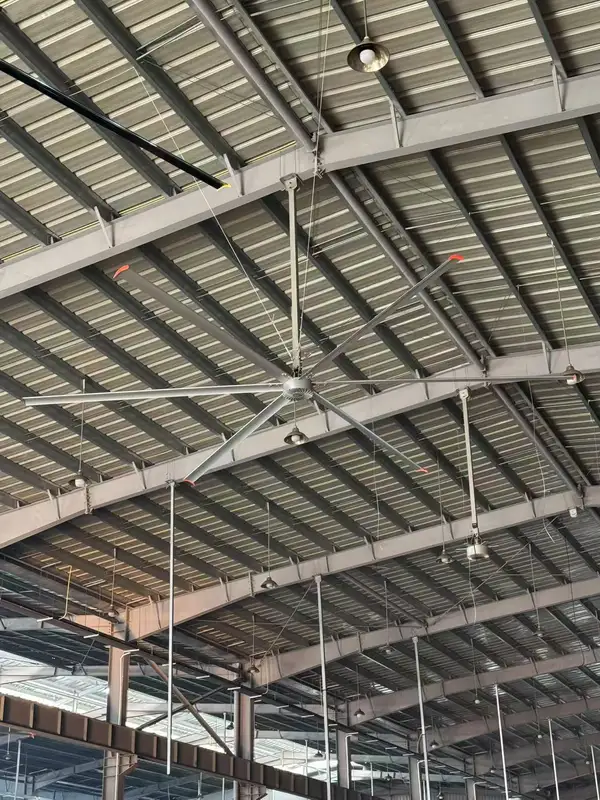

Application case
Packing
Packing way:One set of ceiling fan is packed by two plywood case,one is for blades, the other is for motor,controller and installation spare parts
Company Profile
Fujian Huada Electric Co. Ltd.,Founded in 1998, locates in Fu'an, Fujian-the city of small and medium electrical machines.Covering 20,000 square meters and population is over 200 workers. Having R&D,production, sales and after-sales departments.we are a modern enterprise. Well-equipped with production lines and testing machines of motor and fans,we're advanced in manufacturing and management in our area. Besides,our R&D team is very strong. We cooperate with academic institutions and have many intellectual properties. Mostly, we can customize all kinds of special fans for customers. Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China.Have passed the ISO9001:2008 certification,CE cert.,CCC cert and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003.All of our products sell all over the world with good reputation and reliability.
Exhibition
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electricity?
A: Yes, it's power supply is electricity, but only 1.1KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory, logistics & warehouse, supermarket, halls etc.
Q: Is it used in electricity?
A: Yes, it's power supply is electricity, but only 1.1KW or less, very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 3-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $929 / set
- 20–49 set: US $759 / set
- 50+ set: US $690 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this ceiling fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the ceiling fan be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Fujian Huada Electric Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fujian Huada Electric Co., Ltd. range on HVACR Nexus.
