The centrifugal fan listed here carries 220V/380V, 0.37KW-30KW, documented exactly as the manufacturer publishes it. Made by Fujian Huada Electric Co., Ltd. (12 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Power: 0.37KW-30KW
- Voltage: 220V/380V
- Blade Material: Cast Iron
- Warranty: 1 Year
- Certification: CE, CCC
- Place Of Origin: Fujian, China
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V |
| Blade Material | Cast Iron |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Place Of Origin | Fujian, China |
| Power | 0.37KW-30KW |
| Air Volume | 250-7000 m3/h |
| Brand Name | HUADA |
| Product Name | High pressure centrifugal fan |
| Max. Ambient Temp | <130℃ |
| Relative Humidity | ≤ 98% |
| Rated Frequency | 50HZ/60HZ |
| Application | Delivering gas |
| Feature | High pressure |
| Cooling Method | IC411 |
| Protection Class | IP54/IP55 |
| Insulation Class | Class F(120℃), Class H(180℃) |
| Motor Type | Double speed motor/Explosion-proof Motor |
| Certification | CE, CCC |
| Packaging Details | ply wood |
| Port Of Dispatch | Fuzhou Port |
| Selling Units | Single item |
| Supply Ability | 200000 sets per Month |
Product Details

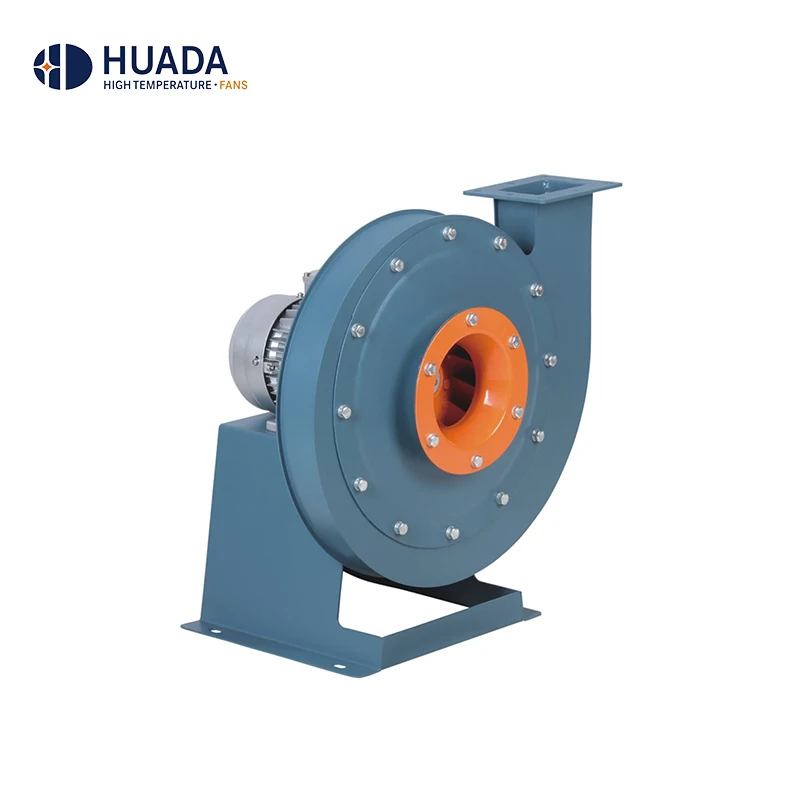

Centrifugal & High pressure

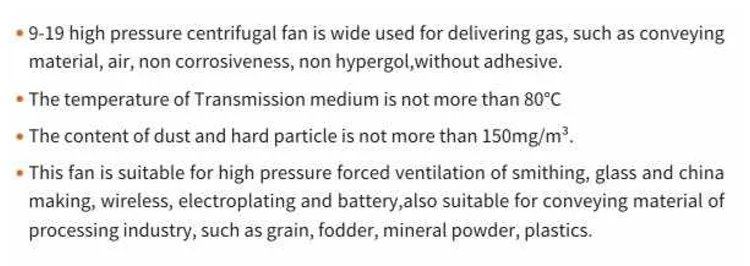

9-19 series delivering gas High pressure centrifugal fan
Different appearance design according to clients' requirements
 |
|

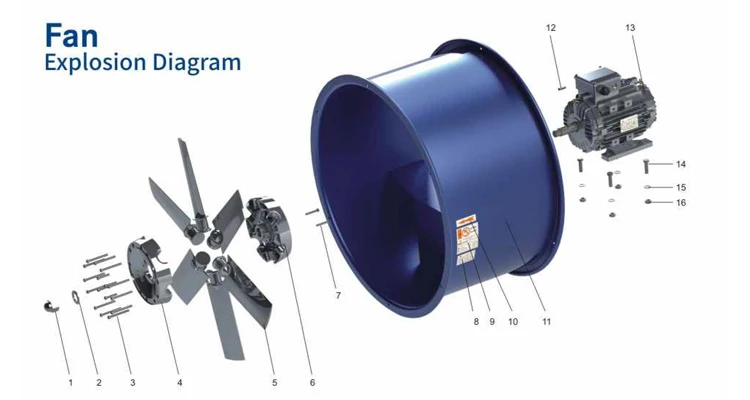

| 1. Nut of Cover | 5. Blade | 9. Tip marked | 13. Motor |
| 2. Spacer | 6. Rear wheel hub | 10. Marked shift | 14. Foot Screw |
| 3. Screw | 7. Rear Screw | 11. Air duct | 15. Shells Pad |
| 4. Front wheel hub | 8. Nameplate | 12. Key | 16. Screw Nut |
Fujian Huada Electric Co. Ltd.,is a famous manufacturer for fans and high temperature motors in China. Have passed the ISO9001:2008 certification,CE cert.,CCC cert. and so on.We have Three Invention patents, eleven utility-model patents and TWO design patents.Was name"Technology Enterprise of Fujian province" in 2003. All of our products sell all over the world with good reputation and reliablity. On 2009,"GKF" series was selected a standard products by China administration of tobacco.

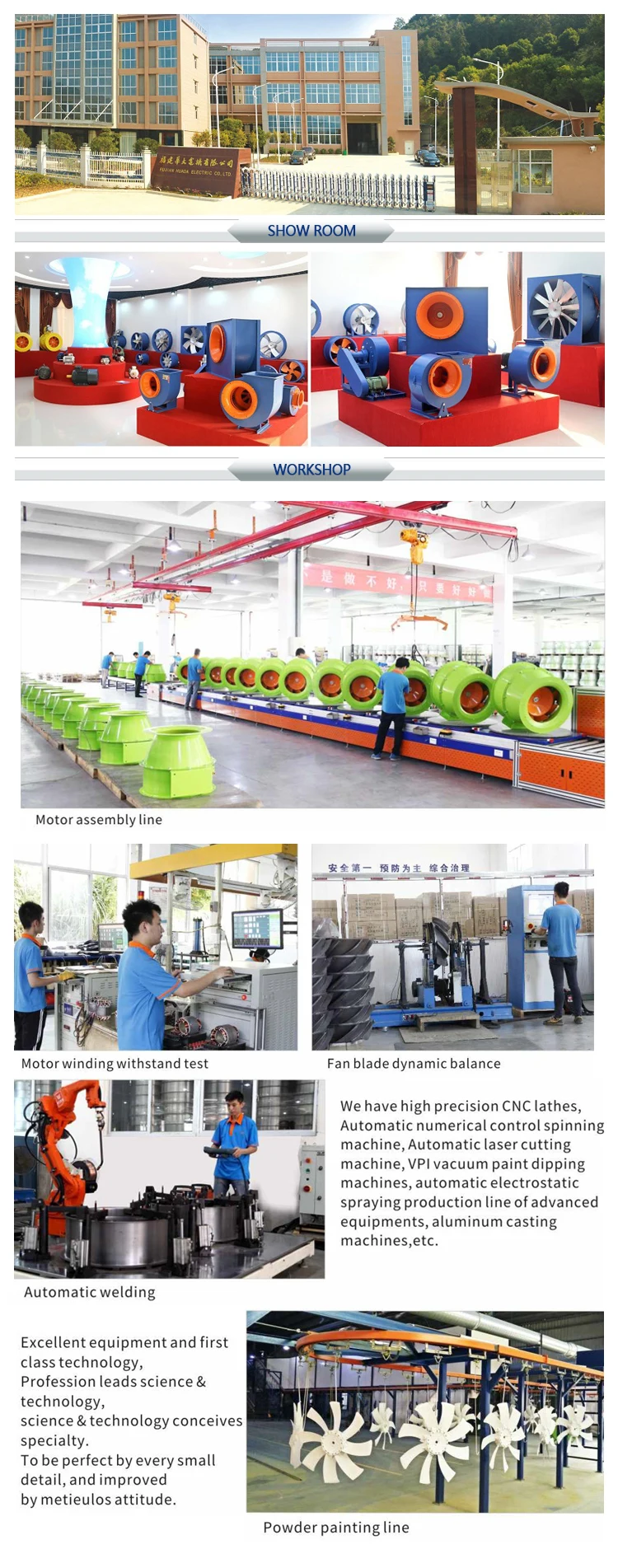

Well-equipped with production lines and testing machines of motor and fans,we’re advanced in manufacturing and management in our area. Besides,our R&D team is very strong.We cooperate with academic institutions and have many intellectual properties. Mostly,we can customize all kinds of special fans for customers.
Ordering and Pricing
- Minimum order quantity: 10 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE, CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220V/380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Fujian Huada Electric Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Fujian Huada Electric Co., Ltd. range on HVACR Nexus.
