Key specification for this centrifugal blower: 220V/380V/415V/440V/480V/660V, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: G4-73 16D
- Power Source Type: Corded Electric
- Voltage: 220V/380V/415V/440V/480V/660V
- Material: Carbon Steel
- Blade Material: Cast Iron/Stainless Steel
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | 63in |
|---|---|
| Mounting | Free Standing |
| Voltage | 220V/380V/415V/440V/480V/660V |
| Motor Type | AC Motor |
| Speed | 960RPM |
| Material | Carbon Steel |
| Blade Material | Cast Iron/Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Noise Level | 40 dB and above |
| Place Of Origin | Shandong, China |
| Brand Name | HANDUN |
| Model Number | G4-73 16D |
| Color | White, Grey |
| Name | High Temperature Resistant Centrifugal Blower |
| Other Name | Boiler Fan |
| Impeller Size | 1600mm |
| Application | R&D Boiler, Injection Machine Cooling |
| Function | Smoke/dust/ Flue Gas Exhaust |
| Pressure | 3709-2465Pa |
| Driven Type | Belt (AC)drive, Variable Frequency Drive |
| Advantage | Heat Proof |
| Selling Units | Single item |
Product Details

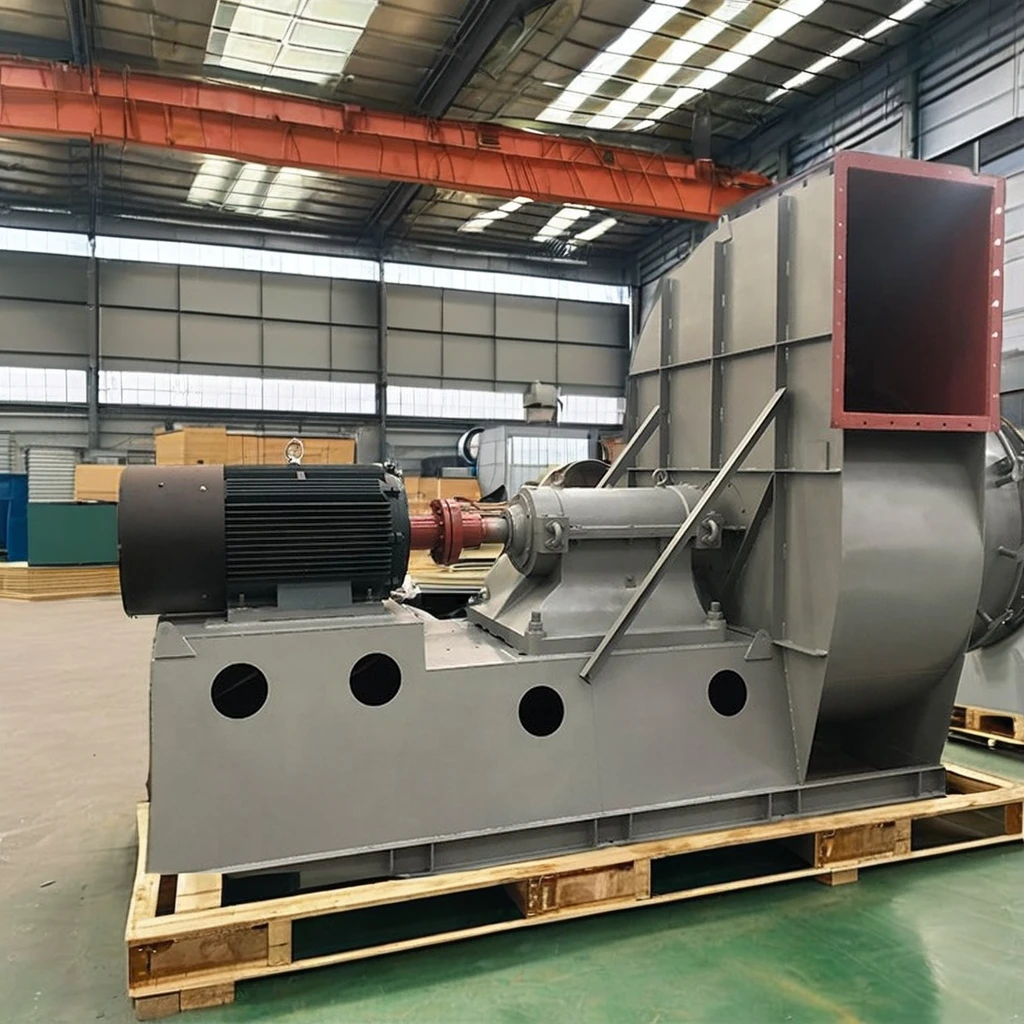

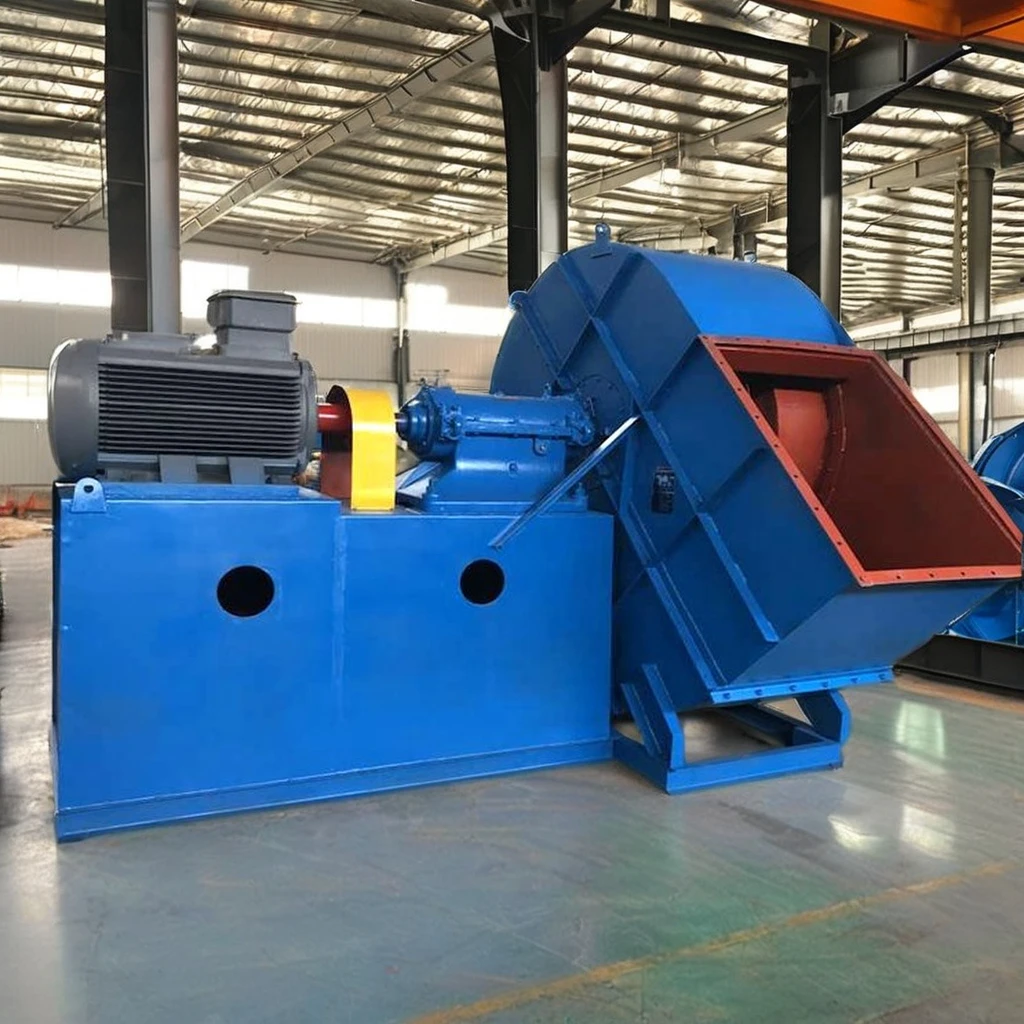

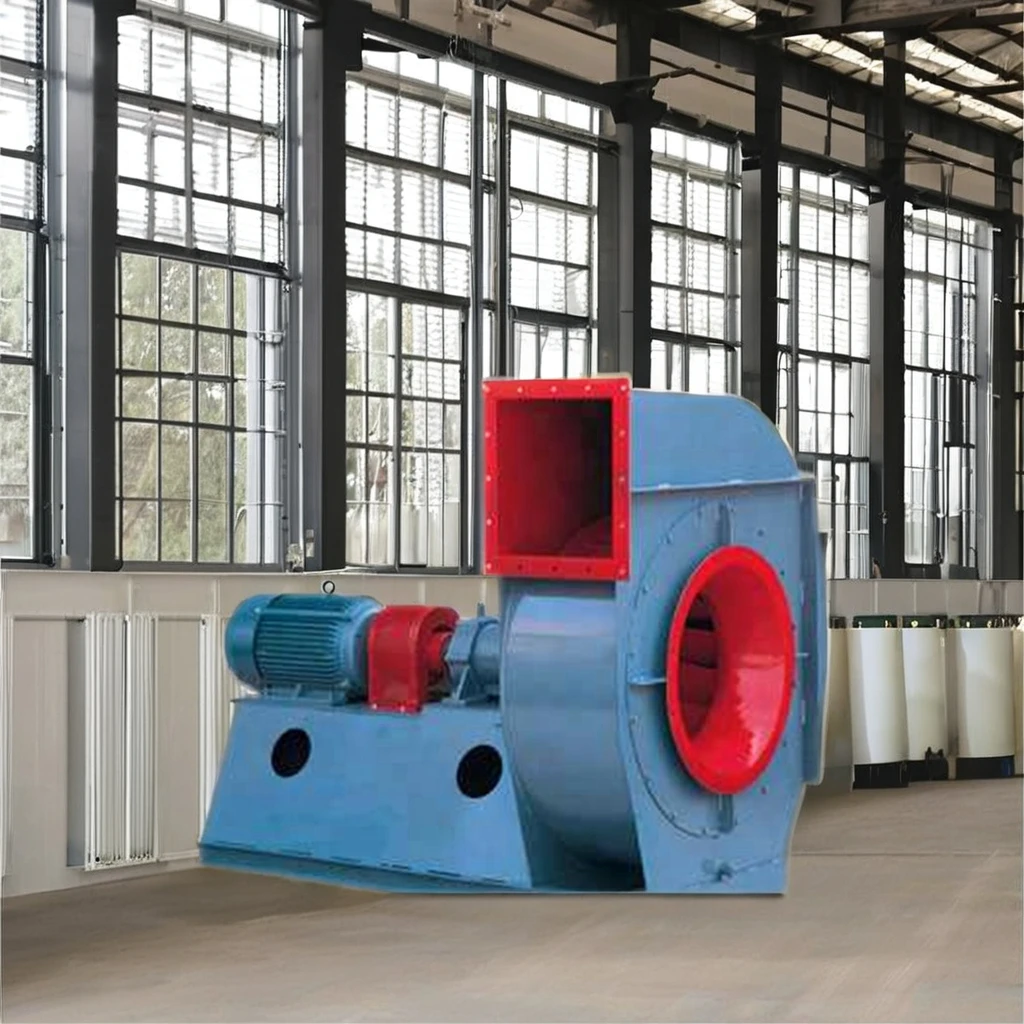

High Temperature Resistant Centrifugal Blower
Structure
♦ Impeller Type: Backward/Forward/radial blade
♦ Driving Mode: Direct/belt/Coupling drive train
♦ System Type: Single inlet type, Overhang type
♦ Cooling Type: Air cooling/Circulating Water cooling
♦ Bearing Lubrication Methods: Grease lubricating/Oil bath lubrication
Advantages of centrifugal blower
1)High strength wear-resistant impeller anti-leaking bearing box.
2)Transmission part group consists of main shaft, bearing box, rolling bearing, pulley or coupling, etc.
3)Inlet and outlet flexible joints, dampers.
4)Inlet valve, bearing temperature and vibration device sensors, impeller cleaning nozzle are optional.
5)With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.
Applications of Induced draft fan Industrial air blower centrifugal fans
♦Ventilating
Forced ventilating, Building ventilating, Mine ventilating, Tunnel ventilating, Materials ventilating and drying.
♦ Cooling and heat dissipation
Forced cooling and heat dissipation, Industrial equipments cooling and heat dissipation.
♦ Air purification and industrial waste gas treatment, Air filtration system, Flue gas desulfurization, Flue gas denitrification.
♦ Boiler's air supply and exhaust (Coal-fired boiler, Biomass boiler, Garbage incinerator, CFB boiler, Stoker feed boiler.).
♦ Industrial boiler blowing air, Industrial boiler inducing air, Industrial boiler primary air, Industrial boiler secondary air.
♦ Industrial boiler waste gas desulfurization, Industrial boiler flue gas denitrification.

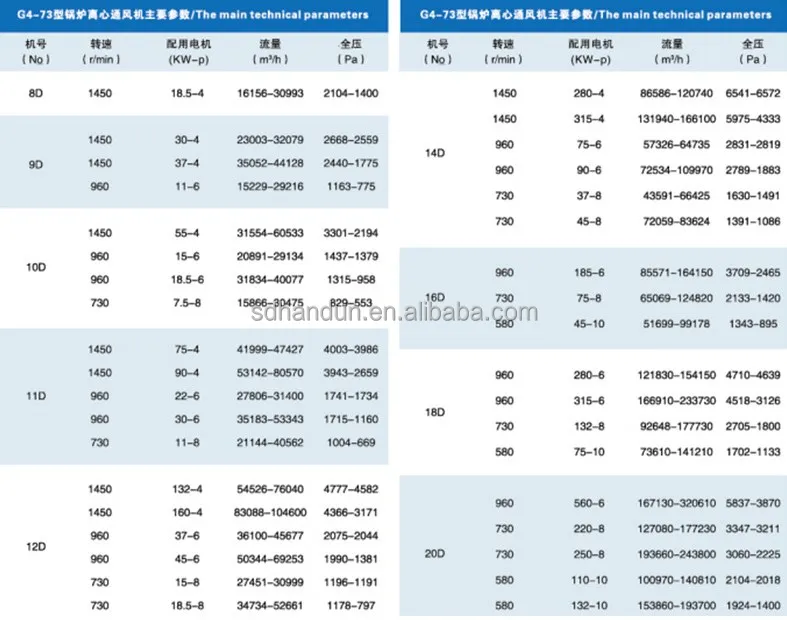

Techinical Parameters:
industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, environment protection, mine, metallurgy, petro-chemical, tunnel,Industrial boiler and Dust removal systems etc. , and wind tunnel
Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
The principle of Handun is “Customer-oriented and Quality –focused” . We possess the CE and ISO9001:2017. Based on it, we endeavor ourselves to please our customer’s needs in all aspects with high quality products as well as service. So the Handun brand products are widely recognized by all over the world such as Egypt, Sudan, Saudi Arabia, Malaysia, Indonesia, Philippine, Japan, UAE, Mexico, Italy etc.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $19700 / set
- 5+ set: US $19100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220V/380V/415V/440V/480V/660V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
