Centrifugal blower — voltage 220/380/400/450/600V, power source type Corded Electric. The complete factory specification follows. Made by Shandong Hanqi Industrial Co., Ltd. (5 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: 4-72
- Power Source Type: Corded Electric
- Voltage: 220/380/400/450/600V
- Material: Plastic
- Blade Material: Stainless Steel
- Speed: 1500 RPM, 3 000 RPM
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220/380/400/450/600V |
| Speed | 1500 RPM, 3 000 RPM |
| Material | Plastic |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | HANQI |
| Model Number | 4-72 |
| Product Name | Industrial Centrifugal Fans |
| Application | Exhaust Ventilation |
| Size | Customer’s Request |
| Motor | AC Motor |
| Feature | High Working Temperature Resistance |
| Name | AC Centrifual Blower |
| Usage | High Pressure Blowing |
| Keyword | High Pressure Anticorrosion FRP Centrifugal Fan |
| Color | Customers’ Requirements |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

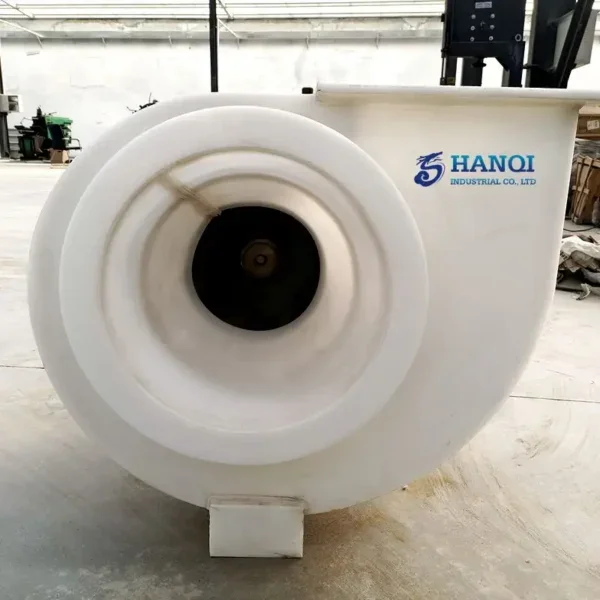

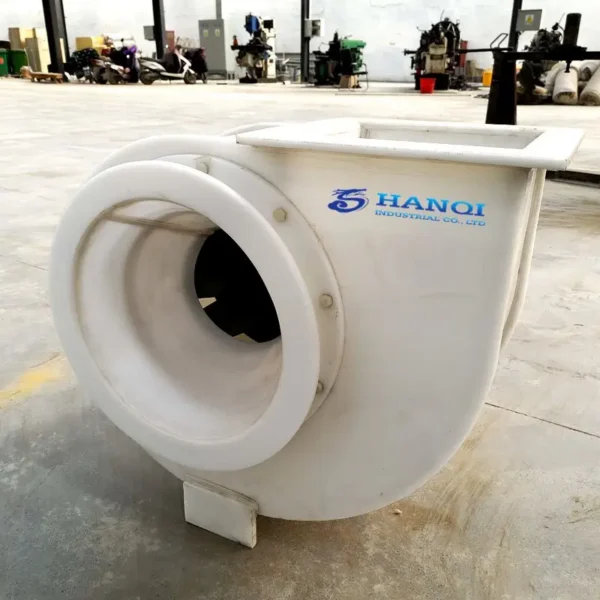

Polypropylene Plastic Centrifugal Fan
Polypropylene plastic centrifugal fan, which has high strength, light weight, good corrosion resistance, not easy to age, low noise, etc., is a more ideal new anti-corrosion fan, this series of fans are suitable for chemical, textile, electroplating, laboratory and other places to exhaust corrosive gases containing a certain concentration of acid, alkali, salt, etc., can also be used as a general factory building ventilation for air exchange. It is not allowed to be used to exclude corrosive gases containing aromatic compounds, halogen derivatives of aliphatic and aromatic hydrocarbons, ketones, etc. The use temperature of the wind body is 0°C to 40°C, and avoid sunlight, and there must be no heat source near the site.

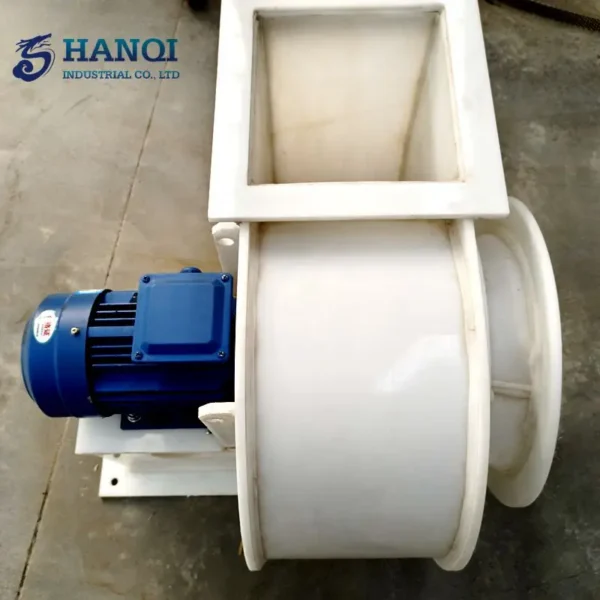

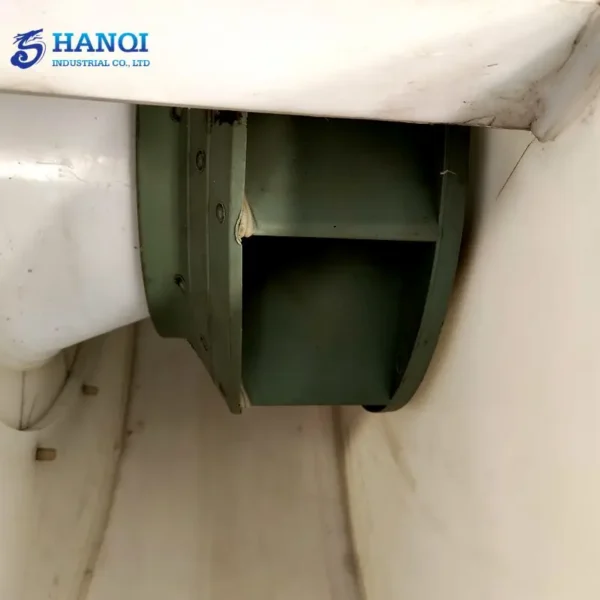

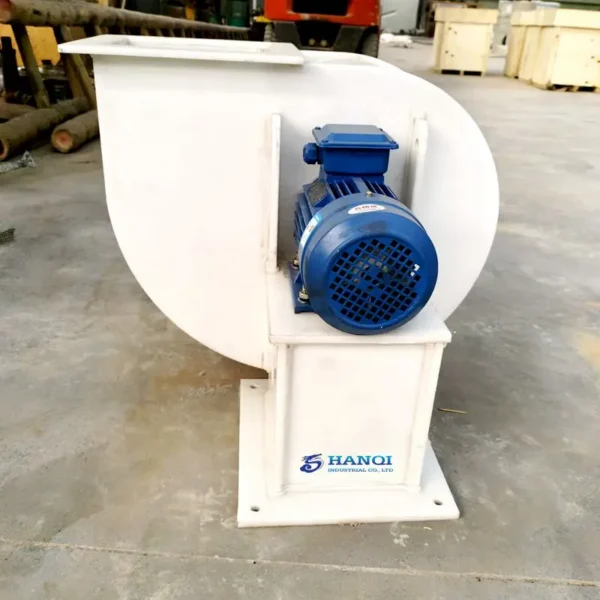

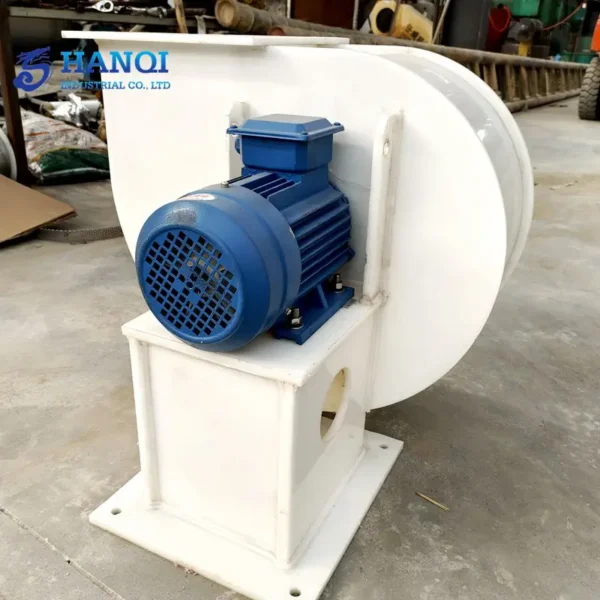

The fan is mainly composed of impeller, casing and motor. The support is made of profiles. (i) Impeller section: made of blades and hubs, all made of polypropylene plastic. (ii) Casing section: consisting of casing and support, all made of polypropylene plastic. (iii) Motor section: the horizontal motor of the centrifugal fan is made of anti-corrosion, and the surface of the body is painted with anti-corrosion paint. The series of fans have high pneumatic efficiency, low noise, and strong corrosion resistance. 3. 3. Applicable medium temperature range: -10℃-40℃, medium relative humidity ≤, dust content ≤100mg/m3.
Application:Power plants, chemical plants and other highly corrosive places.
Model NO. | 4-72-6C-12C |
Power(KW) | 1.1-75 |
Rotating speed(r/min) | 750-2900 |
Air flow(m3/h) | 3684-75552 |
Total Pressure | 220-3143 |
Color | Red/white/grey/yellow/blue/customized |
Package | Wooden Case |
Please contact us for more information
Fan type | Rpm(r/min) | Pressure(Pa) | Air Volume(m³/h) | Motor power(Kw) |
2.8A | 2900 | 994-606 | 1131-2356 | 1.5 |
3.2A | 2900 | 1300-792 | 1688-3517 | 2.2 |
3.2A | 1450 | 324-198 | 844-1758 | 3 |
3.6A | 2900 | 1758-989 | 2664-5268 | 1 |
3.6A | 1450 | 393-247 | 1332-2634 | 1.1 |
4A | 2900 | 2014-1320 | 4012-7419 | 6 |
4A | 1450 | 501-329 | 2006-3709 | 1.1 |
4.5A | 2900 | 2554-1673 | 416-634 | 8 |
4.5A | 1450 | 10562-5712 | 2856-5281 | 1.1 |
5A | 2900 | 3187-2019 | 7728-15455 | 15 |
5A | 1450 | 790-502 | 3864-7728 | 2.2 |
6A | 1450 | 1139-724 | 6677-13353 | 4 |
6A | 960 | 498-317 | 4420-8841 | 1.5 |
60 | 1450 | 1139-724 | 6677-13353 | 4 |
60 | 960 | 498-317 | 4420-8841 | 2 |
8D | 1450 | 2032-1490 | 15826-29344 | 19 |
80 | 960 | 887-651 | 10478-19428 | 5.5 |
8D | 730 | 512-376 | 7968-14773 | 3 |
10D | 1450 | 3202-2532 | 40441-56605 | 55 |
10D | 960 | 1395-1104 | 26775-37476 | 18.5 |
10D | 730 | 805-637 | 20360-28497 | 7.5 |
12D | 960 | 2013-1593 | 46267-64759 | 45 |
12D | 730 | 1160-919 | 35182-49244 | 18.5 |
6C | 2240 | 2734-1733 | 10314-20628 | 15 |
6C | 2000 | 2176-1380 | 9205-18418 | 11 |
6C | 1800 | 1760-1116 | 8288-17056 | 7.5 |
6C | 1600 | 1389-881 | 7367-14734 | 5.5 |
6C | 1250 | 846-537 | 5756-11511 | 3 |
6C | 1120 | 679-431 | 5157-10314 | 2.2 |
6C | 1000 | 541-344 | 4144-8288 | 2.2 |
6C | 900 | 438-278 | 4144-8288 | 1.5 |
6C | 800 | 346-220 | 3684-7367 | 1.1 |
8C | 1800 | 3032-3143 | 19646-25240 | 30 |
8C | 1800 | 2302-2920 | 28105-36427 | 37 |
8C | 1600 | 2390-2478 | 17463-22435 | 55 |
8C | 1600 | 2303-1816 | 24982-32380 | 30 |
8C | 1250 | 1507-1106 | 13643-25297 | 11 |
8C | 1120 | 1209-1166 | 12224-15705 | 7.5 |
8C | 1120 | 1124-887 | 17487-22666 | 11 |
8C | 1000 | 963-929 | 10914-14022 | 5.5 |
8C | 1000 | 895-707 | 15614-20237 | 7.5 |
8C | 900 | 779-752 | 9823-12620 | 4 |
8C | 900 | 725-572 | 14052-18213 | 5.5 |
8C | 800 | 615-452 | 8732-16190 | 3 |
8C | 710 | 485-468 | 749-9956 | 2.2 |
8C | 710 | 450-356 | 11085-14368 | 3 |
8C | 630 | 381-280 | 6876-12749 | 2.2 |
10C | 1250 | 2373-1877 | 34863-48797 | 37 |
10C | 1120 | 1902-1505 | 31237-43722 | 30 |
10C | 1000 | 1514-1199 | 27890-39038 | 19 |
10C | 900 | 1225-970 | 25101-35134 | 15 |
10C | 800 | 967-766 | 22312-31230 | 11 |
10C | 710 | 761-603 | 19082-27717 | 7.5 |
10C | 630 | 599-475 | 17571-24594 | 535 |
10C | 560 | 473-375 | 15618-21861 | 4 |
10C | 500 | 377-299 | 13945-19519 | 3 |
12C | 1120 | 2746-2172 | 53978-75552 | 75 |
12C | 1000 | 2185-1969 | 48195-60397 | 45 |
12C | 1000 | 1859-1729 | 63953-67457 | 55 |
12C | 900 | 1767-1399 | 43375-60712 | 37 |
12C | 800 | 1395-1376 | 38556-41973 | 22 |
12C | 800 | 1321-1104 | 45391-53966 | 30 |
12C | 710 | 1097-869 | 34218-47895 | 18.5 |
12C | 630 | 883-684 | 30362-42498 | 15 |
12C | 560 | 682-673 | 26989-29381 | 7.5 |
12C | 560 | 646-540 | 31774-37776 | 1 |
12C | 500 | 543-430 | 24097-33728 | 7.5 |
12C | 450 | 440.434 | 21687-23610 | 4 |
12C | 450 | 417-348 | 25532-30356 | 5.5 |
12C | 400 | 347-275 | 19278-26983 | 3 |
Q. What's the information should I provide when inquiry? A: Flow rate&Air Volume B: Pressure C: Purpose D: Use environment(Temperature, atmospheric pressure) or other specials you give us will be more appreciated. Q. What is your warranty? A.Our warranty is 12 months after received the centrifugal fans. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure. continuous safe and high-quality equipment operation. Q. How does your factory control product quality? A.We have quality inspection department. All blowers are running more than 3 hour before delivery to test the quality. If there is quality problem, we will produce new one. Q. What are your terms of payment? A. T/T 30% AS THE ADVANCE PAYMENT AND T/T 70% AFTER INSPECTION BEFORE SHIPPING. B. 100% IRREVOCABLE L/C AT SIGHT. Q. What products do you produce? A. Centrifugal fan, tunnel fan, axial fan, jet fan, mining fan, exhaust fan,anti-corrosion blower, high pressure blower, explosion proof fan, etc, welcome to contact us to learn more details. Q. Where is your factory? Can I visit your factory? A. Our factory is located in Zibo, Shandong, welcome to visit our factory. Q. What is the time of loading? A. 5-7 days. Q. Is the product customized? A. Various types can be customized.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $300 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220/380/400/450/600V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
