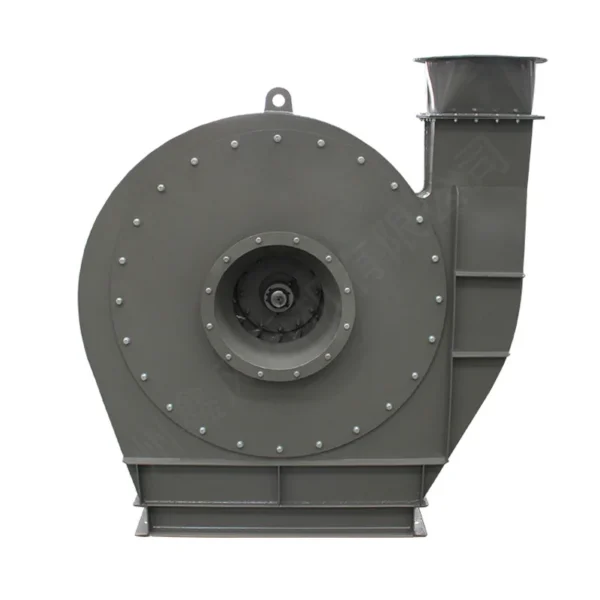

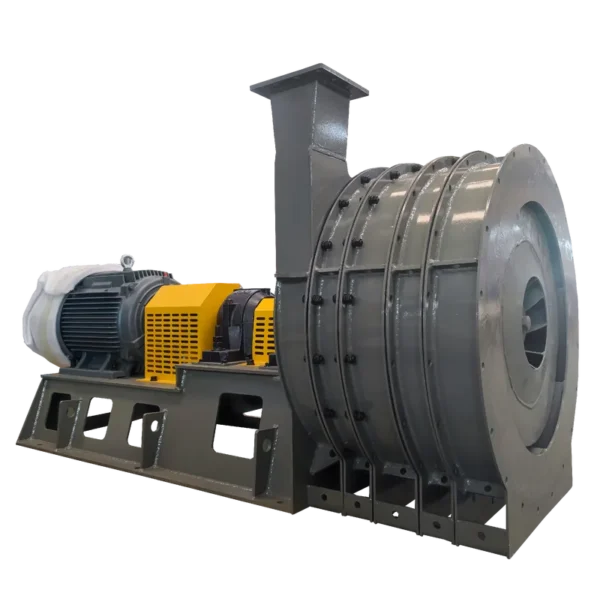

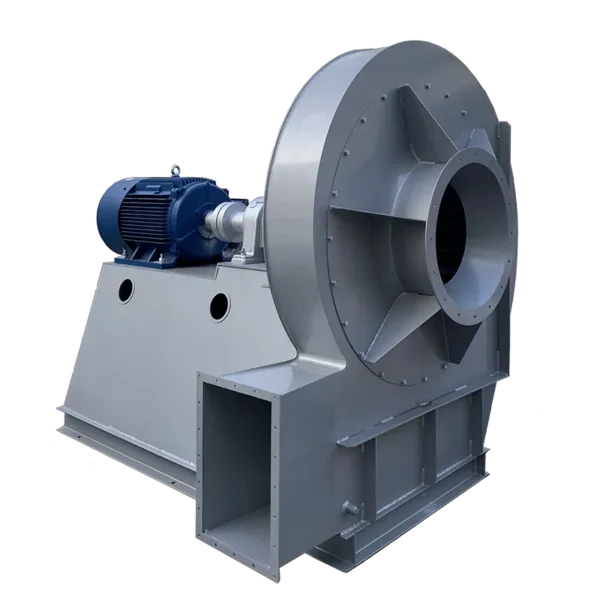

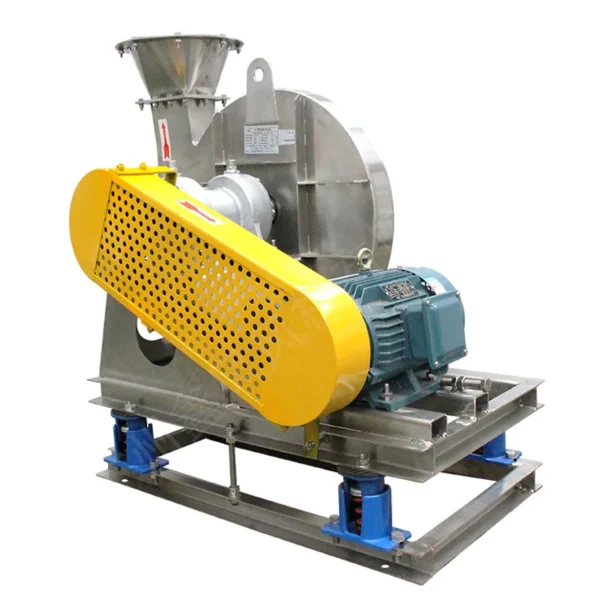

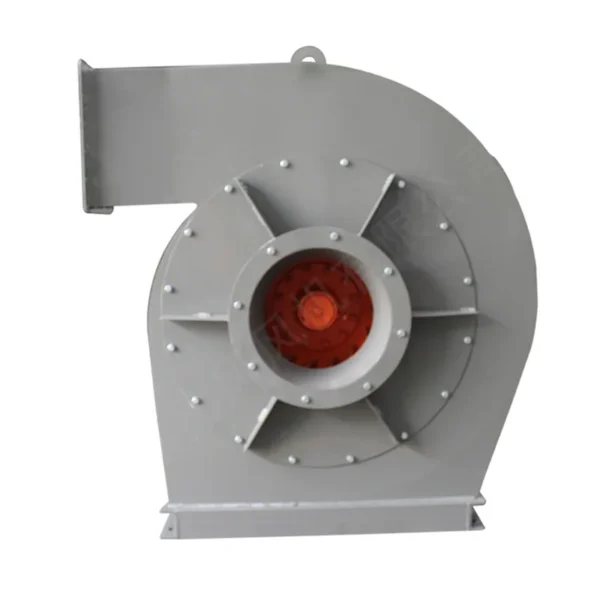

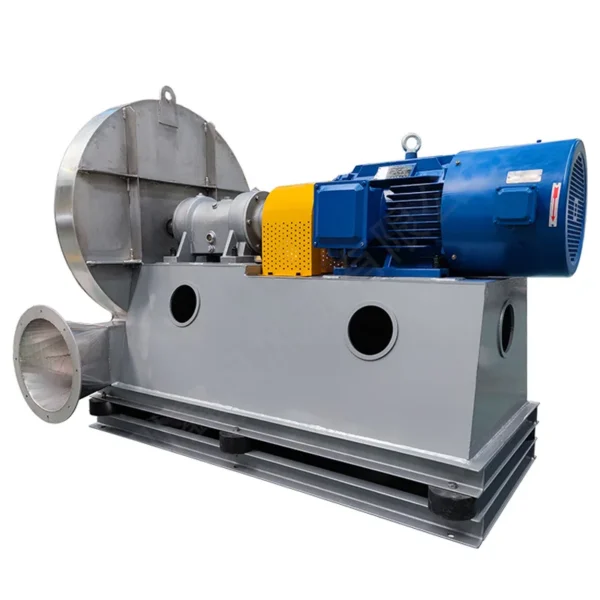

Centrifugal fan — 110v/220v/230v/380v/400v/415v/460v etc, blade material carbon steel or stainless steel. The complete factory specification follows. Made by Guangzhou Xinfeng Fan Co., Ltd. (14 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: XFJ-YJ/XFJ-EL
- Voltage: 110v/220v/230v/380v/400v/415v/460v etc
- Blade Material: carbon steel or stainless steel
- Material: Carbon steel,Stainless Steel SUS 304/310/316/2205/904 etc
- Warranty: 3 Years
- Certification: CE/RoHS/ISO9001/CCC
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 110v/220v/230v/380v/400v/415v/460v etc |
| Blade Material | carbon steel or stainless steel |
| Warranty | 3 Years |
| After-Sales Service Provided | Field Maintenance and Repair Service |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | ventilator fan |
| Model Number | XFJ-YJ/XFJ-EL |
| Certification | CE/RoHS/ISO9001/CCC |
| Hertz | 50Hz/60Hz |
| Water Proof Standard | IP54/IP55/IP56 etc |
| Material | Carbon steel,Stainless Steel SUS 304/310/316/2205/904 etc |
| Insulation Level | B/F/H |
| Motor | frequency conversion/explosion proof |
| Brand Of Motor | can be customized |
| Color | Standard color is silver gray.Other colors are customized. |
| Working Temperature | less than 600 ℃ degree Celsius |
| Size | depends on model |
| Selling Units | Single item |
| Single Package Size | 80X90X80 cm |
| Single Gross Weight | 15.000 kg |
Product Details
Model | Revolution (r/min) | Volume (m³/h) | Full presure (Pa) | static pressure (Pa) | Power (Kw) | working voltage (v) |
BYT-280 | 1450 / 2900 | 662~3542 | 39~254 | 20~135 | 0.025 ~0.37 | 200V/380V |
BYT-315 | 1450 / 2900 | 1473~5957 | 56~316 | 32~181 | 0.04 ~0.55 | 200V/380V |
BYT-355 | 1450 / 2900 | 2128~6942 | 60~366 | 32~170 | 0.04 ~ 1.1 | 220V/380V |
BYT-400 | 960/ 1450/ 2900 | 1908~9312 | 32~496 | 32~279 | 0.12 ~ 2.2 | 220V/380V |
BYT-450 | 720 / 960 / 1450 / 2900 | 1991~14539 | 20~710 | 20~369 | 0.18 ~4 | 220V/380V |
BYT-500 | 720 / 960 / 1450 / 2900 | 2142~19679 | 31~710 | 18~416 | 0.18~ 5.5 | 220V/380V |
BYT-560 | 720 / 960 / 1450 / 2900 | 2734~24885 | 53~1040 | 45~703 | 0.18~11 | 220V/380V |
BYT-600 | 720 / 960 / 1450/ 2900 | 3664~33466 | 65~1211 | 48~755 | 0.18~15 | 220V/380V |
BYT-630 | 720 / 960 / 1450 / 2900 | 3895~40358 | 62~1175 | 21~836 | 0.18~18.5 | 220V/380V |
BYT-710 | 720 / 960 / 1450 | 4951~29798 | 82~471 | 47~340 | 0.25~5.5 | 220V/380V |
BYT-800 | 720/ 960 / 1450 | 6854~37807 | 96~532 | 73~397 | 0.37~7.5 | 220V/380V |
BYT-900 | 720/ 960/1450 | 10358~51387 | 118~795 | 102~552 | 0.75~15 | 220V/380V |
BYT-1000 | 720/ 960 / 1450 | 19127~69513 | 150~923 | 119~608 | 1.5~18.5 | 220V/380V |
BYT-1120 | 720/ 960 / 1450 | 23384~111435 | 188~1076 | 154~788 | 2.2~45 | 220V/380V |
BYT-1250 | 720/ 960 / 1450 | 29853~136982 | 240~1477 | 207~1038 | 3~75 | 220V/380V |
BYT-1400 | 720 / 960 | 47799~128075 | 325~845 | 256~583 | 5.5~37 | 220V/380V |
BYT-1600 | 720 / 960 | 23384~195148 | 202~1116 | 153~766 | 2.2~90 | 220V/380V |
BYT-1800 | 720/ 960 | 100562~277857 | 350~1413 | 251~993 | 22~160 | 220V/380V |
BYT-2000 | 720 / 960 | 109347~381147 | 645~1744 | 499~1159 | 37~250 | 220V/380V |
1.Do you have MOQ?
2.How long is the product's warranty?
3.Can you provide OEM or ODM?
4.Are you a manufacturer or a trader?
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $3000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CE/RoHS/ISO9001/CCC documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 110v/220v/230v/380v/400v/415v/460v etc. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Xinfeng Fan Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Xinfeng Fan Co., Ltd. range on HVACR Nexus.
