Key specification for this centrifugal fan: 230V, material Aluminum Alloy. Everything below is reproduced from the factory data sheet. Made by Guangzhou Kingan Auto Parts Co., Limited (13 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: K3A180-AGA-72
- Voltage: 230V
- Material: Aluminum Alloy
- Blade Material: galvanized sheet steel
- Impeller Material: Galvanized steel/plastic/cold rolled steel
- Noise Level: 40 dB and above
Technical Specifications
| Mounting | Wall Fan |
|---|---|
| Voltage | 230V |
| Motor Type | AC Motor, Brushless Motor |
| Speed | 1320rpm |
| Material | Aluminum Alloy |
| Blade Material | galvanized sheet steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Noise Level | 40 dB and above |
| Place Of Origin | Guangdong, China |
| Brand Name | KINGAN |
| Model Number | K3A180-AGA-72 |
| Color | Black |
| Feature | Low Noise Power Saving |
| Direction Of Rotation | Anticlockwise, seen on leads |
| Type Of Protection | IP42 |
| Bearing | Ball bearing |
| Insulation Class | B |
| Approval | CCC,CE |
| Type | Centrifugal Fan |
| Impeller Material | Galvanized steel/plastic/cold rolled steel |
| Selling Units | Single item |
| Single Package Size | 35X35X25 cm |
| Single Gross Weight | 4.1 kg |

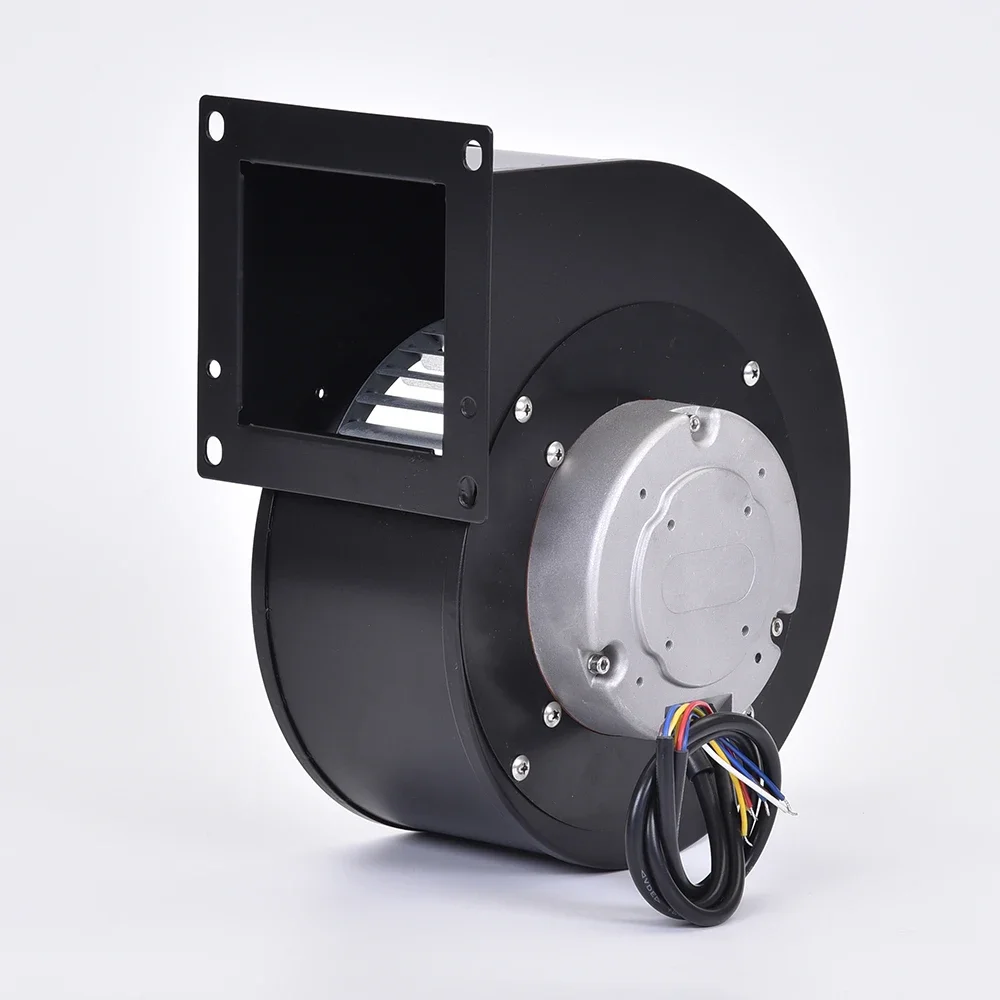

Product Details

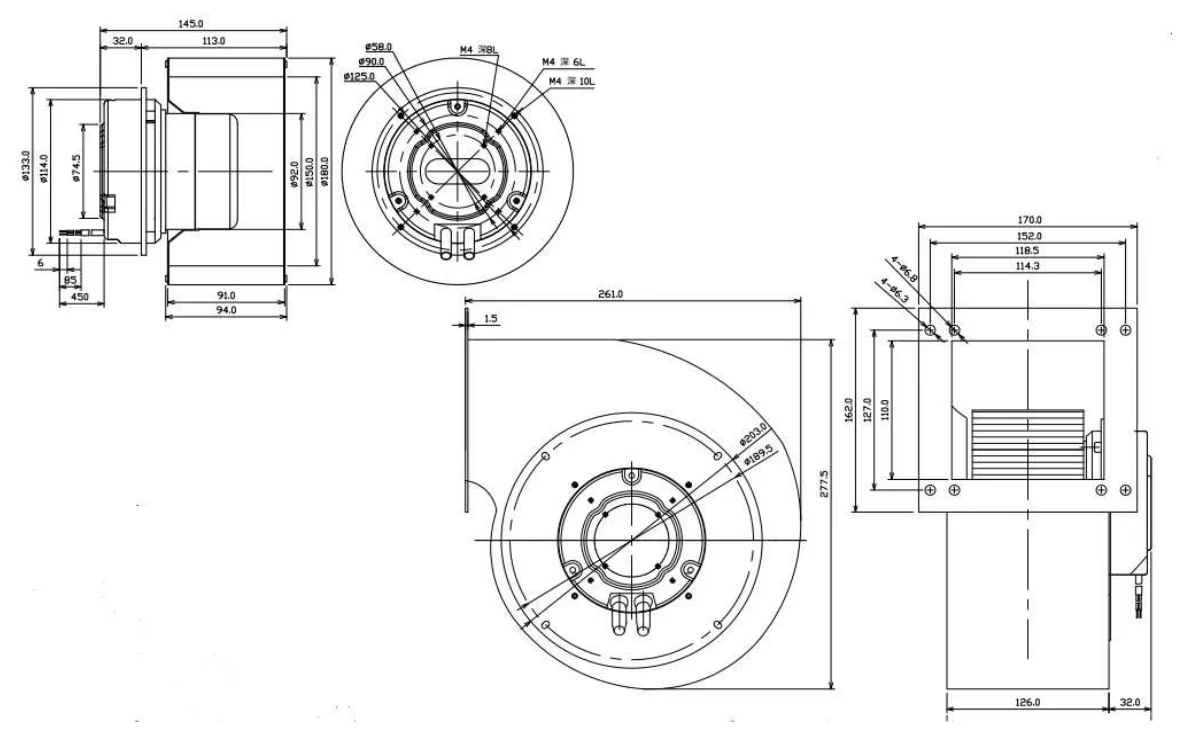

Model | K3A180-ACA-72 | K3A180-AGA-72 | |
Size | 180mm | 180mm | |
Voltage | 115V | 230V | |
Current | 2.2A | 1.2A | |
Motor | Brushless | Brushless | |
Rotational speed | 1320 rpm | 1320 rpm | |

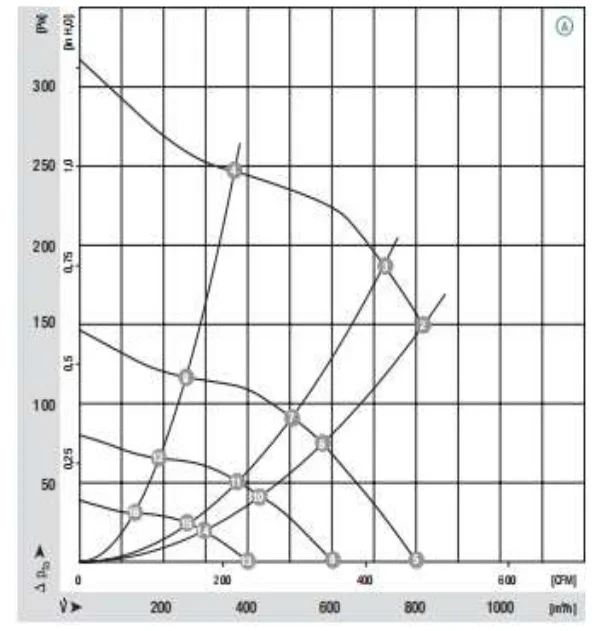

Airflow | 1100 m3/h | 1100 m3/h | |
Rate Power | 175 W | 130 W | |
Working temperature | -40℃ ~ 65℃ | ||
Control Mode | 0-10V voltage control PWM control | ||
Motor Protection | Motor shaft-locking + Over-voltage protection = soft-start protection | ||
certificate | ROHS, EMC, LVD, CE | ||
Type | Centrifugal Fan |
Brand Name | KINGAN |
Electric Current Type | EC |
Blade/Impeller Material | galvanized sheet steel |
Direction | Clockwise Seen from Rotor |
Motor Type | BLDC External Rotor Motor |
Insulation Class | B |
Warranty | 25 Months |
Amb Working Temp | -40℃ to +60℃ |
Bearing type | Ball Bearing |
Packaging Details | Individual inner box for each single fan and blower. Each order packing is carefully designed according to the transport way. |
Port/Airport | Guangzhou, Shenzhen |
Supply Ability | 5000 Pieces per Month |
After-sales Service Provided | Technical support online (Instant chat messager, email, phone call, video call technical support) |
Place of Origin | Guangzhou, China |
Applicable Industries | Building(Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops,Restaurant,Factory),Farms,AHU,Heating Gas Boiler, Refrigeration ,Industrial Automation,Vehicles,FFU,Construction works ,Energy & Mining, Home Use |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–49 piece: US $62 / piece
- 50–499 piece: US $60 / piece
- 500+ piece: US $50 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC,CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Kingan Auto Parts Co., Limited, based in China. The company 13 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Guangzhou Kingan Auto Parts Co., Limited range on HVACR Nexus.
