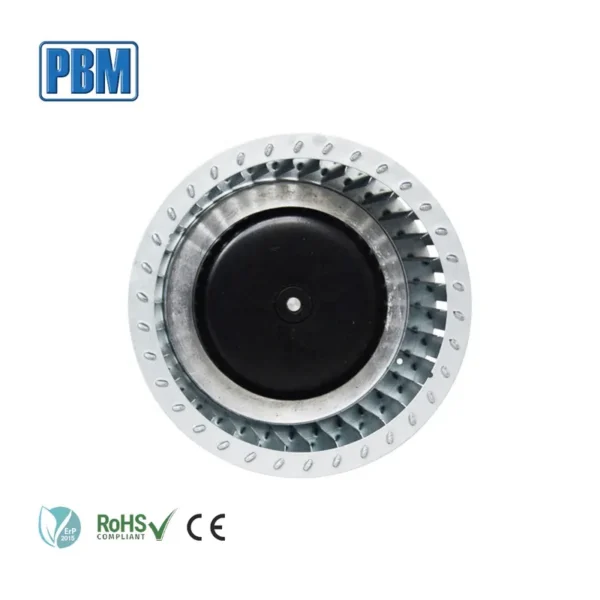

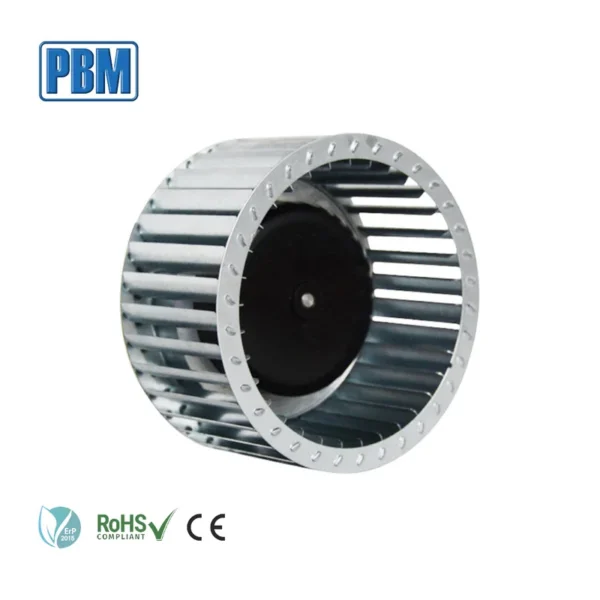

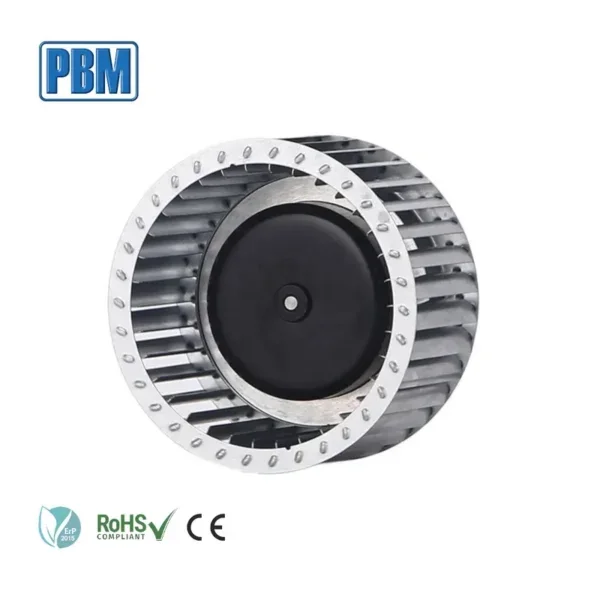

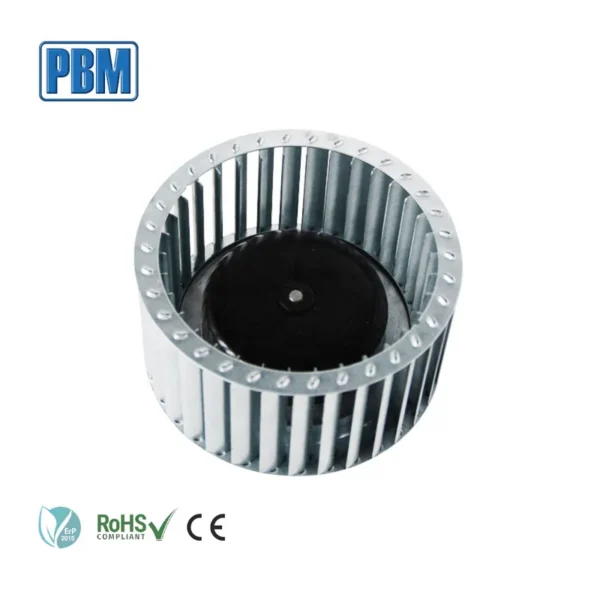

This centrifugal fan is published with the manufacturer’s full specification — voltage 230 VAC, blade material Stainless Steel. Made by Pbm Motor And Fan (suzhou) Co., Ltd. (8 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: PF3N160B2EH
- Voltage: 230 VAC
- Blade Material: Stainless Steel
- Noise Level: 70 dBA
- Warranty: 2 Years
- Certification: RoHS CE ErP
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230 VAC |
| Blade Material | Stainless Steel |
| Electric Current Type | AC |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Place Of Origin | Jiangsu, China |
| Brand Name | PBM |
| Model Number | PF3N160B2EH |
| Certification | RoHS CE ErP |
| Product Name | 160mm Wheel DC Forward Centrifugal Fan |
| Motor Type | BE92AC-T |
| Usage | Telecom Station, Heat Exchanger |
| Bearing | NMB Ball Bearing |
| Fan Feature | 0~10VDC/PWM Speed Control, Tach Output |
| Rated Current | 1.28 A |
| Air Pressure | 378 PA |
| Noise Level | 70 dBA |
| Life Expectance | 50,000Hours |
| Type | Centrifugal Fan |
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Home Use, Other |
| Packaging Details | Packing individually by foam carton , with pallet. Pallet size: 110*110*110cm, 5 PCS/CTN, 6CTNS in a layer and total 3 layers, 90 pieces in a pallet. Gross weight: 230kgs Net weight: 180kgs |
| Port Of Dispatch | Shanghai Ningbo |
| Selling Units | Single item |
| Single Package Size | 110X110X110 cm |
| Single Gross Weight | 180.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details
PBM Motor and Fan is a China mainland manufacturer and EC technology consulting company offering an extensive range of EC(Electronically Commutated) motors, fans and solutions, investing in the latest developing, manufacturing and technical equipment with in-depth processes & procedures. Our main products are EC fans, including EC axial fans, EC centrifugal fans and EC blowers. We do both AC and DC current type. And EC Motor is the core technology of our products.
Eletronically Commutated Motors(EC Motors)also known as Brushless DC Motors(BLDC) are synchronous electric motors powered by direct-current(DC) electricity and having electronic commutation systems,rather than mechanical commutators and brushes.The current-to-torque and voltage-to-speed relationships of BLDC motors are linear.
PBM fans are widely used in many fields. For example, axial fan for telecom, backward curved centrifugal fan for air exchanger,(inline duct fan)hydroponic products and FFU, forward curved centrifugal fan for air purifier and air conditioning,blower for kitchen.
Propylene with glass-fiber reinforced,
Ingection-moulded round sheet-metal plate
Control input 0~10VDC/PWM, tach output,
Locked-rotor protection, reverse polarity ,
Current limited, soft start.
Motor Type :
EC brushless external rotor motor
Insulation Class: B
Protection Type: IP44
LVD EN 60950-1
EMC EN 61000-6-3, EN 61000-4-2
EN 61000-4-3,EN61000-4-8.
-25~+60
Weight:2kg
| Model | Motor Type | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Power | Rated Speed | Air Flow | Air pressure | Noise Level |
| Part NO. | Type | B / S | VAC | Hz | A | W | RPM | M³/H | Pa | dBA |
| PF3N160B2EH | BE92AC-T | BALL | 230 | 50/60 | 1.28 | 177 | 2160 | 670 | 378 | 70 |
FAQ:
1.How about the delivery time?
Within 25 days after we receive the order.
2.What kind of payments do you support?
T/T.L/C ,other kinds please contact with us.
3.What's the MOQ?
Generally speaking ,the MOQ is 100 pieces .Different products have different MOQ, Please contact with us.
4.Transportation
All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment. Full-way tracking the cargos for you before the goods arrive.
5.Global Market
Depending on advanced technology and knight service, we establish a good and diligent team and keep nice business relationship with a large amount of worthy clients in global market. We are prepared to provide the best DC Axial Fan to clients at competitive price. In addition to control of cost and quality, our stipulated lead-time, variety of designs, capability of product development and flexibility of service bring convenience and value added services to the clients.
6.Contact Us
We highly appreciate your any enquiry by email, fax or instant message. We will reply your email or fax within 12 hours. Please fell free to call us at any time if there is any questions.
Specifications:
| Operating Temperature | -25 degrees to 60 degrees |
| Storage Temperature | -40 degrees to 75 degrees |
| Operating Humidity | 5% to 90% RH |
| Storage Humidity | 5% to 95% RH |
| Drop Test | In minimum packaging condition fan withstand each one drop of three faces from 30cm distance height onto 10mm thickness of wooden board. |
| Vibration Test | Sine Wave. Displacement amplitude: 0.75mm(Equivalent 10G). Frequency Range: 10Hz~55Hz / 30 sec. 55Hz~10Hz / 30 sec Linear Scanning 120 Cycle Endurance timer per axis: 2 Hours Orientation: X,Y,Z. |
| Shock Test | Apply peak acceleration 50g and keep duration of the pulses for 11ms(Half sine wave). |
| Dustproof Test | Temperature range: degrees to 35 degrees. 2.5mm diameter metal wire cannot go through the gap between rotor cup and base . Follow IEC 60592 IP4X. |
| Waterproof Test | Temperature range: 15 degrees to 35 degrees and duration of test: at least 10 minutes, to dripping water from 15°Vertically. Follow IEC 60529 IPX4 |
| RoHS | All the material meets RoHS standard. |
Application Scopes:
Rail Technology, Ventilation Industry, Kitchen Products, Telecommunication System, Medical and Laboratory Technology, Electronics cooling, and so on..
Certificates:
PBM is a China Mainland consulting company and manufacturer specialized in EC fans only since 2005.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $63.8 / piece
- 10–29 piece: US $60.5 / piece
- 30+ piece: US $57.2 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with RoHS CE ErP documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Pbm Motor And Fan (suzhou) Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Pbm Motor And Fan (suzhou) Co., Ltd. range on HVACR Nexus.
