The centrifugal fan listed here carries 230 V, 50/60(Hz), power source type Corded Electric, documented exactly as the manufacturer publishes it. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: LWFE3G133-072DS-01, LWFE3G133-072DS-02, LWFE3G133-092DS-03
- Power Source Type: Corded Electric
- Voltage: 230 V, 50/60(Hz)
- Material: Metal
- Blade Material: Metal
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | 4 in, 6in, 8 in, 12 in, 10 in, 5 in, 14 in, 20 in, 3 in, 16 in, 18 in, 4.5 in, 133MM(5.24in) |
|---|---|
| Mounting | Free Standing |
| Voltage | 230 V, 50/60(Hz) |
| Motor Type | EC |
| Speed | 4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM, 700rpm, 1 000 RPM, 2500 RPM, 3 000 RPM, 3500rpm, 5 000 RPM, 4500 RPM |
| Material | Metal |
| Blade Material | Metal |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWFE3G133-072DS-01, LWFE3G133-072DS-02, LWFE3G133-092DS-03 |
| Product Name | EC Dual Inlet Forward Centrifugal Fans |
| Bearing | Maintenance-free ball bearings |
| Operation Temperature | -30℃~+60℃ |
| Type Of Protection | IP54 |
| Air Pressure | 288Pa,330Pa,484Pa |
| Type | Centrifugal Fan |
| Keyword | 130mm Centrifugal Fan |
| Current Draw | 0.6A,0.8A,0.95A |
| Application | Exhaust Ventilation |
| Feature | Low Noise Power Saving |
| Selling Units | Single item |
| Single Package Size | 150X50X50 cm |
| Single Gross Weight | 15.0 kg |
Product Details
Products Description

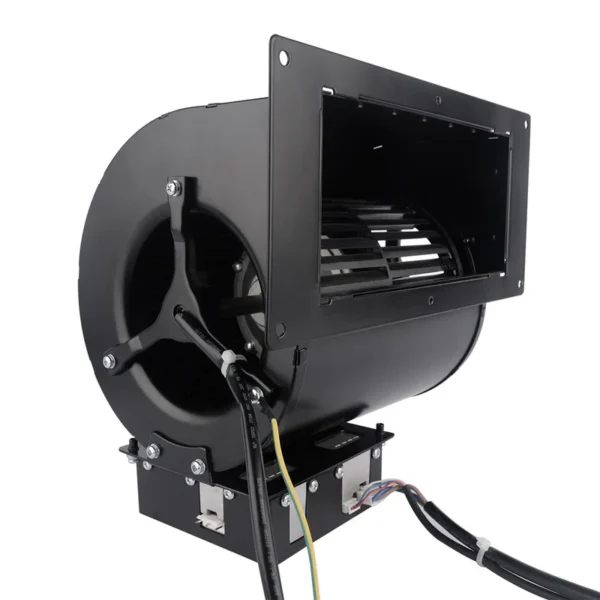

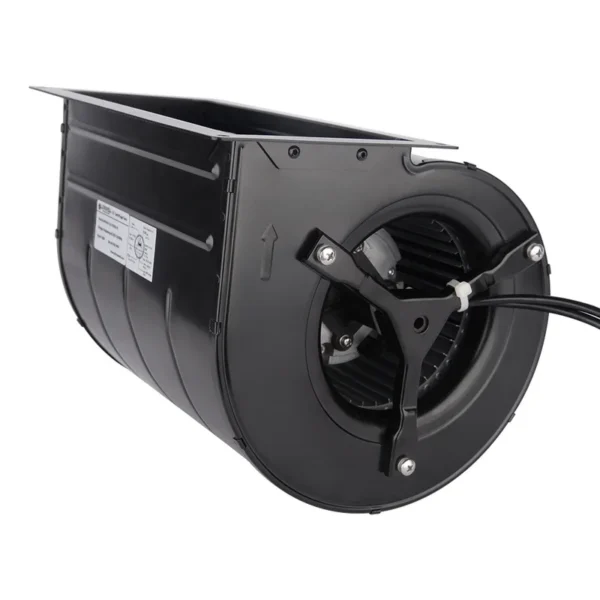

LONGWELL 133-280mm 230v Double Inlet Radial Fan Forward Curved EC Centrifugal Fans 1750RPM Centrifugal Air Blower
Types : | Centrifugal Fans |
Voltage Ranges : | 230V |
Frequency : | 50/60 Hz |
Diamter : | 133mm ( impeller diameters ) |
Motor Types : | BLEC External Rotor Motor ( EC ) |
Speed : | 1450RPM,1550RPM,1750RPM |
Max.ambient Temp: | -30℃~+60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP54 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Working & Storage | Operating temperature：-30~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-30 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
Mainly Applications | AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Company Profile
Certifications
FAQ
Q1.Why the Ec centrifugal fan is much efficiency than Ac centrifugal fan ?
– Longwell EC fans always operate in the correct direction ;
Operate on either 50Hz or 60Hz;
Operate on a wide voltage range(200-277Vsingle Phase&380-480 Vthree phase );
Operates much cooler-longer life ;
Less heat for a refrigeration system to handle (increased refrigeration COP),30 % average energy saving compared to AC technology;
Operate on either 50Hz or 60Hz;
Operate on a wide voltage range(200-277Vsingle Phase&380-480 Vthree phase );
Operates much cooler-longer life ;
Less heat for a refrigeration system to handle (increased refrigeration COP),30 % average energy saving compared to AC technology;
Q2. Does Longwell provide any speed control options for EC FANS ?
Yes , Longwell can provide some speed regulator solutions according customer's reguirements such as .The RM-ECi controller is for use with the full range of ebm-papst EC fans. Powered by the 10VDC output fromthe motor, it provides infinitely variable, manual speed control between 0% and 100%Can control multiple fans running at the same speed
– Stepless control knob for infinitely variable speed setting
– Cable entries 4xM16 or M20
– 4mm mounting holes
– Stepless control knob for infinitely variable speed setting
– Cable entries 4xM16 or M20
– 4mm mounting holes
Q3. how we connect fan unit to our application ,is there a wiring diagram ?
Please check the speed control of your application first ( is it PWM or 0-10V , LONGWELL's all series of Centrifugal fans support 0-10V or PWM and RS485 internet Protocol ) for more details please contact us for professional engineer service
Q4. Life span of this kind of Centrifugal fans ?
Longwell EC external rotor motor surpasses efficiency class IE4, magnets with no rare earths, maintenance-free ball bearings (sealed) with long-term lubrication, theoretical nominal service life of at least 40,000 hours of operation, installation with horizontal and vertical motor shaft; soft start, integrated current limitation. Integrated electronics, quiet commutation logic;
100 % speed controllable; control signal 0-10 V DC / PWM; tach output.
100 % speed controllable; control signal 0-10 V DC / PWM; tach output.
Q5. Are there any other AC DC EC centrifugal fans options or solutions for selection ?
Yes ,sure .

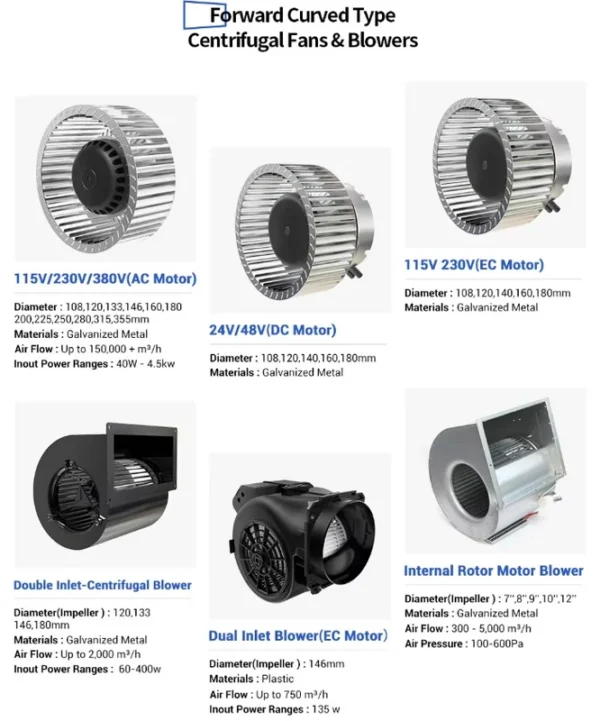

LONGWELL is a professional manufacturer of fans, blowers , motors and components for heating,venlation, air conditioner and refrigeration applications ,specialist in centrifugal fans, axial fans, AC /BLDC cross flow fans, single / double forward curved fan BLOWERS ,AC / BLDC/ECM motors as well as industrial fan blowers, inline duct fans , Poultry ventilation fans ( AC / DC /EC ) ,etc. Please check below photos for reference :
Longwell as a known and trustworthy DC cross flow fan Supplier in China , we assure you the best product quality and service.
If you are looking for DC cross flow fans for your manufacturing applications or electronic devices, do go through the features and specifications of our various models of DC cross flow fans. In case you require any further information or have technical queries, you can contact us directly at :
LONGWELL is a professional manufacturer of fans, blowers , motors and components for heating,venlation, air conditioner and refrigeration applications ,specialist in centrifugal fans, axial fans, AC /BLDC cross flow fans, single / double forward curved fan BLOWERS ,AC / BLDC/ECM motors as well as industrial fan blowers, inline duct fans , Poultry ventilation fans ( AC / DC /EC ) ,etc. Please check below photos for reference :
Longwell as a known and trustworthy DC cross flow fan Supplier in China , we assure you the best product quality and service.
If you are looking for DC cross flow fans for your manufacturing applications or electronic devices, do go through the features and specifications of our various models of DC cross flow fans. In case you require any further information or have technical queries, you can contact us directly at :
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $76 / piece
- 500–999 piece: US $75 / piece
- 1000+ piece: US $72.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230 V, 50/60(Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
