TOTALIEN ENDUSTRIYEL URUNLER SANAYI TICARET LIMITED SIRKETI lists this centrifugal fans with its own published specification, unedited. Supplier profile: 5 years on the platform. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Centrifugal Fans
- Material: Galvanized Steel Casing, High-Density Rock Wool Insulation (50 kg/m³), Fiberglass-Coated Splitter Surfaces
- Warranty: 1 Year
- Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
- Place Of Origin: Turkey
- Feature: Advanced Noise Attenuation, Fire-Resistant Insulation (DIN 4102 A2 Class), Customizable Dimensions and Configurations
- Single Package Size: 20X5X20 cm
Technical Specifications
| Application | Ventilation Duct Systems, Industrial HVAC Systems in Factories and Warehouse, Noise-Sensitive Spaces like Hospitals and Schools, Commercial Buildings such as Offices and Malls |
|---|---|
| Material | Galvanized Steel Casing, High-Density Rock Wool Insulation (50 kg/m³), Fiberglass-Coated Splitter Surfaces |
| Installation | Ceiling Mounted |
| Shape | Rectangle |
| Feature | Advanced Noise Attenuation, Fire-Resistant Insulation (DIN 4102 A2 Class), Customizable Dimensions and Configurations |
| Design Style | Industrial HVAC |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support |
| Project Solution Capability | Noise Control Design, Customizable Dimensions |
| Length | 800 mm to 2000 mm |
| Heating Element | Not Applicable |
| Place Of Origin | Turkey |
| Brand Name | ICEMAC |
| Noise Attenuation Level | High Performance |
| Customization | Fully customizable dimensions, thickness, and configurations |
| Surface Finish | Electrostatic Powder Coating |
| Fire Safety Compliance | DIN 4102 A2 Fire-Resistant Materials |
| Baffle Configuration | 100 mm (Standard) or 200 mm (Enhanced Noise Control) |
| Insulation Density | 50 kg/m³ High-Density Rock Wool |
| Certifications | ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 |
| Selling Units | Single item |
| Single Package Size | 20X5X20 cm |
| Single Gross Weight | 20.0 kg |
Product Details

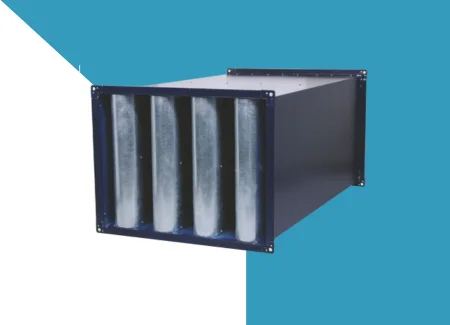

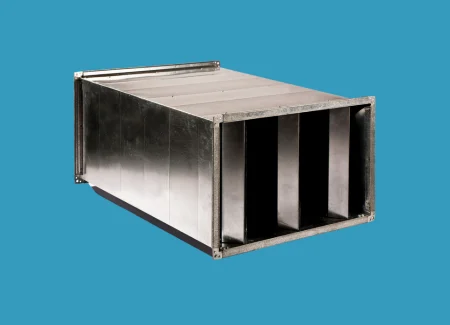

| ICEMAC Rectangular Sound Attenuator – Customizable Noise Control for HVAC Systems |   |
| The ICEMAC Rectangular Sound Attenuator is designed for effective noise reduction in HVAC systems. Built with high-density rock wool and customizable dimensions, it ensures superior acoustic performance and seamless integration into various applications, from commercial to industrial settings.
|
| Product Overview
|  |
| The ICEMAC Rectangular Sound Attenuator is designed to control noise in HVAC systems while maintaining airflow efficiency. Its galvanized steel casing and high-density rock wool (50 kg/m³) provide excellent acoustic performance and fire safety (Class A2, DIN 4102). Fiberglass-coated baffles prevent particle ejection, ensuring clean operation. Customizable dimensions and configurations make it ideal for diverse applications, including hospitals, schools, and offices. A versatile solution for modern HVAC systems. |
| Product Features and Specifications |  |
| Materials and Construction | |
|
Casing: Made from galvanized steel (0.6 mm to 1.5 mm) for durability and corrosion resistance. | |
| Baffles: Galvanized steel (0.6 mm to 1.0 mm) with options for 100 mm or 200 mm thickness. | |
| Insulation:High-density (50 kg/m³) rock wool, fiberglass-coated for particle containment, compliant with DIN 4102 (A2 Class) for fire safety and soundproofing. Variants: IC-RS-A: High-performance model with 200 mm baffles for noise-sensitive environments. IC-RS-B: Standard model with 100 mm baffles for general HVAC applications. | |
| Surface Finishing | |
| Standard Coating:Electrostatic powder coating for a smooth, durable, and corrosion-resistant surface. | |
| Default Colors: RAL 9010 (Pure White) and RAL 9016 (Traffic White). | |
| Custom Coating:Available in any RAL color upon request, allowing seamless integration with specific design and project requirements. |
| Assembly Options | |
| Screw Mounting: Enables stable and secure attachment to duct systems, ensuring reliable performance. | |
| Bolt and Clip Assembly: Facilitates robust connections to HVAC components, ideal for high-performance installations. | |
| Accessories | |
| Pre-installed Flanges: For easy integration with duct systems and secure mounting. | |
| Custom Coatings: To match specific design and environmental requirements. |
 | |
| Features | |
 |  |  |  |
| Durability | Noise Reduction | Fire -Resistant | Customizable Dimensions |
| Galvanized steel casing (0.6–1.5 mm) for durability and corrosion resistance. | 100 mm or 200 mm baffles with 50 kg/m³ rock wool insulation. | Complies with DIN 4102 (A2 Class) for enhanced safety. | Lengths from 800 mm to 2000 mm; adjustable width and height. |
|
Designed for advanced noise attenuation, this rectangular sound attenuator features a galvanized steel casing and high-density rock wool insulation, providing efficient sound reduction for residential, commercial, and industrial HVAC systems. | |||
Application Areas
 |

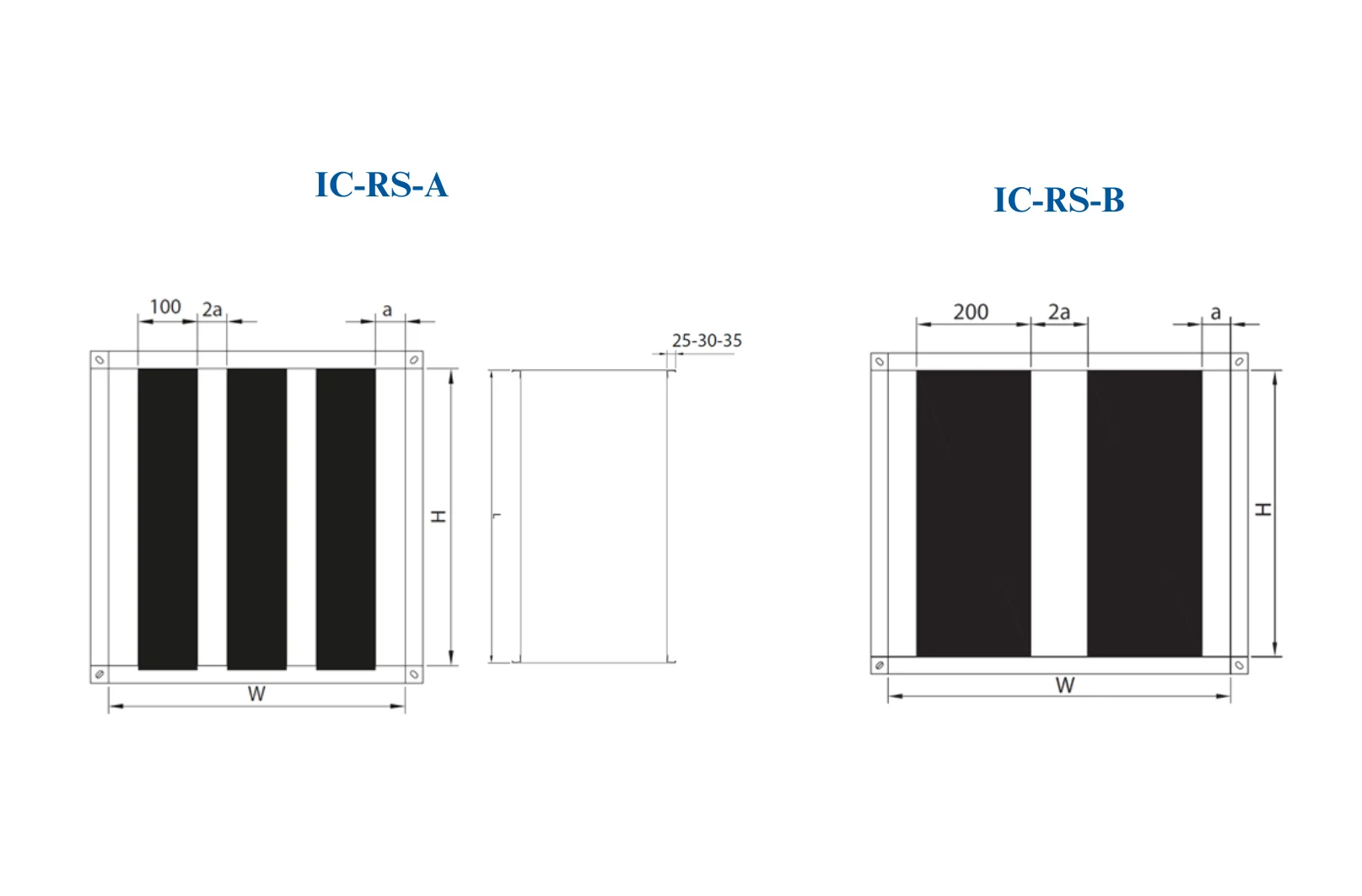

| ICEMAC Rectangular Sound Attenuator Dimensions |
| The ICEMAC Rectangular Sound Attenuator is available in customizable dimensions, ensuring seamless integration into diverse HVAC systems: |
|
|
 | |
 |

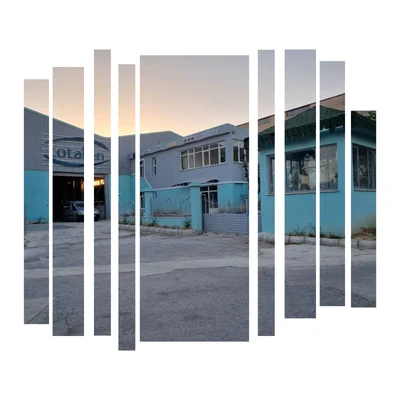

About Us
At Totalien, we specialize in delivering innovative and high-quality solutions for the piping and HVAC industries. With over a decade of experience, our commitment to excellence is reflected in every product we create, including our advanced Ceiling Air Diffusers. Designed for durability, customization, and efficiency, our diffusers ensure superior air distribution while meeting the demands of modern residential, commercial, and industrial environments.
Located in Turkey, we operate with a global mindset, serving clients across 85 countries in Europe, Asia, the GCC, MENA, and Oceania. Our ISO-certified processes guarantee products that stand the test of time, while our focus on customer satisfaction drives continuous innovation. At Totalien, we combine expertise, cutting-edge technology, and a dedication to sustainability to bring you solutions that enhance comfort and performance. Choose Totalien for reliable, efficient, and customizable air management solutions tailored to your needs. |
 |  |  |
| Logistics and Transporation |
 |
|
Delivering to 85+ countries with seamless coordination. |
On-time shippinhg with expedited options available. |
stay updated on your shipment every steo of the way. |
Safe packaging and insured delivery for peace of mind. |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $55 / piece
- Ships from: TR
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fans carry?
It is supplied with ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
