Key specification for this compact low-maintenance plate: voltage No need, material Stainless Steel. Everything below is reproduced from the factory data sheet. For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Compact Low-Maintenance Plate
- Voltage: No need
- Flow Capacity: Customized
- Material: Stainless Steel
- Plate Material: SS304/SS316/SS316L/Titanium/ALLOY C276/TAl TAi-Pd/N200/245SMO
- Gaskets Material: NBR/HNBR/EPDM/Solvent EPDM/General Fluoro rubber/Special fluoro rubber
- Frame Material: Carbon Steel / SS304 / SS316
Technical Specifications
| Heat Exchanger Type | Plate Heat Exchanger |
|---|---|
| Flow Capacity | Customized |
| Fluid Compatibility | Water Oil |
| Material | Stainless Steel |
| Maximum Operating Temperature | ≤135°C |
| Voltage | No need |
| Core Components | Plate & Gaskets |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Low Maintenance Cost, Compact Design, Easier to Service and Maintain |
| Working Temperature Range | ≤135°C(≤243℉) |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 200 |
| Brand Name | Hotz |
| Liquid Flow Rate | Customized |
| Maximum Pressure Rating | 1Mpa(145.04psi) |
| Dimension(L*W*H) | 80*60*160 |
| Application | Heating & Cooling |
| Plate Material | SS304/SS316/SS316L/Titanium/ALLOY C276/TAl TAi-Pd/N200/245SMO |
| Gaskets Material | NBR/HNBR/EPDM/Solvent EPDM/General Fluoro rubber/Special fluoro rubber |
| Certificate | CE/ISO9001 |
| Plate Thickness | 0.5mm 0.6mm 0.7mm 0.8mm 0.9mm 1.0mm |
| Frame Material | Carbon Steel / SS304 / SS316 |
| Package | Wooden Case |
| Color | Customized Color |
| After Warranty Service | Online Video Technical Support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description
Product Name: | Plate Heat Exchanger |
Plate Material: | SS304/SS316/SS316L/钛/合金 C276/TAl TAi-Pd/N200/245SMO |
Frame Material: | Carbon steel/ Stainless less |
Gasket Material: | NBR/HNBR/EPDM/Solvent EPDM/General Fluoro rubber/Special fluoro rubber |
Max Working Pressure: | 3Mpa |
Working temperature: | -30℃ – +180℃ |
Size: | Customizable |
Plate Number: | Customizable |
Packing: | Wooden box |

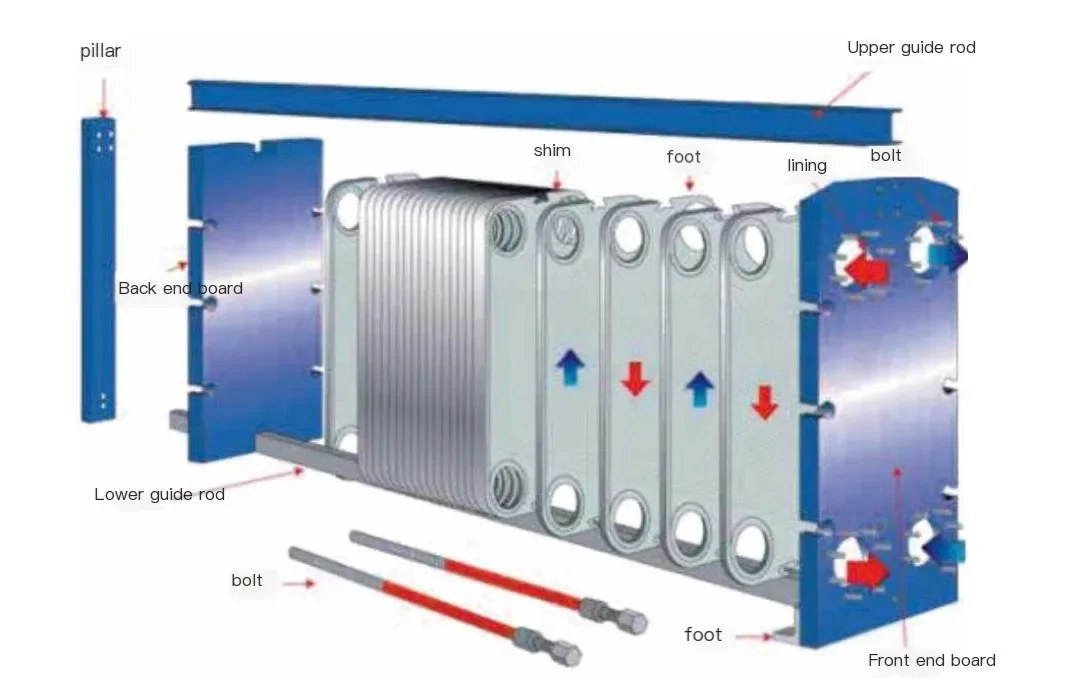

The basic structure of the plate heat exchanger
Plate heat exchanger is consist of corrugated metal plates with holes for the two heat transferfluid through. Two pressure plates hold the pressure pack together with tighteningbolts. Sealing gaskets sitting at the perimeter of plates guide the flow of fluid alternately to eachchannel. The plate and gasket material,size,quantity,etc are determined by the mediumflowrate,physical properties,pressure drop and temperature.Different design of corrugatedplate structure not only increases the turbulence, but also the support points between plateswhich can hold higher pressure.Plate pack and movable pressure plate are hanged in a carrying bar supported by a beam,with aguild bar at the bottom. Connection ports are at fixed pressure plate, also available at movablepressure plate with multiple passes design.
Optional accessories
Plates material
Material | Specfication |
Stainless steel | SUS304/316/316L |
Titanium-Palladium Alloy | TAl/TAi-Pd |
Hastelloy | C276/D205/B2G |
Nickel | N200 |
Molybdenum | 254SMQ |

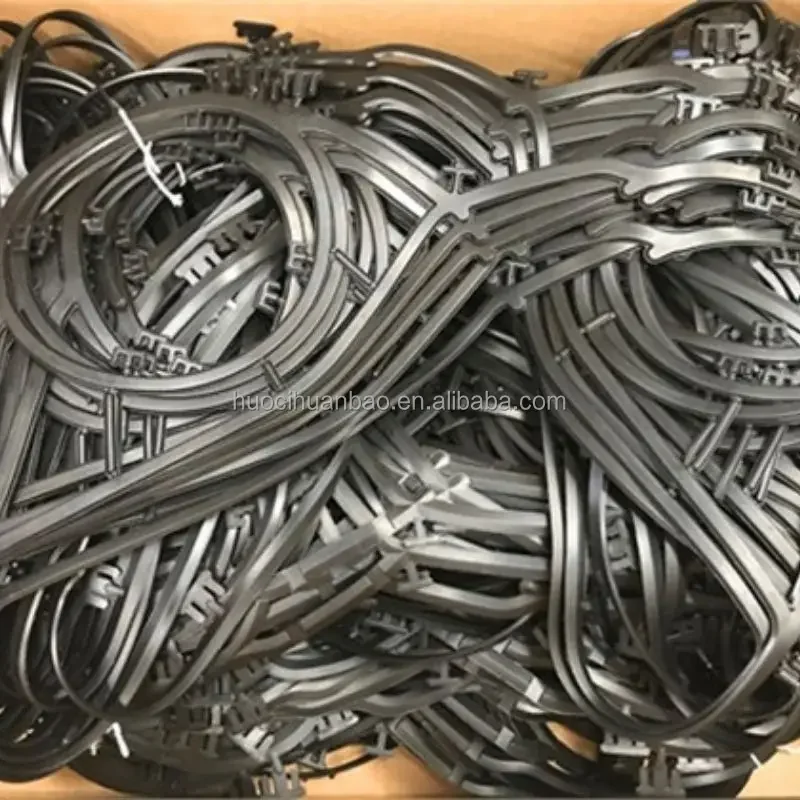

Gaskets material
Gasket Material | Operating temperture range | Use conditions |
NBR | ≤ 135°C | Resistant mineral,animal,vegetable oil andothernon-polarmedia |
HNBR | -5°C ~ 150°C | Resistance to sulfur crude oil,mixed media with H2S,high temperature cookingoillampnon-polar media |
EPDM | ≤ 180°C | Heat water,steam,food beverage, high temperaturesterilization of milk |
Solvent EPDM | -20°C ~ 150°C | Good volume and other polar solvents such as lipid solvents, inorganic acid such as Greek |
General fluoro rubber | ≤ 180°C | Non-polar mineral oil, lubricatingoil and otherfuels containing alcohol |
Special fluoro rubber | 30°C ~ 130°C | High concentration of sulfuric acid andotherinorganic oxygen acid |
