Condensing Unit, 220V, Stainless Steel

Key specification for this condensing unit: 220V/50Hz, material Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Wuxi Lvjie Machinery Co., Ltd. (5 years on the platform, typical reply ≤4h). Quantity and destination market determine the final price — tell us both for a firm quote.

Key Features of This Condensing Unit

• Voltage: 220V/50Hz
• Material: Stainless Steel
• Evaporator Material: 316L+PP plastic
• Condenser Material: 316L
• Warranty: 1 Year
• Certification: ce/ISO9001:2008

Technical Specifications

Product Details

Products Description

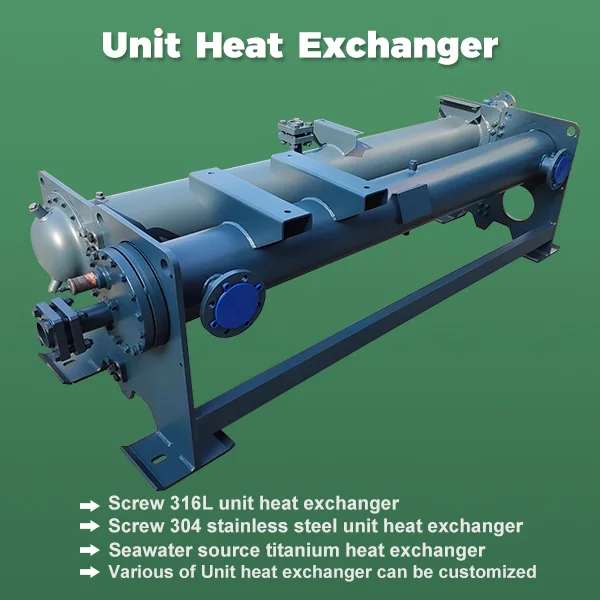

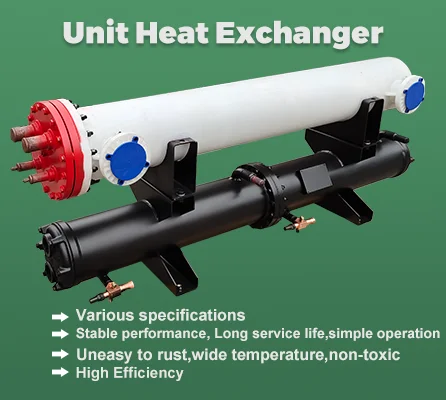

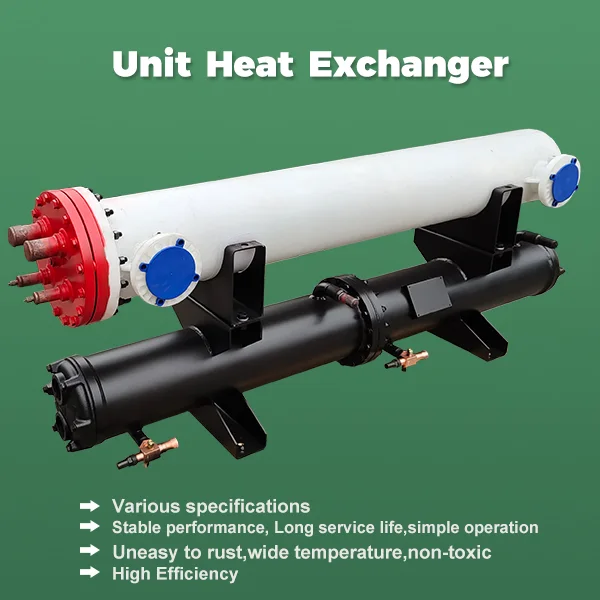

Unit Heat Exchanger

The heat exchanger combination consists of an evaporator and a condenser

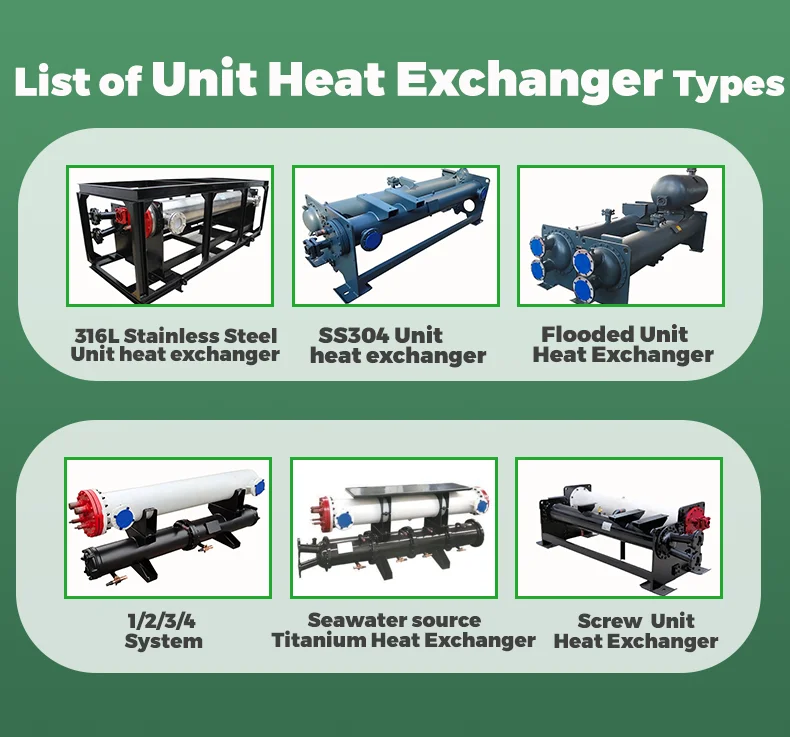

Our company has a variety of Unit Heat Exchanger,The unit structure has floor-standing, stacking, side-by-side.

Including:

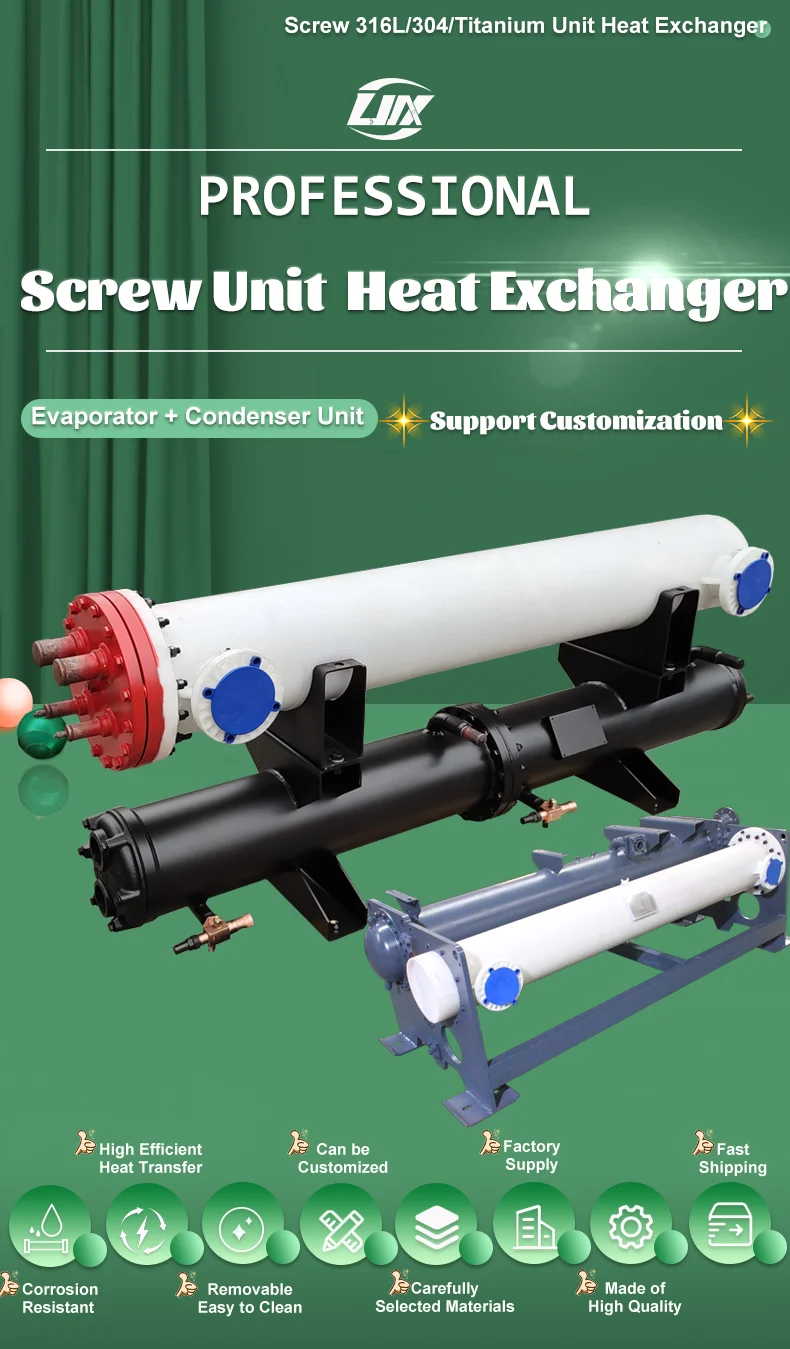

Screw unit 316L heat exchanger

Screw unit 304 heat exchanger

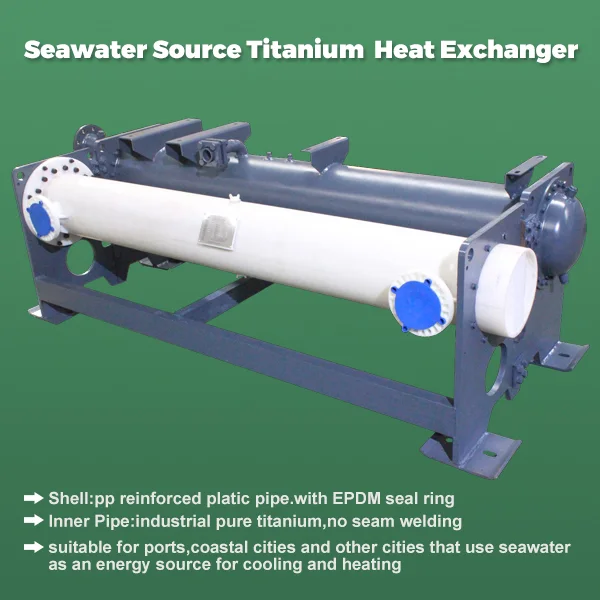

Seawater source Titanium heat exchanger

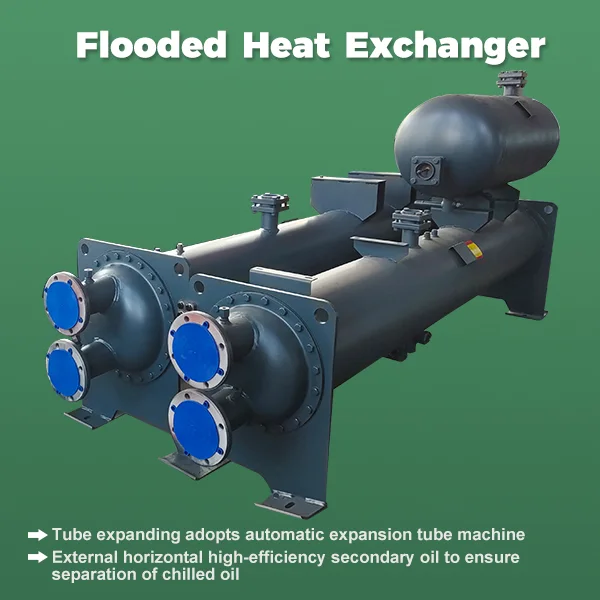

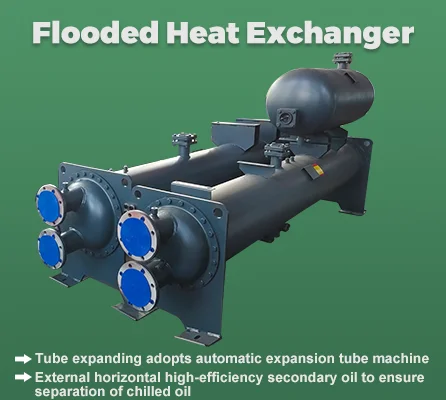

Flooded heat exchanger and etc.

Evaporator principle:Refrigerant evaporates and absorbs heat (Liquid to Gas)

Condenser principle:Refrigerant condenses and releases heat (gaseous to liquid)

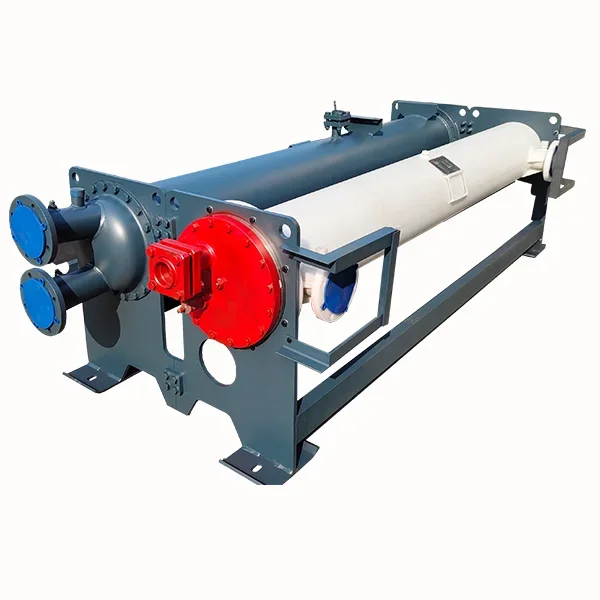

Shell and Tube Unit Heat Exchanger

Work Condition

1)Refrigerant: R22,R134a,R407c,R410a etc.
2)Water side: fresh water, nature water, drink water, seawater,saltwater, ground water etc .

Evaporator Material

Shell:PP reinforced plastic pipe
Inner Pipe: 316L Stainless steel Tube
Baffle:Plastic spiral baffle

Condenser Material

Shell:Iron/316L/304 Stainless steel
Inner Pipe: Titanium/Aluminum Brass/Copper

Tube: Straight tube

Cooling Capacity

10-850kw,Support customization

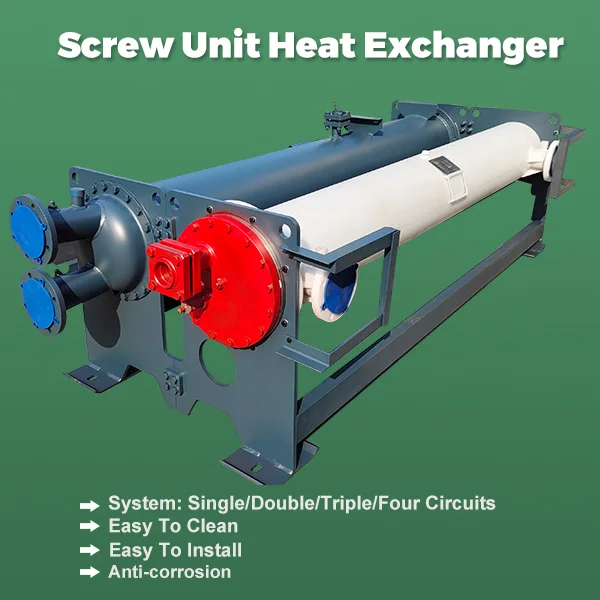

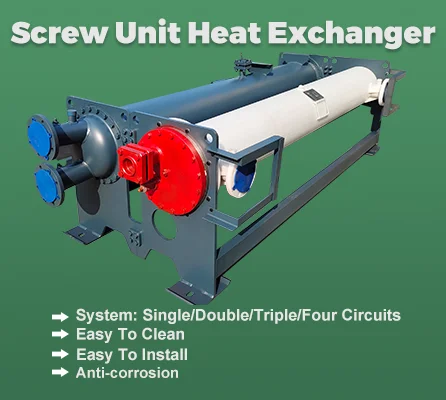

System:Single/Double/Triple/Fourth circuits

Unit Heat Exchanger

Feature

1.Fast heat exchange

2.Compact structure and small footprint

3.Flexible design+complete specifications

4.Strong practical pertinence

5.Energy saving

6.Light weight

7.Wide range of application conditions

8.Wide range of applications

9.Easy to install

10.Easy to clean,long cleaning cycle

11.Easy to operate

12.Removable

13.Anti-corrosion

Product Paramenters

Hot Sale Condensing Unit Evaporator Shell and Tube Condenser Shell & Tube Heat Exchangers Screw Unit Heat Exchanger

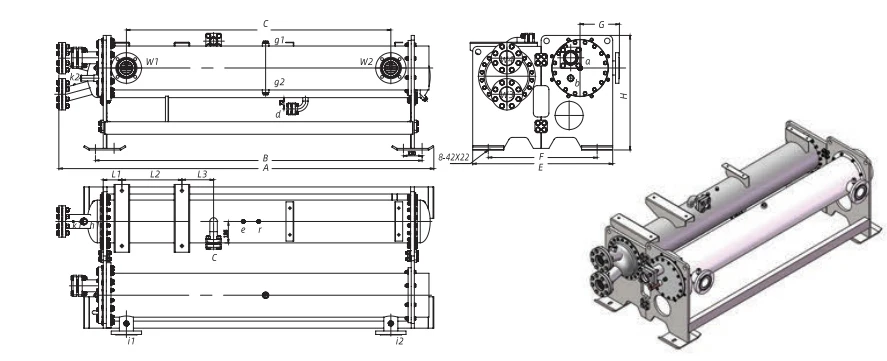

Model	Capacity kw	External and Installation Dimension A  B  C  E  F  G  H	Conector Size a   b   c   d   w1/2(De)   W3/4(DN)	N.W kg
WH-LG25	88	2350  1900  1500  780  580  219  650	54    35    42   28    75    65	495
WH-LG35	122	2350  1900  1500  860  660  233  735	54    35   42   28    75   65	635
WH-LG45	158	2550  2100  1670  900 700  260   735	67    35    42    28    90   80	705
WH-LG50	175	2550  2100  1670  900  700  260  735	67    35    42    28    90   80	730
WH-LG60	210	2850  2400  1980  900  700  260  735	89    35    54    28    90   80	795
WH-LG70	230	2850  2400  1980  900  700  260  735	89    35    54    28    90   80	810
WH-LG75	265	2850  2400  1980  1000  800  288  760	89    35   54   28   110    100	1020
WH-LG80	280	2850  2400  1980  1000  800  288  760	89   35   54   28   110    100	1030
WH-LG90	315	3050  2600  2180  1000  800  288  760	108   42   76    35   110   100	1095
WH-LG100	340	3050  2600  2180  1050  850  320  800	108   42   76   35   110   100	1185
WH-LG110	375	3060  2600  2180  1130  930  320  850	108   54   76   42   110   100	1340
WH-LG130	445	3360  2900  2450  1130  930  320  850	108   54   76   42   140  125	1450
WH-LG140	470	3360  2900  2450  1130  930  320  850	108    54   89   42   140  125	1520
WH-LG150	515	3380  2900  2450 1300 1100 360 1000	108   35/35  89  42  140  125	1590
WH-LG160	560	3380 2900 2450 1300 1100 360 1000	108   35/35   89   42   140  125	1720
WH-LG170	578	3580 3100 2650 1300 1100 360 1000	108   35/35  89   42   160  150	1750
WH-LG195	675	3580 3100 2650 1350 1150 360 1050	133   35/35   108   54   160  150	1810
WH-LG210	735	3580 3100 2650 1350 1150 360 1050	133   35/35   108   54   160  150	1860
WH-LG230	790	3580 3100 2650 1350 1150 360 1050	133   35/35   108   54   160  150	2080
WH-LG260	895	3580 3100 2650 1350 1150 360 1050	133   35/35   108  54   160  150	2310

Our Advantages

Professional Technical Team

 1:1 3D Design drawings

Our company has a mature technical team, which can customize heat exchangers of various specifications according to customer requirements, provide 3D design drawings, and the effect is intuitive

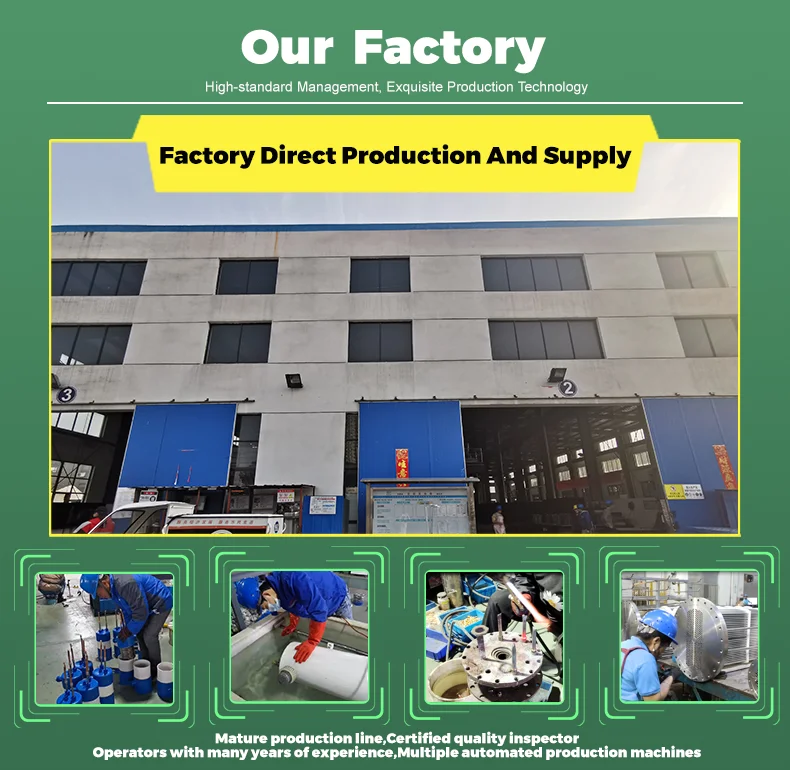

Factory Shipment,

Quality Stable and Reliable

Our own factory covers an area of 5,000 acres,direct shipment, cost-effective
Our Product:Mature design,rigorous production process,Factory inspection, strict control,Long service life and stable performance.

Complete certificates

Our company has CE certificate，Our company's products have also applied for many patents.

All products of our company strictly follow pressure vessel manufacturing specifications

Support Customization

Heat exchanger products of various specifications can be customized and can be matched with many programs
Tube material:aluminum brass,316L stainless steel,SS304 stainless steel,pure titanium
Outer Shell material:PP platsic, Carbon steel, Stainless steel

Company Profile

Wuxi Lvjie Engery Machinery Co.,Ltd.

Wuxi Lvjie Engery Machinery Co.,Ltd. is a comprehensive company specializing in the development, production and trade of refrigeration equipment and accessories.
Main production: shell and tube evaporator, pure titanium evaporator (Titanium Cannon, titanium barrel，titanium Coil in shell heat exchanger), stainless steel evaporator, corrosion-resistant evaporator, titanium tube heat exchanger, special-shaped titanium tube and other refrigeration & heat exchange parts.Our evaporators and condensers can be manufactured with different materials and can work with all types of fluids and with duty up to 6000 kW.
Widely used in: electroplating chillers, laser chillers, seafood machines, heat pump units, ice machines, marine air conditioners and other special industries to produce high-quality products in the fields of cooling and heating, Providing good after-sales service and establishing a sincere reputation , In order to further meet the needs of the majority of users, we continue to develop and develop high-efficiency, energy-saving new products.

The products are sold all over the country, especially the pure titanium evaporators sell well all over the country, Hong Kong, Europe, America and Southeast Asia.

Certifications

Exhibition

FAQ

Q1: Are you factory?

A1: Yes,we are one of the largest corrosion resistant heat exchanger manufactory in China.

Q2: Are there any discount for the heat exchangers?

A2: Yes. Bigger quantity will enjoy lower discount!

Q3: What information needed if I want a quotation?

A3: Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity, or any requirements in size.

Q4: What is the MOQ?

A4: We accept loose quantity order,mixed order,any trial orders.

Q5: When can I get the price?

A5: We usually quote within 8 hours after we get your inquiry.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $568 / set
  • 10+ set: US $538 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this condensing unit?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this condensing unit carry?

It is supplied with ce/ISO9001:2008 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the condensing unit be supplied for my local voltage?

The standard configuration is 220V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
