Key specification for this cooling fan: voltage 220, 5V/12V/24V/48V. Everything below is reproduced from the factory data sheet. Made by Shenzhen Caforre Technology Co., Ltd. (3 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Cooling Fan
- Power Supply: 5V/12V/24V/48V
- Voltage: 220
- Blade Material: Plastic
- Warranty: 1 Year
- Certification: CE
- CertificationS: RoHS
Technical Specifications
| Voltage | 220 |
|---|---|
| Blade Material | Plastic |
| Mounting Type | Duct Fan |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | Caforre |
| Size | 120*120*25MM |
| Function | Cooling Air |
| Keywords | Cooler Air |
| Product Name | 48V Cooling fan |
| Application | Exhaust Ventilation |
| Color | Black Structure |
| Power Supply | 5V/12V/24V/48V |
| Bearing Type | Dual Ball Bearing |
| Certification | CE |
| CertificationS | RoHS |
| Selling Units | Single item |
| Single Package Size | 12X12X2.5 cm |
| Single Gross Weight | 0.340 kg |
Product Details

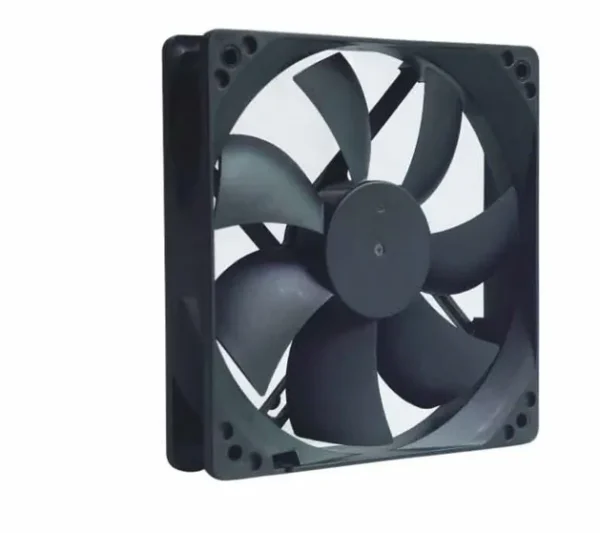

Caforre Brushless dc 120mm 5inch high cfm 12025 120X120X25mm 12V 24V 48V Cooling fan for cooler
Model No : KFL12025
SIZE : 120×120×25mm
CONSTRUCTION :
1.Die-cast aluminum housing
2.Glass fiber reinforced plastic impeller,UL 94V-0 rating
3.High-temperature copper line
4.Insulation Impedance: 500MΩ
5.Resist strength: 2000V/S
6.Leader wire or terminal is available
OPERATING TEMPERATURE :
Ball Bearing -30℃ to + 75℃
Sleeve Bearing -10℃ to + 70℃
| (Item) | (Specification / Condition) | |||

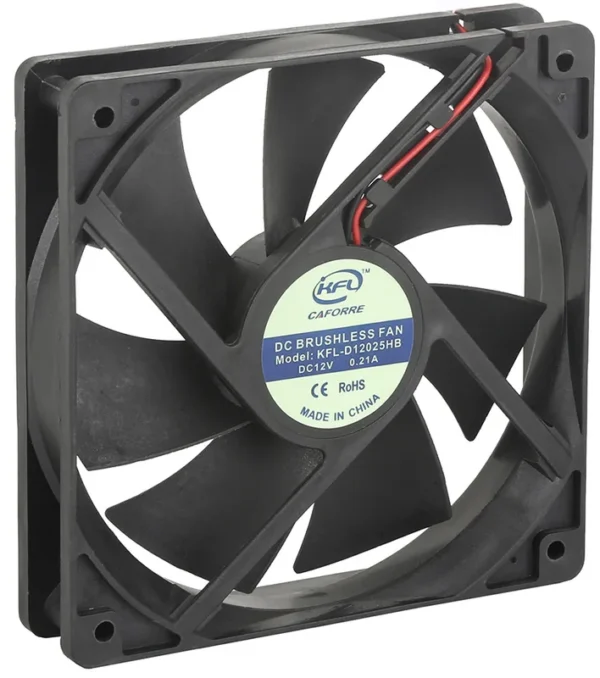

| 01 | (Part No.) | KFL- D12025HB12 | ||
| 02 | (Outline Dimension) | 120*120*25mm | ||
| 03 | (Rated Voltage) | DC12V | ||
| 04 | (Voltage Range) | DC7V ~ DC13.2V | ||
| 05 | (Starting Voltage) | DC7V | a. (Rated Voltage) b. 25° C c. 65 % RH | |
| 06 | (Rated Current) | 0.30A±10% | Following | |
| 07 | (Rated Power Consumption) | 3.6W | ||
| 08 | (Speed) | 2400RPM±10% | a. 65% RH 25°C b. (Free Air) c. (Rated Voltage) | |
| 09 | (Min. Airvolume Fiow) | 88.6CFMabove | a. (Rated Voltage) b. (Rated Current) | |
| 10 | (Max. Static Pressure) | 5.0mm-H2O | ||
| 11 | (Noise Level) | 36dB(A) | a. (Rated Voltage) b. (Measured in a Non-Echo Chamber) c. ISO 3744 (Test Condition) | |
| 12 | (Life Expentancy) | 50000hrs at 40 ℃ | a. L10 at Conf. Level 90/ b. (Rated Voltage) | |
| 13 | (No. of Pole) | 4 (Poles) | ||
| 14 | (Rotating Direction) | (Counter-Clockwise) | ||
|
Shenzhen Caforre Technology co., ltd is a professional manufacturer, we are majored in producing, AC Tubular Axial Fan, DC Cooling fan,cross-flow fan,and professional waterproof cooling fan. The main using is in ventilation, IT, machine, home appliances, power supply, welding machine, medical equipment, communication equipment, instrument measuring appliance, cabinet, electric radiator, water pump, wall stove, oven, air disinfect fresh machine, humidifier, refrigerator, store system, drying machine etc.. |  |
Q1: Are you manufacturer?
A1: Yes, we are the manufacturer of mixer and filling lines over 15 year’s experience.
Q2:How can I know your machine has good quality?
A2:We will send video of the machine working condition, video chatting see our workshop and also you can come to visit our factory.
Q3:What is your advantage?
A3: 1)Competitive price; 2)Excellent technical support; 3)Great after-sale service; 4)Over 15 years experience
Q4:What is the payment terms?
A4:30% deposit, the balance before delivery.
Q5:How long of the delivery time?
A5: Normally 40-50 working days depend on the detail machine you request.
Q6:What is your warranty time?
A6:One year. Life-long maintenance services and technical support.
Q7:Can you offer overseas service?
A7: Yes, if request. We suggest online problem solving firstly, if the problem still shows we can arrange engineer to go to your factory to solve the issue.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $0.85 / piece
- 100–1999 piece: US $0.75 / piece
- 2000–9999 piece: US $0.7 / piece
- 10000+ piece: US $0.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cooling fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cooling fan carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the cooling fan be supplied for my local voltage?
The standard configuration is 220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
