Key specification for this copper shell and tube: 220 V, 380 V, material Copper. Everything below is reproduced from the factory data sheet. Made by Hubei Aesima Heat Exchange Equipment Co., Ltd. (1 year on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Copper Shell And Tube
- Voltage: 220 V, 380 V
- Flow Capacity: Customized
- Material: Copper
- Warranty: 1 Year
- Certification: ASME
- Place Of Origin: Hubei, China
Technical Specifications
| Heat Exchanger Type | Tubelar Heat Exchanger |
|---|---|
| Flow Capacity | Customized |
| Fluid Compatibility | water, drinks,oil, milk |
| Material | Copper |
| Maximum Operating Temperature | <600c |
| Voltage | 220 V, 380 V |
| Core Components | Pressure Vessel |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Eco-Friendly, Low Maintenance Cost |
| Working Temperature Range | -40°C to +600°C |
| Place Of Origin | Hubei, China |
| Weight (Kg) | 200 |
| Brand Name | AESIMA |
| Liquid Flow Rate | 2.5m/s |
| Maximum Pressure Rating | Customized |
| Dimension(L*W*H) | Customized based on drawings or working conditions |
| Tube Length | 1.5 m to 12 m (standard: 3 m, 4.5 m, 6 m) |
| Connection Sizes | DN 25 to DN 600 (1" to 24") |
| Heat Transfer Area | 5 m² to 5,000 m² |
| Working Pressure | Shell side: 6-40 bar |
| Certification | ASME |
| Applicable Industries | Textile Drying Machines |
| Product Name | AESIMA2025 |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Our Products:Shell and Tube Heat Exchanger
Advanced Thermal Management: Shell & Tube Heat Exchangers
Efficient | Robust | Versatile
Recognized as our signature product, this series is the premier solution for refineries, major chemical facilities, and demanding high-pressure environments.
Recognized as our signature product, this series is the premier solution for refineries, major chemical facilities, and demanding high-pressure environments.

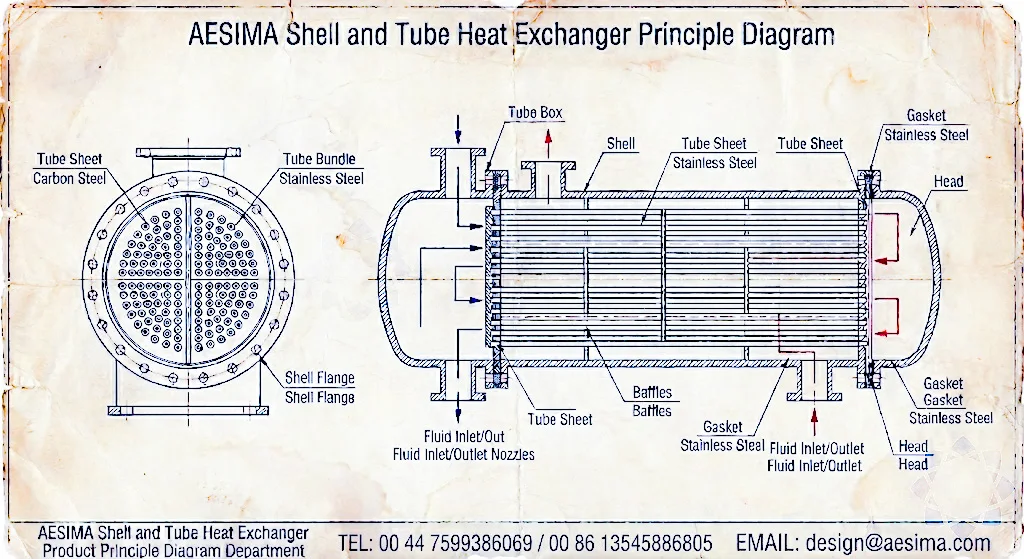

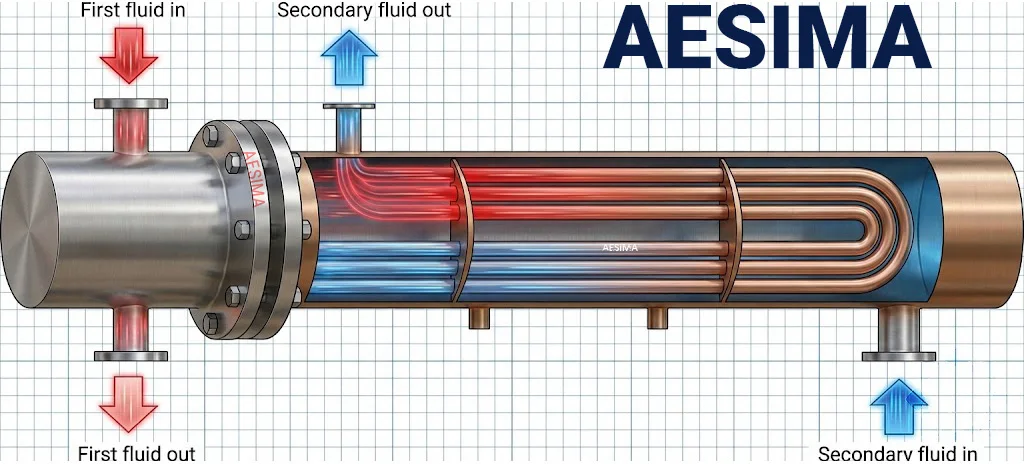

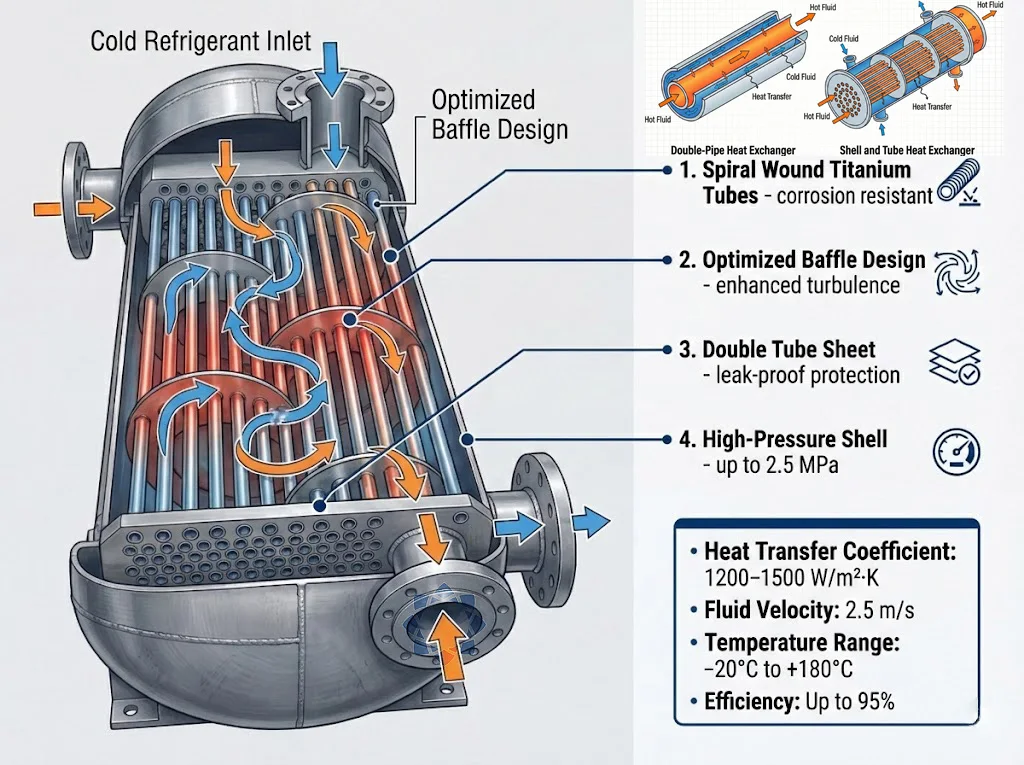

Working Principle & Structure
Key Advantages
The AESIMA Advantage
uD83DuDEE1️ Wide Range of Materials | Features materials like Carbon Steel, Stainless Steel, Copper, Nickel, and Titanium, plus specialized coatings to withstand diverse process media and environments. |
⚙️ Tailor-Made Solutions | Dimensions, connections, and thermal performance are fully customizable. We also offer 100% OEM-compatible drop-in replacements. |
uD83DuDCCA HTRI Precise Calculation | Our engineering team provides HTRI calculation reports to validate actual operating conditions and ensure all performance specifications are met. |
uD83CuDF0DBroad Industry Application | Perfectly suited for Swimming Pool Heat Pumps, Aquarium Cooling, Marine, Food , and Waste Heat Recovery applications. |
✅ Quality Assurance & Warranty | Includes a 1-year warranty. Optional ASME-compliant construction is available. |
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Materials & Applications
Title goes here.
uD83DuDD36 Carbon Steel
* Features: High mechanical strength and cost-effective.
* Applications: Non-corrosive environments and medium temperatures (<300°C). Commonly used for industrial system shells.
⚪ Stainless Steel (SS304/316)
* Features: Excellent corrosion resistance and good thermal performance.
* Applications: Chemical processing, food industries, and HVAC systems.
uD83DuDD35 Titanium
* Features: Superior corrosion resistance (resistant to chlorides, acids, and biofouling).
* Applications: Seawater applications, marine vessels, offshore platforms, and other critical environments.
uD83DuDFE4 Copper & Nickel Alloys
* Features: Copper alloys offer high thermal conductivity; Nickel alloys withstand extreme corrosion and high temperatures.
* Applications: Copper is used for non-corrosive water cooling; Nickel is suited for high temperatures (>800°C) or highly corrosive media.
* Features: High mechanical strength and cost-effective.
* Applications: Non-corrosive environments and medium temperatures (<300°C). Commonly used for industrial system shells.
⚪ Stainless Steel (SS304/316)
* Features: Excellent corrosion resistance and good thermal performance.
* Applications: Chemical processing, food industries, and HVAC systems.
uD83DuDD35 Titanium
* Features: Superior corrosion resistance (resistant to chlorides, acids, and biofouling).
* Applications: Seawater applications, marine vessels, offshore platforms, and other critical environments.
uD83DuDFE4 Copper & Nickel Alloys
* Features: Copper alloys offer high thermal conductivity; Nickel alloys withstand extreme corrosion and high temperatures.
* Applications: Copper is used for non-corrosive water cooling; Nickel is suited for high temperatures (>800°C) or highly corrosive media.

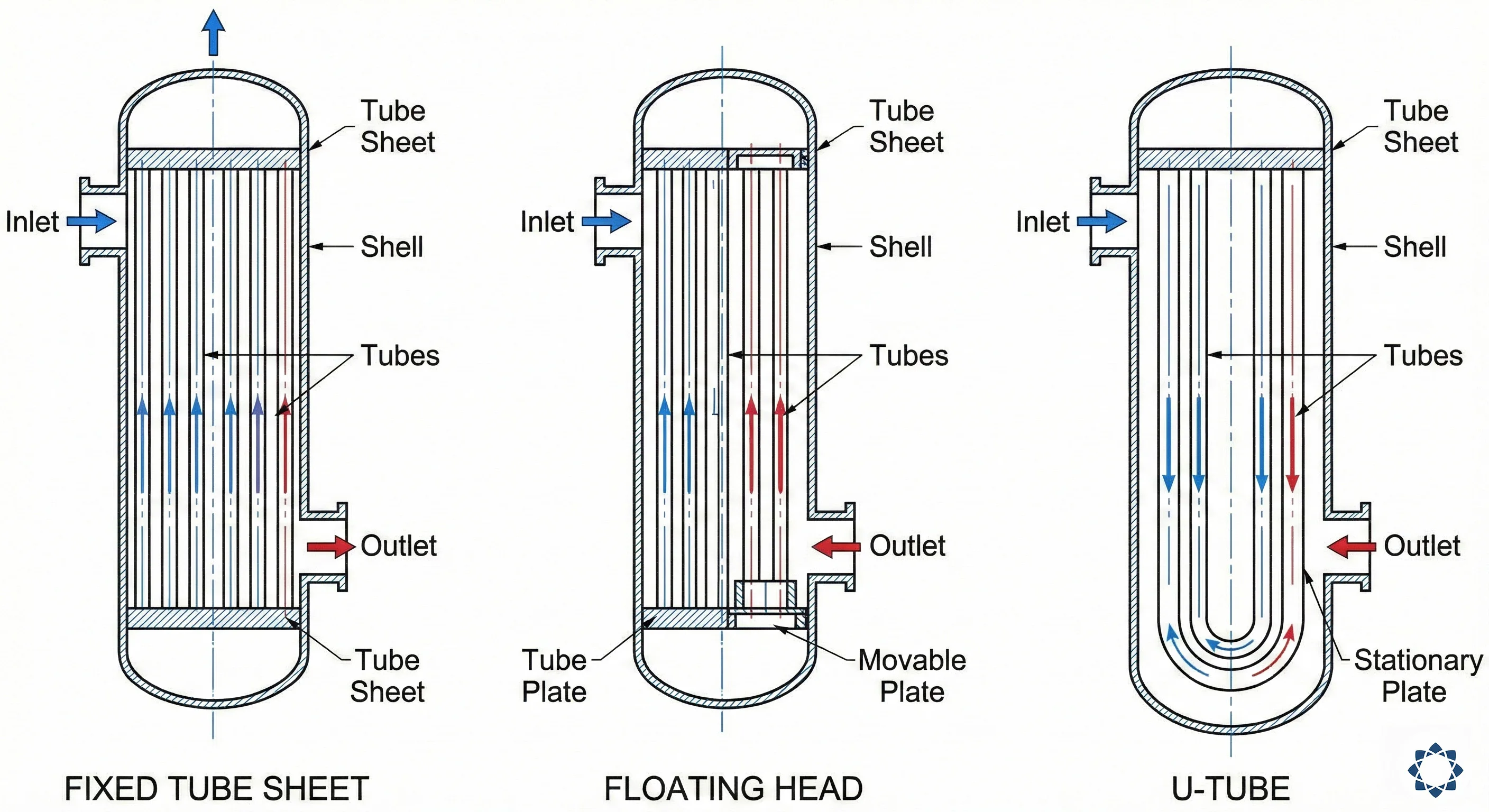

Configuration Options
Different structural designs accommodate varying thermal expansion and cleaning requirements.
Type A: Fixed Tube Sheet
[Diagram Caption: Tube sheets welded directly to the shell]
* Applications: Low temperature difference (<50°C), low pressure, and clean fluids.
Type B: Floating Head
[Diagram Caption: One tube sheet is free to move axially]
* Applications: High temperature difference (>50°C), fouling or corrosive fluids, and applications requiring frequent cleaning.
Type C: U-Tube
[Diagram Caption: Tubes are bent into a U-shape]
* Applications: High temperature and high pressure (≥30 bar, >300°C). Tubes are free to expand thermally.
[Diagram Caption: Tube sheets welded directly to the shell]
* Applications: Low temperature difference (<50°C), low pressure, and clean fluids.
Type B: Floating Head
[Diagram Caption: One tube sheet is free to move axially]
* Applications: High temperature difference (>50°C), fouling or corrosive fluids, and applications requiring frequent cleaning.
Type C: U-Tube
[Diagram Caption: Tubes are bent into a U-shape]
* Applications: High temperature and high pressure (≥30 bar, >300°C). Tubes are free to expand thermally.
Advanced Tube Engineering
Precision-engineered using HTRI simulation to ensure optimal thermal efficiency and fluid dynamics.

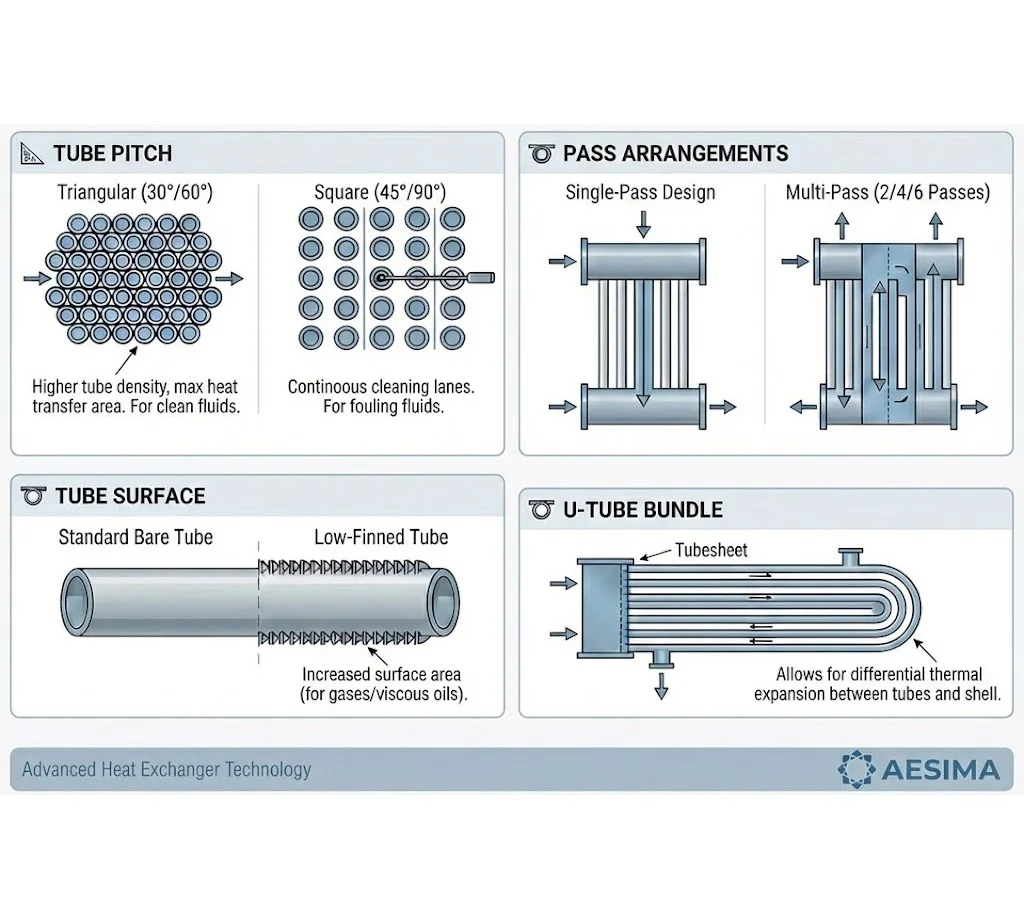

uD83DuDCD0 Tube Pitch Configurations
* (Diagram: Triangular Layout) Triangular (30°/60°) Features higher tube density to maximize the heat transfer area. Best suited for clean fluids.
* (Diagram: Square Layout) Square (45°/90°) Provides continuous cleaning lanes to facilitate mechanical cleaning. Ideal for fouling fluids.
➰ Tube Surface & Pass Arrangements
* (Diagram: Bare vs. Finned Tube) Surface Options Available in standard Bare Tubes or Low-Finned Tubes to increase surface area (highly effective for gases or viscous oils).
* (Diagram: Pass Flow) Pass Designs Configurable from single-pass to multi-pass (2/4/6 passes) to optimize tube-side velocity and enhance the heat transfer coefficient.
* (Diagram: Triangular Layout) Triangular (30°/60°) Features higher tube density to maximize the heat transfer area. Best suited for clean fluids.
* (Diagram: Square Layout) Square (45°/90°) Provides continuous cleaning lanes to facilitate mechanical cleaning. Ideal for fouling fluids.
➰ Tube Surface & Pass Arrangements
* (Diagram: Bare vs. Finned Tube) Surface Options Available in standard Bare Tubes or Low-Finned Tubes to increase surface area (highly effective for gases or viscous oils).
* (Diagram: Pass Flow) Pass Designs Configurable from single-pass to multi-pass (2/4/6 passes) to optimize tube-side velocity and enhance the heat transfer coefficient.
Engineering & Quality Assurance
We utilize industry-leading software for our designs, including HTRI, Aspen EDR, SW6, and PV Elite.
We have successfully exported to 32 nations globally. Customer feedback validates that the actual cooling performance aligns closely with theoretical design specifications.
We conduct rigorous factory testing to guarantee leak-free operation and structural integrity, satisfying safety standards for high-pressure and high-temperature applications.
FAQ
Q1: Is it safe to order via Alibaba Trade Assurance? A: Yes, we highly recommend it. Trade Assurance offers 100%
paymentprotection. This, combined with our 15-year manufacturing track record, allows you to place your initial order with
complete peaceof mind.
Q2: Are you a manufacturer or a trading company?
A: We are a manufacturer with 15 years of experience, operating our own production facilities in Hubei and Guangdong. However, we
also provide integrated global solutions. While we manufacture the core units in-house, we leverage our global supply chain to
source premium components (such as imported high-end motors) to match your specific project standards.
Q3: I don't have technical drawings. Can you provide design services?
A: Absolutely. Our engineering team utilizes professional thermal design software. Simply provide your process parameters—such as
temperatures and flow rates—and we will calculate and design the optimal thermal solution tailored to your needs.
Q4: What is your MOQ? Do you accept small orders?
A: Our MOQ is just 1 unit. We welcome small orders and are happy to support pilot tests or single-unit replacements, as we value
building long-term partnerships.
Q5: What is the typical lead time?
A: Lead times depend on the project scope:
* Standard Models: Quick shipment based on current factory stock.
* Custom Units: Projects requiring specific imported components (e.g., specialized motors) typically require a minimum of 60 days
due to global logistics cycles.
———————————————————————————————————————————-
Our Service Promise
* Warranty: Standard warranty valid for 18 months from the date of shipment (or 12 months from installation, whichever comes first).
paymentprotection. This, combined with our 15-year manufacturing track record, allows you to place your initial order with
complete peaceof mind.
Q2: Are you a manufacturer or a trading company?
A: We are a manufacturer with 15 years of experience, operating our own production facilities in Hubei and Guangdong. However, we
also provide integrated global solutions. While we manufacture the core units in-house, we leverage our global supply chain to
source premium components (such as imported high-end motors) to match your specific project standards.
Q3: I don't have technical drawings. Can you provide design services?
A: Absolutely. Our engineering team utilizes professional thermal design software. Simply provide your process parameters—such as
temperatures and flow rates—and we will calculate and design the optimal thermal solution tailored to your needs.
Q4: What is your MOQ? Do you accept small orders?
A: Our MOQ is just 1 unit. We welcome small orders and are happy to support pilot tests or single-unit replacements, as we value
building long-term partnerships.
Q5: What is the typical lead time?
A: Lead times depend on the project scope:
* Standard Models: Quick shipment based on current factory stock.
* Custom Units: Projects requiring specific imported components (e.g., specialized motors) typically require a minimum of 60 days
due to global logistics cycles.
———————————————————————————————————————————-
Our Service Promise
* Warranty: Standard warranty valid for 18 months from the date of shipment (or 12 months from installation, whichever comes first).
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–1 piece: US $677 / piece
- 2+ piece: US $577 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this copper shell and tube?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this copper shell and tube carry?
It is supplied with ASME documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the copper shell and tube be supplied for my local voltage?
The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
