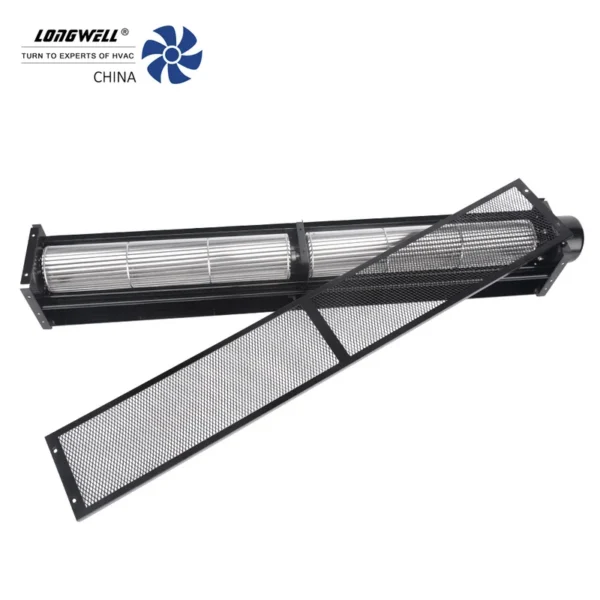

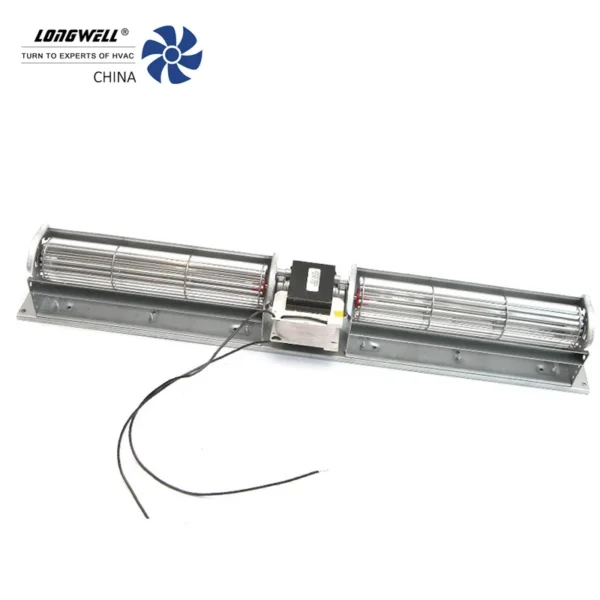

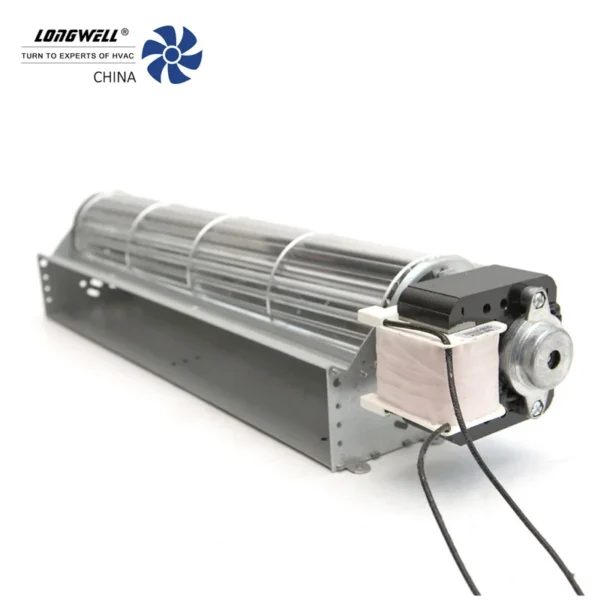

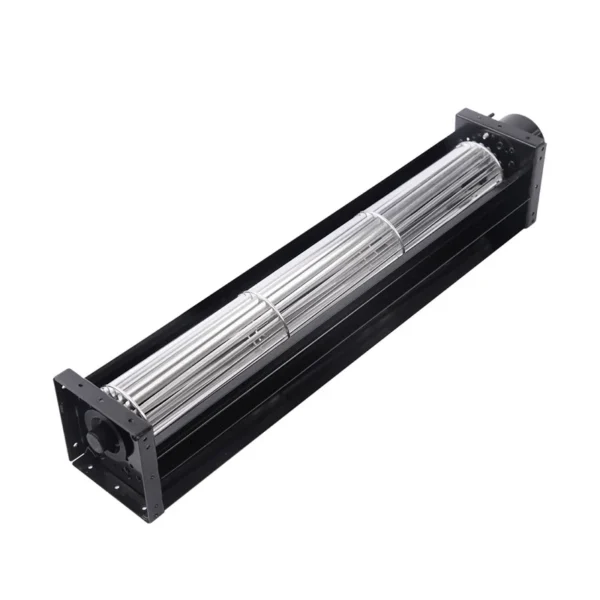

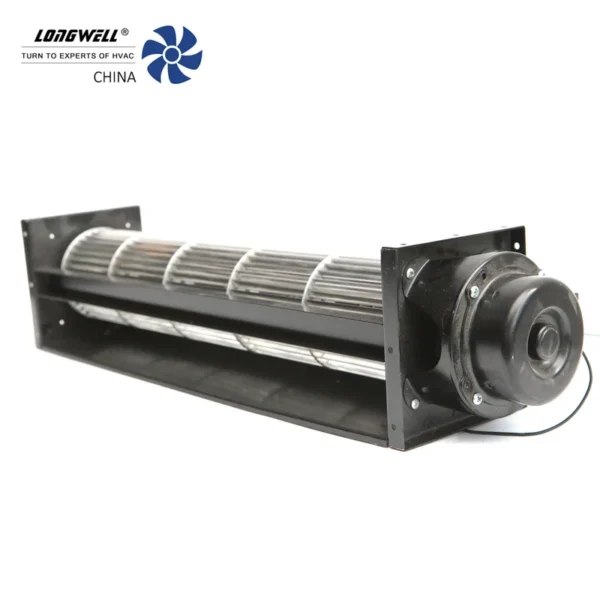

Cross flow fan — voltage 110/120/220/230/12/24, blade material Galvanized+Aluminum. The complete factory specification follows. Made by Ningbo Longwell Electric Technology Co., Ltd. (8 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cross Flow Fan
- Model Number: LWCA
- Voltage: 110/120/220/230/12/24
- Rated Voltage: 115V / 230V /12V / 24V / 48B
- Blade Material: Galvanized+Aluminum
- Material: Aluminum Alloy / Galvanized Metal
- Speed Control System: 0-10v/pwm
Technical Specifications
| Voltage | 110/120/220/230/12/24 |
|---|---|
| Electric Current Type | AC/DC |
| Mounting | Other |
| Blade Material | Galvanized+Aluminum |
| Customized Support | OEM, ODM, OBM |
| After-Sales Service Provided | Video Technical Support |
| Warranty | 1 Year |
| Place Of Origin | Zhejiang, China (Mainland) |
| Brand Name | LONGWELL |
| Model Number | LWCA |
| Item Name | AC/DC/EC Cross flow fan |
| Bearing | NSK Ball bearing |
| Motor Type | BLDC / Ac Motor |
| Material | Aluminum Alloy / Galvanized Metal |
| Fan Diameter | 30-2000mm |
| Frequency | 50/60Hz |
| Rated Voltage | 115V / 230V /12V / 24V / 48B |
| Fast Delivering | Fast delivering less than 20 Days for Common Models |
| Competitive Price | Very Competitive Price – Made in China |
| Speed Control System | 0-10v/pwm |
| Packaging Details | STANDARD EXPORTING CARTON PACKAGE |
| Port Of Dispatch | NINGBO/SHANGHAI |
| Selling Units | Single item |
| Single Package Size | 40X16X16 cm |
| Single Gross Weight | 6.0 kg |
| Supply Ability | 200000 pieces per Month |
Product Details
Types : | LWCD-30mm DC 12/24V Cross flow fan / Tangential fan blowers |
Voltage Ranges : | DC 12V / 24V ~50/60 Hz ; |
Diamter : | 30mm ( impeller diameters ) |
Length : | Up to 1500mm Max |
Motor Types : | BLDC Motors~3 PHASE |
Fan Speeds : | 0-3600 rpm |
Speed Control : | Speed regulators (PWM / 0-10V ) |
Amb.Temp: | -25℃～ +60℃ |
Materials : | Aluminum Ray Material ( Impeller & Housing ) |
Certificating : | All necessary certifications suitable for USA , Europe |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
Mainly Applications | Heating Convectors / Server Cooling & Ventilation / Grow Tent / Floor Heating Car Electronics / Medical equipments / 3D Printer / Air Curtain Elevator Ventilation / Equipments Cooling / Refrigerator ,etc |
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $20 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cross flow fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cross flow fan be supplied for my local voltage?
The standard configuration is 110/120/220/230/12/24. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
