Drying Oven with Motor, Stainless, Steel

Key specification for this drying oven with motor: 220v/380v/415v, power 5000~1800. Everything below is reproduced from the factory data sheet. Made by Changzhou Haomai Drying Engineering Co., Ltd. (9 years on the platform, typical reply ≤8h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Drying Oven With Motor

• Power(W): 5000~1800
• Voltage: 220v/380v/415v
• Drying Capacity: 25~400kg
• Material: SUS304
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Products Description

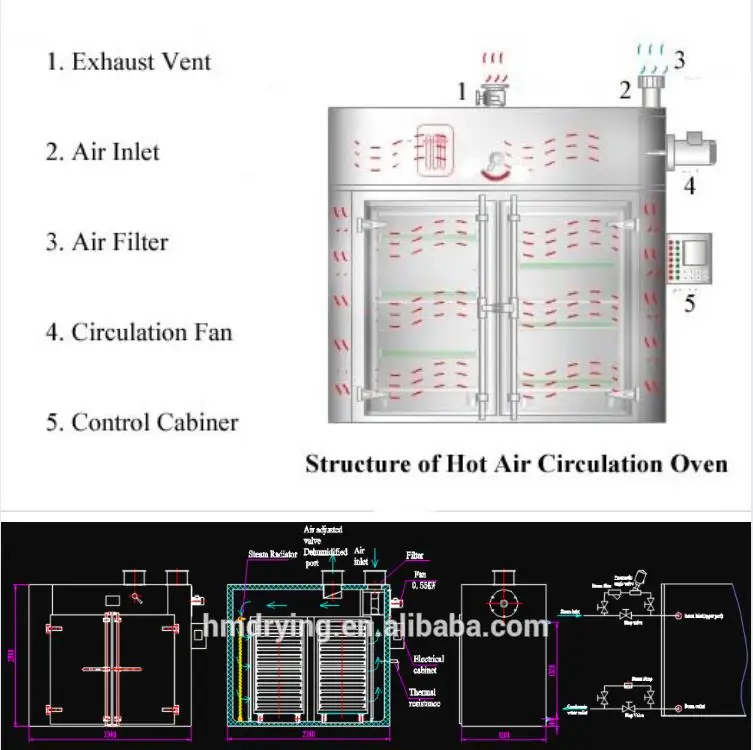

WORKING PRINCIPLE The CT-C Series Hot Air Circulation Drying Oven is a box-like shape which can be easily disassembled and fixed; it includes CT series (centrifugal blower) and CT-C series (axial flow blower). The heat source the drying oven can be steam and electricity.

This product is equipped with low noise, high temperature proof axial flow blower and automatic temperature control system. The entire circulating system is fully sealed and it increased the thermal efficiency (traditional ovens 3%-7%, current oven 35%-45%), the highest thermal efficiency can reached 70%. The technology of the hot air circulating oven is advanced level in world. It is an energy saving product and it has improved the economic benefits for a lot of Chinese manufacturers.

FEATURES

1. The hot air is circulated in the oven, high thermal efficiency and energy saving.

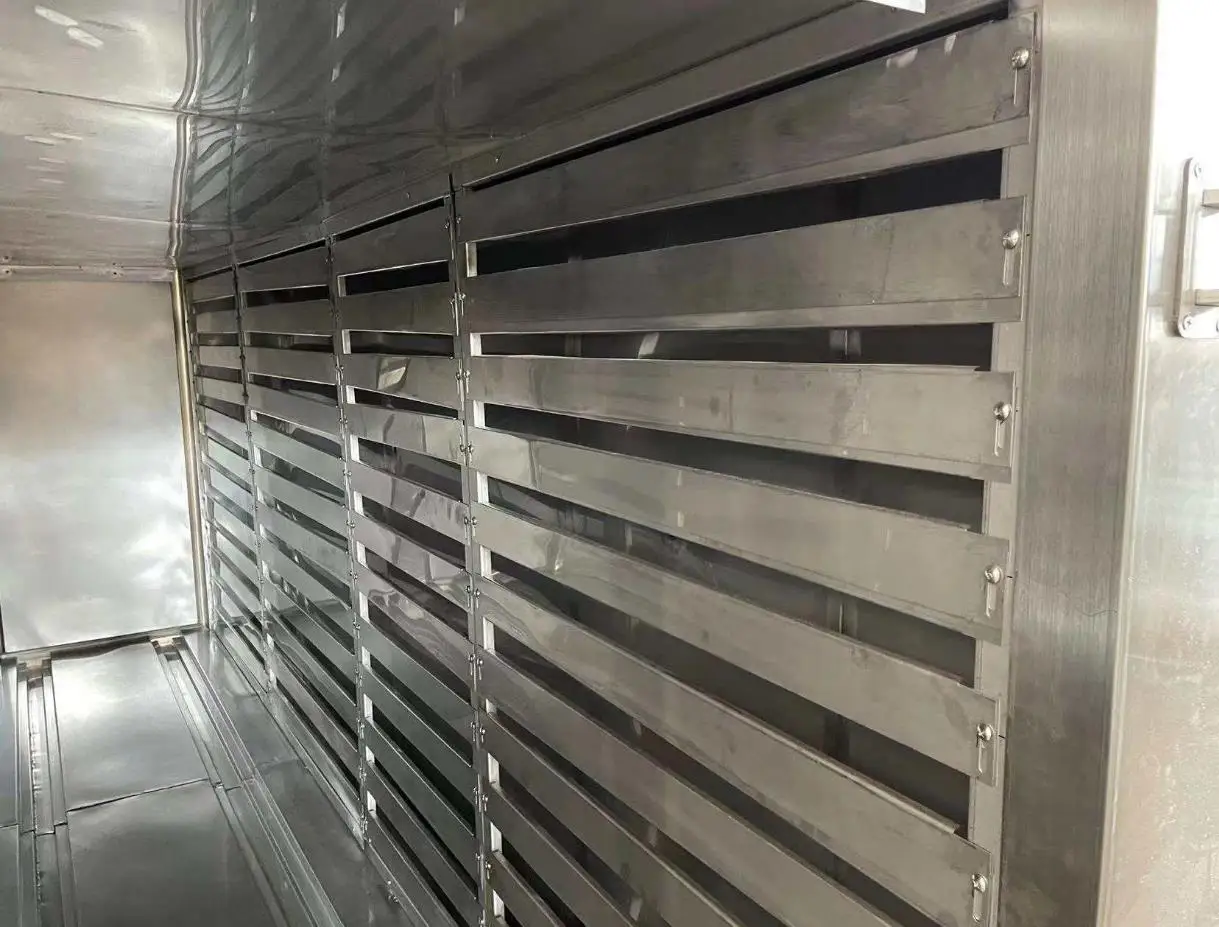

2. It utilizes the forced ventilating function with adjustable air distribution plates inside of the oven so the raw material can be dried uniformly. 3. The heat source can be steam, hot water, electricity, and far infrared. 4. Low noise and stable operation. The temperature can be controlled automatically. Installation and maintenance are simple and easy. 5. It has a wide application. It can be used for drying all kinds of materials.

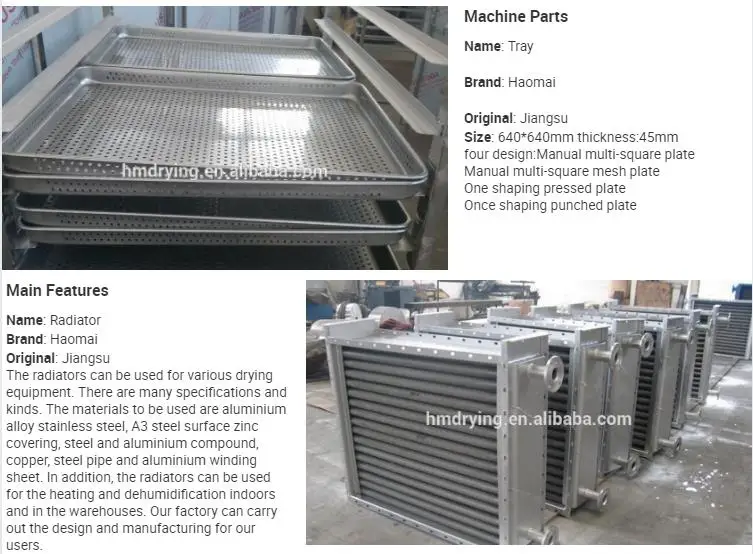

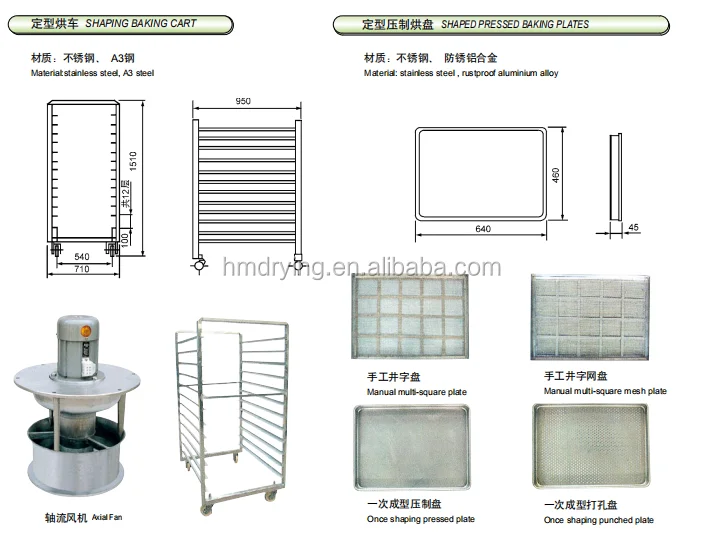

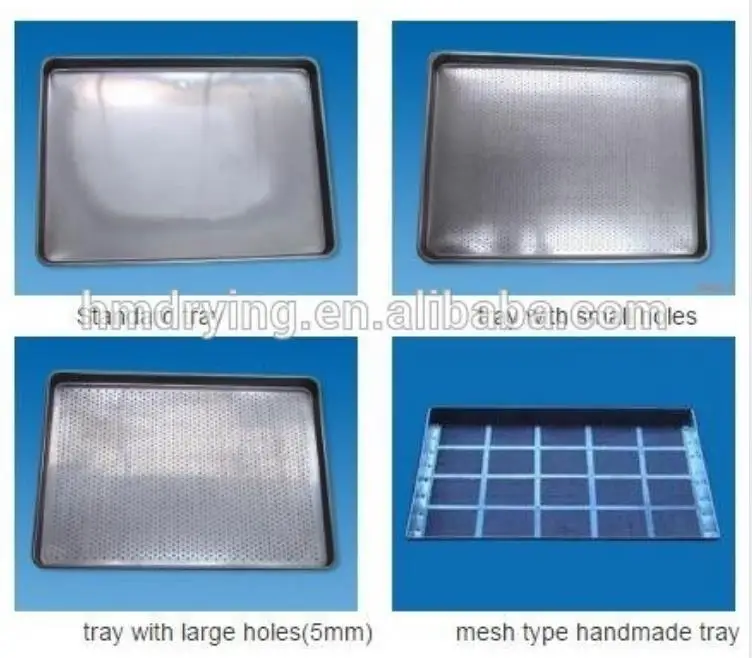

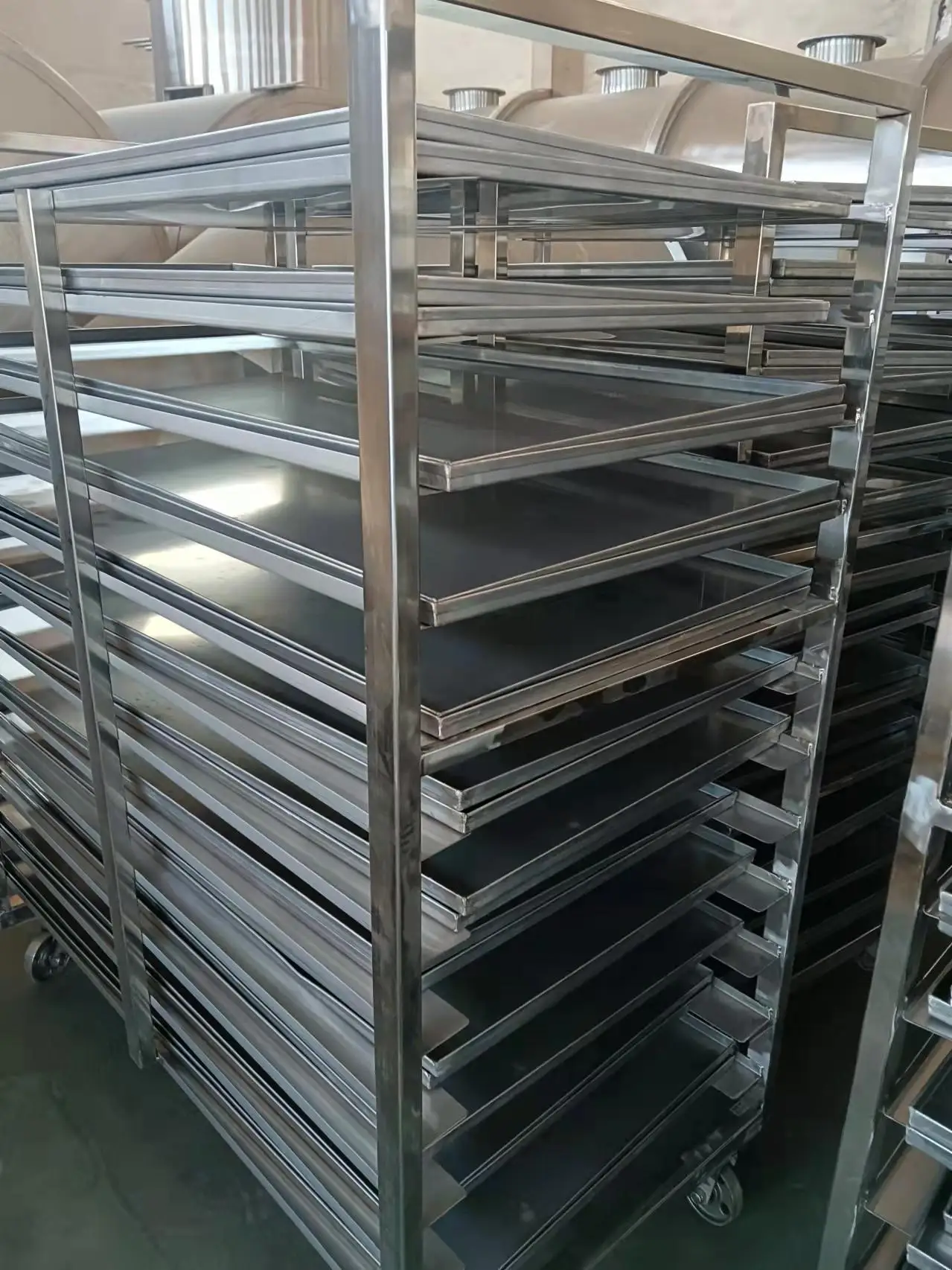

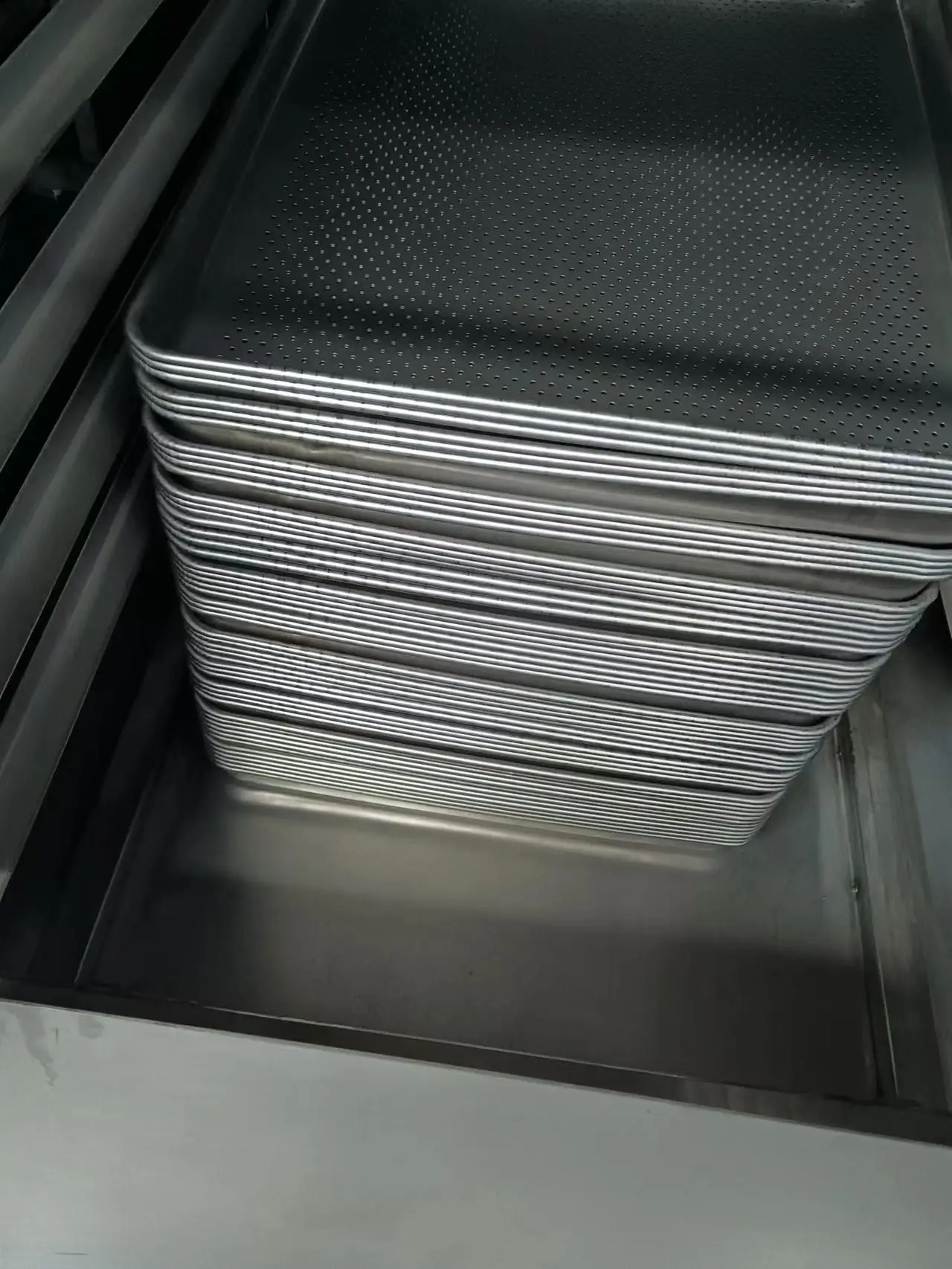

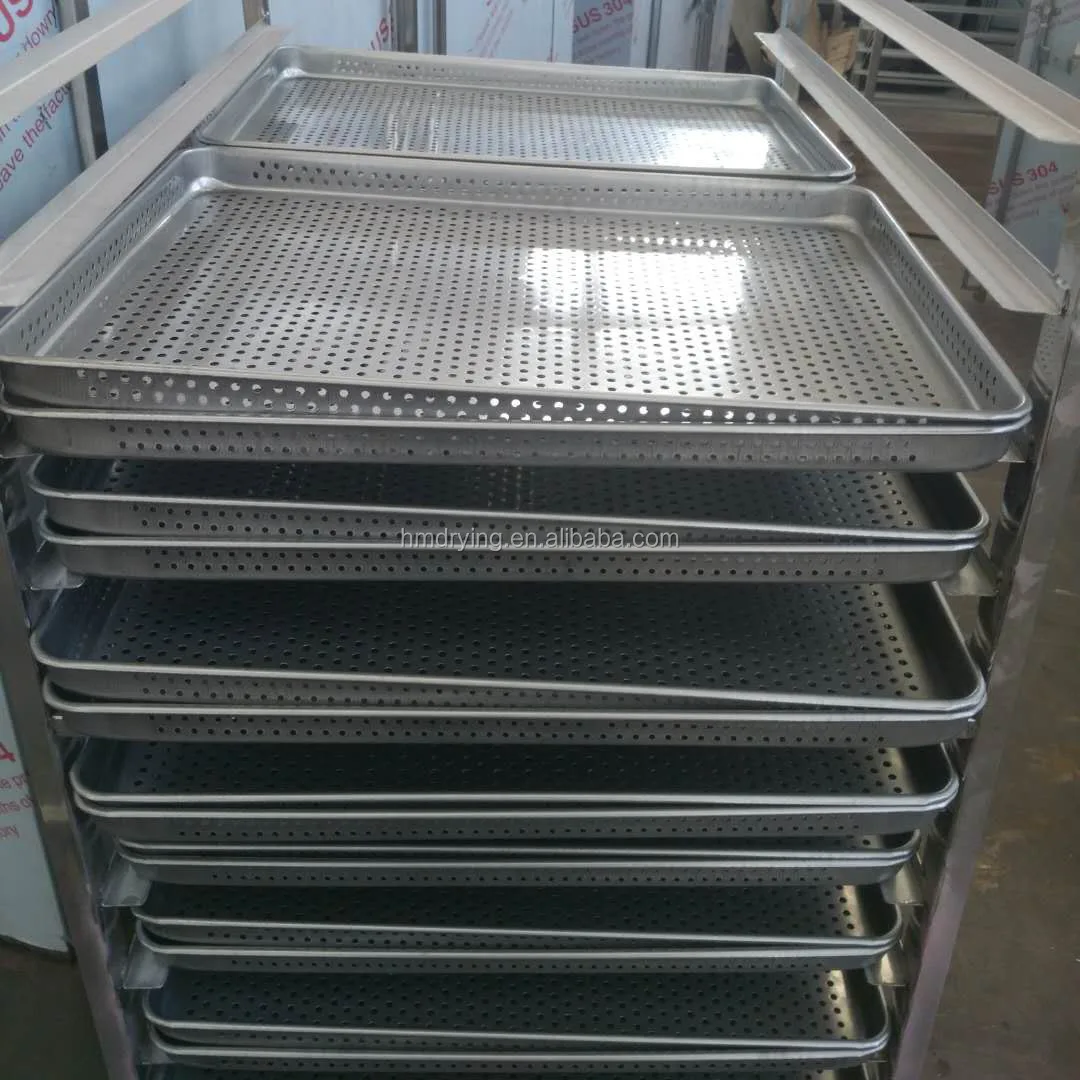

1. Heat sources: steam, electricity, far infrared, steam + electricity. 2. Working temperature (steam heating): 50-140°C, Max 150 °C 3. Working temperature (when using electricity and far-infrared): 50-300°C 4. The drying oven is equipped with automatic temperature control system and temperature reorder. 5. General steam pressure: 0.2-0.8 MPa (2-8kg/cm2). 6. Power for electric heating: use CT-1 as example, the heating power is 15kw for starting and 5-8kw/h for constant temperature. 7. The special requirements should be indicated before placing order. 8. The price for the non-standard oven should be consulted. 9. If the operation temperature is more than 140°C or less than 60°C, it should be indicated before placing order. 10. The trolley and baking trays are in uniform dimensions which can be exchanged with each other. 11. Baking tray dimensions: 460*640*45mm 12. Explosive-proof motor and control cabinet as optional.

Scope of application

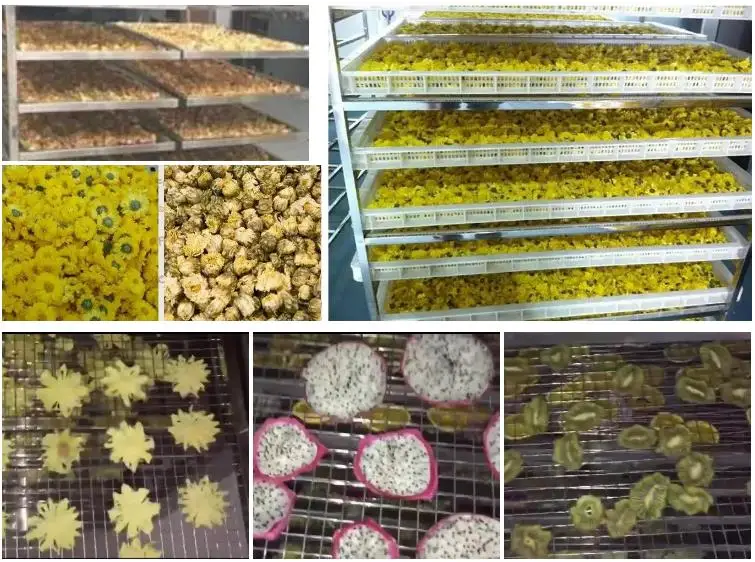

APPLICATION The drying oven is suitable for drying and dehydration of chemical, food, agricultural, aquatic, light industry, heavy industry; such as pigment and dyes, dehydrated vegetables, dried fruit, sausages, plastic, resin, electric elements, varnish, and etc.

Specification

Model	Drying Capacity (per batch) (kg)	Fan Power (kw)	Steam Consumption (kg/h)	Heating Area (m2)	Air Volume (m3/h)	Temperature Difference (oC)	Trays (pcs)	Overall Dimension W×D×H	Trolley
CT-Ⅰ	120	1.1	20	20	2800	±2	48	2430×1200×2375	2
CT-Ⅱ	240	2.2	40	40	5200	±2	96	2430×2200×2433	4
CT-Ⅲ	360	3	60	80	8000	±2	144	3430×2200×2620	6
CT-Ⅳ	480	4	80	100	9800	±2	192	4460×2200×2620	8
CT-C-O	25	0.45	5	5	3450	±2	16	1130×1100×1750	0
CT-C-ⅠA	50	0.45	10	10	3450	±2	24	1400×1200×2000	1
CT-C-Ⅰ	120	0.45	18	20	3450	±2	48	2300×1200×2000	2
CT-C-Ⅱ	240	0.9	36	40	6900	±2	96	2300×2200×2000	4
CT-C-ⅡA	240	0.9	36	40	6900	±2	96	4460×1200×2290	4
CT-C-Ⅲ	360	1.35	54	80	10350	±2	144	3430×2200×2000	6
CT-C-ⅢA	360	1.35	54	80	10350	±2	144	2300×3200×2000	6
CT-C-Ⅳ	480	1.8	72	100	13800	±2	192	4460×2200×2290	8

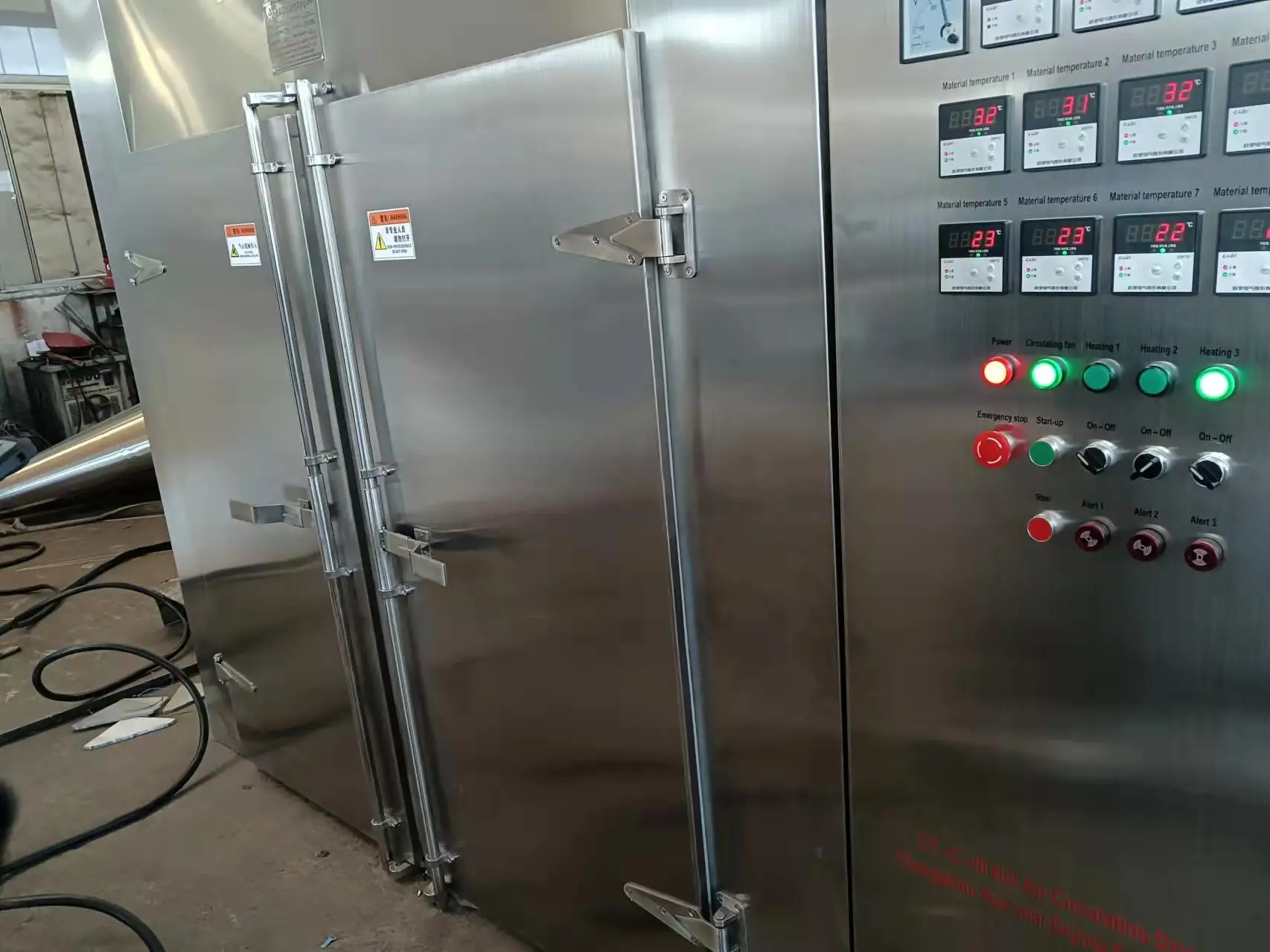

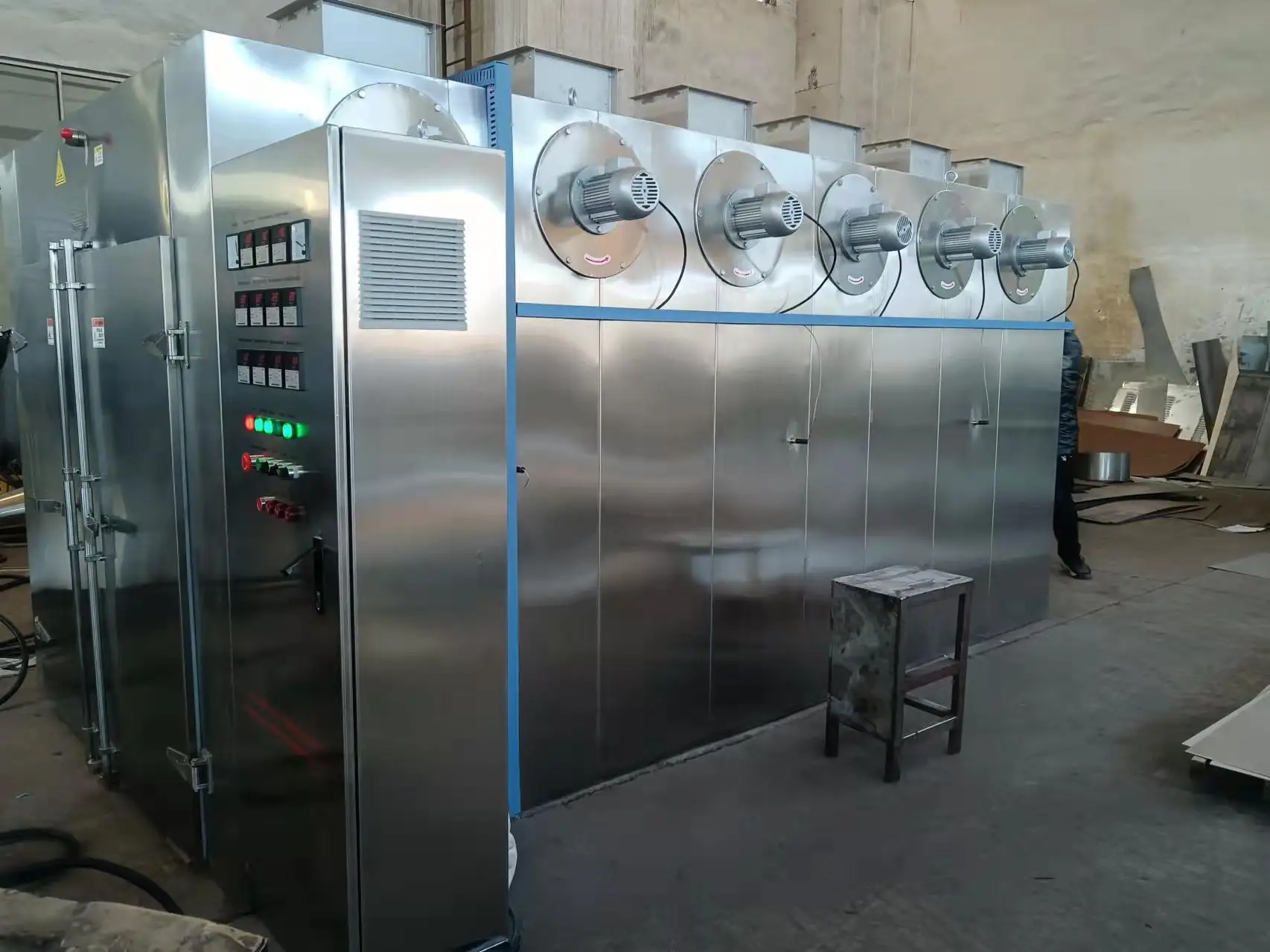

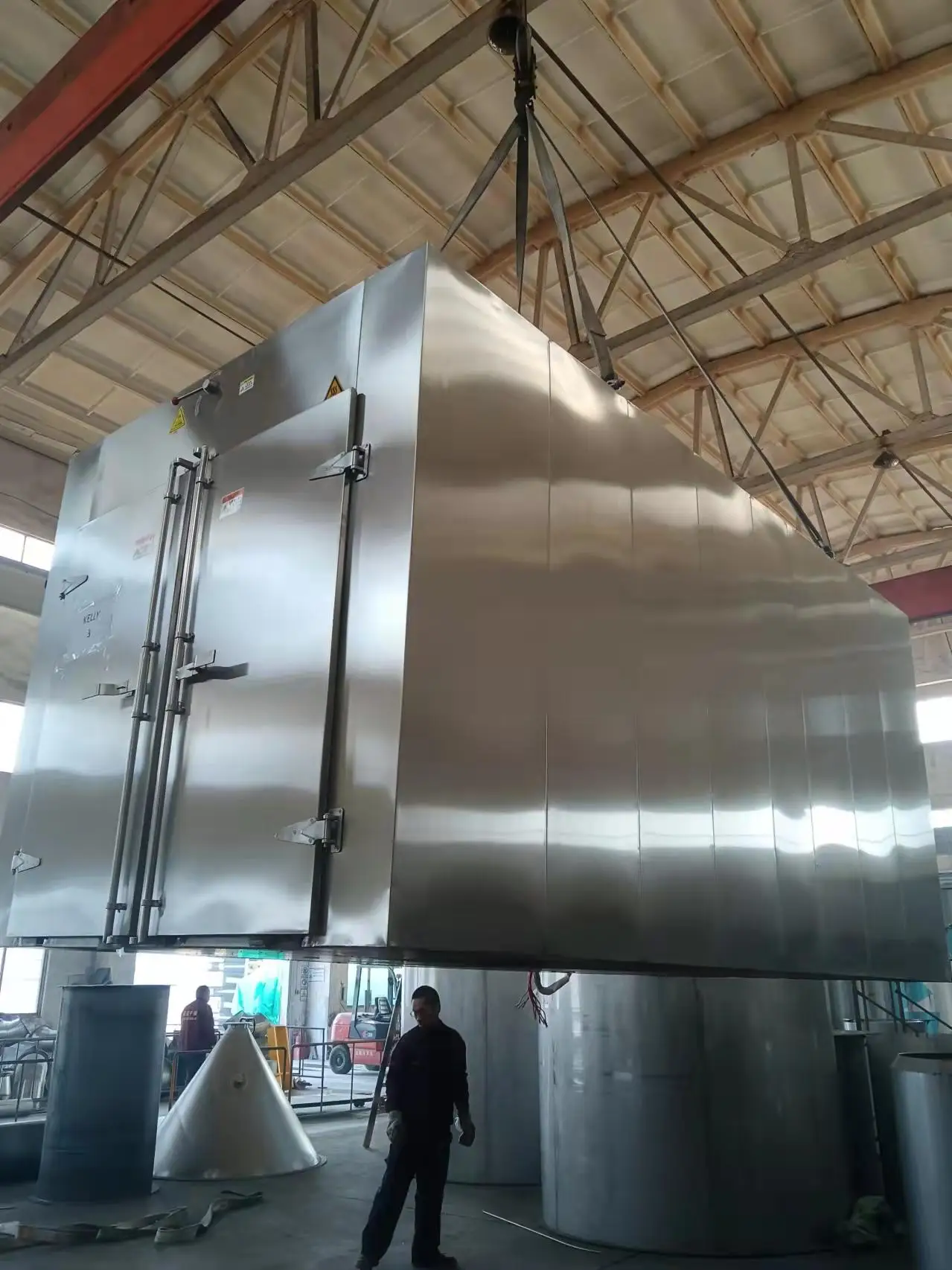

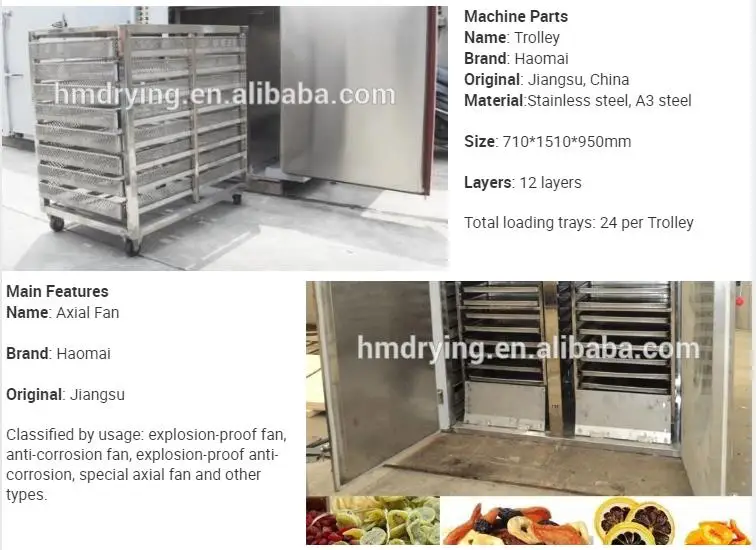

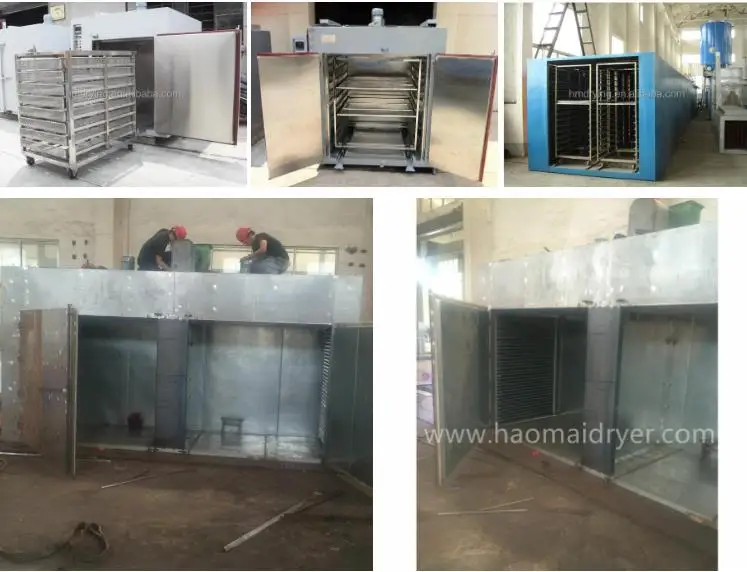

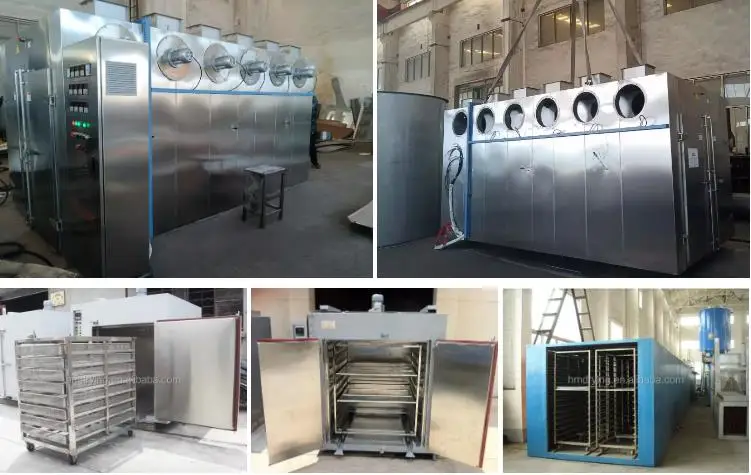

Detailed Images

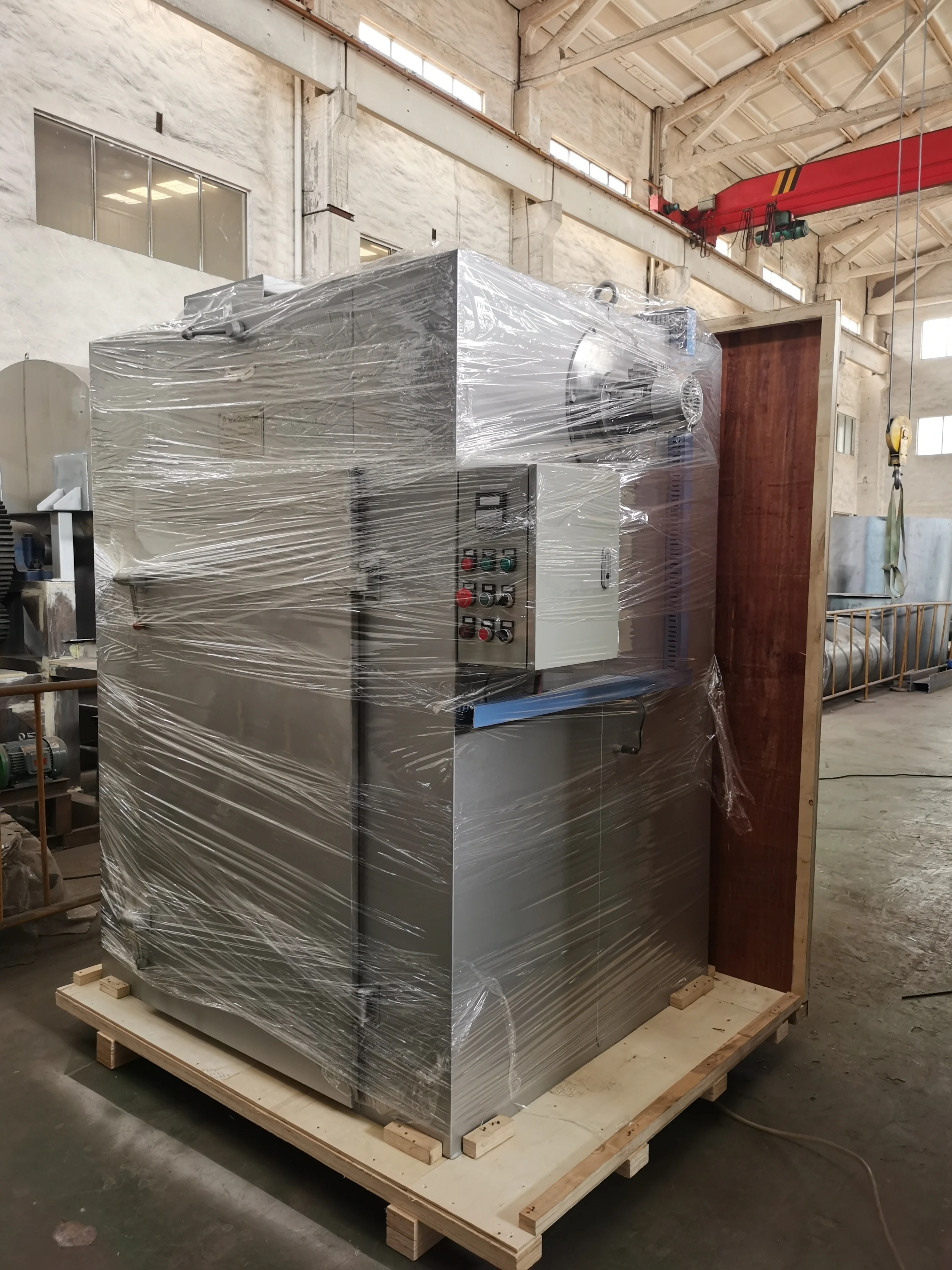

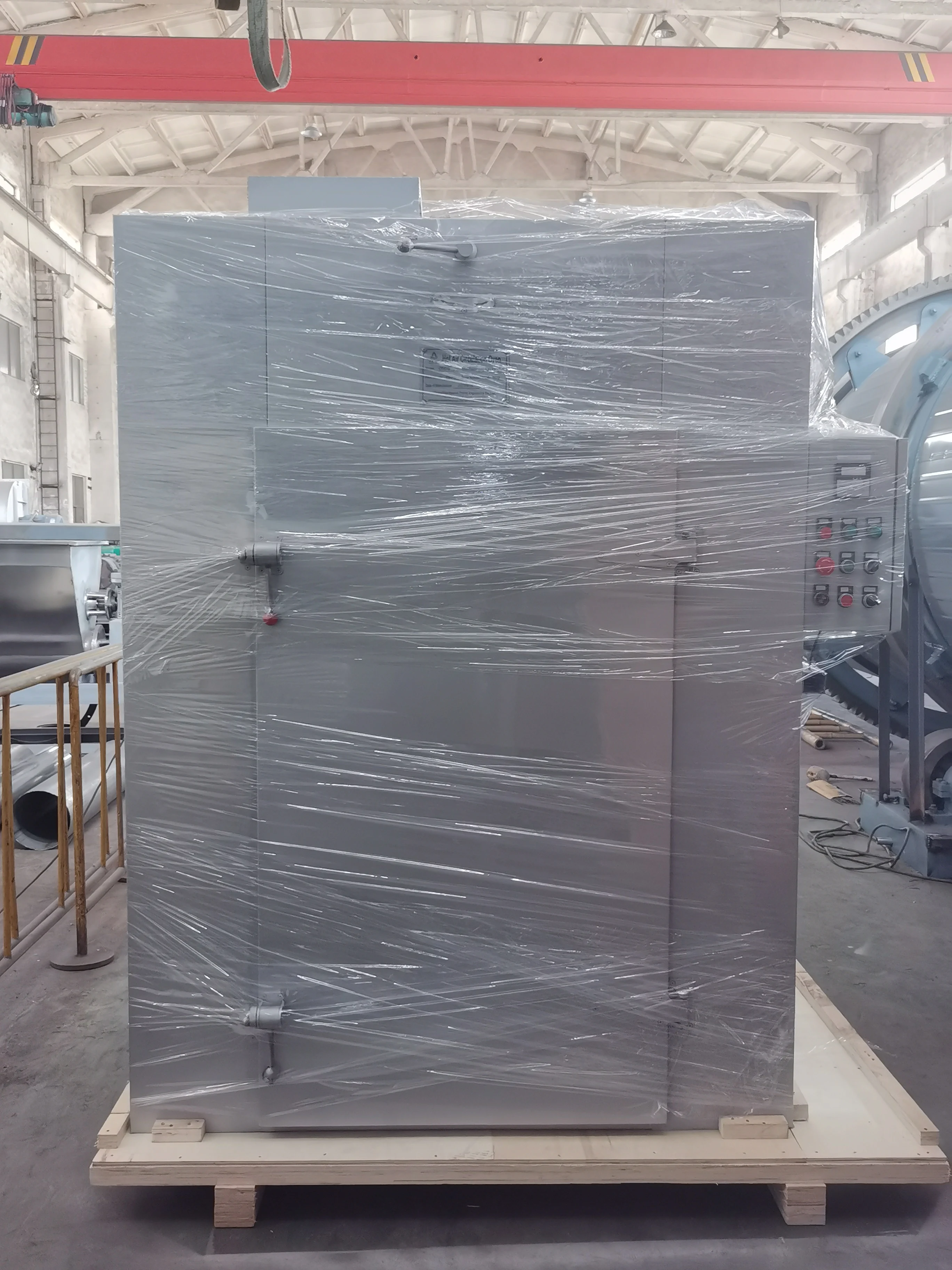

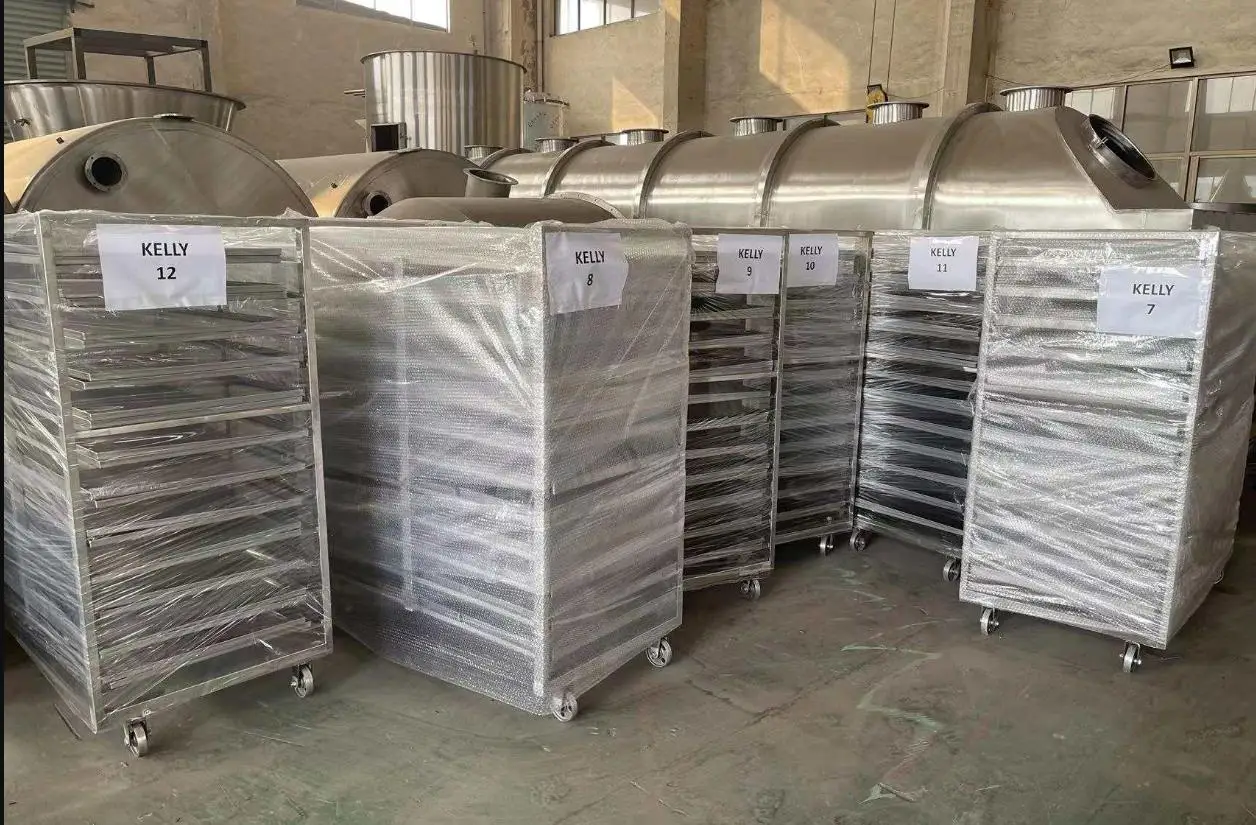

Packing & Delivery

Company Profile

Changzhou Haomai Drying Engineering Co., Ltd. Specializes in Spin flash dryers, centrifugal spray drying equipment, vibrating fluid bed dryers and other equipment R & D, manufacturing, business and related export services. The factory is located in Sanhekou industrial park, Zhenglu town, Changzhou City, Jiangsu Province. Over the years the design of equipment involved in chemicals, pesticides, electronics, mining, food, dyes, pigments and other areas, and sell our products throughout the whole country. Haomai not only with work experience in a group of more than a decade of lean engineering and technical personal and senior management, but also has a number of excellent production staff. Their research, design, service and so has an excellent ability for many years they concentrated on studying in practice wrap-up, God help those who help themselves, a deep understanding of effective guarantee for the quality of customers' products. Facing with the global energy conservation issue, facing the fierce market competition, Haomai people do not pursue the company's output value and profit maximization, but seek the best product quality. Good quality is our goal and direction of success. Energy conservation is the secret weapon for us to stand out from the crowd. The most energy-saving equipment is also the social responsibility of our heroic people. Over the years, the equipment we designed has achieved good economic and social benefits in various industries. In the face of the past, we are not satisfied; we are working hard to move toward higher goals.

Our Service

Pre-sales Service.

*Inquiry and consulting support

*Sample testing support

*View our Factory

*Provide flow chart , basic drawing , technical design

After-sales Service.

*Training how to instal the machine , training how to use the machine *Providing professional installation instructions and video of troubleshoot. *We supply after sales service for 24 hours , 7 days per week . Customer can contact us any time *When some problems cant be solved by customers , our engineer can go to door to support

The company has strong technical force , advanced equipment , supporting technology , equipment manufacturing installation , debugging and other one-stop services

The company has the professional research and development , design team . according to different materials , formulate the plan . meet the requirement of each customer

Certifications

FAQ

Q: Where is your factory? A: We are located in Changzhou City which about 150km away from Shanghai. Q: What’s the quality control procedure? A:We have an experienced technical team to support and provide solutions to meet the project requirements of our clients. We are certified with ISO9001 quality management system. We are following a strict quality control procedure to ensure the product quality. Q: What is the warranty period? A: 24 hours timely response of mail and phone calls. The warranty period for non-artificial damage is 1 year after delivery of goods. Q: What is the payment term? A: Our regular payment term is: 30% TT in advance, 70% TT before shipment. Q: Does your price include freight? A: Our usual price is based on FOB Shangha. We can provide CIF quote upon request.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $2835 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this drying oven with motor?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the drying oven with motor be supplied for my local voltage?

The standard configuration is 220v/380v/415v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
