The dust free water curtain listed here carries 110V/220V/380V/415V, 30kw(40.23hp), documented exactly as the manufacturer publishes it. Made by Guangzhou Hongbo Coating Equipment Co., Ltd. (1 year on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Dust Free Water Curtain
- Model Number: HB-8002
- Power: 30kw(40.23hp)
- Voltage: 110V/220V/380V/415V
- Air Capacity: 18000m³/–25000m³/h
- Air Flow: air in from ceiling and air exhaust from basement
- No-Load Speed: 3500rpm
Technical Specifications

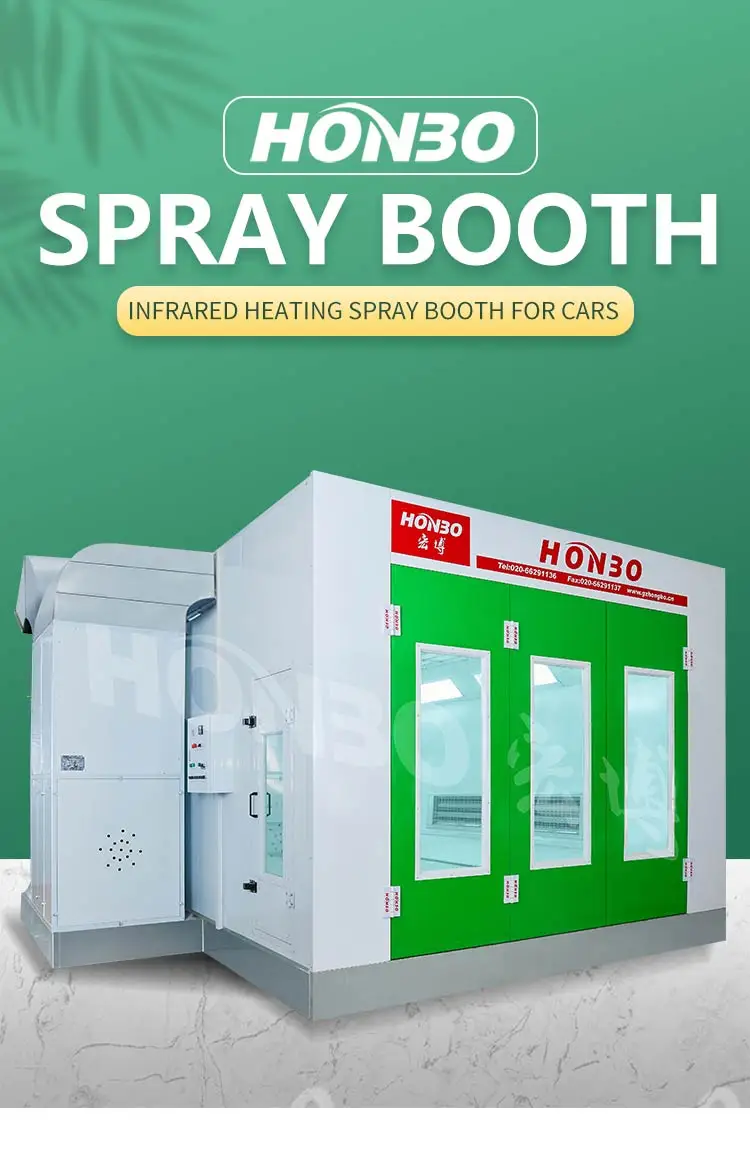

| Type | Spray Booths |
|---|---|
| External Size | 7000*5300*3400mm(275.59*208.66*133.86in) |
| Heating System | Electric Heating, Infrared Heating, natural gas burner, riello diesel burner, diesel burner |
| Baking Temperature | 60°c(108℉), 80°c(144℉) |
| Power | 30kw(40.23hp) |
| Filter | primary filter, Ceiling Filter, high efficiency filter, fiberglass filter |
| Lighting System | explosion proof lighting, Led Lighting, energy saving led light |
| No-Load Speed | 3500rpm |
| Disc Diameter | 10 in |
| Place Of Origin | Guangdong, China |
| Voltage | 110V/220V/380V/415V |
| Brand | HONGBO |
| Model Number | HB-8002 |
| Warranty | 12 months |
| Air Flow | air in from ceiling and air exhaust from basement |
| Air Down Draft | full donw draft or semi down draft |
| Wall Panel | EPS wall panel/ Rock wool wall panel |
| Fans | Europe turbo fan/Energy saving fan/Low noise fan |
| Certificate | CE/ISO/PATENTS |
| Application | Refinishing |
| Internal Dimension | 6900 * 3900 *2650mm ( Inside Size ) |
| Air Capacity | 18000m³/–25000m³/h |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details

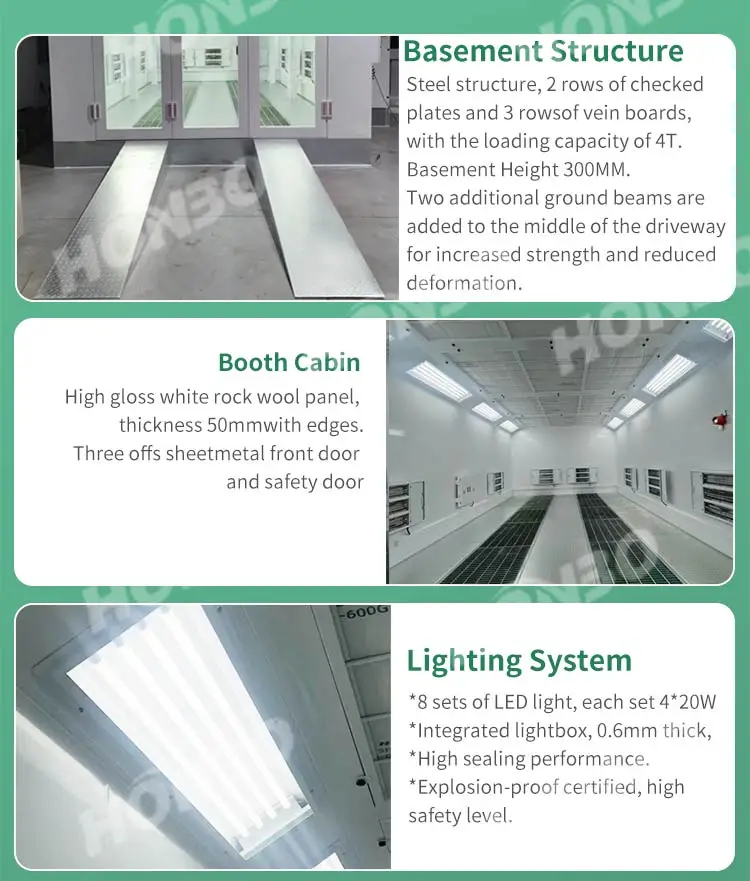

Basement Structure | Basement | Steel structure, 2 rows of checked plates and 3 rowsof vein boards, with the loading capacity of 4T. | ||
Basement Height | 300MM | |||
Booth Cabin | Panel | High gloss white rock wool panel, thickness 50mmwith edges. | ||
Front Door/Safety Door | Three offs sheetmetal front door and safety door | |||
Lighting System | Top Lighting | 8 sets of LED light, each set 4*18W | ||

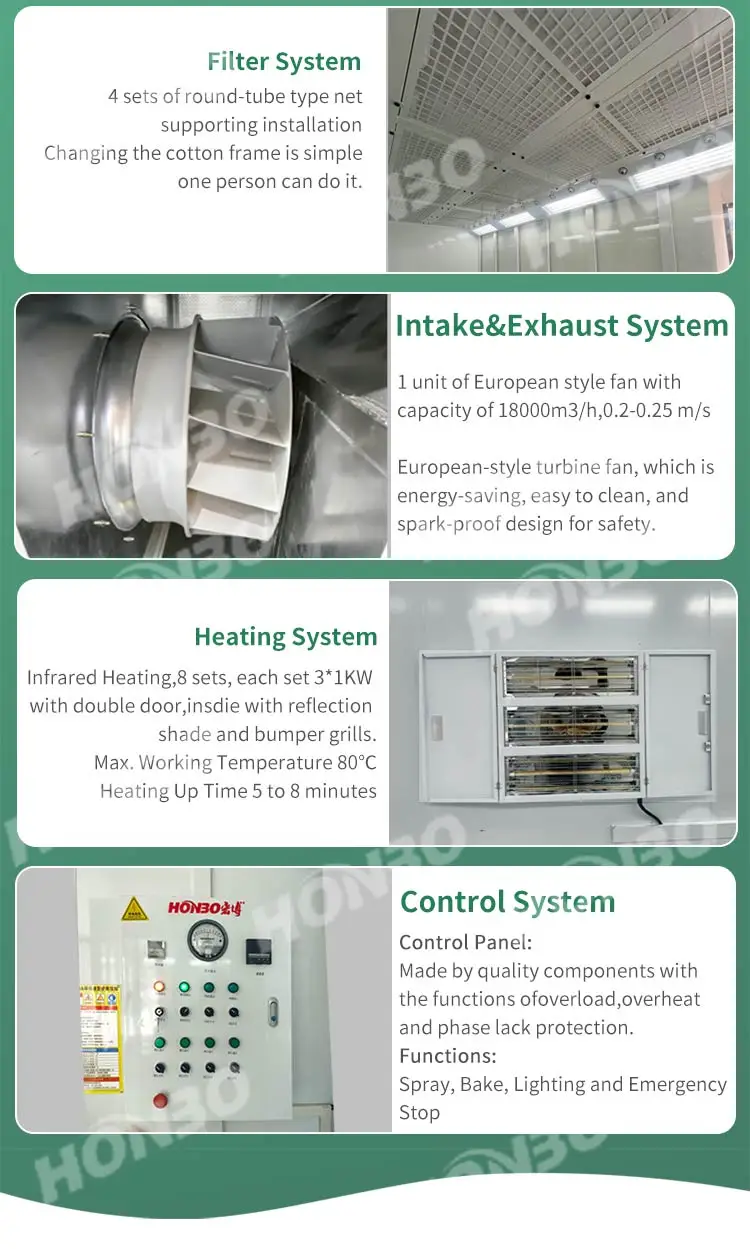

Filter System | Ceiling Filter | 6 sets of round-tube type net supporting installation | ||
Intake&Exhaust System | Intake Fan | 1 unit of European tyle fan with capacity of 18000m3/h | ||
Exhaust Fan | 1 unit of European tyle fan with capacity of 20000m3/h | |||
Load Air Velocity | 0.25-0.35 m/s | |||
Exhaust Duct | 4 meters of straight duct and 1 piece of 90°bend. | |||

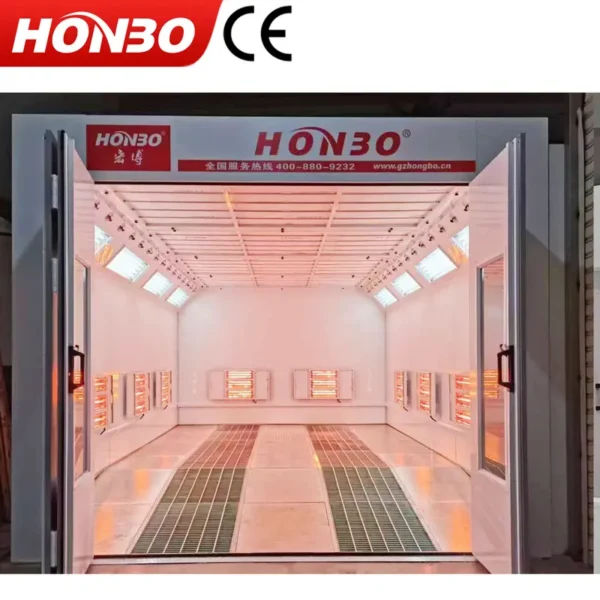

Heating System | Halogen Infrared Heating | 10 sets, each set 3*1KW with double door,insdie withreflection shade and bumper grills. | ||
Max. Working Temperature | 80°C | |||
Heating Up Time | 5 to 8 minutes | |||
Control System | Control Panel | Made by quality components with the functions ofoverload,overheat and phase lack protection. | ||
Functions | Spray, Bake, Lighting and Emergency Stop | |||
Remarks: Quantum Heating System and Enviroment Protection System are optionalaccording to the requirement. | ||||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–2 set: US $4800 / set
- 3+ set: US $3800 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this dust free water curtain?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 12 months warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this dust free water curtain carry?
It is supplied with CE/ISO/PATENTS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the dust free water curtain be supplied for my local voltage?
The standard configuration is 110V/220V/380V/415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Hongbo Coating Equipment Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Guangzhou Hongbo Coating Equipment Co., Ltd. range on HVACR Nexus.
