This electric industrial axial blower is published with the manufacturer’s full specification — 380V, 220V, 415V, 110V, 410V, 230V, power source Electric. Made by SHANDONG MOSIN MACHINERY CO., LTD. (3 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Electric Industrial Axial Blower
- Model Number: MSD-1530, MSD-1380, MSD-1220, MSD-1100, MSD-1000, MSD-900, MSD-800, MSD-700, MSD-600, MSD-480, MSD-400
- Power Source: Electric
- Voltage: 380V, 220V, 415V, 110V, 410V, 230V
- Blade Material: Stainless Steel
- Frame Material: Galvanize/Stainless steel
- Warranty: 1 Year
Technical Specifications
| Voltage | 380V, 220V, 415V, 110V, 410V, 230V |
|---|---|
| Type | Wall-Mounted Axial Fan |
| Blade Material | Stainless Steel |
| Mounting Type | Wall Fan |
| Bearing Type | 0 |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Brand Name | Mosin |
| Model Number | MSD-1530, MSD-1380, MSD-1220, MSD-1100, MSD-1000, MSD-900, MSD-800, MSD-700, MSD-600, MSD-480, MSD-400 |
| Product Name | Exhaust Fan |
| Installation | Wall Mounted Installation |
| Size | 1380*1380*400mm |
| Frame Material | Galvanize/Stainless steel |
| Color | Silvar |
| Motor | China motor/Siemens motor/ABB/WEG motor |
| Belt | Type A/Type B |
| Belt Brand | Salux/Mitsuboshi |
| Core Components | Bearing |
| Selling Units | Single item |
| Single Package Size | 138X138X40 cm |
| Single Gross Weight | 58.0 kg |
Product Details
COMPANY INFORMATION
SHANDONG MOSIN MACHINERY CO., LTD is the l professional manufacture of ventilation, cooling equipment, humidification and heating equipment, poultry and green house equipment. Our company is located in Qingzhou, Shandong Province, a developing city with long history. It is a high-tech enterprise which has a completed set of specialized designing, manufacturing, installation, sales and after-sale service. For many years we have committed ourselves to national energy-saving and environmental protection. With excellent staff, strong ability of production exploitation and development ability, comprehensive professional knowledge and customized design, we will fully meet with relevant customer’s demand. Our products have been exported to Middle East, Asia and Southeast Asia, America, South America, Europe, etc.
Products Description

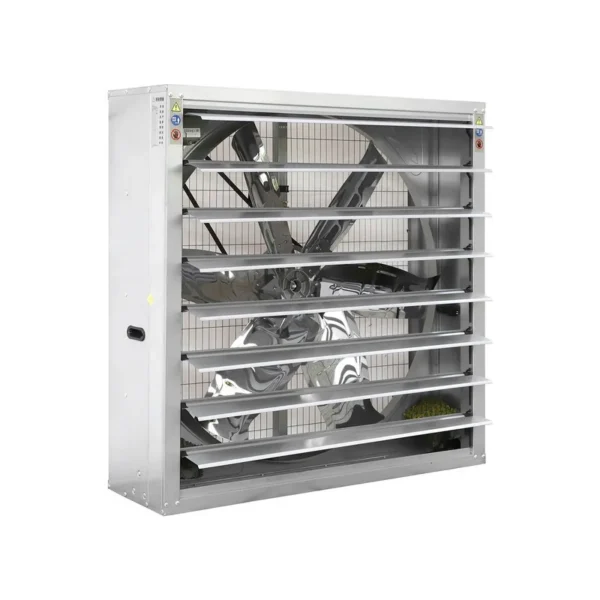

MS SERIES HAMMER EXHAUST FAN
MS series hammer exhaust fan are widely used in agriculture and industry, with function of ventilation and
cooling.
It is mainly used for animal husbandry, poultry house, livestock breeding, greenhouse, factory workshop, textile ect.
(1) Hot-dip galvanized plate adopt 275g/㎡ galvanized layer, not rust.
(2) Special push-pull shutter mechanism can open and close the shutter automatically.
(3) Wall-Mounting fan , easy installation
and maintenance
(4) Belt Drive, Big airflow
(2) Special push-pull shutter mechanism can open and close the shutter automatically.
(3) Wall-Mounting fan , easy installation
and maintenance
(4) Belt Drive, Big airflow
Right Side
Safety Side

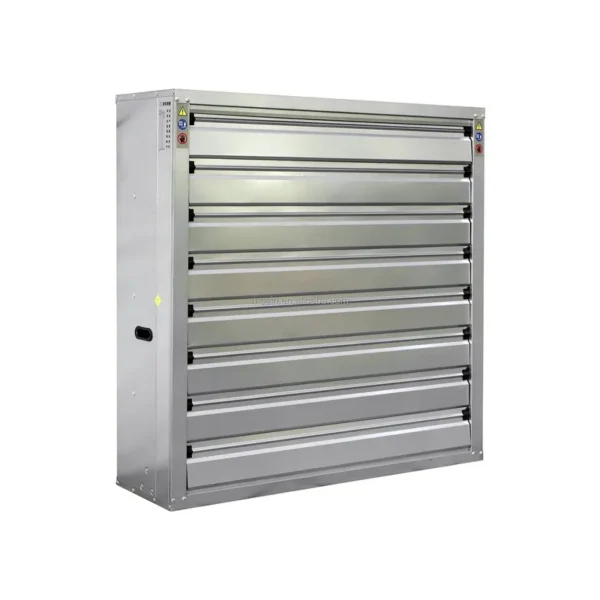

Shutter Side
Product Paramenters
Model | Blade dia. (mm) | Power (KW) | Air flow (m3/h) | Noise (db) | Height (mm) | Width (mm) | Thickness (mm) |
MSD-600 | 500 | 0.37 | 5700 | <70 | 600 | 600 | 380 |
MSD-700 | 585 | 0.37 | 10000 | <70 | 700 | 700 | 400 |
MSD-800 | 710 | 0.37 | 20000 | <70 | 800 | 800 | 400 |
MSD-900 | 750 | 0.55 | 22000 | <70 | 900 | 900 | 400 |
MSD-1000 | 900 | 0.55 | 23000 | <70 | 1000 | 1000 | 400 |
MSD-1060 | 960 | 0.75 | 26000 | <70 | 1060 | 1060 | 400 |
MSD-1100 | 1000 | 0.75 | 32500 | <70 | 1100 | 1100 | 400 |
MSD-1220 | 1100 | 1.1 | 38000 | <70 | 1220 | 1220 | 400 |
MSD-1380 | 1250 | 1.1 | 44000 | <70 | 1380 | 1380 | 400 |
MSD-1530 | 1400 | 1.5 | 55800 | <70 | 1530 | 1530 | 400 |
Features
Frame with Plastic Handle
1. Frame: Hot Galvanized sheet with zinc thickness of 275g/㎡, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load
Advantage:
The advanced Complete CNC machine and Laser Cutting machine. Auto punching and bending, the accuracy of the hole is 100%, easy to assemble.
1. Frame: Hot Galvanized sheet with zinc thickness of 275g/㎡, high anti-corrosion performance
2. Plastic Handle, easy to carry , Convenient to load
Advantage:
The advanced Complete CNC machine and Laser Cutting machine. Auto punching and bending, the accuracy of the hole is 100%, easy to assemble.
Shutters
1. Material: Hot Galvanized sheet with zinc thickness of 275g/㎡
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation, no rust, running stable.
1. Material: Hot Galvanized sheet with zinc thickness of 275g/㎡
2. Shutter Fixed Parts: High quality nylon.
Advantage:
High anti-corrosion performance, open flexibly, long service life, no deformation, no rust, running stable.

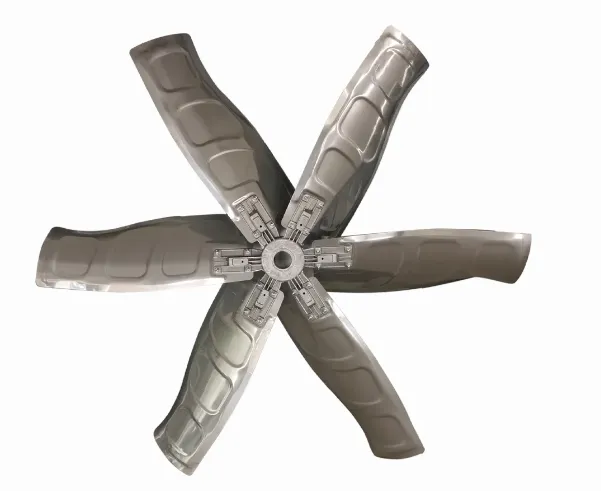

Fan Blades
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1250mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
1. Material : Krupp 430 stainless steel, thickness 1.2mm
2. Diameter: 1250mm
Advantage:
Large air flow, no deformation, no fracture, no dust, attractive and durable.
Note:
Blade material also have galvanized sheet, aluminum alloy for option
Blade material also have galvanized sheet, aluminum alloy for option
Motor
1. Brand: Chinese famous motor, Siemens motor, ABB motor and WEG motor
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan. Pure copper wire, High-efficiency, Energy-saving.
2. Motor Protection Grade: IP55
3. Isulation Class: F grade
Advantage:
Motor voltage and frequency can be customized.
Chinese famous motor OEM by special design for fan. Pure copper wire, High-efficiency, Energy-saving.
Belt Pulley
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability.
Advantage:
Light weight, Low vibration ,attractive appearance.
1. Material: High strength aluminum-magnesium alloy by die-casting.
2. Blast-sanding treatment, eliminate internal stress to improve its own rigidity and stability.
Advantage:
Light weight, Low vibration ,attractive appearance.
Opening System
Heavy hammer shutter opening and closing device, open quickly, simple structure, cheap price.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Heavy hammer shutter opening and closing device, open quickly, simple structure, cheap price.
Advantage:
It can keep the shutters open at complete 90 degree to ensure the lowest air resistantce and biggest air volume.
Applications
Packing & Shipping
Exhibition
FAQ
1. Are you real manufacturer or ..? — Yes, we are 100% original manufacturer of exhaust fan. Our factory located at Weifang city
, ShanDong province . In design, materials procurement, manufacturing semi-finished products testing, finished products are as
such as strict control to ensure product quality. Welcome to visit us. 2. Can you do make our own brand? –Yes, we can provide the
OEM &ODM service. 3. Any guarantee for your products? –Our company's culture is "Quality is our culture!" All of our products
with 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business! 4.
How about the delivery time? –Usually for sample order 1-2 days, for mass order 7-15 days. 5.What's the payment term? A:Payment:
30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
, ShanDong province . In design, materials procurement, manufacturing semi-finished products testing, finished products are as
such as strict control to ensure product quality. Welcome to visit us. 2. Can you do make our own brand? –Yes, we can provide the
OEM &ODM service. 3. Any guarantee for your products? –Our company's culture is "Quality is our culture!" All of our products
with 12 months FREE GUARANTEE,never need to worry about the after-sale service,we will always be here to support your business! 4.
How about the delivery time? –Usually for sample order 1-2 days, for mass order 7-15 days. 5.What's the payment term? A:Payment:
30% prepay By T/T ,70% pay before loading container. By T/T or L/C.
Ordering and Pricing
- Minimum order quantity: 2 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this electric industrial axial blower?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the electric industrial axial blower be supplied for my local voltage?
The standard configuration is 380V, 220V, 415V, 110V, 410V, 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by SHANDONG MOSIN MACHINERY CO., LTD., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full SHANDONG MOSIN MACHINERY CO., LTD. range on HVACR Nexus.
