Electric Thermal Oil Heater, Explosion-proof, as required

Electric thermal oil heater — voltage as required, power source Electric. The complete factory specification follows. Made by Jiangsu Ruiyuan Heating Equipment Technology Co., Ltd. (17 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Electric Thermal Oil Heater

• Power Source: Electric
• Voltage: as required
• Material: Stainless Steel
• Heating Material: thermal oil
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

Products Description

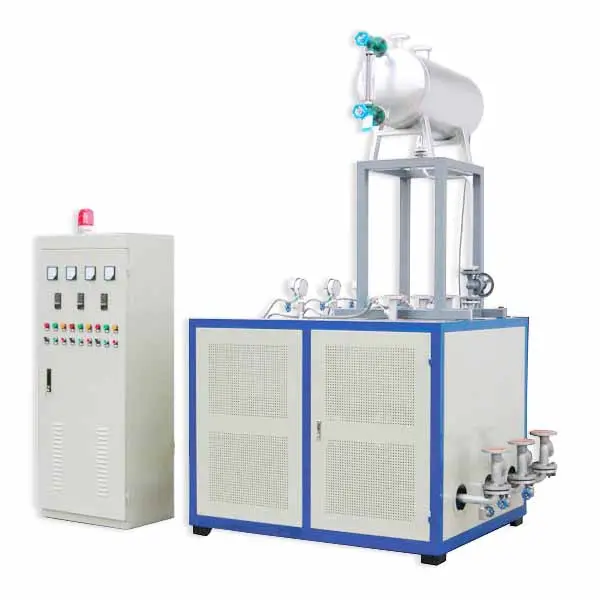

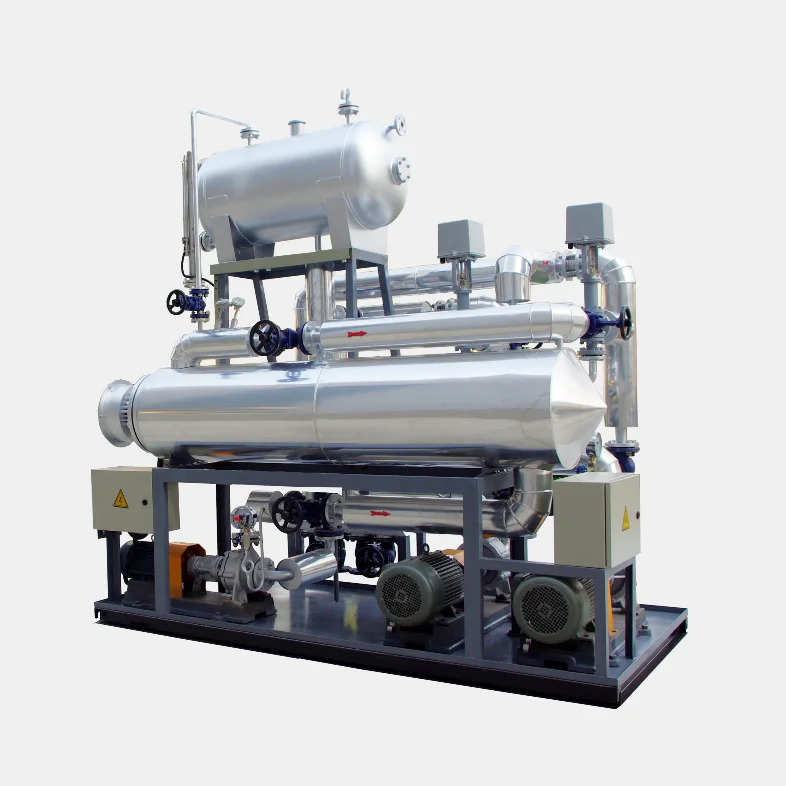

GYD serial Thermal oil heater is a kind of new-typed heating equipment with heat energy conversion. It takes the electricity as power, changes it into the heat energy through the electrical organs, takes the organic carrier (heat thermal oil) as medium, and continues to heat through the compulsive circulation of the heat Thermal oil driven by high-temperature oil pump, so as to meet the heating requirements of users. In addition, it could also satisfy the requirements of set temperature and temperature controlling accuracy. We are manufactured for capacities from 6 to 2,400 kw as well as temperatures of up to +320 °C.

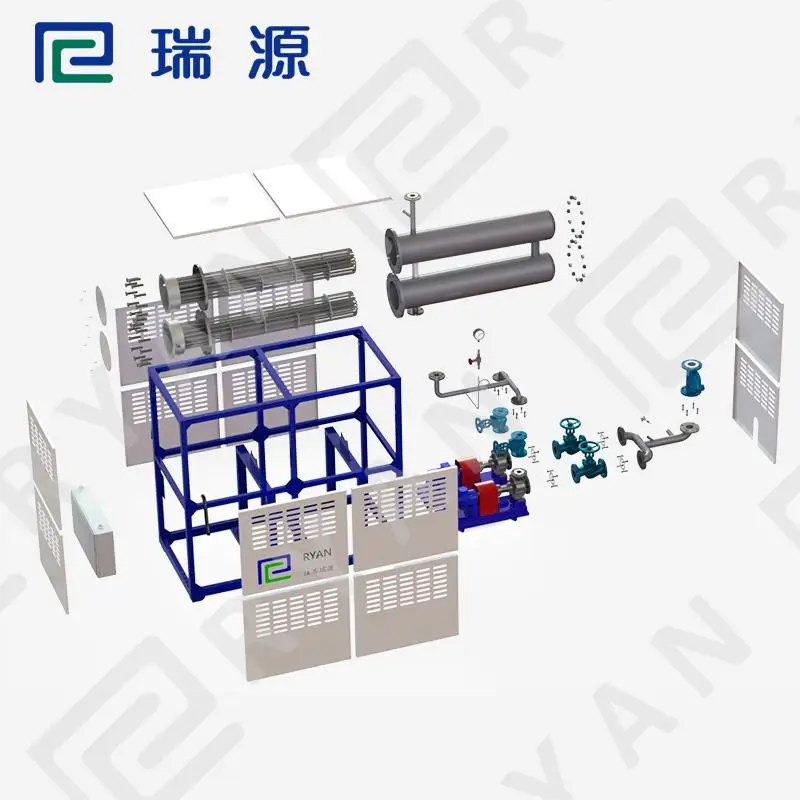

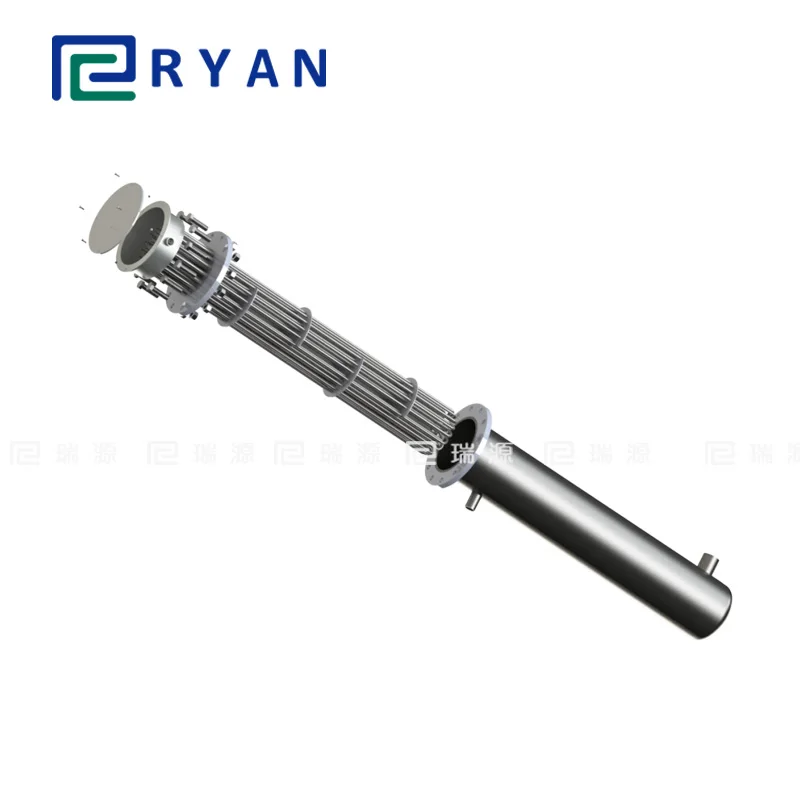

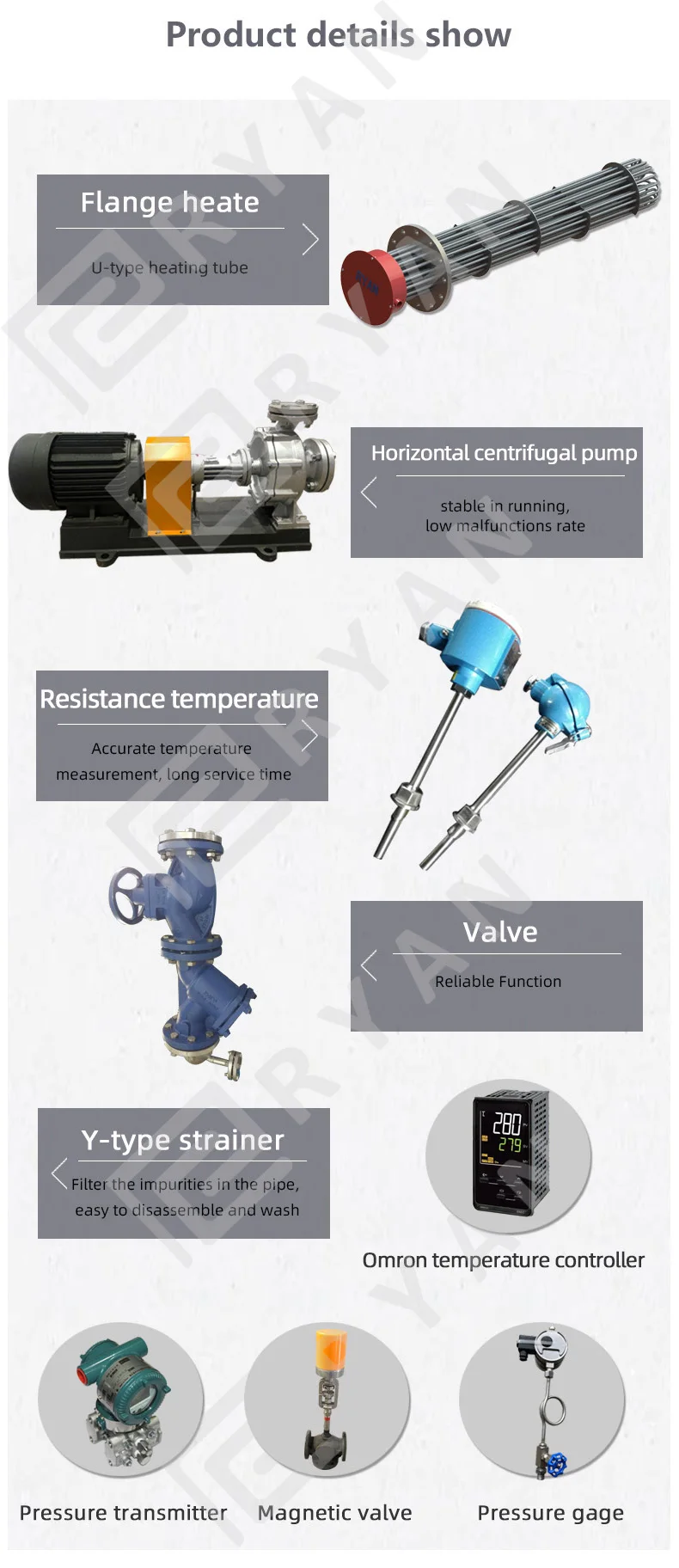

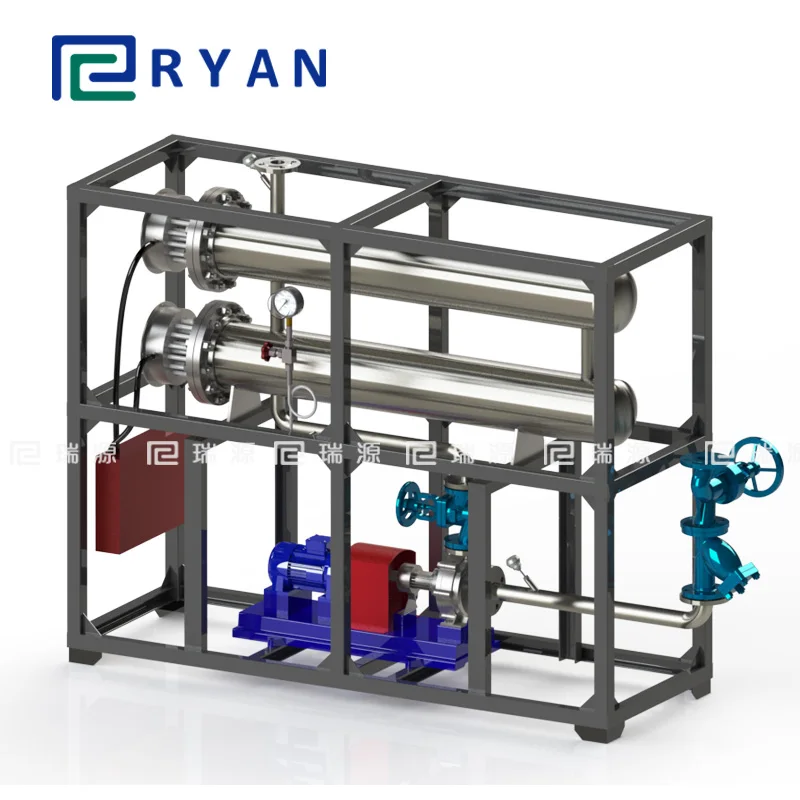

1. Electric heater system

2. High thermal efficiency

3. Horizontal centrifugal pump

4. All welded construction

5. PID Temperature Controller (FUJI Electric PXR5/9)

6. Fast installation and low maintenance efforts

7. Isolation gate valves and strainer

8. SSR(Solid State Relay) control on heater circuits

9. Pressure test and Functional test of system

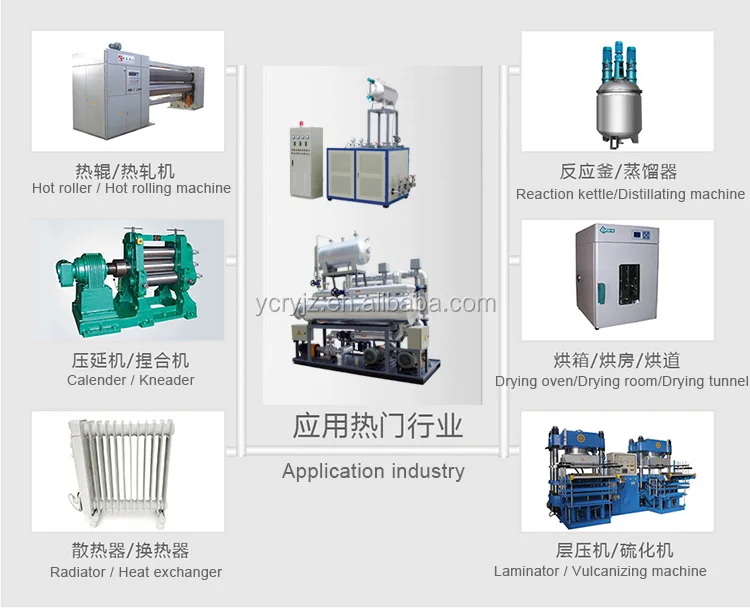

For non-woven fabrics, chemical industry, chemical fiber, rubber, composite, sanitary fittings and other industries.

GYD series electric thermal oil heater

parameter table

Model	Heater Power (kw)	Oil Capacity  (L)	Overall Dimension	Heating-oil Pump Flow     Head      Power					Total Weight (KG)	Expansio  Tank (L)
GYD10	10	15	1100*500*1100	6	27	1.5	200	100
GYD18	18	23	1600*500*1250	6	27	1.5	200	130
GYD24	24	28	1950*650*1450	12.5	30	3	350	150
GYD36	36	48	1950*650*1450	12.5	30	3	350	200
GYD48	48	48	1950*650*1450	18	40	5.5	350	230
GYD60	60	52	1950*650*1450	18	40	5.5	350	230
GYD70	70	60	2150*700*1750	30	48	7.5	550	280
GYD90	90	68	2150*700*1750	30	48	7.5	550	280
GYD120	120	105	2200*700*1880	30	48	7.5	750	300
GYD150	150	195	2200*700*1880	30	48	7.5	750	300
GYD180	180	230	2200*900*1880	45	48	11	1200	320
GYD240	240	260	2300*1000*1950	80	38	15	1200	350
GYD300	300	293	2600*1200*2000	80	38	15	1600	350
GYD400	400	358	2800*1200*2000	80	38	15	1750	450
GYD500	500	510	2800*1500*2000	80	38	15	1850	550
GYD600	600	562	3000*1800*2150	80	38	15	1950	600
GYD700	700	638	3000*1800*2150	80	38	15	2200	650

Why Choose Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $6600 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this electric thermal oil heater?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the electric thermal oil heater be supplied for my local voltage?

The standard configuration is as required. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
