This exhaust axial flow ventilator is published with the manufacturer’s full specification — voltage 220-380V,50HZ, power source Electric. Made by Jinan Shuangyi Environment Engineering Co., Ltd. (19 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Exhaust Axial Flow Ventilator
- Power Source: Electric
- Voltage: 220-380V,50HZ
- Blade Material: Stainless steel ,FRP
- Material: Steel/FRP
- Speed: 2700 RPM
- Warranty: 1 Year
Technical Specifications
| Voltage | 220-380V,50HZ |
|---|---|
| Speed | 2700 RPM |
| Type | Duct Axial Fan |
| Blade Material | Stainless steel ,FRP |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, OBM |
| Place Of Origin | Shandong, China |
| Brand Name | shuangyi |
| Product Name | HTF Series Fire-fighting Smoke Exhaust Axial Flow Ventilator |
| Application | Exhaust Ventilation |
| Material | Steel/FRP |
| Keyword | for fire fighting smoke exhaust |
| Advantage | high temperature resistant |
| Diameter | 400-1600mm |
| Certification | ce |
| Package | Wooden Case |
| Selling Units | Single item |
| Single Package Size | 50X50X80 cm |
| Single Gross Weight | 66.0 kg |
Product Details

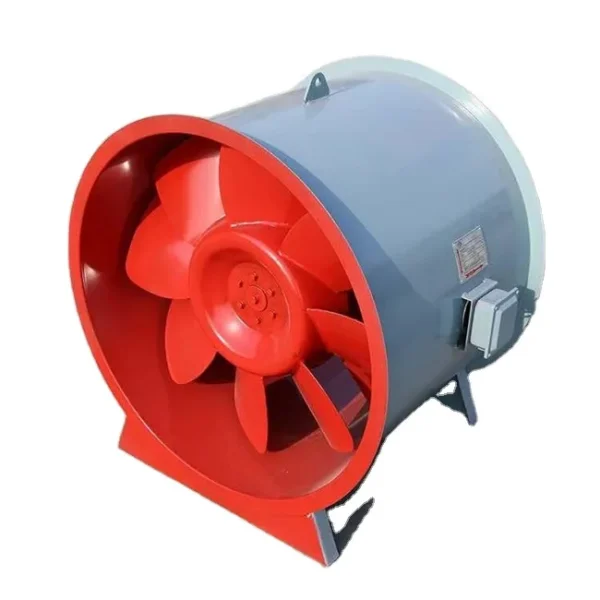

HTF fireproof smoke exhaust fan
1.Application
SY fire-fighting smoke exhaust fan is mainly used in high building, underground garage, subway, tunnel and other places for firefighting exhaust smoke when the building catches fire, thus to get longer time for people to escape. In daily time it can be used for ventilation also.
2.Features:
The motor of this fan is covered in the steel panel box to standby high temperature for a long time.According to GA211-1999 fire-fighting fan high temperature resistance test method, it can run more than 4 hours when the temperature reach 280°C. When the temperature of the medium reach 100°C, the fan can run more than 20 hours at least without damage.
3. Type:
Fire smoke exhaust fan is divided into horizontal, vertical and cabinet type 3 kinds; The vertical type is used for roof.
Technical Parameters:
| machine Number | air flow capacity (m3/h) | static pressure(Pa) | Power(kW) |
| 2F | 600-725 | 65-45 | 0.025 |
| 2.5F | 1000-1425 | 120-80 | 0.09 |
| 3F | 1750-2450 | 175-100 | 0.18 |
| 3.5S | 1000-1875 | 150-100 | 0.37 |
| 3.5F | 2000-2625 | 300-250 | 0.37 |
| 4S | 2000-2670 | 200-145 | 0.37 |
| 4F | 3000-4490 | 400-260 | 0.75 |
| 4.5S | 3000-4170 | 240-180 | 0.37 |
| 4.5F | 4000-6000 | 500-350 | 1.1 |
| 5S | 4000-5500 | 300-200 | 0.75 |
| 5F | 5000-7900 | 700-450 | 2.2 |
| 6S | 5000-9990 | 480-290 | 1.5 |
| 6F | 8000-13900 | 1000-600 | 5.5 |
| 7S | 8000-14900 | 625-400 | 3.0 |
| 8S | 12000-23900 | 860-440 | 5.5 |

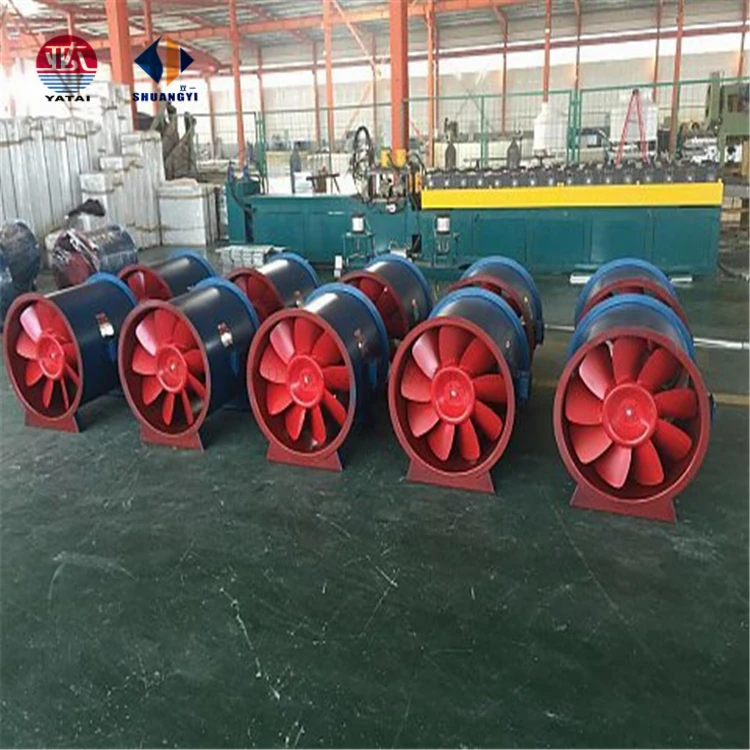

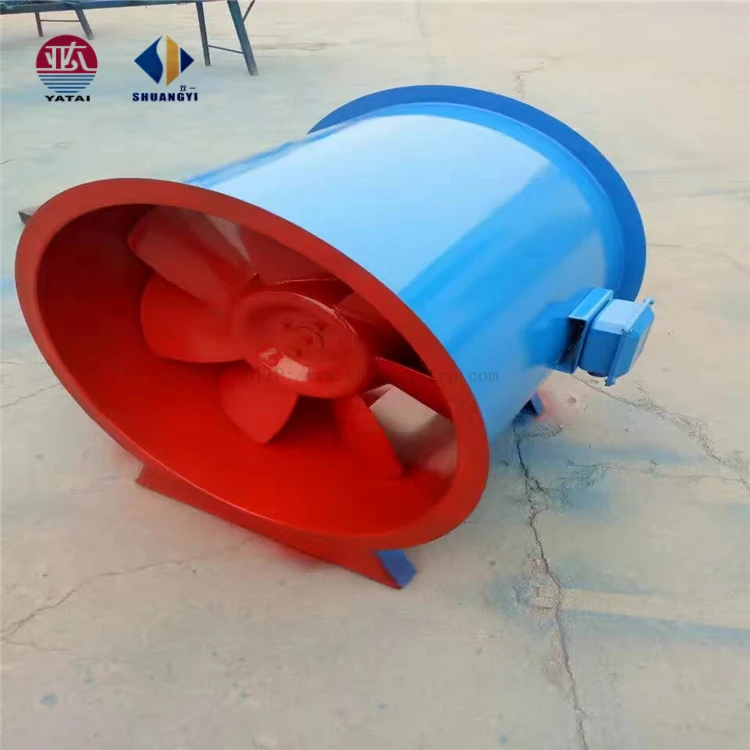

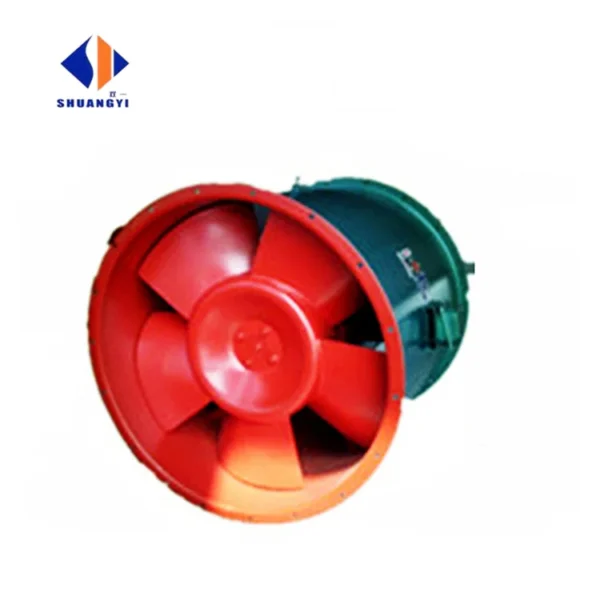

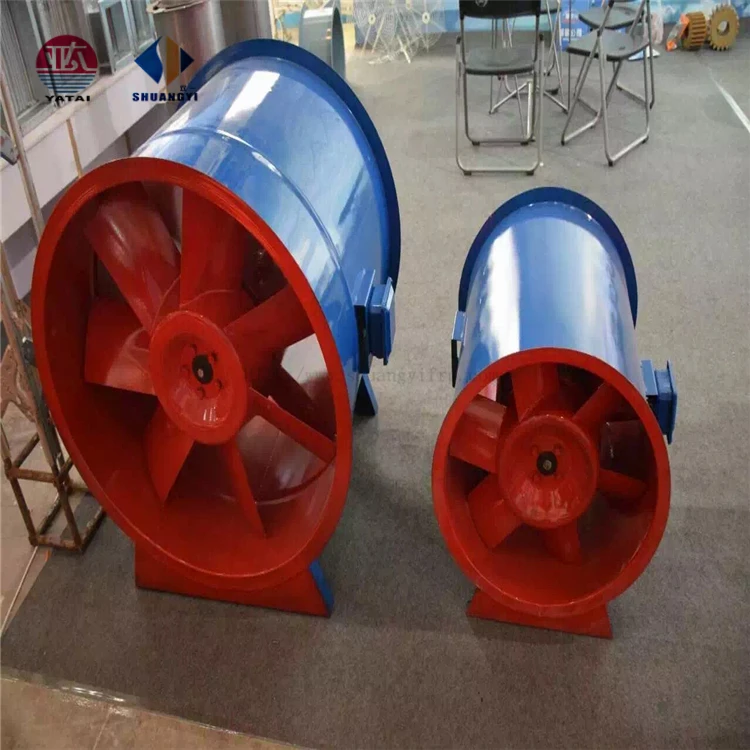

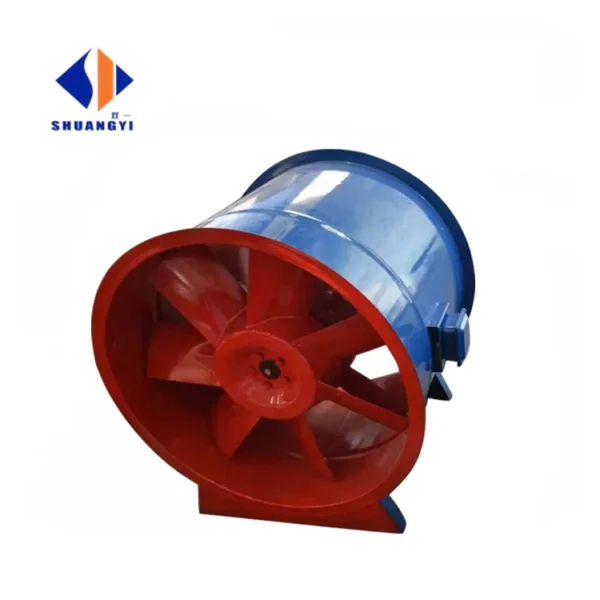

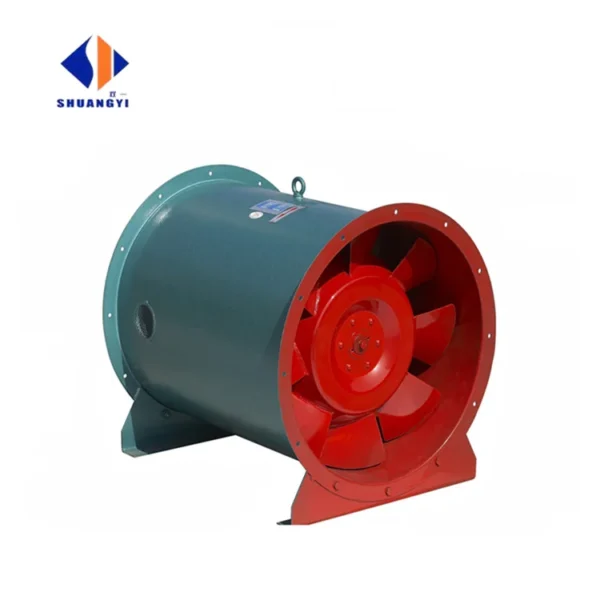

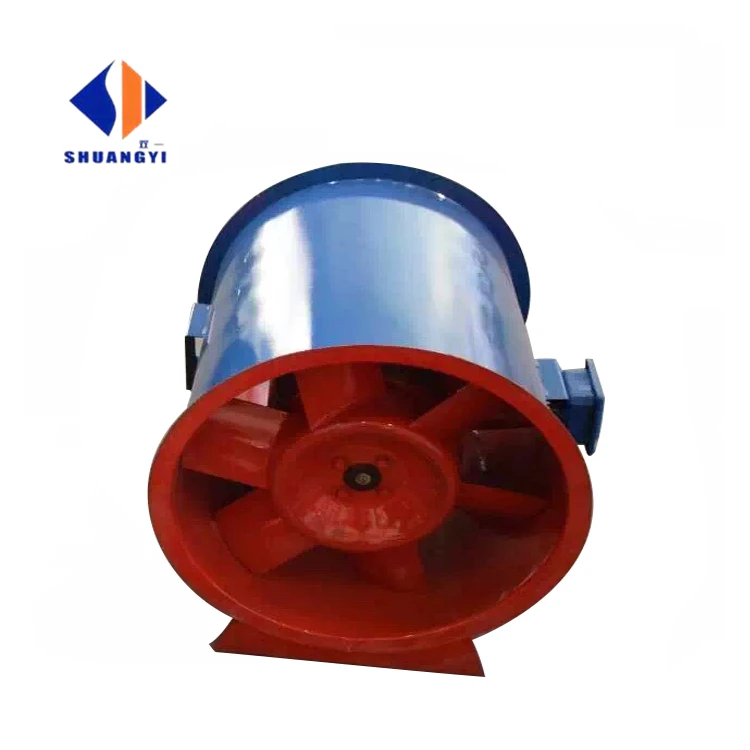

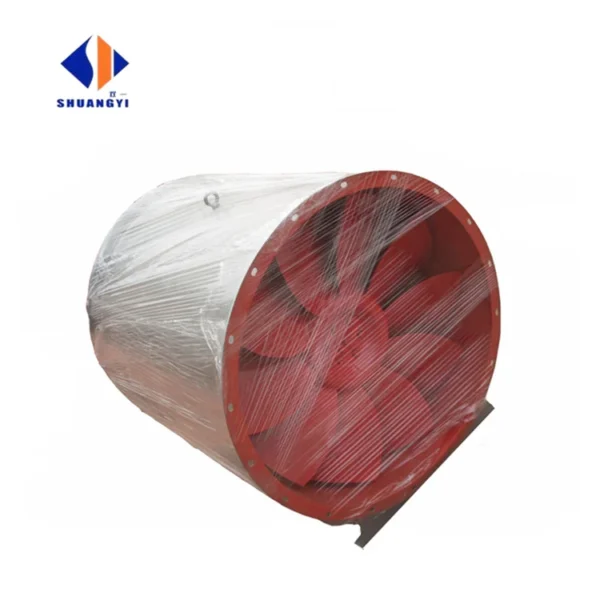

Sample Pictures:

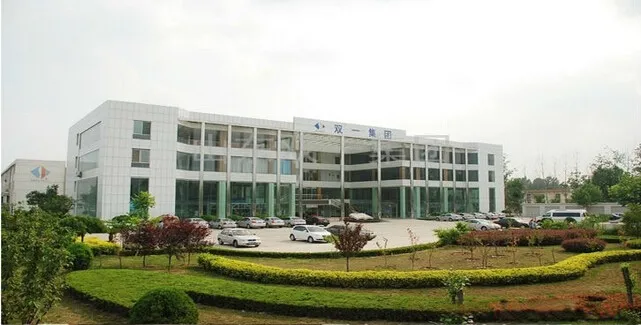

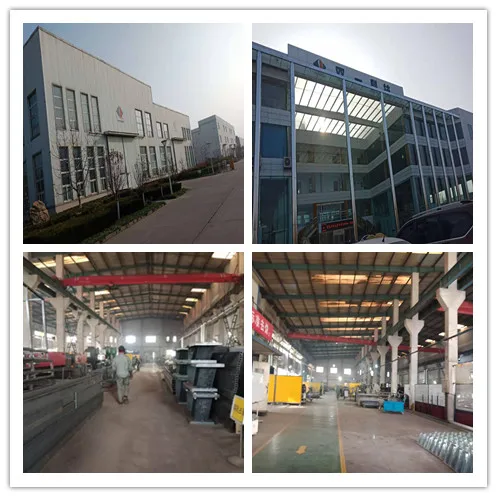

Jinan Shuangyi Environment Engineering Co., Ltd. (Shuangyi) integrates science and technology, engineering and trade together. Our main products are cooling towers, water tanks, air ventilators, ventilator pipelines, fireproofing valves, fume extract valves, lab facilities and composite materials.
Contact info:
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1+ set: US $680 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this exhaust axial flow ventilator?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this exhaust axial flow ventilator carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the exhaust axial flow ventilator be supplied for my local voltage?
The standard configuration is 220-380V,50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
