Explosion proof dual condenser — 110 V, 120 V, 220 V, 230 V, 380 V, power source Electric. The complete factory specification follows. Made by Shanghai Hjlab Instruments Co., Ltd. (10 years on the platform, typical reply ≤7h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Explosion Proof Dual Condenser
- Power Source: Electric
- Power(W): 2000~6000
- Voltage: 110 V, 120 V, 220 V, 230 V, 380 V
- Material: Borosilicate Glass
- Glass Materials: Borosilicate Glass 3.3
- Warranty: 1 Year
Technical Specifications
| Volume(L) | 5 L, 10 L, 20 L, 30 L, 50 L, 100 L |
|---|---|
| Processing | Rotary |
| Operating Temperature | RT~200°C |
| Material | Borosilicate Glass |
| Power Source | Electric |
| Core Components | Glasswares |
| Voltage | 110 V, 120 V, 220 V, 230 V, 380 V |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | High Vacuum Performance |
| Power(W) | 2000~6000 |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 150 |
| Brand Name | HJLab |
| Dimension(L*W*H) | 105*60*176 cm |
| Glass Materials | Borosilicate Glass 3.3 |
| Rotary Flask | 5L ~ 100L |
| Condensers | Dual Condensers Design |
| Receiving Flask | 5L~50L |
| Vacuum Sealing | 10 mbar |
| Heating Bath | Water or Oil |
| Heating Bath Lifting | Motorzied |
| Product Name | Rotary Vacuum Evaporator |
| Application | Laboratory, Pilot Plant, Chemistry Lab, Sample Pretreatment |
| Selling Units | Single item |
| Single Package Size | 110X55X125 cm |
| Single Gross Weight | 120.0 kg |
Product Details

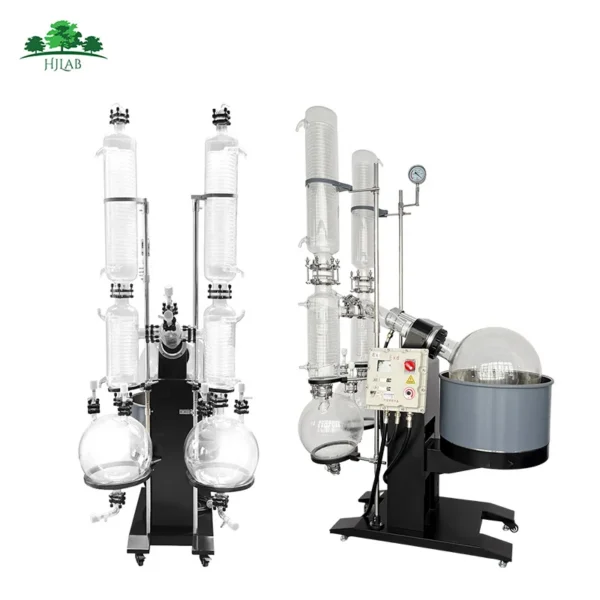

Laboratory Rotary Vacuum Evaporator
(Dual Column Condenser Design)
How It Works: The Three Key Principles
Principle | How It Helps | Why Its Important | ||
Rotation | Spins the sample flask, spreading the liquid into a thin film. | Dramatically increases surface area for faster evaporation. | ||
Reduced Pressure (Vacuum) | Lowers the air pressure inside the system. | Lowers the boiling point of the solvent, allowing evaporation without high heat. | ||
Controlled Heating | Gently warms the sample flask in a temperature-controlled water or oil bath. | Provides energy for evaporation while keeping the temperature safe for sensitive compounds. | ||
As the solvent vaporizes, it travels into a cooled condenser where it turns back into a liquid and is collected in a separate flask for easy recovery and potential reuse. | ||||

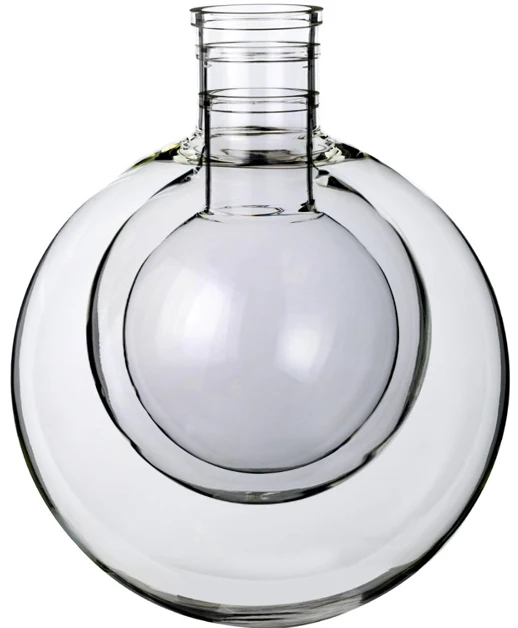

Same Flange Opening Design

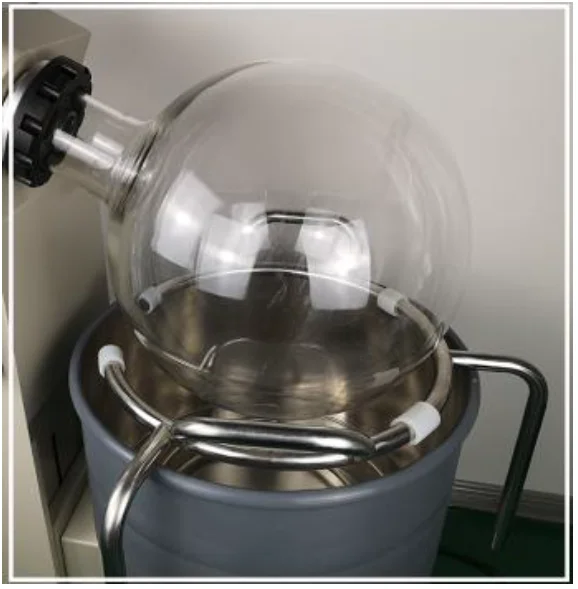

Flask Carrier

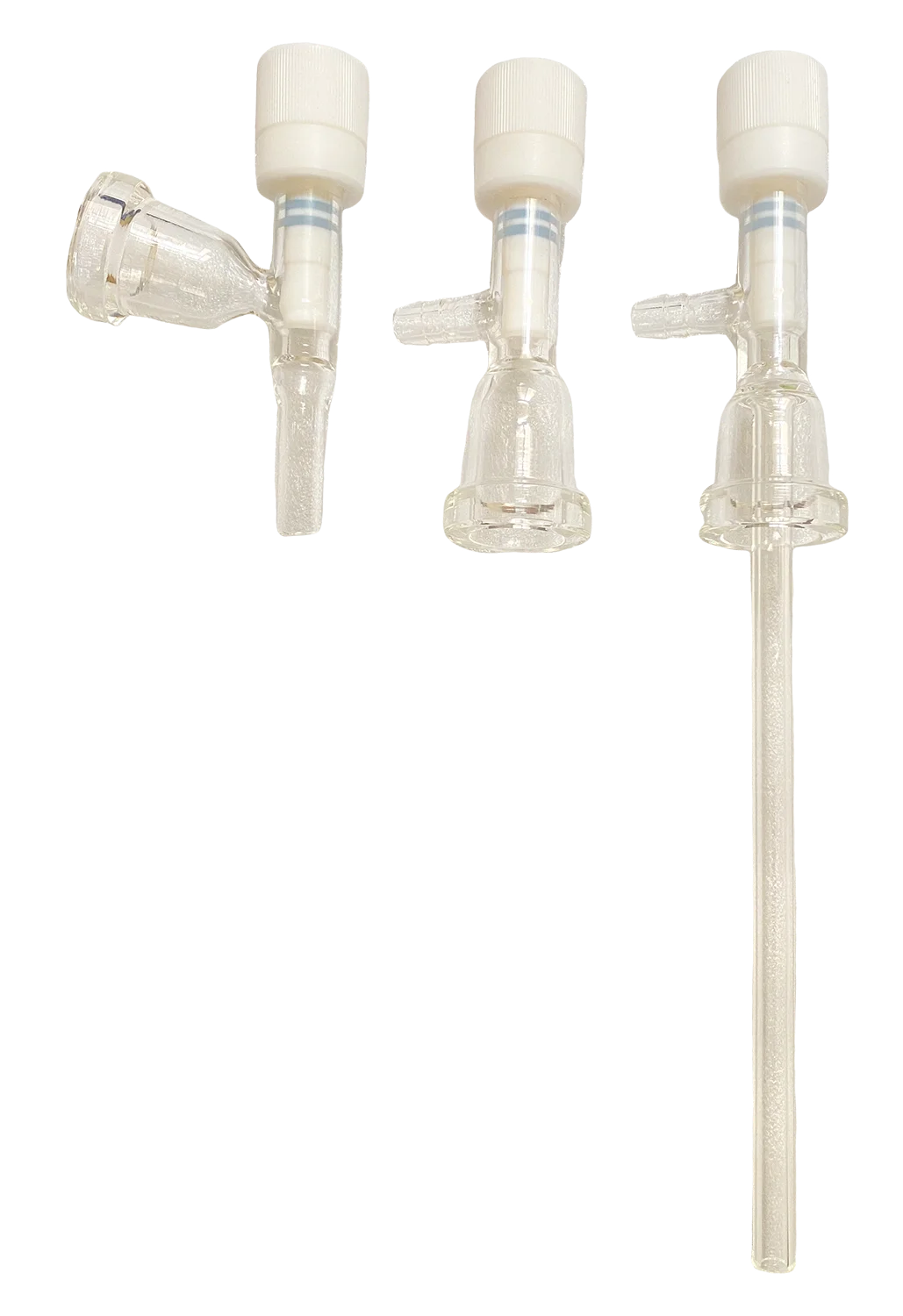

Glass Valve with PTFE open/close

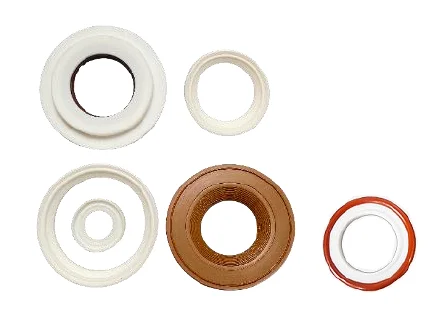

PTFE Sealing Kits

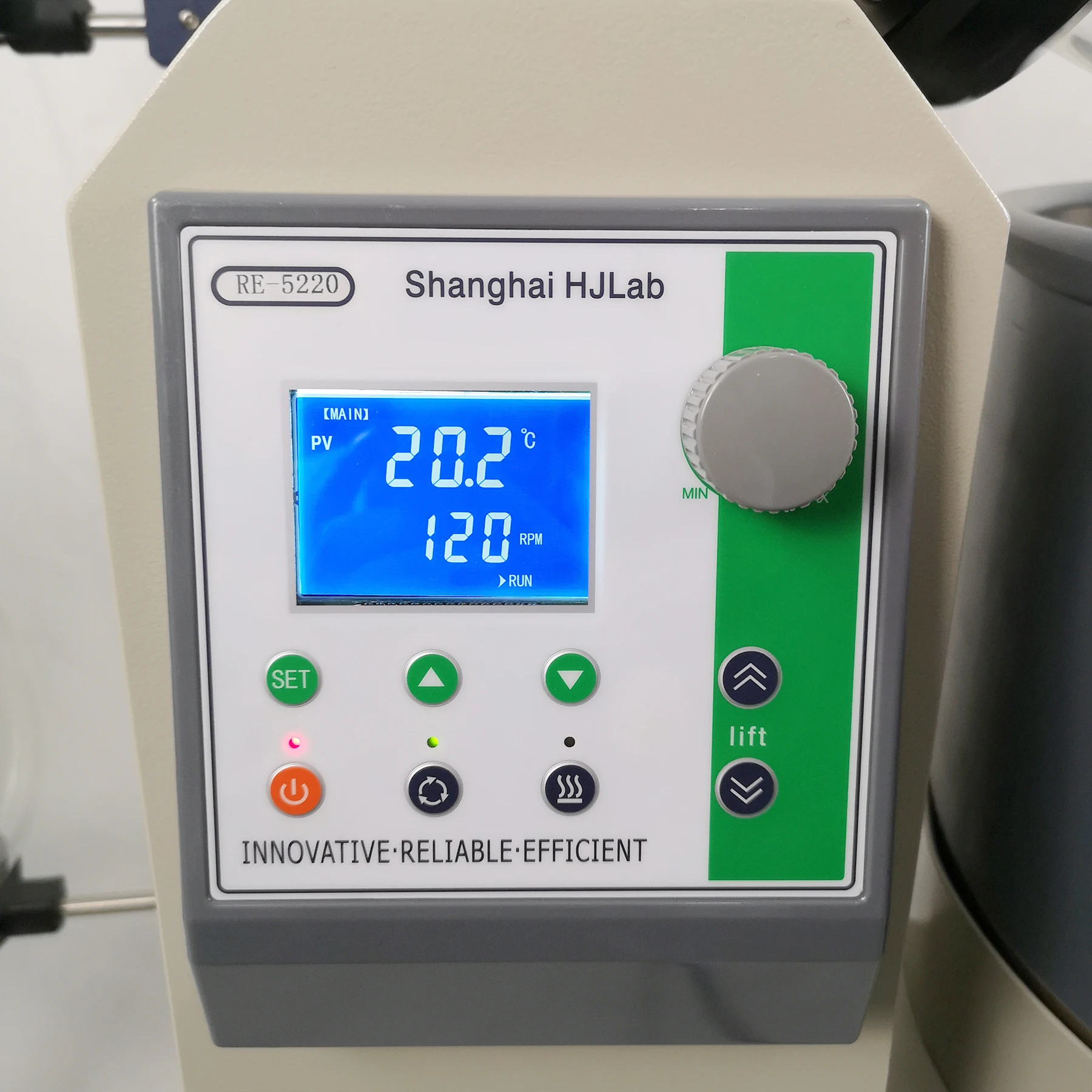

All-In-One Control Panel
Accept Customized Request
Model | RE-5205 | RE-5210 | RE-5220 | RE-5250 | RE-100L | ||||
Glass Materials | High Quality Borosilicate Glass 3.3 | ||||||||
Control Panel | All-In-One Control Panel | LCD Straight-Forward Display Rotation Speed Stepless Control: 20 – 110 RPM | ||||||||
Rotary Flask | Flange: 125# | ||||||||
5,000 ml | 10,000 ml | 20,000 ml | 50,000 ml | 100,000 ml | |||||

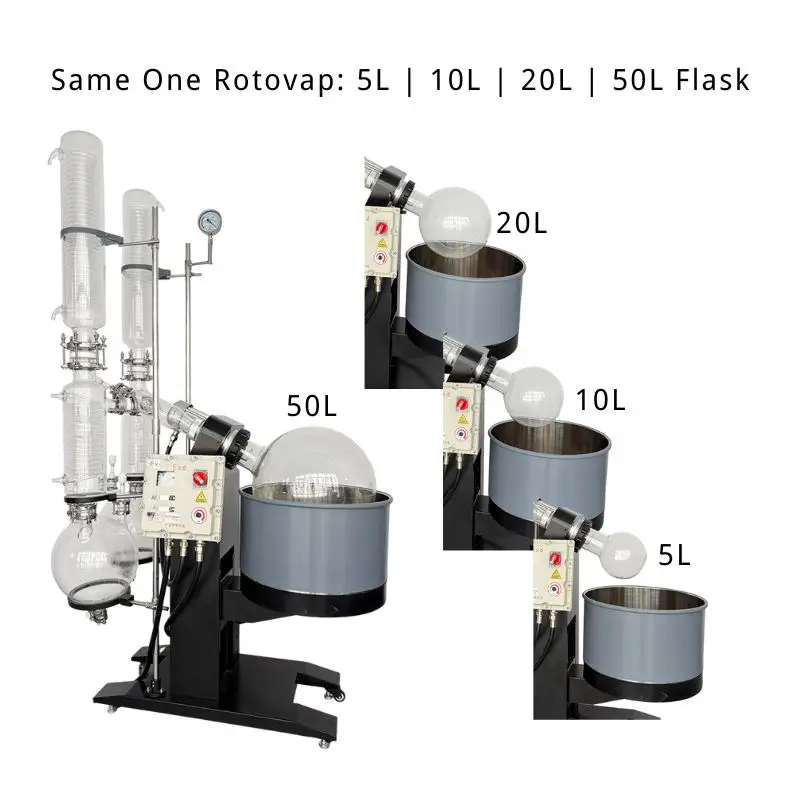

Option 1: Stainless Steel Flask Carrier Option 2: Plexiglass Water Bath Cover Option 3: Install 20L Flask on 50L Rotavapor, Install 10L Flask on 20/50L rotavapor Option 4: Rotary Flask Adapter to accommodates 1L, 2L, 3L and 5L | |||||||||
Receiving Flask | 3,000 ml | 5,000 ml | 10,000 ml | 20,000 ml | 50,000 ml | ||||
Option: Dual Receiving Flask | |||||||||
Condenser Area | Main: 0.39 m² | Main: 0.948 m² Auxiliary: 0.358 m² | Main: 1.15 m² Auxiliary: 0.6 m² | Main: 2.0 m² Auxiliary: 1.2 m² | |||||
Main Condenser + Auxiliary Condenser、Tripe-Layers Cooling Coil Standard: Single Main, Single Auxiliary, Single Receiving Flask Option 1: Dual Main, Single Auxiliary, Dual Receiving Flask Option 2: Dual Main, Dual Auxiliary, Dual Receiving Flask Option 3: Condenser Insulation Jacket | |||||||||
Sealing Performance | PTFE Sealing Kits | Ultimate Vacuum: 10mbar | Vacuum Leakage: <=0.33kPa/min | ||||||||
Rotary Motor | Specialized Motor, quiet and vibration-free and long-time continuous running | ||||||||
Heating Bath | SUS304 Materials | Water Oil Dual Purpose | ||||||||
Heating Power | 1,500 W | 3,000 W | 4,000 W | 6,000 W | 9,000 W | ||||
Temperature Control | Water: RT ~ 99°C | Oil: RT ~ 200°C PID Temperature Intelligent Control | Temperature Accuracy: ±1 °C | ||||||||
Power Supply | 110V/220V/380V, 50~60Hz | ||||||||
* Customization | 1) Stainless Steel Enclosure 2) Enclosure Coated with PTFE 3) Heating Bath: Multi-Stage Temperature Control (Programmable time-temperature control) 4) Liquid-Level-Detection: Automated Running 5) Dual Column Condensers | Dual Receiving Flask 6) Explosion Proof Design | ||||||||

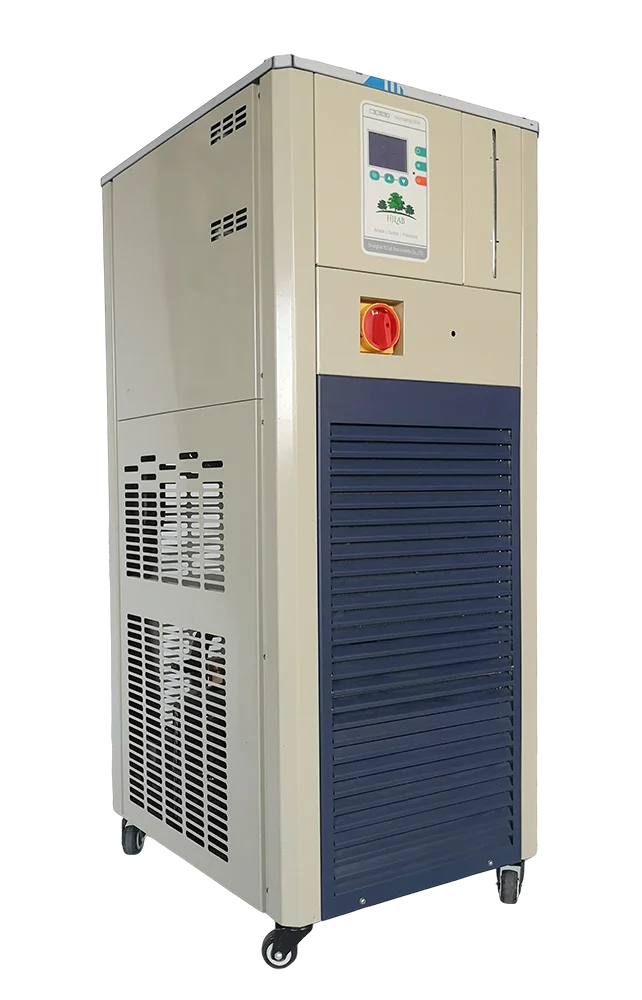

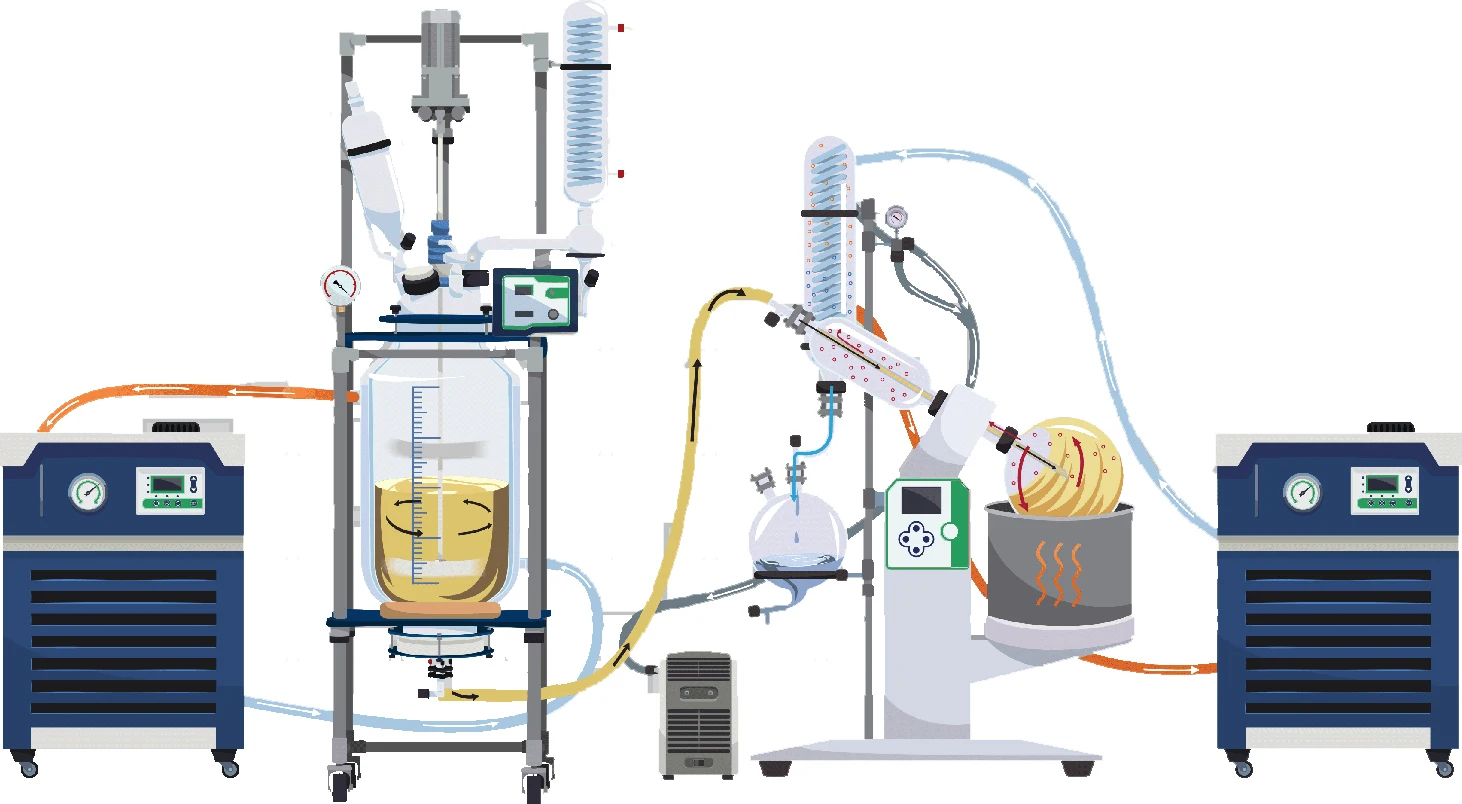

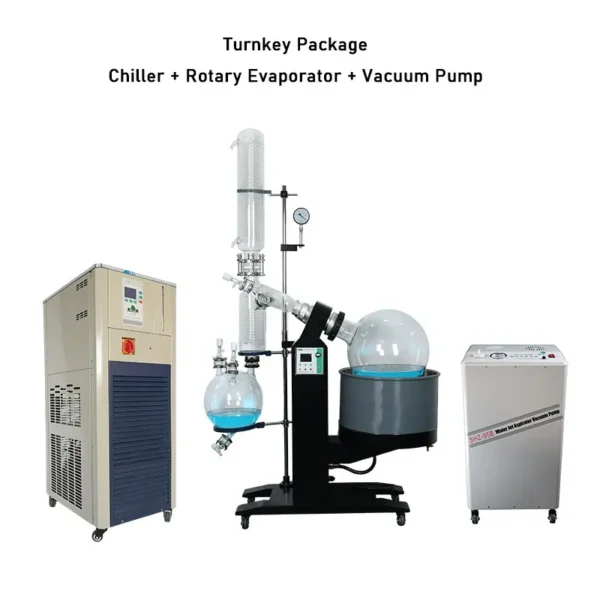

Recirculating Chiller

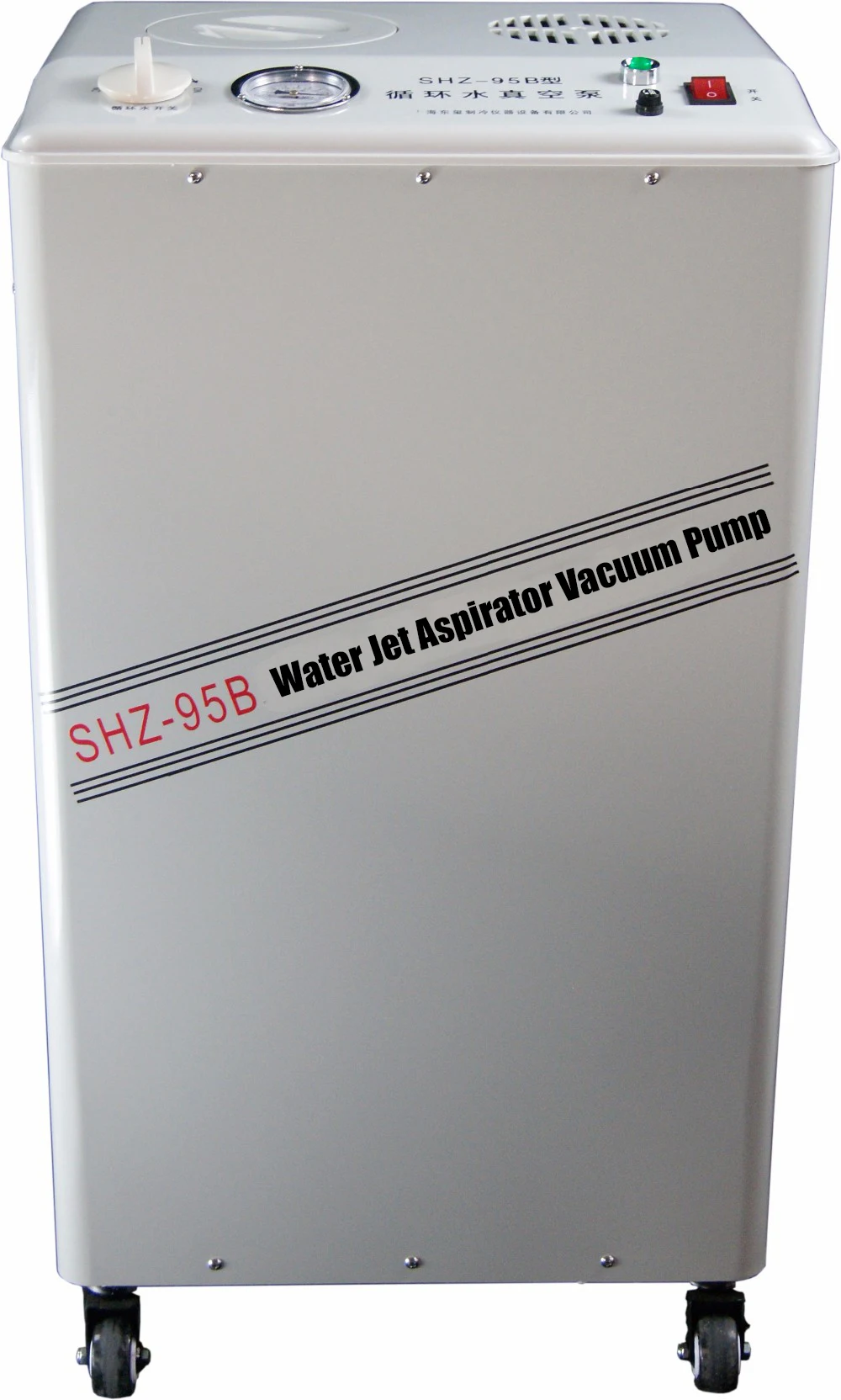

Water Jet Aspirator Vacuum Pump
Diaphragm Vacuum Pump

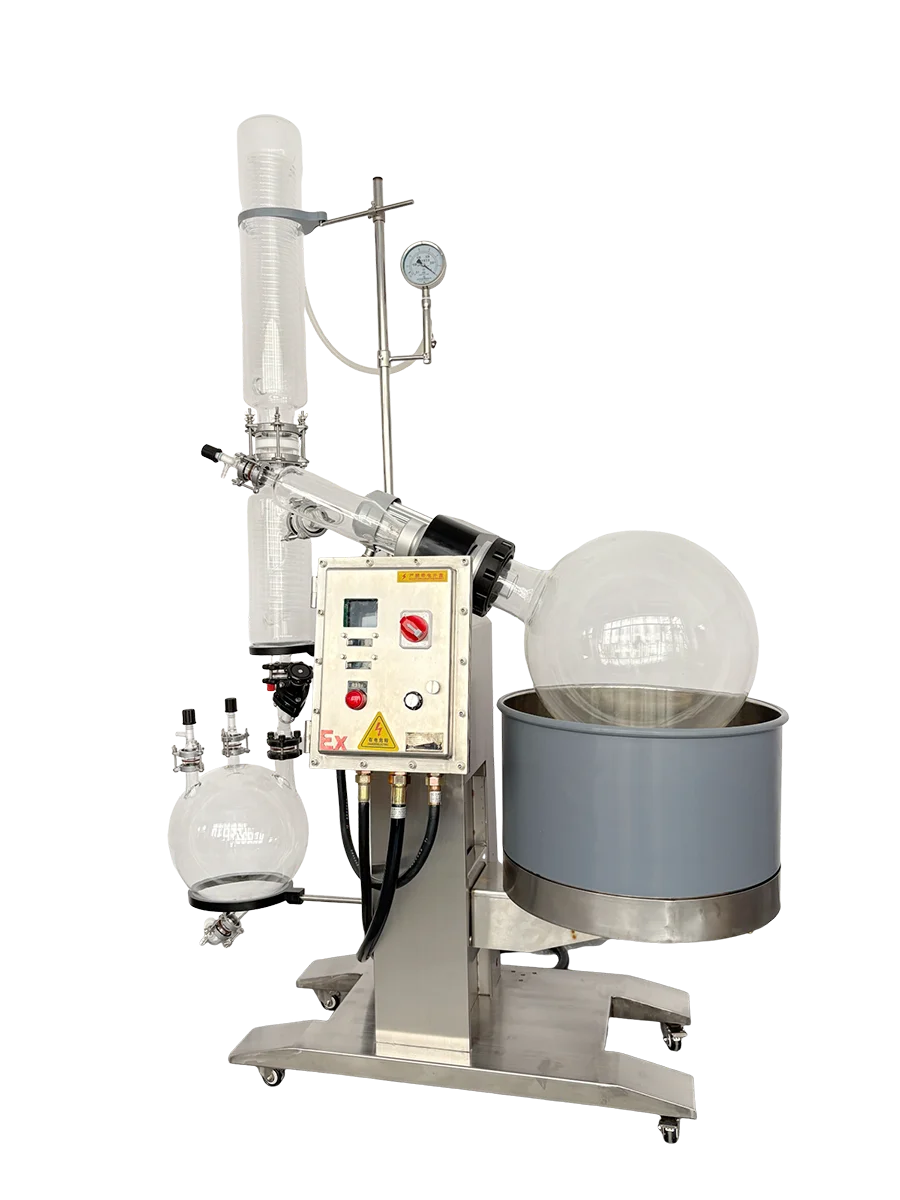

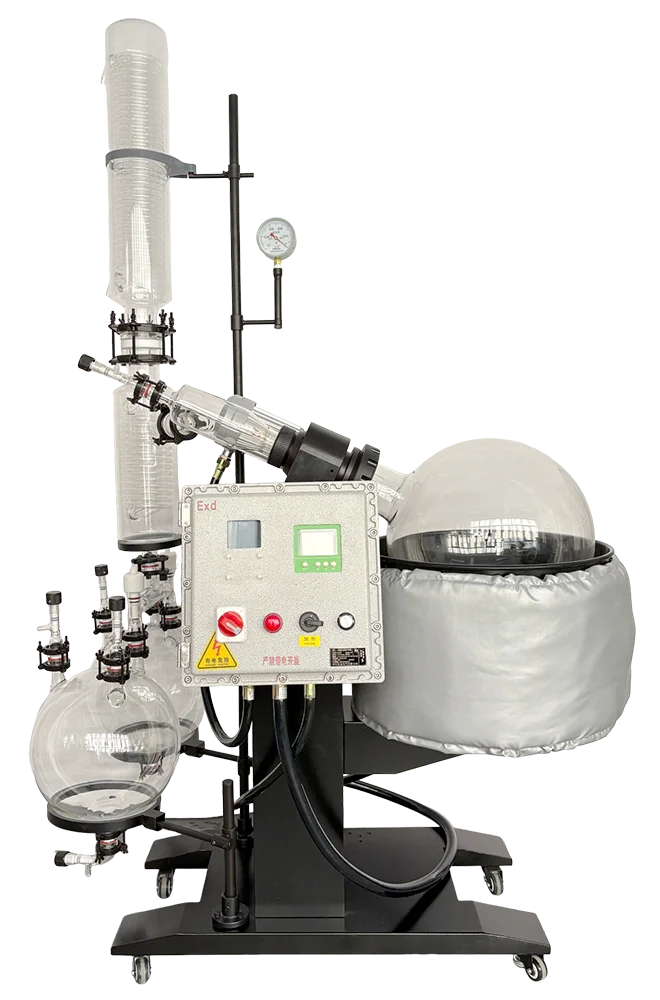

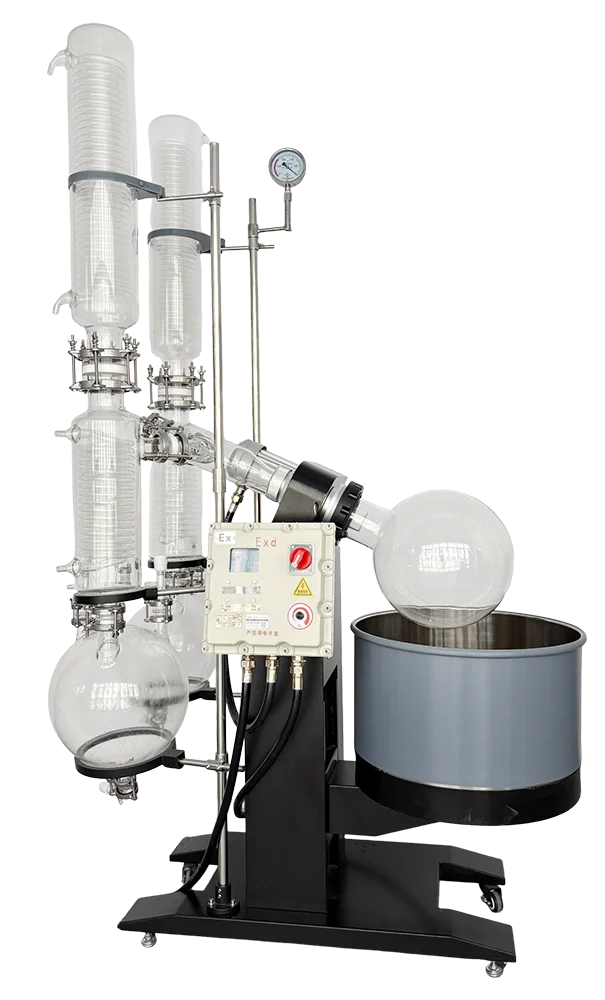

Explosion Proof Design

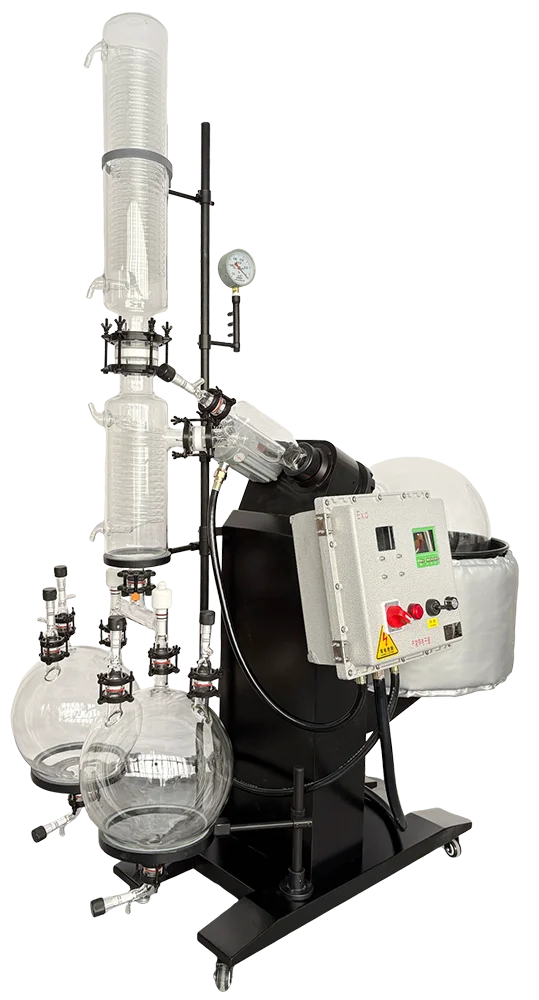

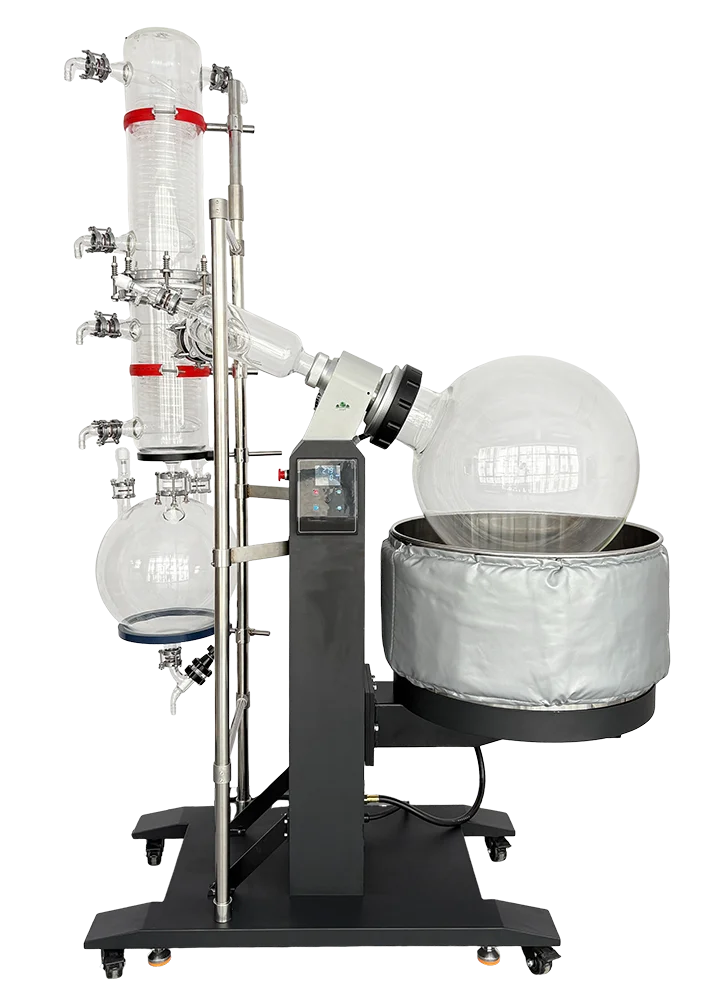

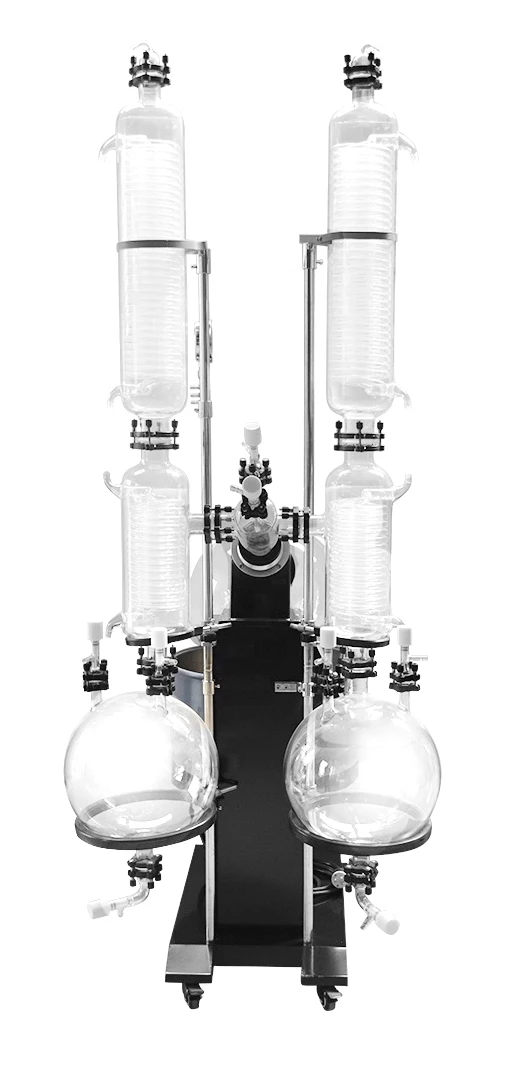

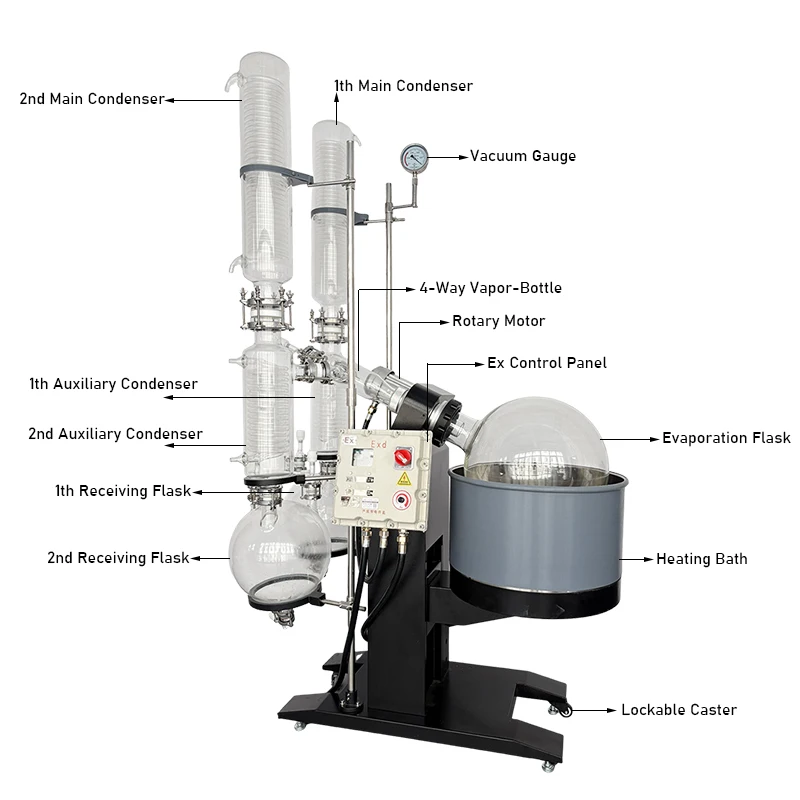

Dual Column Condensers Design
Dual Receiving Flask
Multi-Stage Temperature Control

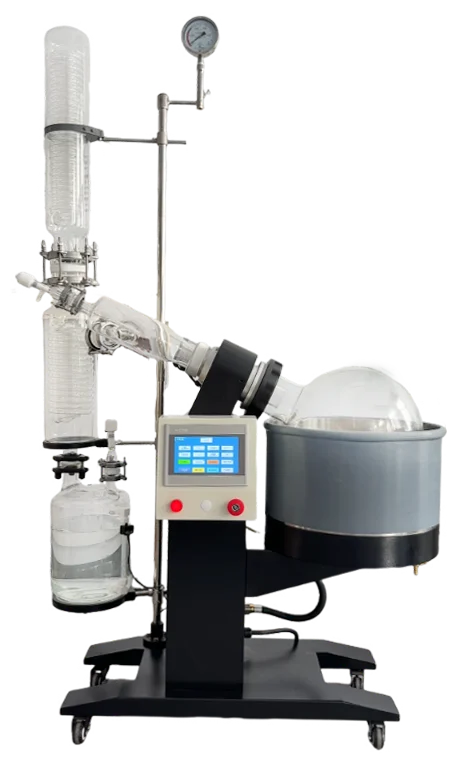

Automated Running

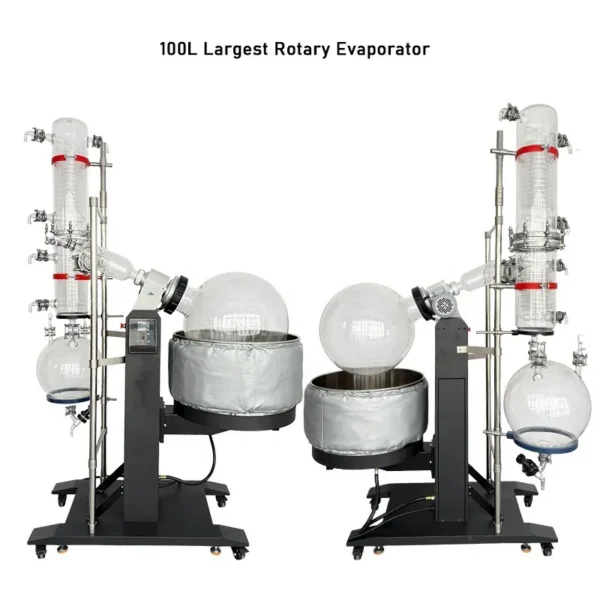

100L Larger Rotary Evaporator
2) Online video meeting to get every details about our products quickly
3) Online video meeting to confirm the working performance
4) Rapid answering the questions to support you to working with your End-User
Delivery Services
2) By Air and By Sea
3) Any broken during transportation will be FedEx to you For Free.
Inspection Service (Bureau Veritas)
2) On-Site Check
3) Workman Check
4) Function Check
5) Contract Product Quality
6) Conformity Check
7) Quantity Verification
2) TradeAssurance (Covers all payment made during the ordering process up to 30 daysafter you receive the goods)
3) BuyNow and Pay Later
4) T/T(30% Advance payment and 70% Balance)
After-Sales Service
2) Free Spare Parts except the glasswares and sealings
3) On-Site Installation / Maintenance
1) Wooden packing
2) Fumigation certification, certification of original
3) The goods can be shipped by sea, air or train, small goods or spare parts will be shipped by express.
4) Also you can specify your own forwarder.
5) Door to Door Delivery to save your time and energy. We'll take the all risks during transportation.
Shanghai HJLab Instruments is one professional Chinese manufacturer of lab and pilot apparatus applied in biochemical, pharmaceutical, fine chemical and research field.
Main products are Rotary Evaporators, Glass Rectors and complementary Vacuum Pumps, Heating/Cooling Circulators, etc.
With nearly 10 years development, HJLab accumulated rich customer groups and huge amount of application experiences; Brand has won wide market recognition on reliable technology, low repair rate, sincere service and strong customization ability.
We work during out of our regular working hours (9AM to 6PM Beijing Time).
"Good quality, Reasonable price, Punctual delivery, Sincere service" is our company's commitment to you.
So Please feel free to give us a call or drop us a message, and you will be our next story of success.
Tel: | +86-21-34662527 | ||||
Mobile/WhatsApp: | +86 198 0399 4509 +86-135-2454-6911 | ||||
Email: | whitney.zhao@hujiayq.com evan.zhang@hujiayq.com | ||||
Skype: | sales@hujiayq.com | ||||
Website: | hjlabonline.com | ||||
Address: | Rm. 1023, Building 4, Lane 1388, XingXian Road, JiaDing Dist. Shanghai China(Mainland) | ||||
Review More!
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this explosion proof dual condenser?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the explosion proof dual condenser be supplied for my local voltage?
The standard configuration is 110 V, 120 V, 220 V, 230 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
