This explosion proof centrifugal fan is published with the manufacturer’s full specification — 380V/440V/415V, blade material Cast Iron. Quantity and destination market determine the final price — tell us both for a firm quote.

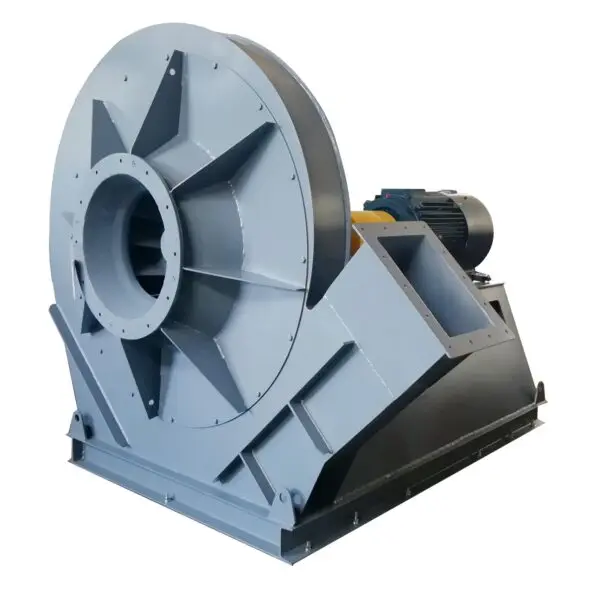

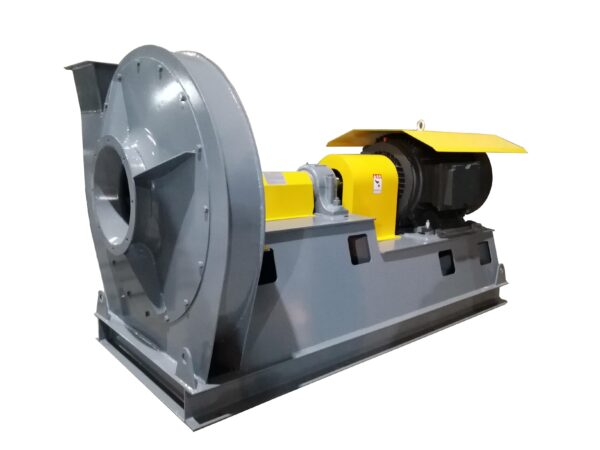

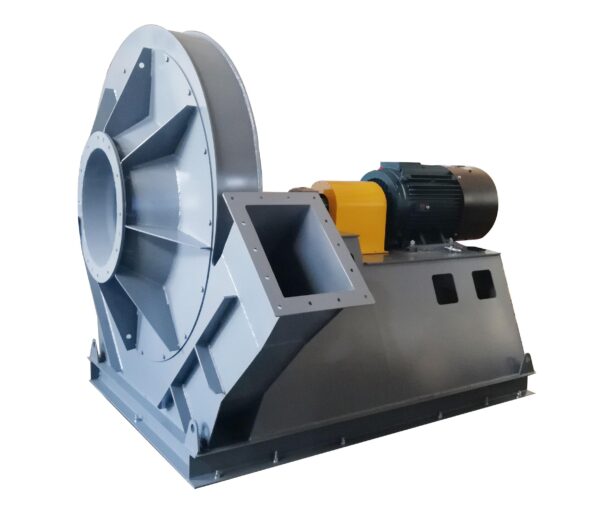

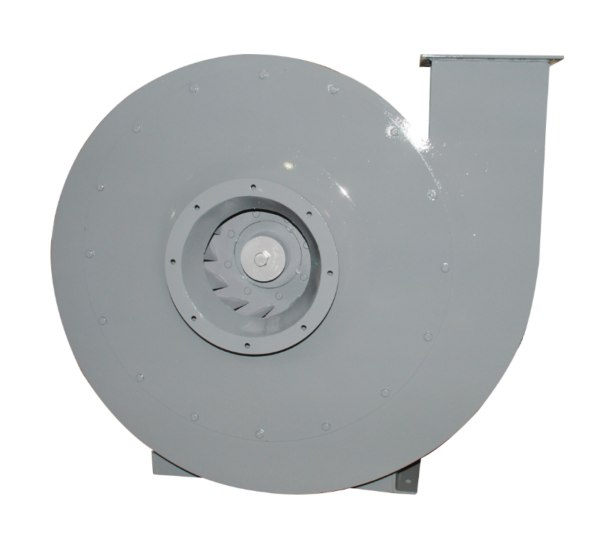

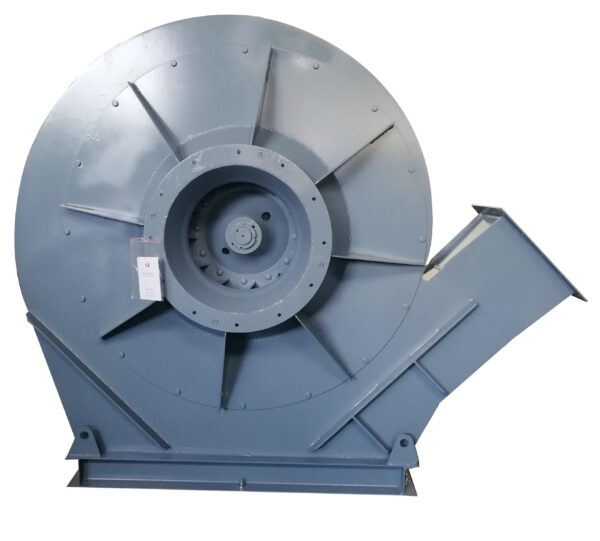

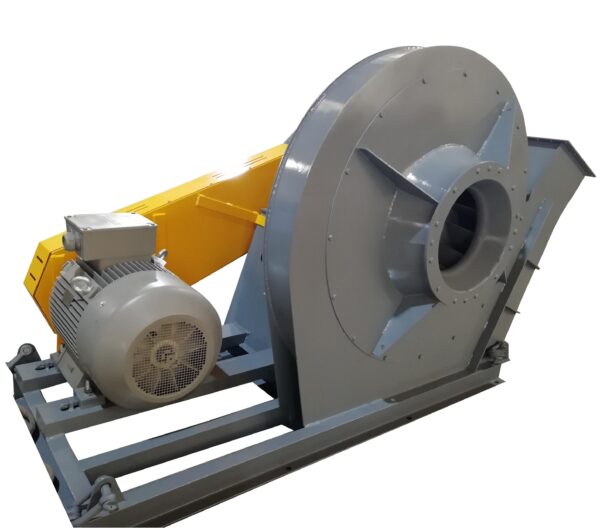

This explosion proof centrifugal fan uses a cast iron impeller and a certified flameproof motor for extraction in atmospheres where a spark would be catastrophic — solvent handling, paint plant, grain processing and chemical storage. Cast iron is specified over steel because it will not throw a spark on contact with the housing if the shaft moves. Rated for medium temperature to 80C, on 380V, 415V or 440V three-phase, with OEM configuration accepted.
Key Features of This Explosion Proof Centrifugal Fan
- Model Number: JNJA9
- Voltage: 380V/440V/415V
- Blade Material: Cast Iron
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Single Package Size: 130X90X100 cm
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 380V/440V/415V |
| Blade Material | Cast Iron |
| Customized Support | OEM |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Model Number | JNJA9 |
| Place Of Origin | Jiangsu, China |
| Brand Name | JN |
| Medium Temperature | 80℃ |
| Color | blue or as your requirement |
| Service | OEM |
| Selling Units | Single item |
| Single Package Size | 130X90X100 cm |
| Single Gross Weight | 600.000 kg |
|
Model
|
Power
(kW)
|
Rotation Speed
(r/min)
|
Volume Flow
(m³/h)
|
Total Pressure
(Pa)
|
|
3.5A
|
1.5
|
2800
|
552-847
|
2745-2744
|
|
4A
|
2.2
|
2800
|
824-1264
|
3584-3597
|
|
3
|
2900
|
1410-1704
|
3507-3253
|
|
|
4.5A
|
4
|
2900
|
1174-2062
|
4603-4447
|
|
5.5
|
2900
|
2281-2504
|
4297-4112
|
|
|
5A
|
7.5
|
2900
|
1610-2844
|
5697-5517
|
|
11
|
2930
|
3166-3488
|
5323-5080
|
|
|
5.6A
|
11
|
2930
|
2262-3619
|
7182-7109
|
|
18.5
|
2930
|
3996-4901
|
6954-6400
|
|
|
6.3A
|
18.5
|
2930
|
3220-5153
|
9149-9055
|
|
30
|
2950
|
5690-6978
|
8857-8148
|
|
|
7.1D
|
37
|
2950
|
4610-7376
|
11717-11596
|
|
55
|
2970
|
8144-9986
|
11340-10426
|
|
|
8D
|
75
|
2970
|
6594-11649
|
15034-14546
|
|
110
|
2980
|
12968-14287
|
14021-13362
|
|
|
8D
|
7.5
|
1450
|
3297-4616
|
3620-3647
|
|
15
|
1450
|
5275-7144
|
3584-3231
|
|
|
9D
|
15
|
1450
|
4695-7511
|
4597-4551
|
|
22
|
1450
|
8294-10171
|
4453-4101
|
|
|
10D
|
30
|
1470
|
6440-12450
|
5840-5495
|
|
37
|
1480
|
13952-15455
|
5244-4958
|
|
|
11.2D
|
45
|
1480
|
9047-15380
|
7384-7236
|
|
75
|
1480
|
17491-21713
|
6927-6246
|
|
|
11.2D
|
15
|
970
|
5990-11580
|
3182-2996
|
|
22
|
970
|
12978-14375
|
2860-2705
|
|
|
12.5D
|
75
|
1480
|
12577-18447
|
9229-9310
|
|
110
|
1480
|
21381-30186
|
9068-7822
|
|
|
14D
|
220
|
1490
|
30040-42409
|
11464-9878
|
|
75
|
990
|
19888-28078
|
4917-4249
|
|
|
16D
|
400
|
1490
|
26377-63305
|
15425-13035
|
|
110
|
990
|
29687-41912
|
6456-5575
|
|
|
17D
|
500
|
1490
|
61200-75900
|
16356-14715
|
|
160
|
990
|
40500-50300
|
7169-6450
|
|
|
18D
|
630
|
1490
|
72600-90100
|
18336-16497
|
|
200
|
990
|
48100-59700
|
8037-7231
|
2.Designing and manufacturing of non-standard equipment
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product’s quality?

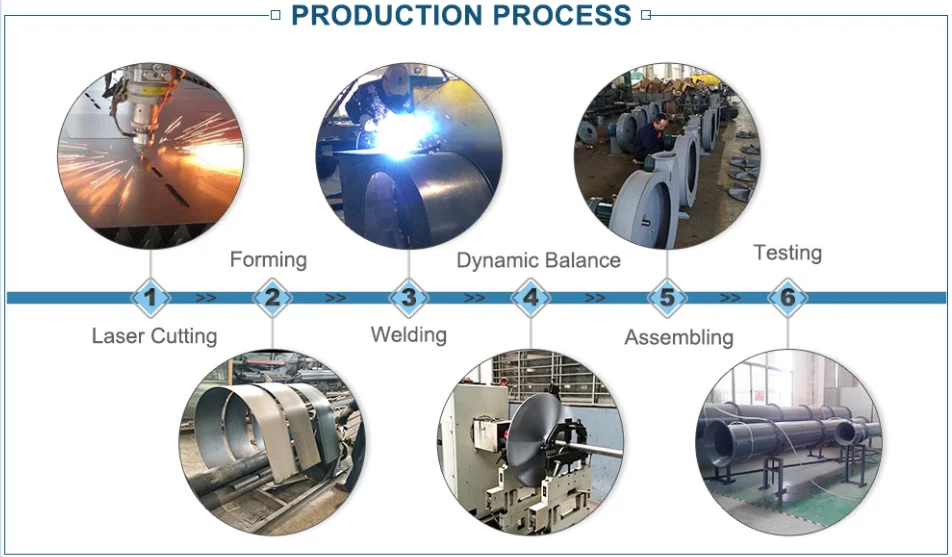

A:All the products have quality testing and dynamic balance before delivery.
Frequently Asked Questions
What is the minimum order quantity for this explosion proof centrifugal fan?
Minimum order quantity is set per configuration and trial quantities can usually be arranged. Send your target volume with an enquiry and a quotation will follow with current lead times.
What warranty covers this explosion proof centrifugal fan?
A 1 Year warranty is supplied as standard. Spare parts and technical support remain available beyond the warranty period.
Can it be built for my local voltage?
The standard specification is 380V/440V/415V. Alternative voltage and frequency builds are available when confirmed at order stage.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying volumes. Supply your artwork and technical requirements with the enquiry.
How long is production and delivery?
Stocked configurations normally ship in 7-15 days. Customised or high-volume orders are typically produced in 25-35 days, confirmed at order.
