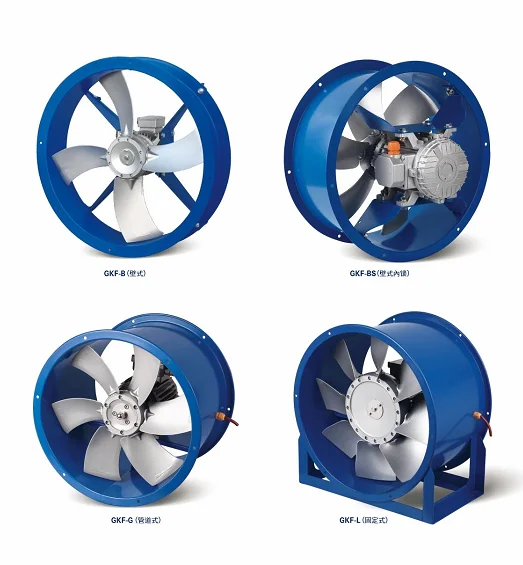

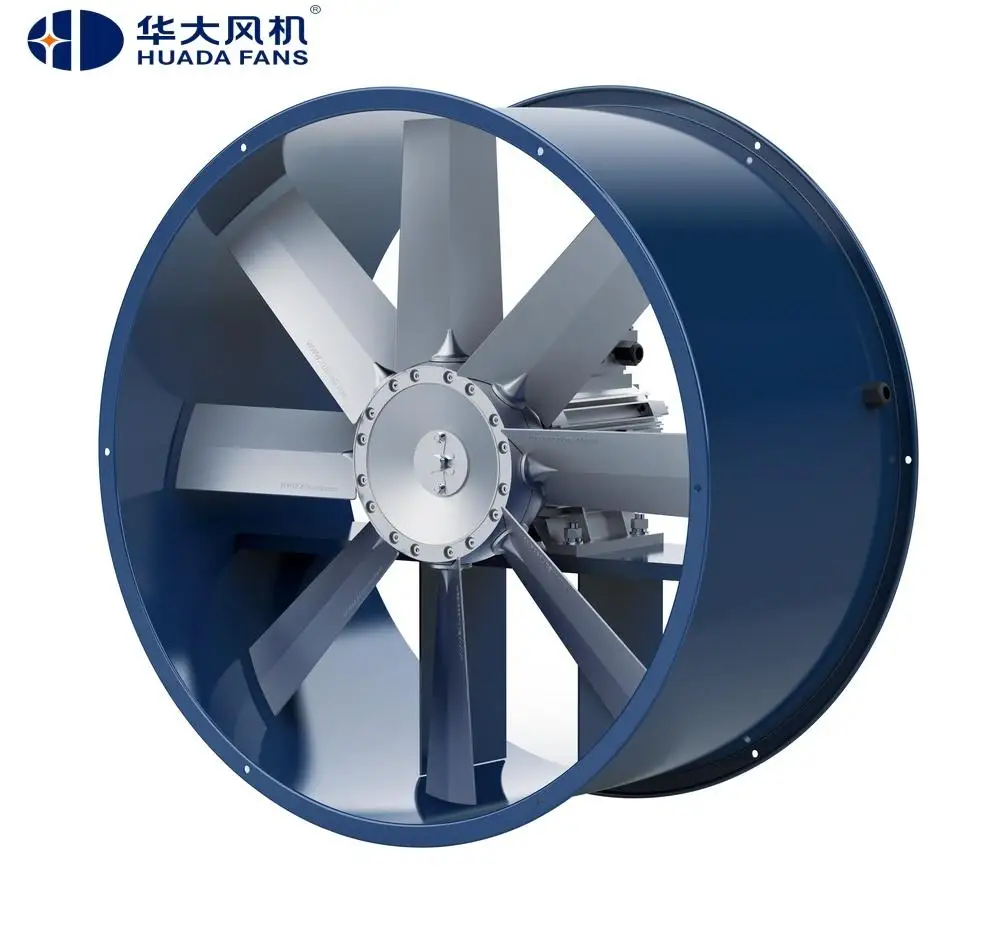

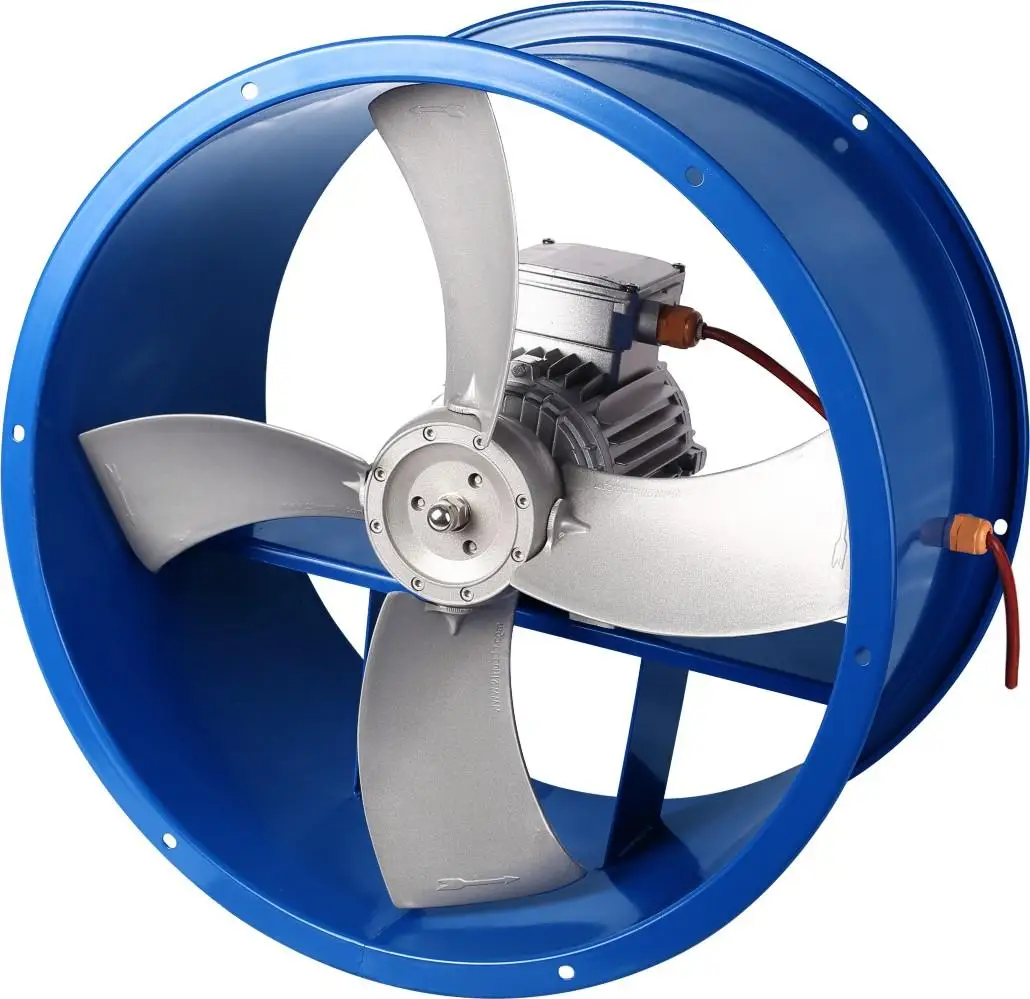

GKF series high temperature high humidity axial fan is widely used in the painting,tobacco,wood drying,production of rubber.About vented exhaust,the fan can be used in the lots of high temperature and high humidity environment,for example:the factory,the workshop,the office,the warehouse,the basement.The axial fan is unidirectional vented exhaust equipment .
The fans has characteristic of resistance to high-temperature ,large air volume,high pressure,energy-efficient,low noise,convenience maintenance,etc.The gas has no more than 150 mg/ cbm dust and hard particles.
As the blades diameter is different,there are 11 model,No.2.5,3,3.5,4,5,5.5,6,7,8,9,10.The angle of fan can be adjusted according to the clients’ requirements.
The fan blades can be direct connected with the motor.The circumferential velocity of the impeller does not exceed the condition,there are three different rotational speed:2900 r/min,1450 r/min,960 r/min.When face the air inlet ,the blades are counterclockwise rotation.

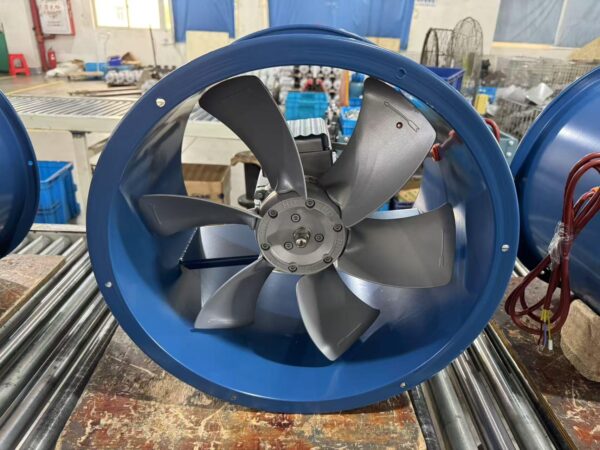

Product Detailed Introduction
|
Air flow
|
5200~12000m³/h
|
|
Operation temperature
|
-70℃~+120℃
|
|
Humidity
|
≤98%
|
|
Imepller D size
|
500mm
|
|
Material of impeller
|
aluminum alloy
|
|
Insulation Class
|
Class H
|
Tech Data
|
Model
|
Speed (rpm)
|
Air Flow (m³/h)
|
Total Pressure (Pa)
|
Hydrostatic pressure (Pa)
|
Power (kw)
|
No. of blades
|
|
2.5
|
2900
|
1400-2200
|
120-160
|
40-110
|
0.18
|
4
|
|
1500-2500
|
130-170
|
50-116
|
0.25
|
4
|
4
|
|
|
1450
|
1000-1600
|
55-60
|
20-28
|
0.12
|
4
|
|
|
3
|
2900
|
1800-3200
|
120-180
|
80-150
|
0.25
|
4
|
|
2000-3500
|
140-200
|
90-170
|
0.37
|
4
|
||
|
1450
|
1200-2200
|
60-80
|
30-60
|
0.12
|
4
|
|
|
4
|
2900
|
3000-5500
|
230-300
|
145-250
|
0.55
|
4
|
|
4000-6500
|
250-330
|
145-270
|
0.75
|
4
|
||
|
5000-7500
|
270-380
|
150-320
|
1.1
|
6
|
||
|
1450
|
2500-4300
|
80-106
|
40-80
|
0.25
|
4
|
|
|
2800-5000
|
100-120
|
50-95
|
0.37
|
6
|
||
|
3200-5200
|
110-130
|
70-90
|
0.55
|
6
|
||
|
5
|
2900
|
5200-8500
|
250-450
|
150-420
|
1.5
|
4
|
|
6000-10000
|
300-550
|
200-500
|
2.2
|
4
|
||
|
7000-12000
|
400-600
|
250-550
|
3
|
4
|
||
|
1450
|
4500-7000
|
110-140
|
70-114
|
0.37
|
4
|
|
|
5000-7500
|
115-150
|
75-120
|
0.55
|
4
|
||
|
5400-8700
|
140-170
|
80-137
|
0.75
|
6
|
||
|
6000-9000
|
190-210
|
110-170
|
0.75
|
8
|
||
|
6500-9500
|
200-220
|
135-175
|
1.1
|
8
|

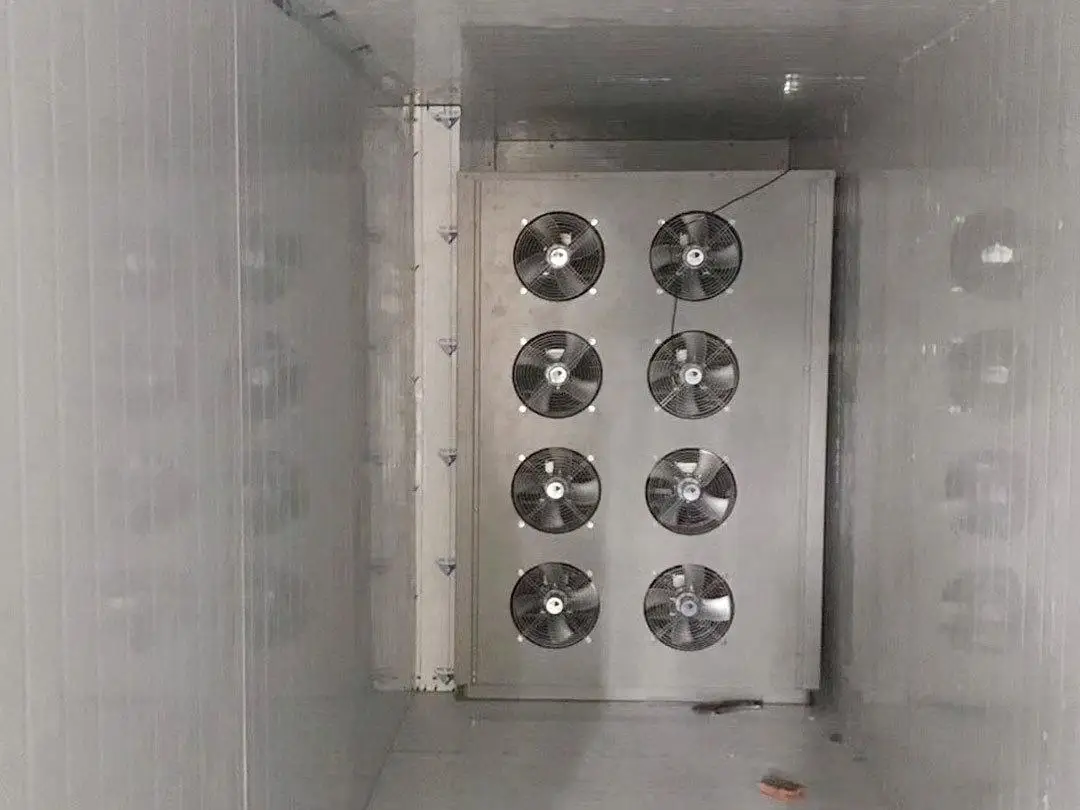

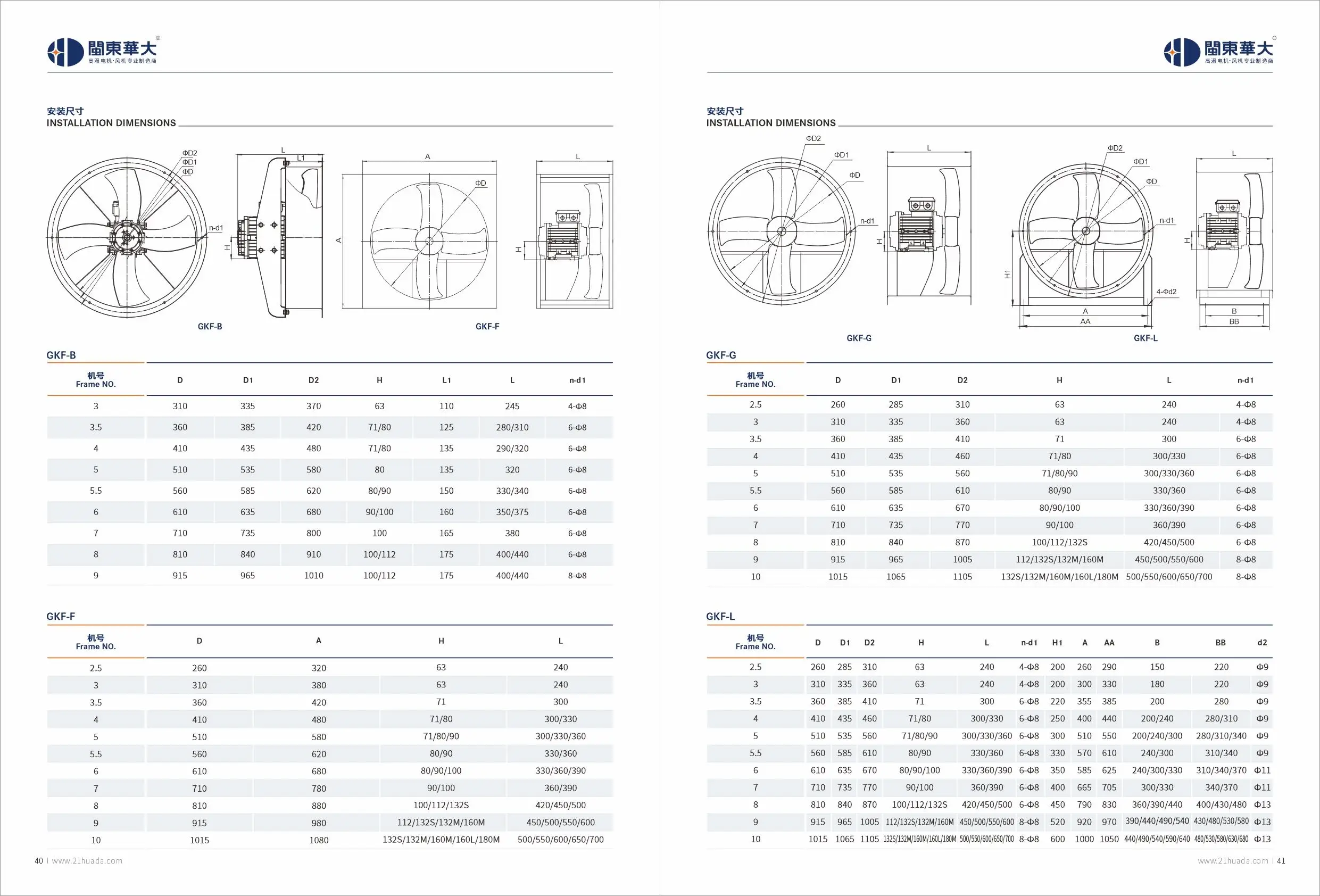

Installation

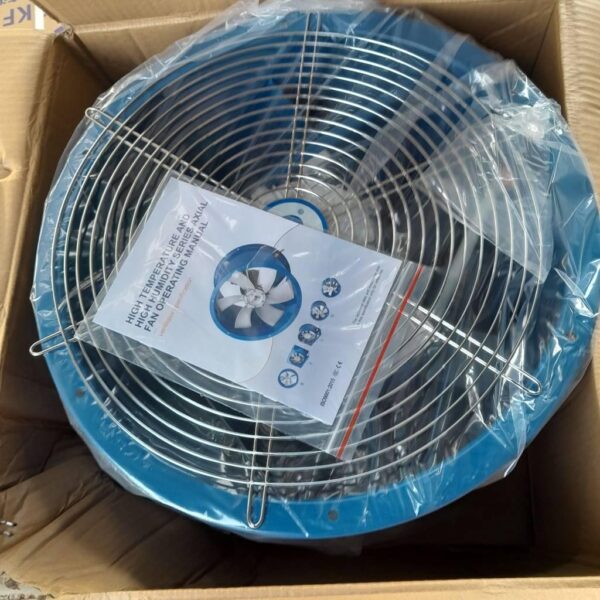

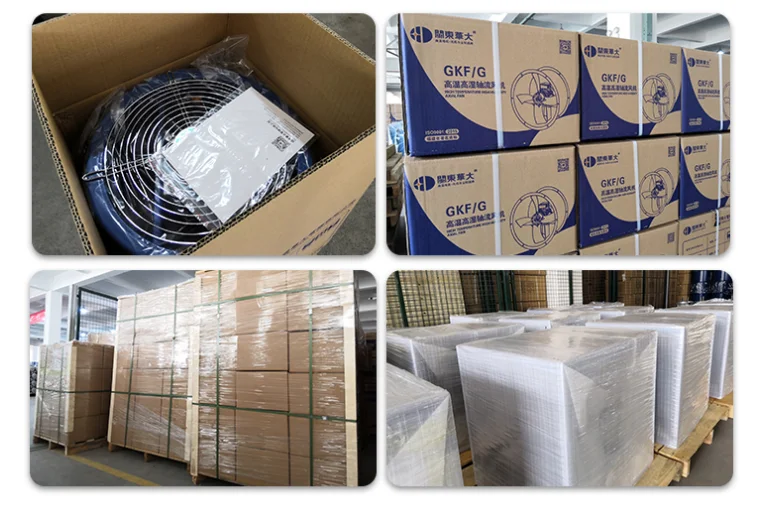

Packing Details

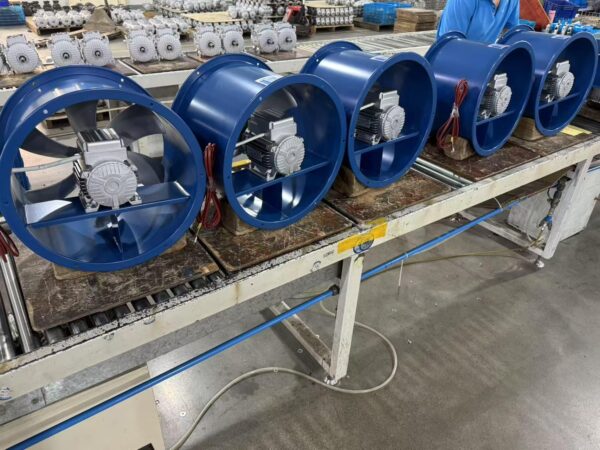

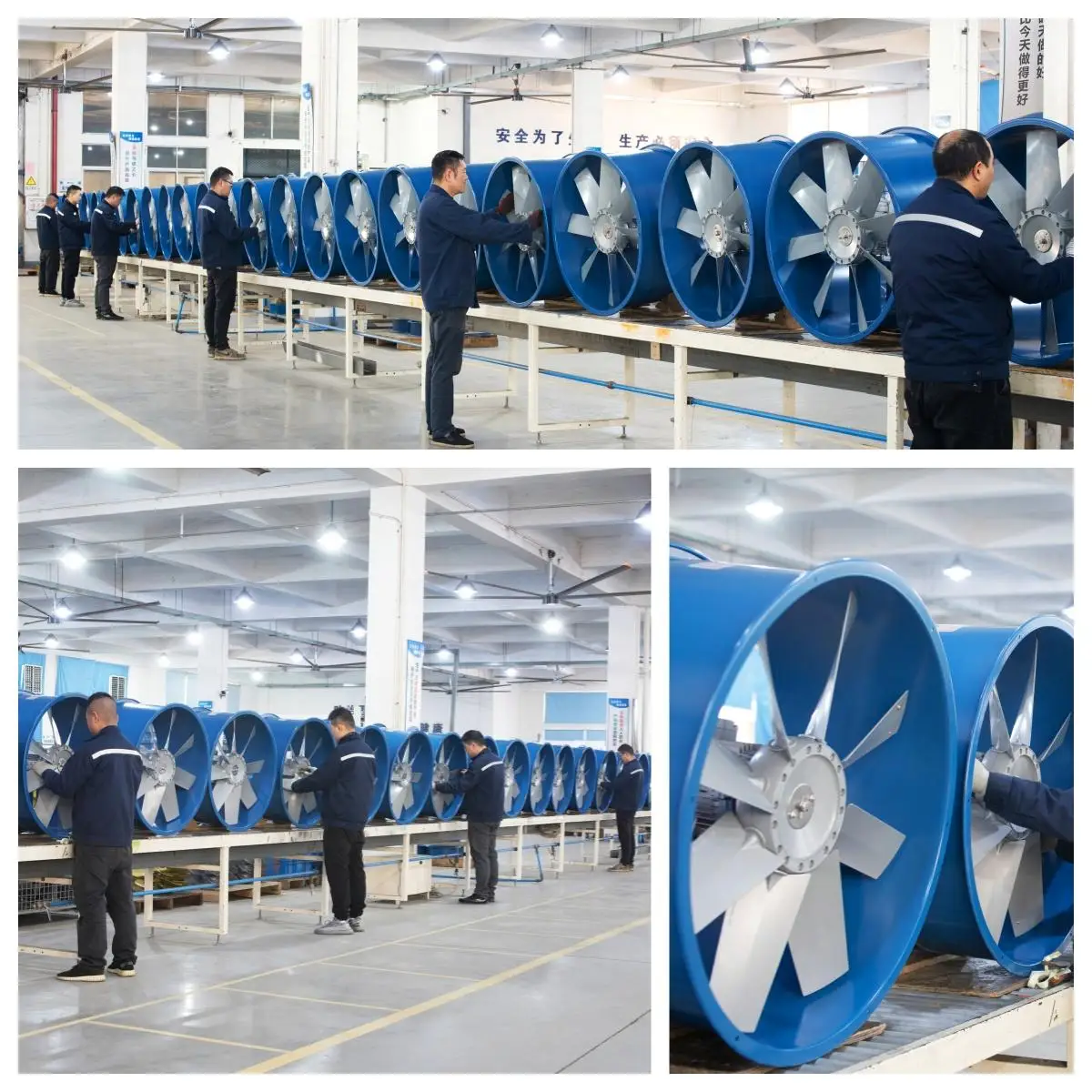

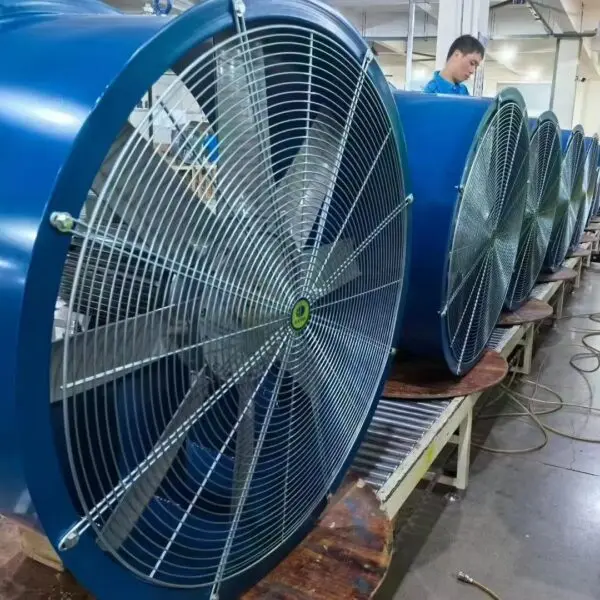

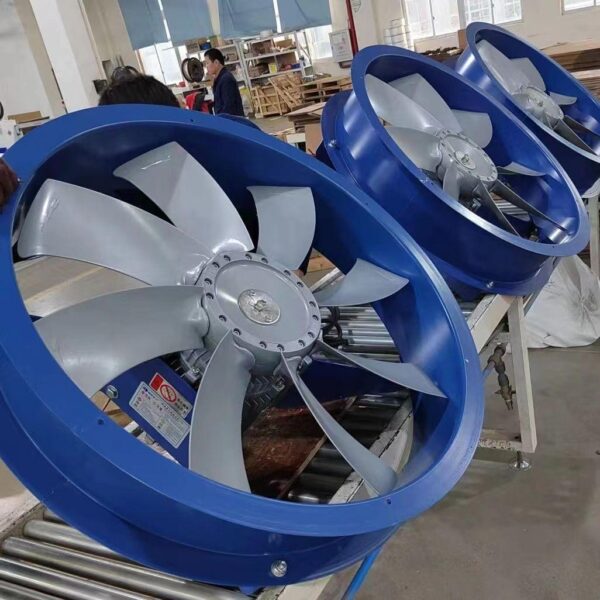

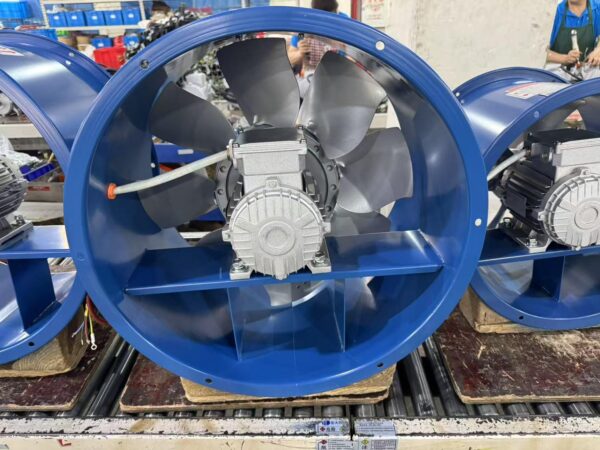

Fans assembly line
Our staff are currently conducting a meticulous assembly process.

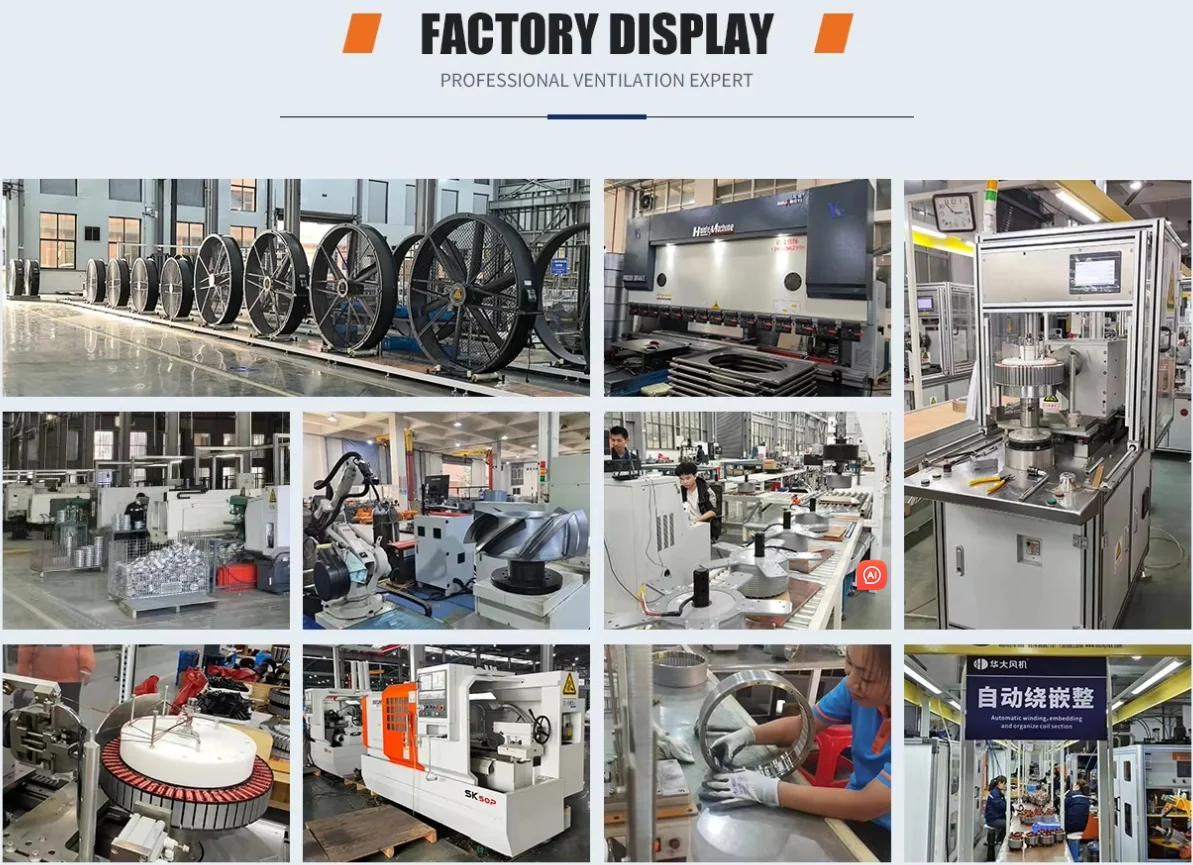

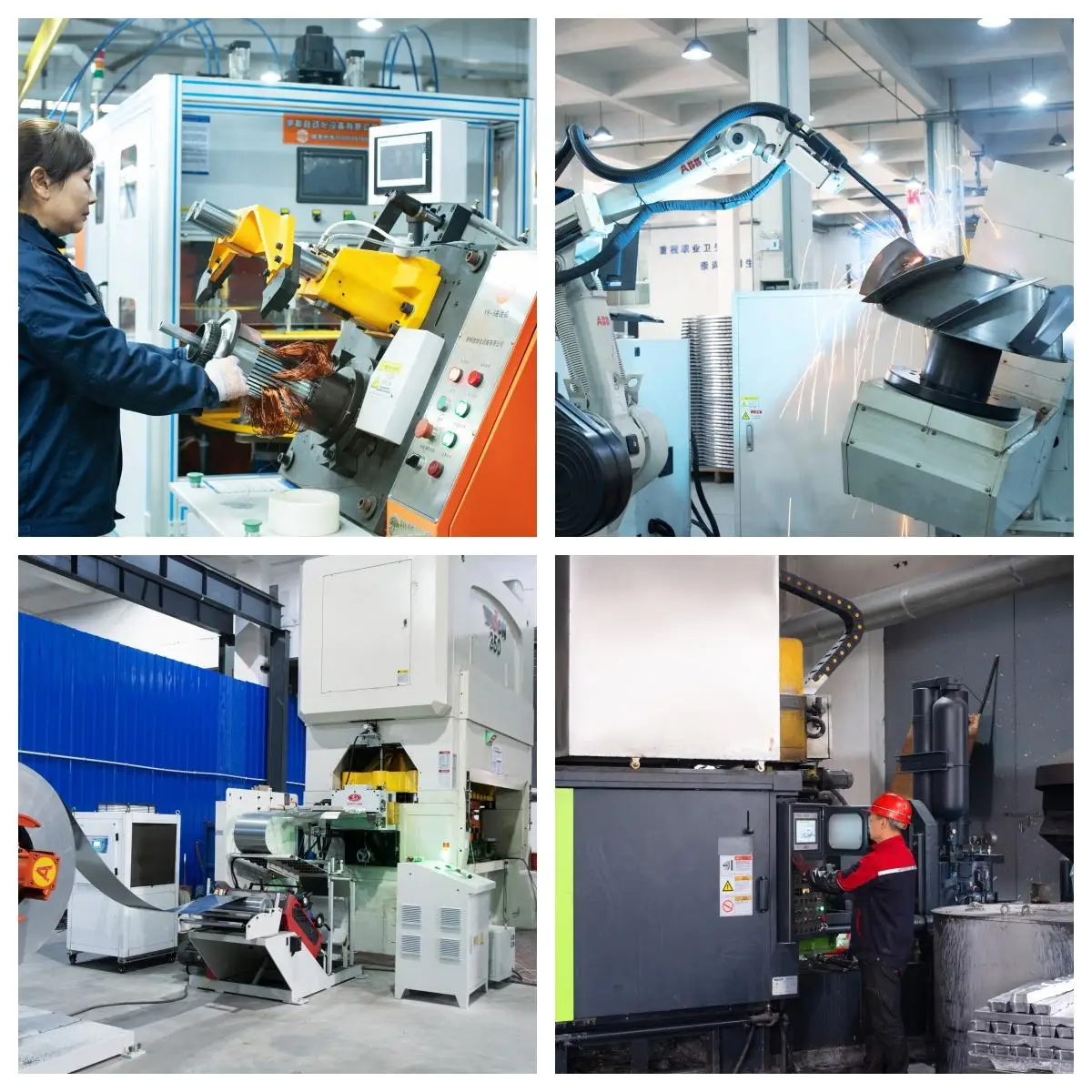

Production Equipment
Our manufacturing is powered by state-of-the-art production equipment, including CNC lathes and precision milling machines,
ensuring superior quality and efficiency
. Supported by sophisticated testing instruments and a rigorous quality assurance system, we guarantee unmatched reliability in
every product .
Driven by innovative technology and automated processes, we deliver high-precision components with consistent excellence for
industries worldwide
ensuring superior quality and efficiency
. Supported by sophisticated testing instruments and a rigorous quality assurance system, we guarantee unmatched reliability in
every product .
Driven by innovative technology and automated processes, we deliver high-precision components with consistent excellence for
industries worldwide

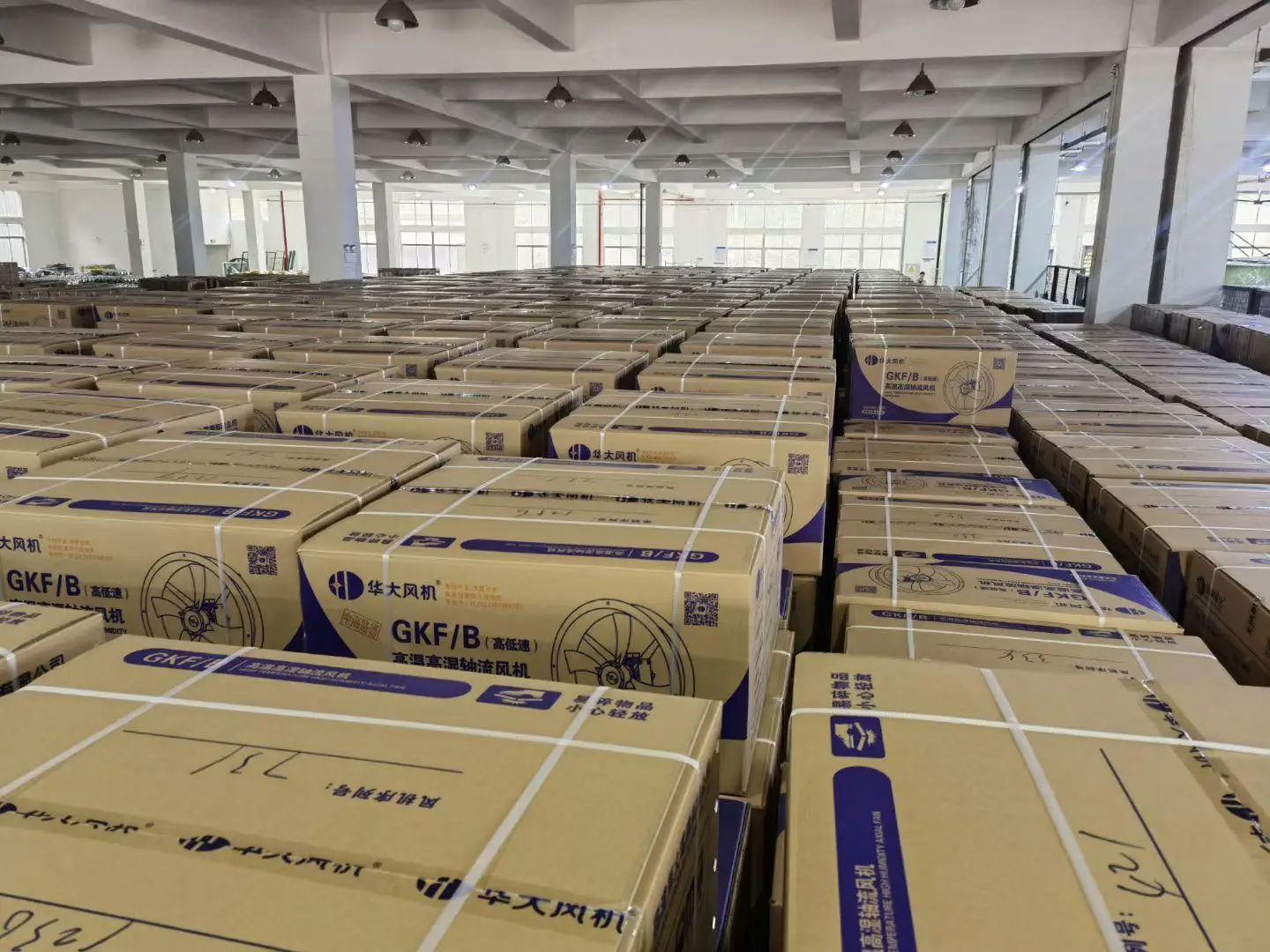

Warehouse
Inventory is abundant and delivery is prompt.

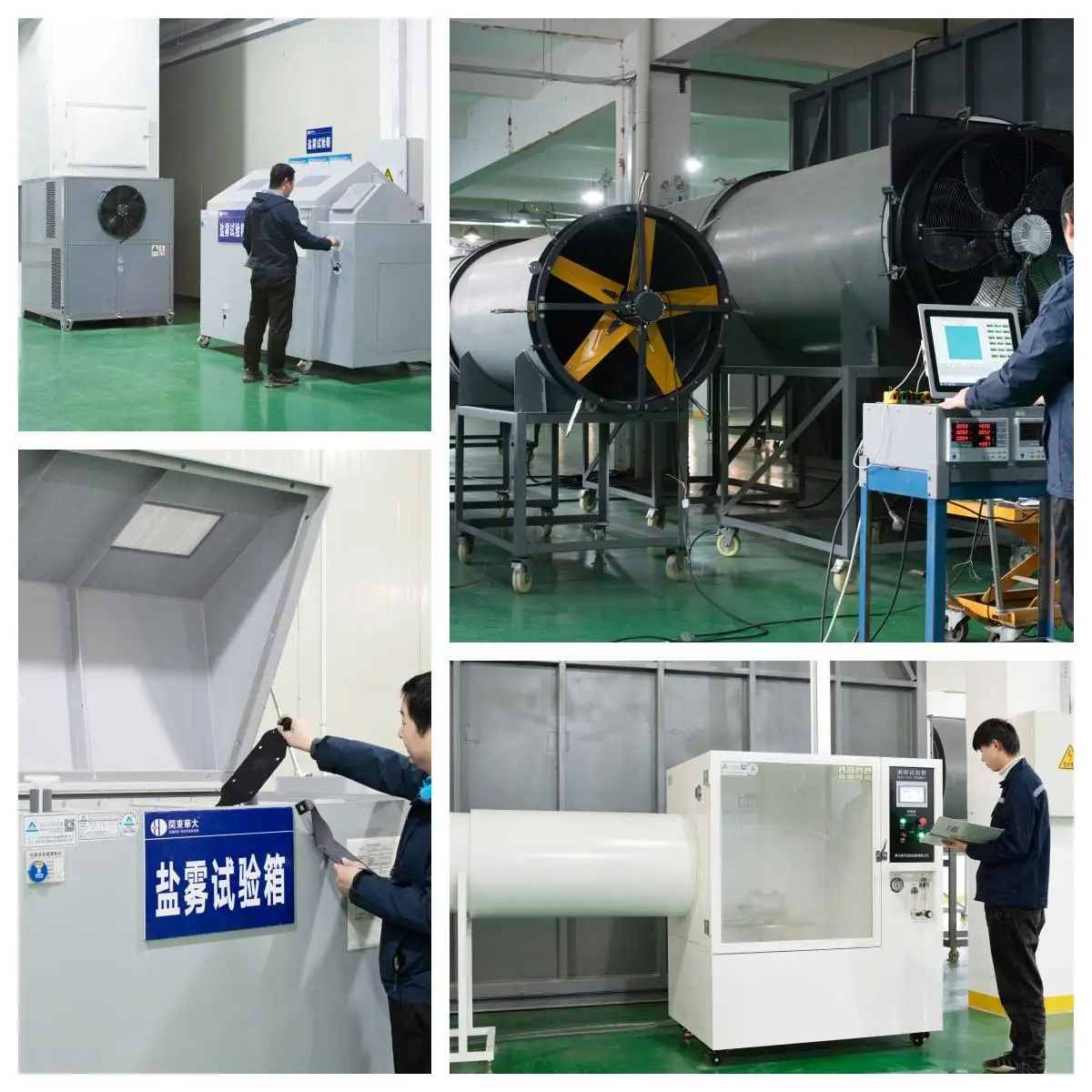

Laboratoty
Our facility is equipped with a state-of-the-art Chamber (Wind Tunnel) Test Rig, a core aerodynamic setup designed per GB/T
1236-2000​ and international standards like AMCA 210-07​ . This system is engineered for comprehensive performance evaluation of
various fans, including axial, centrifugal, and blower types, measuring critical parameters such as air volume (flow rate), wind
pressure, power consumption, and efficiency
1236-2000​ and international standards like AMCA 210-07​ . This system is engineered for comprehensive performance evaluation of
various fans, including axial, centrifugal, and blower types, measuring critical parameters such as air volume (flow rate), wind
pressure, power consumption, and efficiency

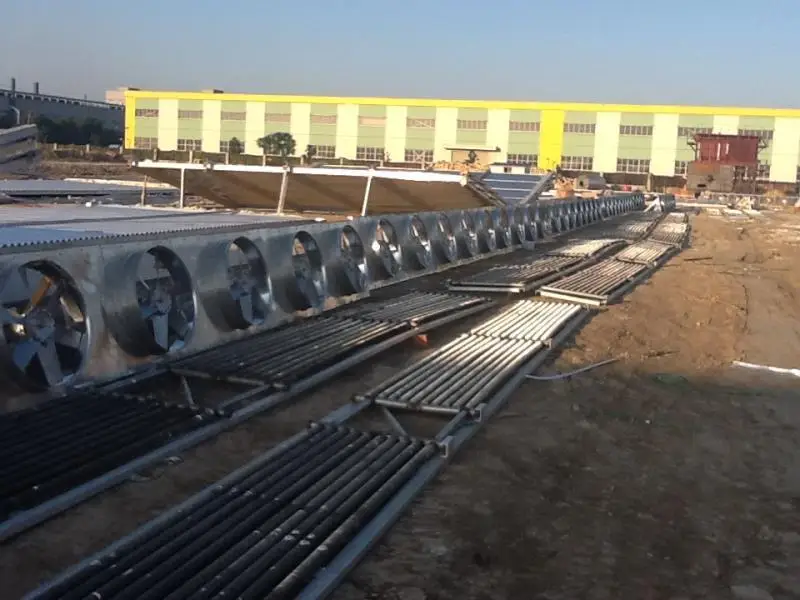

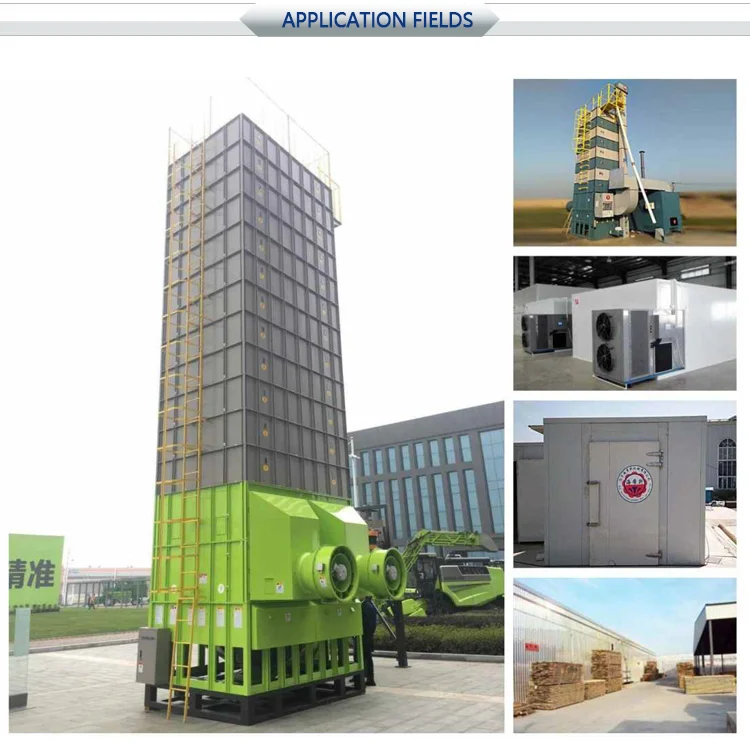

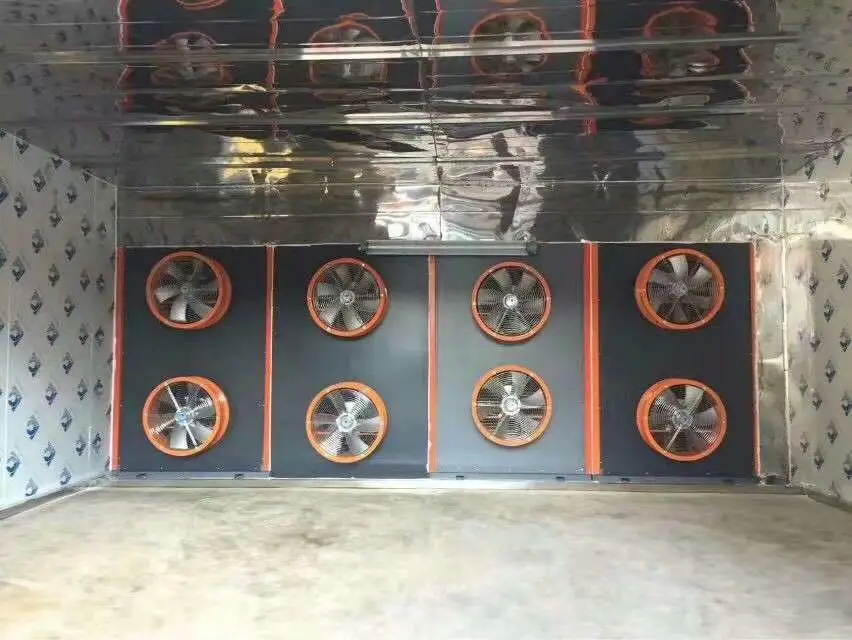

Application

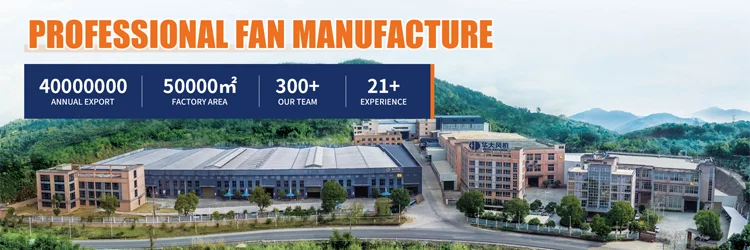

Company Introduction
Fujian Huada Motor Factory established in 1998,registered as Fujian Huada Electric CO.,LTD,located in Fujian Province.It is a modern enterprise which engaged in Scientific research,production,sales and service.Covering an area of 50,000 square meters,of which 40,000 square meters are standard workshop. Huada is more than ten years to focus on the research and development of high temperature motor,high temperature fan;Strictly control the production process ,making the high-quality goods.Products are included MSW series high temperature motor,GKF series flue-cured tobacco special-purpose fan,GKW series full aluminum high temperature and high humidity fan,CRF series grain drying dedicated fan,DJF series multistage high -pressure fan,DRF series diversion type high temperature fan,HTF series high temperature fire smoke exhaust fan,SWF series mixed flow fan and all kinds of high temperature and centrifugal fan and so on. Besides our products passed the CCC certification,European Union CE certification. Best selling in China and overseas markets,Huada as well known brand reputation in the domestic complete set of drying industry. GKF series fan was chosen as the industry standard by the national tobacco administration in 2009. The project of Flue-cured tobacco asynchronous motor with variable speed multistage won the third prize in Ningde science and technology progress and the second prize in Fuan Science and technology progress.
More Information

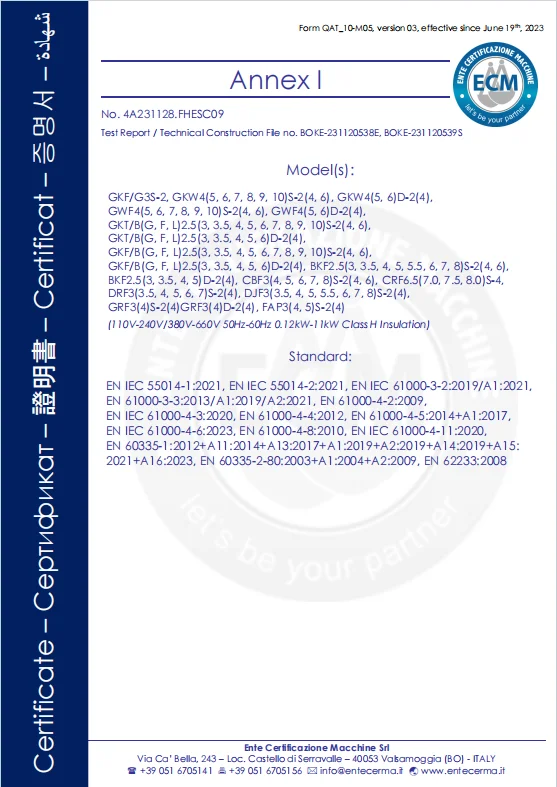

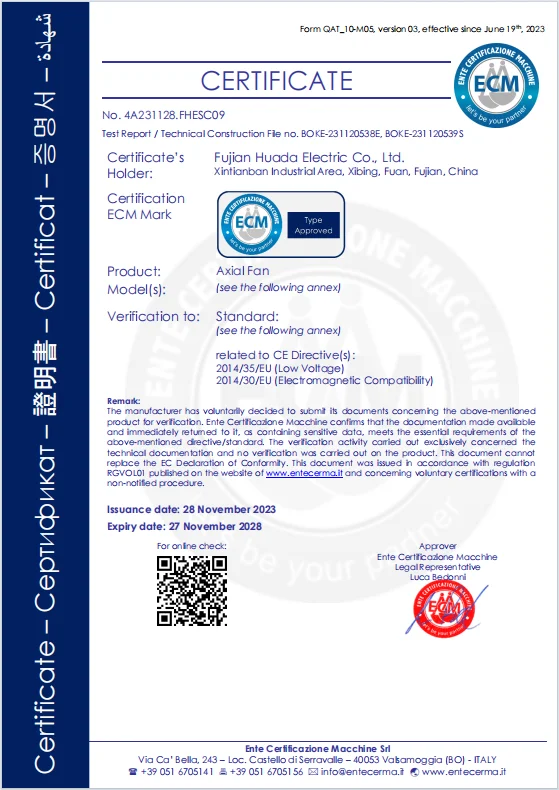

CERTIFICATE&HONOR
FAQ
Q: Are you the factory?
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory,drying agriculture products，medical herbs,aquatic products,animal husbandry,heat
pumps,HVAC,refrigeration and other fields.
Q: Is it used in electricity?
A: Yes, it’s power supply is electricity,very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 1-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
A: Of course, we are a factory focusing on large ceiling fans based in Fujian, China, be your direct fan supplier.
Q:Where does your fan use in?
A: This fan is widely used in factory,drying agriculture products，medical herbs,aquatic products,animal husbandry,heat
pumps,HVAC,refrigeration and other fields.
Q: Is it used in electricity?
A: Yes, it’s power supply is electricity,very energy-saving.
Q: What the price per fan?
A: We will offer you the best price according to the qty and the model.
Q: How long is the delivery time?
A: Normally 7-10 working days.
Q: How long is the warranty?
A: We offer 1-year warranty to guarantee the quality. Most importantly, its service life is above 20 years.
Compare with GKT
The difference is GKF curved-blade one-way air supply，GKT is straight-blade forward and backward air supply.
