Key specification for this fan: voltage 110/220, power source Electric. Everything below is reproduced from the factory data sheet. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Fan
- Model Number: E8025D-YH2
- Power Source: Electric
- Voltage: 110/220
- Material: Plastic
- Blade Material: Plastic
- Speed: 3100RPM
Technical Specifications
| Voltage | 110/220 |
|---|---|
| Speed | 3100RPM |
| Type | High-Temperature Axial Fan |
| Material | Plastic |
| Blade Material | Plastic |
| Mounting Type | Industrial Equipment |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Taiwan, China |
| Brand Name | symbang |
| Model Number | E8025D-YH2 |
| Color | Black |
| Certification | Ce |
| Size | 80x80X25mm |
| Selling Units | Single item |
| Single Package Size | 18X18X12 cm |
| Single Gross Weight | 0.3 kg |
Product Details

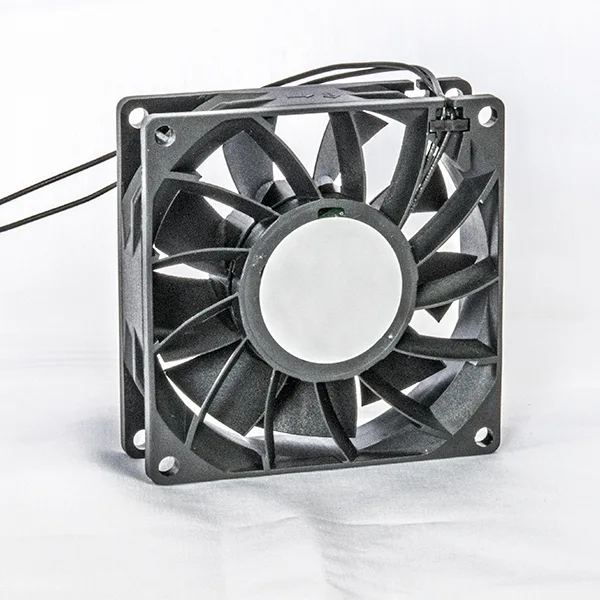

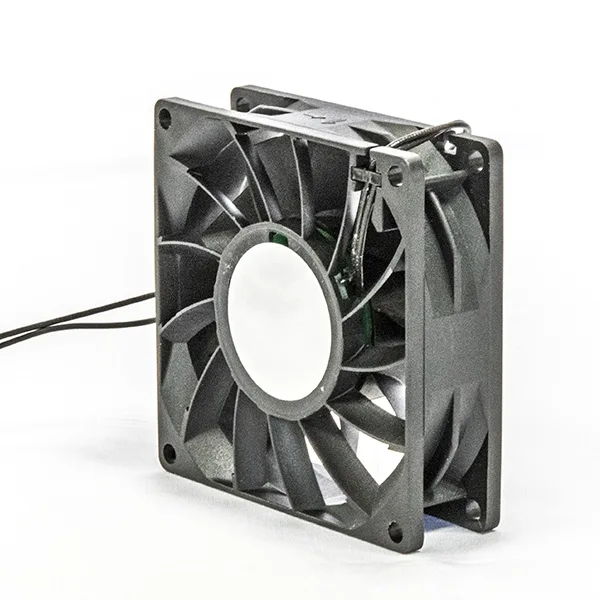

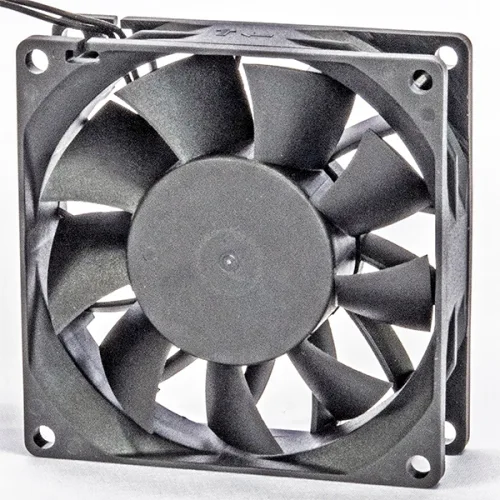

80X80X25mm 110v 220v ec motor small fan (E8025D-YH2)
| HOUSING | Thermoplastic PBT, UL94V-0 |
| IMPELLER | Thermoplastic PBT, UL94V-0 |
| BEARING | Ball |
| INSULATION | Class A |
| OPERATING TEMPERATURE | -10°C to + 70°C |
| OPERATING VOLTAGE RANGE | 90 VAC to 130VAC for 110V Type |
| 100 VAC to 240 VAC for 220V Type | |
| DIELECTRIC STRENGTH | 5mA Max. at 500 VAC for 1 minute |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| MOTOR TYPE | Brushless EC Motor |
| TERMINATION | Lead Wire |
| WEIGHT | 78 g |
| ROHS COMPLIANCE | Yes |
| IP LEVEL | IP21 (Special IP Rating On Request) |
Advantage :
1. EC MOTOR
2. SAVING POWER SAVING DEVICE
Applications:
- Power Supply Units
- Measuring Instruments
- Electronic Switch Systems
- Automatic Vending Machines
- Air-conditioning & Heating Apparatus
- Computers(CPU, Peripheral & Terminal Equipment)
- Medical Equipment
- Acoustic Equipment
- Flight Instrumentation
- Numerical Control(NC)Units
- Data Communications Terminal Equipment
- Office Machinery Appliances & Copying Machines
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade |
|
|

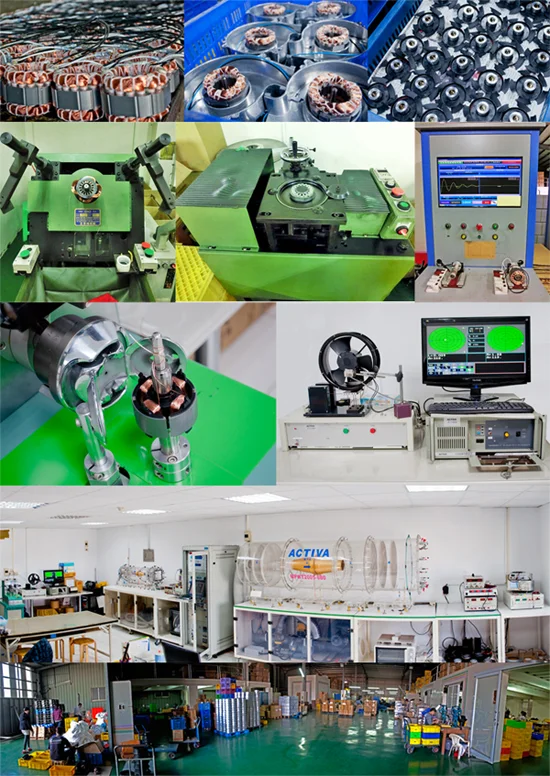

Our factory:
Our certificate:
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $14 / piece
- 100–999 piece: US $11.28 / piece
- 1000+ piece: US $9.72 / piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this fan carry?
It is supplied with Ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the fan be supplied for my local voltage?
The standard configuration is 110/220. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by ACTIVA INC.. The company 15 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full ACTIVA INC. range on HVACR Nexus.
