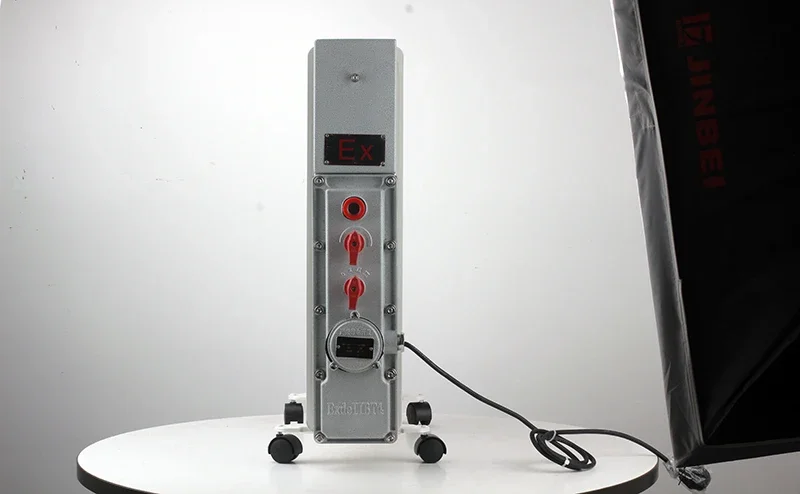

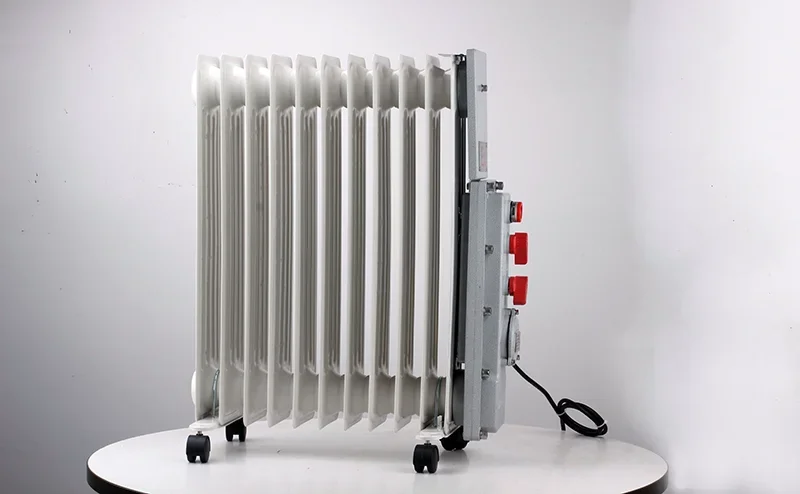

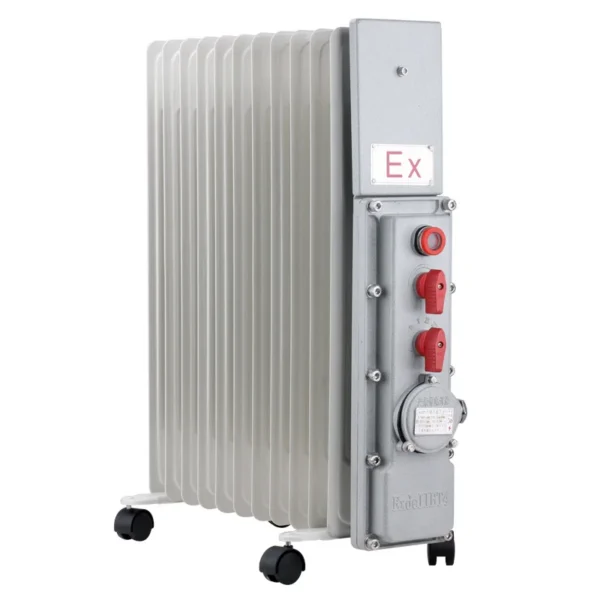

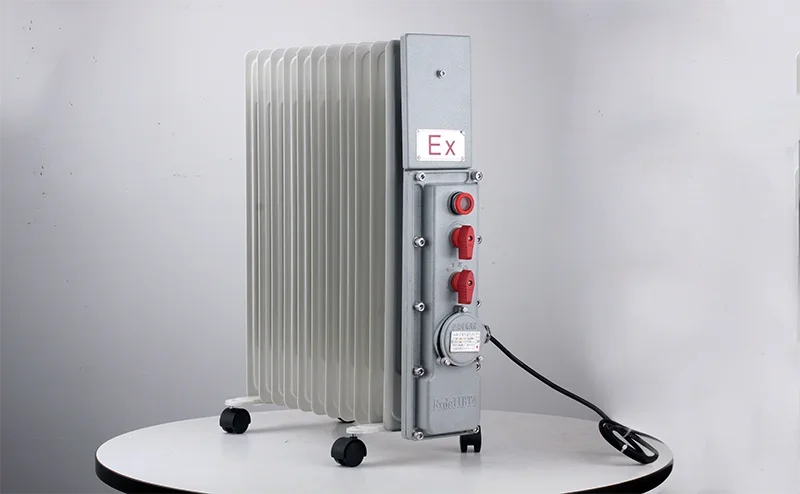

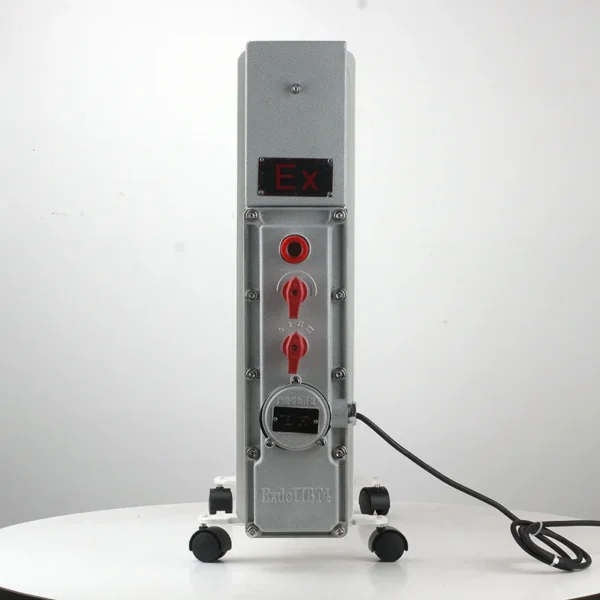

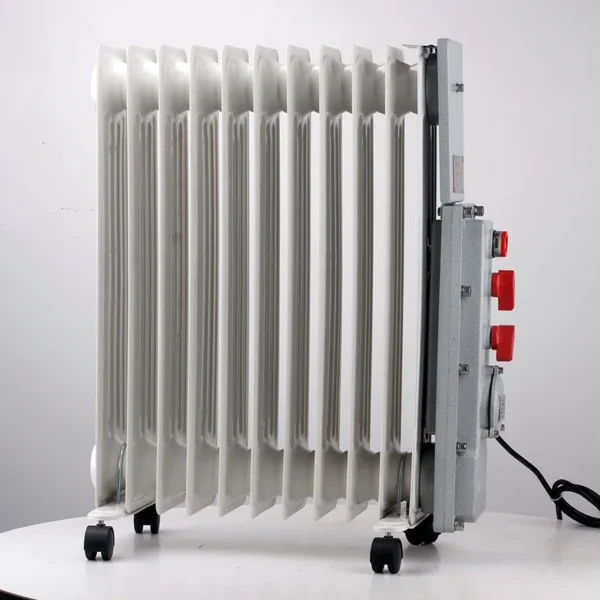

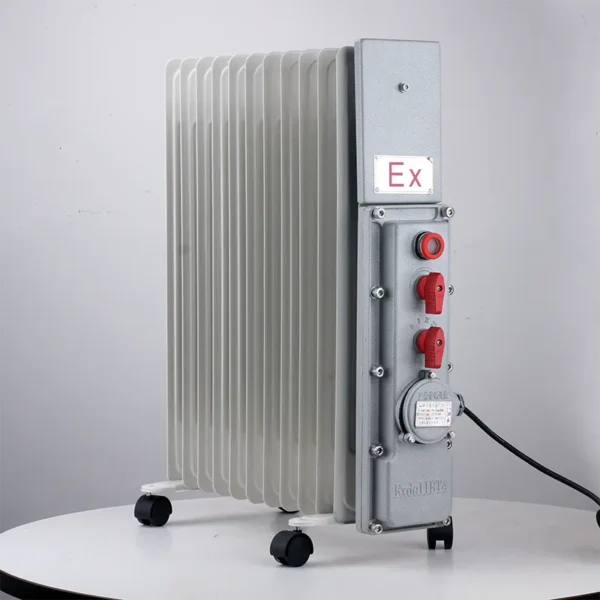

Filled radiator — voltage AC 220V / AC 380V, heating capacity Customize. The complete factory specification follows. Made by Shenhai Explosion-Proof Technology Co., Ltd. (5 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Filled Radiator
- Power Source: Electric
- Voltage: AC 220V / AC 380V
- Heating Capacity: Customize
- Material: Aluminum
- Material Quality: Aluminum Alloy
- Warranty: 1 Year
Technical Specifications
| Type | Air Heater,band heater |
|---|---|
| Power Source | Electric |
| Voltage | AC 220V / AC 380V |
| Material | Aluminum |
| Core Components | HEATING WIRE |
| Key Selling Points | Competitive Price |
| Temperature Range | low – temperature,medium – temperature, high – temperature |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Heating Capacity | Customize |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 12 |
| Brand Name | Shen Hai |
| Dimension(L*W*H) | Customize |
| Working Temperature Range | -20 – 40 |
| Function | Used For Heating Or Improving Low-Temperature Working Environment |
| Protection Level | IP66 (includes IP65 protection rating) |
| Inlet Thread | G3/4 |
| Cable Outer Dia | 9mm-10mm,12mm-13mm |
| Material Quality | Aluminum Alloy |
| Applicable Scope | Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments |
| Same Series Model | BYT-1600/9,BYT-2000/11,BYT-2500/13,BYT-3000/15 |
| Explosion Proof Sign | Ex db IIB T4 Gb,Ex eb IIB T4 Gb,Ex tb IIIC T135℃ Db |
| Corrosion Protection Level | WF1*WF2 |
| Applicable Industries | Oil Exploitation,Oil Refining,Chemical,Metallurgy,Marine Oil,Platform |
| Selling Units | Single item |
| Single Package Size | 70.00X45.00X30.00 cm |
| Single Gross Weight | 59.06 kg |
Product Details

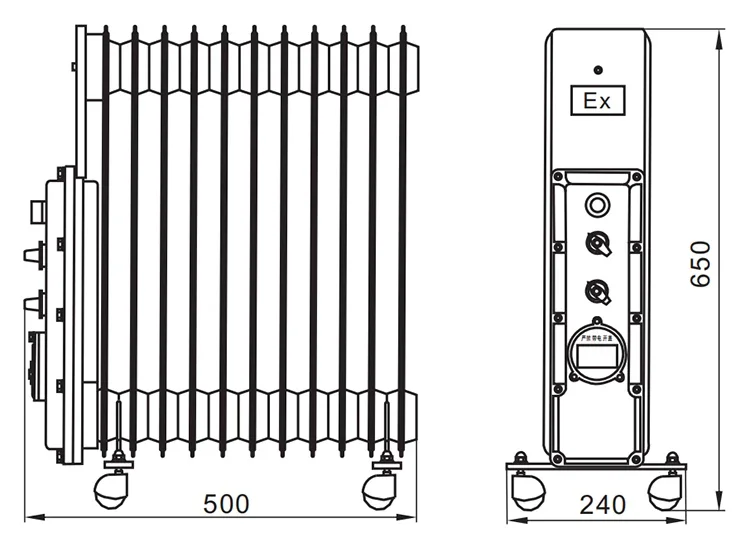

Model | Rated voltage (V) | Rated power (W) | Explosion proof sign | Specification of heat sink (piece) | Overall dimensions (mm) | Inlet specification | Applicable cable outer diameter |
BYT-1600/9 | 220 | 1600 | Ex db IIB T4 Gb Ex eb IIB T4 Gb Ex tb IIIC T135℃ Db | 9 | 425×240×650 | G3/4 | φ9~φ10mm φ12~φ13mm |
BYT-2000/11 | AC380V | 2000 | II | 11 | 500×240×650 | 3.4 | |
BYT-2500/13 | AC220V | 2500 | III | 13 | 575×240×650 | 4.3 | |
BYT-3000/15 | AC380V | 3000 | IV | 15 | 650×240×650 | 6.5 |
A: Can I have a sample order?
Thanks for your visiting and hope to cooperate! ($10 free for the first order) |
contact us
Website: https://www.shenhai-ex.com/
Company: Shenhai Explosion-Proof Technology Co., Ltd.
Address: No. 318, Wei15 Road, Economic Development Zone, Wenzhou, Zhejiang, China
Click to return to the home page |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $101.11 / piece
- 10–49 piece: US $99.75 / piece
- 50+ piece: US $96.23 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this filled radiator?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the filled radiator be supplied for my local voltage?
The standard configuration is AC 220V / AC 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenhai Explosion-Proof Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenhai Explosion-Proof Technology Co., Ltd. range on HVACR Nexus.
