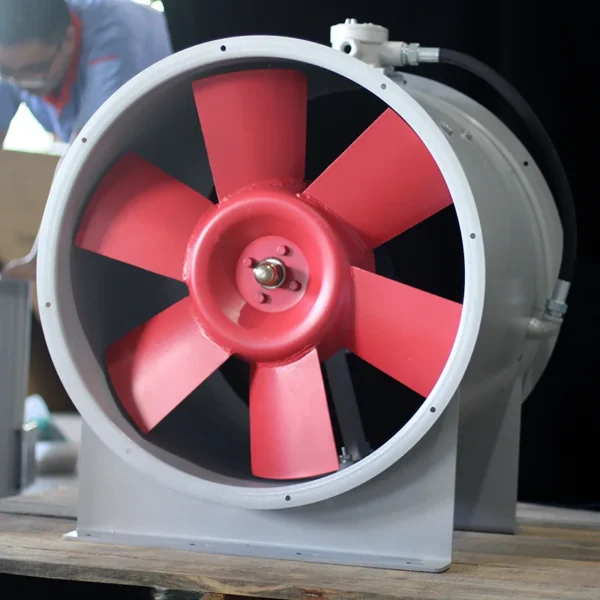

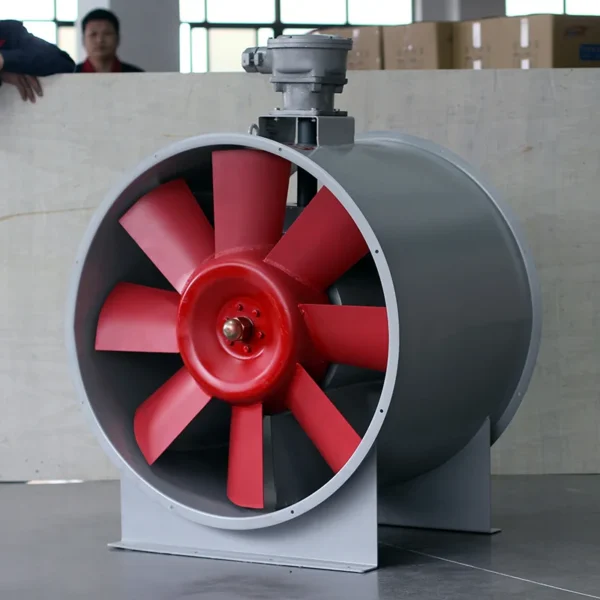

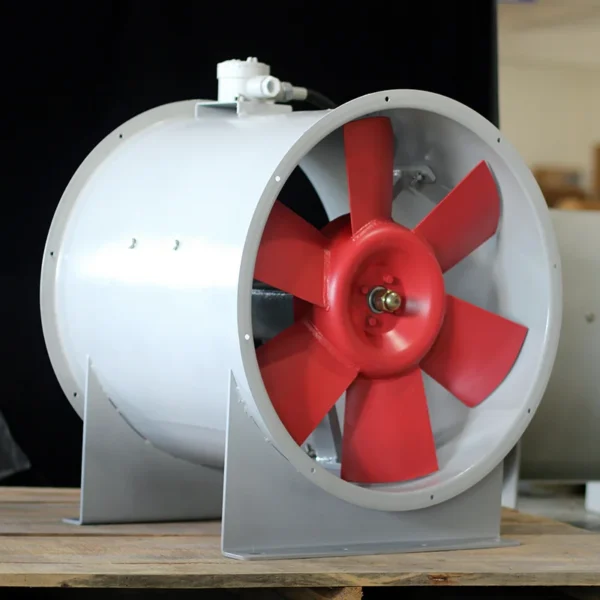

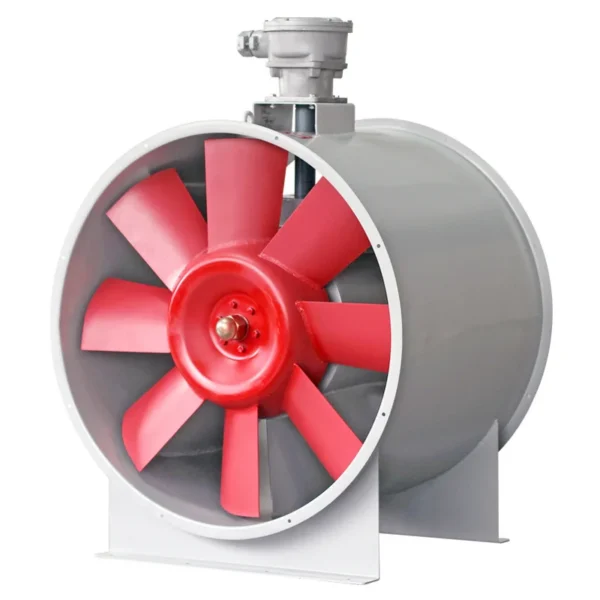

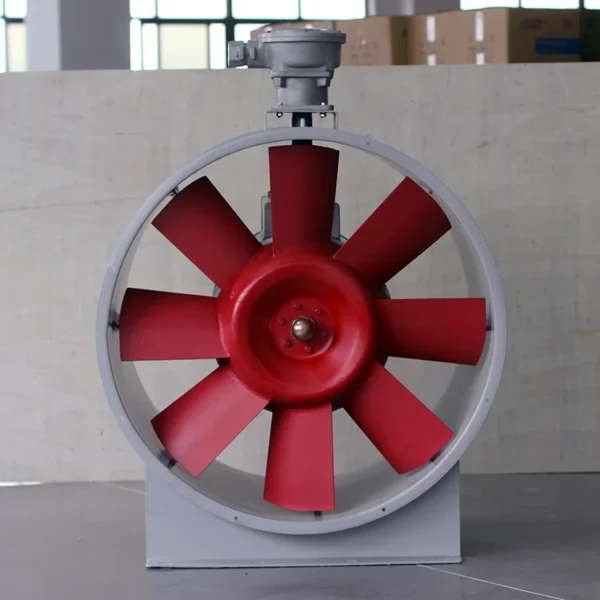

Mixed Flow Fan, SWF, 18.5KW, AC 220V, Aluminum Alloy, BGXF

The mixed flow fan listed here carries voltage AC 220V / AC 380V, power source Electric, documented exactly as the manufacturer publishes it. Made by Shenhai Explosion-Proof Technology Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Mixed Flow Fan

• Model Number: BGXF
• Power Source: Electric
• Voltage: AC 220V / AC 380V
• Material: Aluminum Alloy
• Blade Material: Aluminum Alloy
• Speed: Customize

Technical Specifications

Product Details

Product Parameters

Explosion proof sign	Degree of protection	Cable outer diameter	Inlet thread
Ex db IIC T4 Gb Ex tb IIIC T135℃ Db	IP54	Φ10-Φ14 Φ15-Φ23	G3/4 G11/4

Machine No	Impeller diameter (mm)	Air volume (m /h)	Total pressure (Pa)	power (kw)	speed (r/min)	Noise dB(A)	weight (kg)
3A	300	2352	115	0.18	1450	69	26
								2234	138
								1960	156
								1764	162
								1588	165
3.5A	350	3600	118	0.25	1450	69	30
								3420	135
								3000	160
								2700	166
								2430	170
4A	400	3984	164	0.37	1450	71	34
								3785	187
								3320	220
								2988	235
								2689	242
4.5A	450	5544	183	0.55	1450	72	41
								5267	208
								4620	245
								4158	262
								3742	270
5A	500	5232	264	0.75	1450	75	52
								4970	310
								4360	360
								3924	385
								3532	396
5.5A	550	6384	330	1.1	1450	77	66
								6065	378
								5320	440
								4788	471
								4309	484
6A	600	9120	338	1.5	1450	78	67
								8664	387
								7600	450
								6840	482
								6165	495
6.5A	650	14880	291	2.2	960	79	96
								14135	334
								12400	386
								11160	405
								10044	413

Machine No	Impeller diameter (mm)	Air volume (m /h)	Total pressure (Pa)	power (kw)	speed (r/min)	Noise dB(A)	weight (kg)
7A	700	16800	371	3	960	82	129
								15960	426
								14000	492
								12600	517
								11340	526
8A	800	22080	387	4	960	83	149
								20976	443
								18400	512
								16560	553
								14904	568
9A	900	26160	464	5.5	960	84	200
								24852	531
								21800	610
								19620	665
								17658	683
10A	1000	30240	555	7.5	960	86	290
								28728	635
								25200	730
								22680	796
								20412	818
11A	1100	33067	570	7.5	960	86	307
								31413	653
								27556	750
								24800	818
								22320	840
12A	1200	38880	646	11	960	88	362
								36936	740
								32400	850
								29160	927
								26244	952
13A	1300	51600	676	15	960	89	448
								49020	774
								43000	890
								38700	970
								34830	997
14A	1400	60000	722	18.5	720	90	659
								57000	827
								50000	950
								45000	1036
								40500	1064

Product Description

1. This series of fans are designed using the oblique flow meridian acceleration mechanical three-dimensional flow theory. The test data are carefully designed to ensure the excellent aerodynamic performance of the fans, with low noise High efficiency, small vibration and low energy consumption; 2. The fan is composed of air duct, explosion-proof motor, impeller, protective screen and other components. The fan duct is made of glass fiber reinforced plastic or high-quality low carbon steel, and the impeller is made of high-quality carbon steel or high-strength It is made of aluminum alloy and uses special anti-corrosion motor to transport corrosive gas; 3. Steel pipe or cable wiring, and grounding screws are set inside and outside the motor housing.

1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment; 2. It is applicable to the places in Zone 21 and 22 of combustible dust environment; 3. Suitable for IIA, IIB and IIC explosive gas environment; 4. Applicable to T1-T4 temperature group; 5. It is widely used in oil refining, chemical, textile, gas station and other dangerous environments, offshore oil platforms, oil tankers and other places; 6. Indoor and outdoor.

About Us

VR

FAQ

A: Are you factory or trading company?

Q: We are a factory and provide OEM services. Our main products are explosion-proof lightings, explosion-proof distribution box, explosion-proof cable gland, explosion-proof fans, explosion-proof junction box and anti-corrosion & dustproof & waterproof lights.

A: What certificates do you have?

Q: We have passed ATEX, IECEx, and with a lot of National Patents.

A: What place are your products used in?

Q: They are widely used in petroleum chemical, aerospace, coal electrical power, railway, metallurgy, shipbuilding, refinery, marine, wine-making, fire fighting, municipal, gas station and other industries.

A: Can I have a sample order?

Q: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

A: Can you accept customized?

Q: Yes. Please inform us and confirm the design firstly based on our sample.

Thanks for your visiting and hope to cooperate! ($10 free for the first order)

contact us

WhatsApp/Skype: +86 159 5719 4752

Mailbox: aurorachen@shenhai-ex.com
Website: https://www.shenhai-ex.com/
Company: Shenhai Explosion-Proof Technology Co., Ltd.
Address: No. 318, Wei15 Road, Economic Development Zone, Wenzhou, Zhejiang, China

Click to return to the home page

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $73.55 / piece
  • 10–49 piece: US $71.79 / piece
  • 50+ piece: US $69.26 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this mixed flow fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the mixed flow fan be supplied for my local voltage?

The standard configuration is AC 220V / AC 380V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Shenhai Explosion-Proof Technology Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenhai Explosion-Proof Technology Co., Ltd. range on HVACR Nexus.
