The flow smoke exhaust fan listed here carries 110v/220v/380v/415v/440v 50HZ/60HZ, power source Electric, documented exactly as the manufacturer publishes it. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤1h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Flow Smoke Exhaust Fan
- Model Number: HTF
- Power Source: Electric
- Voltage: 110v/220v/380v/415v/440v 50HZ/60HZ
- Material: Carbon Steel
- Blade Material: Cast Iron
- Impeller Material: Steel
Technical Specifications
| Voltage | 110v/220v/380v/415v/440v 50HZ/60HZ |
|---|---|
| Speed | 920rpm, 1450RPM |
| Type | High-Temperature Axial Fan |
| Material | Carbon Steel |
| Blade Material | Cast Iron |
| Mounting Type | Free Standing |
| Bearing Type | Ball Bearing |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM |
| Place Of Origin | Shandong, China |
| Brand Name | HANDUN |
| Model Number | HTF |
| Color | Silver, Grey, Blue |
| Name | Smoke Exhaust Fan |
| Impeller Size | 400mm- 1600mm |
| Application | Smoke and hot air exhaust & Ventilation |
| Impeller Material | Steel |
| Certificate | ISO/CE |
| Motor | Anti-explosion/Anti-high temperature 300C 120min |
| Advantage | Stand 300C for 120min |
| Selling Units | Single item |
Product Details

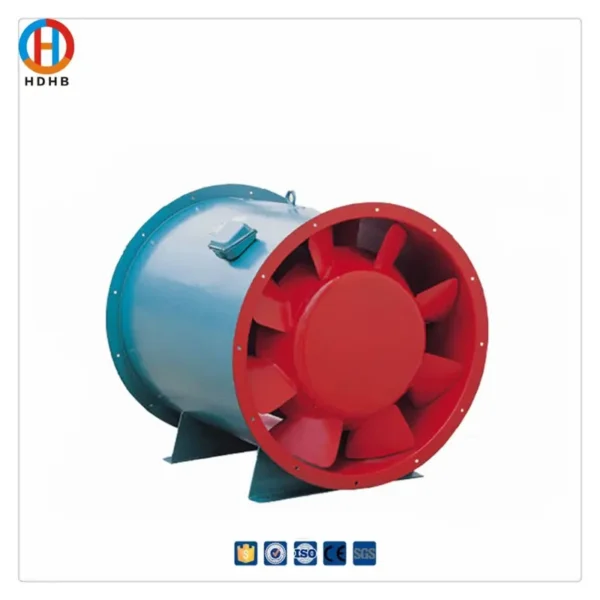

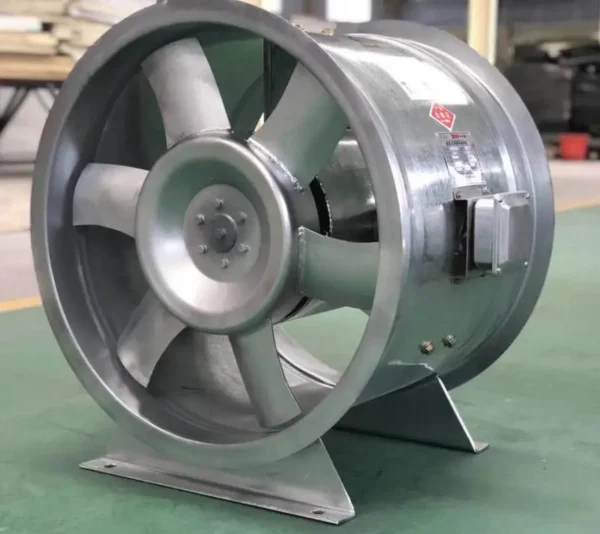

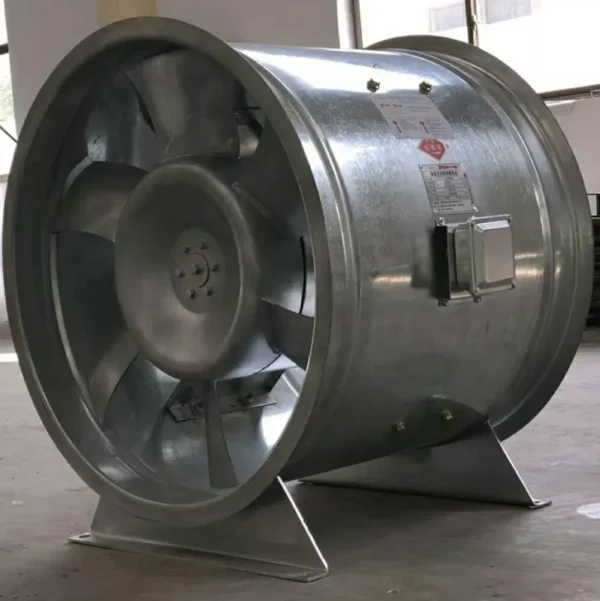

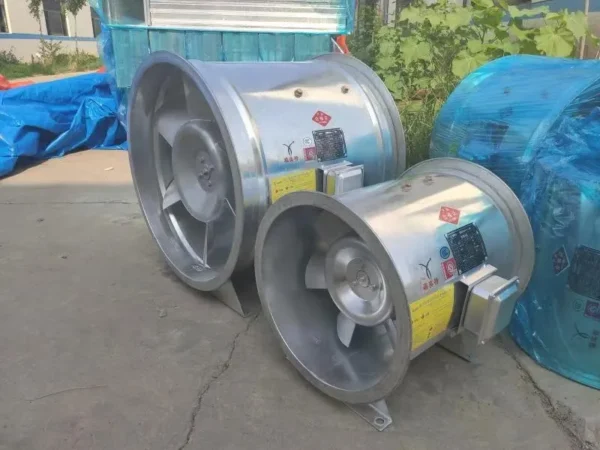

High Temperature Stand Parking Lot Smoke Exhaust Fan
Product Profile:Axial-flow type ventilator, industrial axial fan for Smoke Exhaust, assembled with high-temperature resistance motor and motor cooling system. Compared with HTFC centrifugal blower, it is affordable and suitable for the places where do not demand low noise and special outlet angle.

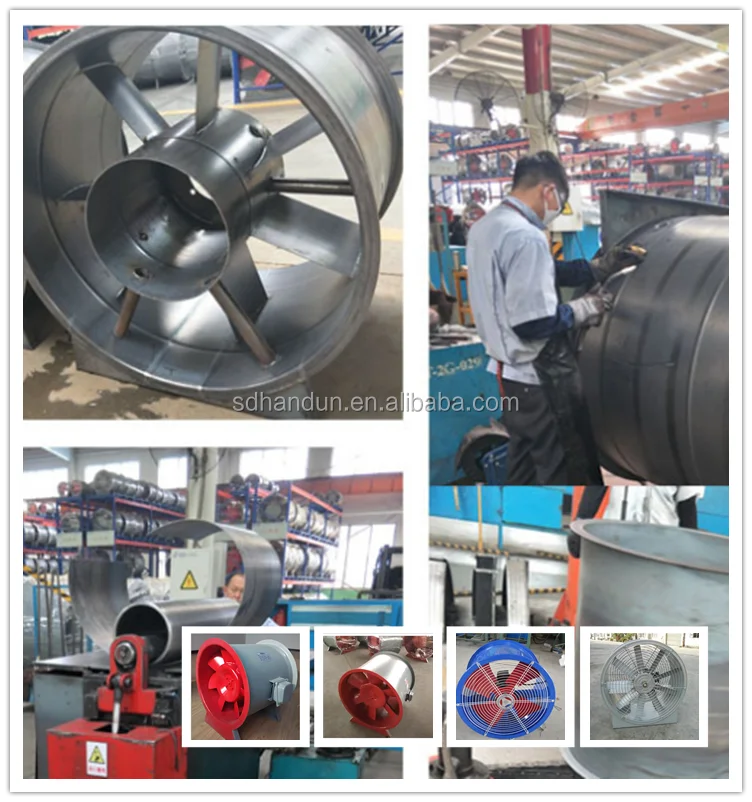

Structure:
1.Wheel hubs and blades are molded by hydraulic tensioning
2.Full welding connection
3.Flanges of cylinder are made of spinning flanging process.
Features:
1.High quality carbon steel, Cost-effective
2.Customized paint color
3.100 degrees (Can run 20 hours continuously), 300 degrees (Can run 60 minutes continuously)
Technical Parameters :
| No. | Rotation speed RPM | Air Volume M3/h | Full press Pa | Noise Db | Power kw |
| 2.8 | 2900 | 2662 | 148 | 62 | 0.18 |
| 1450 | 1331 | 37 | 54 | 0.025 | |
| 3.15 | 2900 | 3790 | 188 | 67 | 0.370 |
| 1450 | 1895 | 47 | 55 | 0.040 | |
| 3.55 | 2900 | 5424 | 240 | 70 | 0.550 |
| 1450 | 2712 | 60 | 56 | 0.090 | |
| 4 | 2900 | 7758 | 304 | 74 | 1.1 |
| 1450 | 3879 | 76 | 61 | 0.180 | |
| 4.5 | 1450 | 5524 | 96 | 63 | 0.250 |
| 5 | 1450 | 7577 | 119 | 67 | 0.370 |
| 960 | 5104 | 47 | 63 | 0.180 | |
| 5.6 | 1450 | 10645 | 149 | 69 | 0.750 |
| 960 | 7171 | 59 | 64 | 0.370 | |
| 6.3 | 1450 | 15157 | 189 | 72 | 1.5 |
| 960 | 10210 | 75 | 64 | 0.370 | |
| 7.1 | 1450 | 21695 | 240 | 76 | 2.2 |
| 960 | 14614 | 95 | 67 | 0.75 | |
| 8.0 | 1450 | 31035 | 305 | 80 | 4.0 |
| 960 | 20906 | 120 | 70 | 1.1 | |
| 9.0 | 960 | 29767 | 152 | 74 | 2.2 |
| 10.0 | 960 | 40832 | 188 | 78 | 4.0 |
| 11.2 | 960 | 57366 | 236 | 81 | 5.5 |
Application:
This series of products are widely used in high-rise building, industrial and mining enterprises, underground garage and warehousing workplace ventilation.
Standard: impeller, chassis (cylinder, guide vanes, the inner cylinder, motor bracket); motor; chassis; cooling duct
Optional accessories: damping device; control box; grille; mating flange;muffler
Shandong Handun Environmental Technology Co., Ltd is a leading international business company in China, mainly designs and manufacturers Centrifugal fan, Axial flow fan, Boiler induced draft fan and other Ventilation equipment and parts. Also customize fans water tank and cooling tower as requirements. Which are applied to industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, Industrial boiler and Dust removal systems etc.
Main products : Centrifugal fan, Axial flow fan, Boiler induced draft blower and Industrial fans and parts, water tank and cooling tower
The principle of Handun is “Customer-oriented and Quality –focused” . We possess the CE and ISO9001:2017. Based on it, we endeavor ourselves to please our customer’s needs in all aspects with high quality products as well as service. So the Handun brand products are widely recognized by all over the world such as Egypt, Sudan, Saudi Arabia, Malaysia, Indonesia, Philippine, Japan, UAE, Mexico, Italy etc.
Ordering and Pricing
- Minimum order quantity: 5 set
- Volume pricing:
- 5–49 set: US $380 / set
- 50+ set: US $350 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this flow smoke exhaust fan?
The standard minimum order quantity is 5 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this flow smoke exhaust fan carry?
It is supplied with ISO/CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the flow smoke exhaust fan be supplied for my local voltage?
The standard configuration is 110v/220v/380v/415v/440v 50HZ/60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Handun Environmental Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Handun Environmental Technology Co., Ltd. range on HVACR Nexus.
