Garage ceiling infrared heater — 1400W, 220V-240V/50Hz, model number GT-HH1806A. The complete factory specification follows. Made by Xuzhou Byecold Electronic Technology Co., Ltd. (14 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Garage Ceiling Infrared Heater
- Model Number: GT-HH1806A
- Power And Voltage: 1400W, 220V-240V/50Hz
- Back Material: aluminum foil cloth
- Place Of Origin: Jiangsu, China
- Feature: Wire heating element/high temperature
- Electric Heater Type: Infrared Heater
Technical Specifications
| Function | Adjustable Thermostat, Overheat Protection, Tip-Over Protection, Waterproof |
|---|---|
| Installation | Ceiling |
| Heating Element | Heating Wire |
| Model Number | GT-HH1806A |
| Place Of Origin | Jiangsu, China |
| Brand Name | Byecold |
| Keywords | industrial electric heaters |
| Body Size | 1827*627*23mm |
| Power And Voltage | 1400W, 220V-240V/50Hz |
| Feature | Wire heating element/high temperature |
| Back Material | aluminum foil cloth |
| Front Surface | white aluminum |
| Surface Temperature | around 110℃ |
| Electric Heater Type | Infrared Heater |
| Packaging Details | 1 piece / individual inner box, (5 layers standard export pakcing carton with inner EPE foam wrapped) 4 pcs/carton or pallet if needed industrial electric heaters |
| Port Of Dispatch | shanghai/qingdao |
| Selling Units | Single item |
| Supply Ability | 5000 pieces per Month industrial electric heaters |

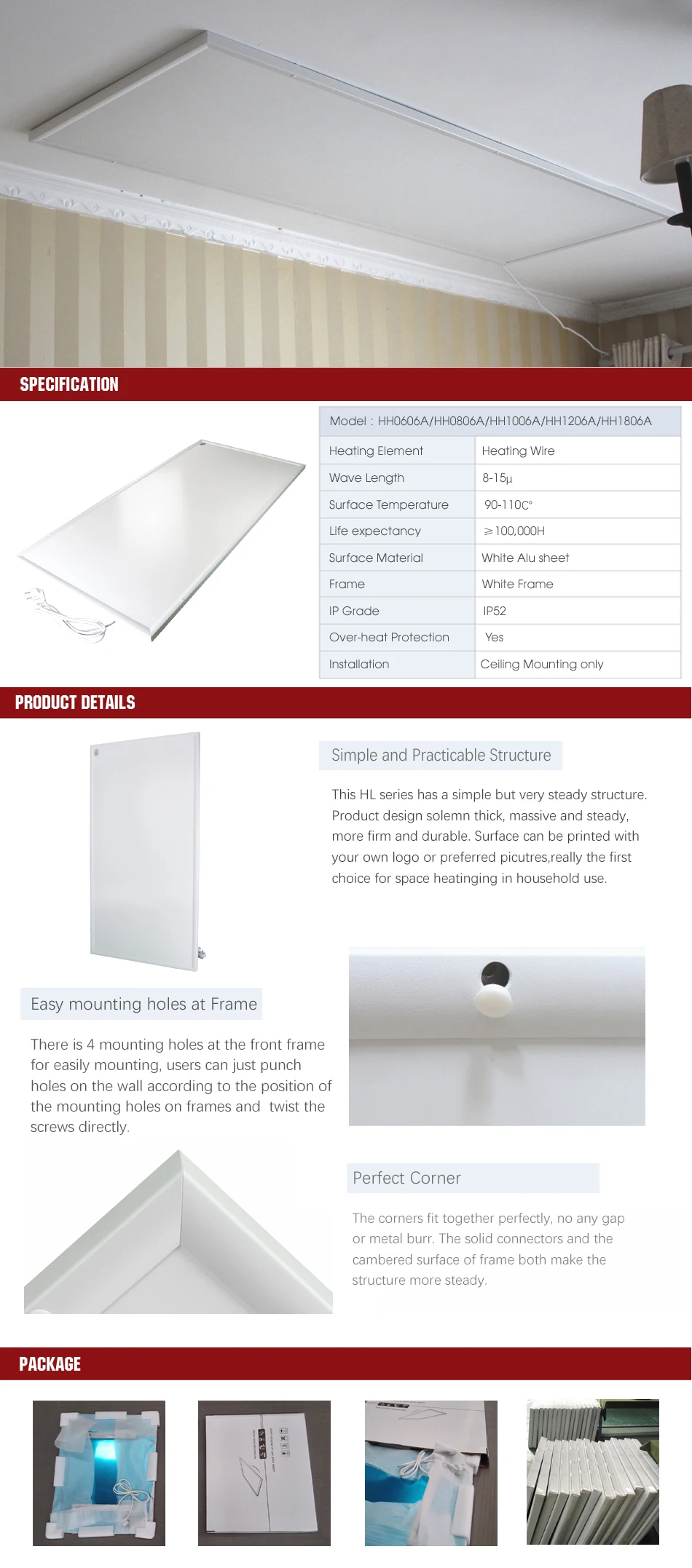

Product Details
infrarood explosion proof garage ceiling infrared heater

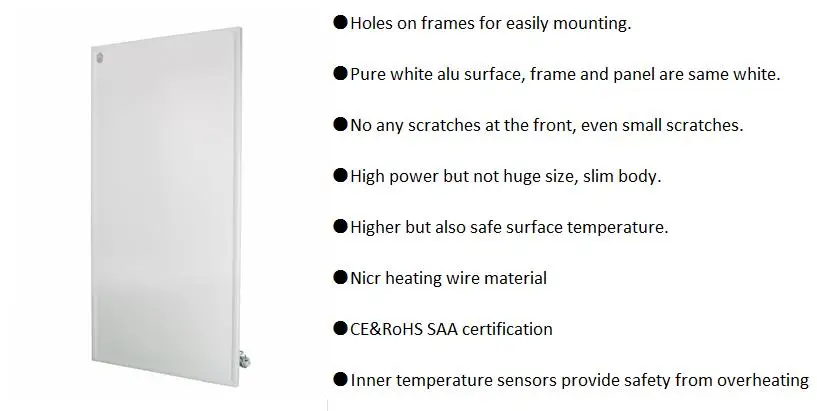

1. The Infrared Panel Heater is designed to provide an efficient, comfortable and healthy heating system for any domestic and commercial users.
2. These panel heaters can reduce air circulation and help to maintain a clean, dust free environment.

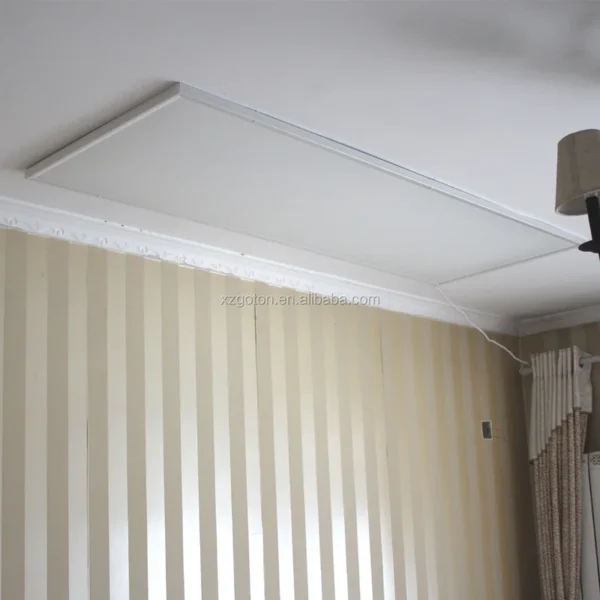

3. All the infrared heaters can be wall or ceiling mounted.
4. A wide range of heating panels available in a huge choice of colors, sizes and styles.
| Model | GT-HH1206A |
| Body size | 1227*627*23mm |
| Power and voltage | 900Watts, 220V-240V/50Hz |
| Heating material | heating wire |
| Wave length | 8-15μ |
| Surface temperature | 90-105°C |
| Conversion efficiency | 98% |
| Life expectancy | ≥100,000H |
| Surface material | Alu sheet |
| Frame | White or Sliver Aluminium |
| IP Ration | IP54 |
| Over-heat Protection | Yes |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–99 piece: US $146 / piece
- 100+ piece: US $139 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this garage ceiling infrared heater?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the garage ceiling infrared heater be supplied for my local voltage?
The standard configuration is 1400W, 220V-240V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xuzhou Byecold Electronic Technology Co., Ltd., based in China. The company 14 years as a verified Alibaba.com supplier, Trading Company. Browse the full Xuzhou Byecold Electronic Technology Co., Ltd. range on HVACR Nexus.
