Key specification for this gas heater: 6.3KW(8.45hp), material Steel. Everything below is reproduced from the factory data sheet. Made by Chongqing Haodong Technology Co., Ltd. (11 years on the platform, typical reply ≤2h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Gas Heater
- Model Number: THD930
- Power: 6.3KW(8.45hp)
- Material: Steel
- Warranty Of Core Components: 1 Year
- Place Of Origin: Chongqing, China
- Application: Party, Gardens, outdoor gardening, outdoor heating, Warm, Wedding, outdoor meeting, Remote Control, Easy Operation
Technical Specifications
| Patio Heaters Type | Gas |
|---|---|
| Power | 6.3KW(8.45hp) |
| Material | Steel |
| Feature | Stocked, Easy To Assemble, efficient heating, Energy-Saving, safety features, Durable, Adjustable, Portable |
| Application | Party, Gardens, outdoor gardening, outdoor heating, Warm, Wedding, outdoor meeting, Remote Control, Easy Operation |
| Ignition | pulse ignition |
| Style | Modern, Traditional, Elegant |
| Shape | Rectangular |
| Type | Patio Heaters |
| Place Of Origin | Chongqing, China |
| Brand Name | THD |
| Model Number | THD930 |
| Working Gas | Natrual gas,LPG and Propane |
| Size | 945*205*210mm |
| Net Weight | 17kg |

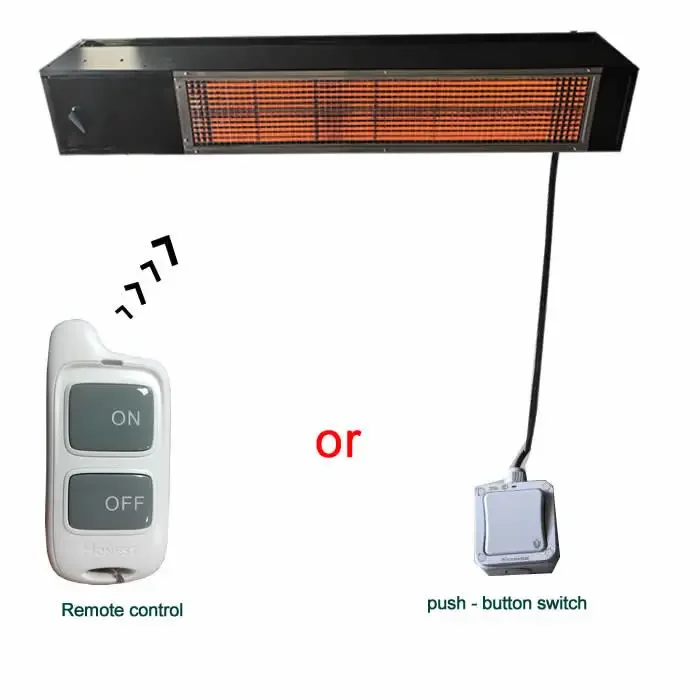

| Ignition Method | Electric pulse ignition, 24VDC Power adapter |

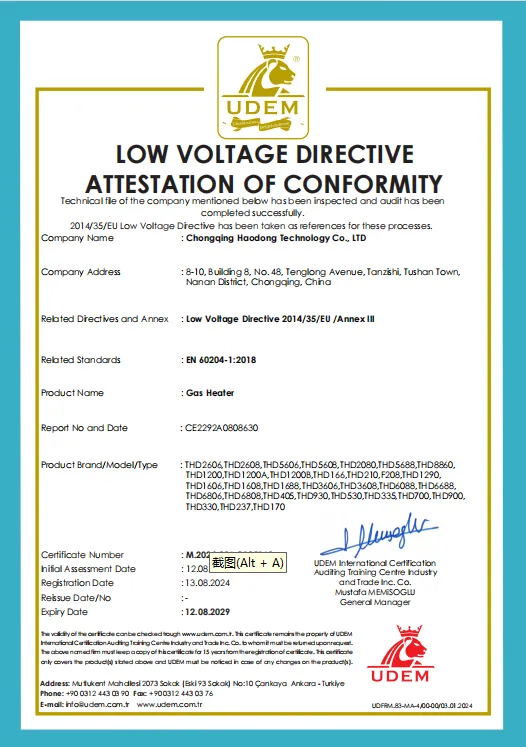

| Approved For | CE certification |
| Heat Output | 31960BTU/h, 8120Kcal/h |
| Heater Technology | covered rare earth catalyst on combustion plate |
| Warranty Of Core Components | 1 Year |
| Selling Units | Single item |
| Single Package Size | 105X31X33 cm |
| Single Gross Weight | 24.0 kg |
Product Details

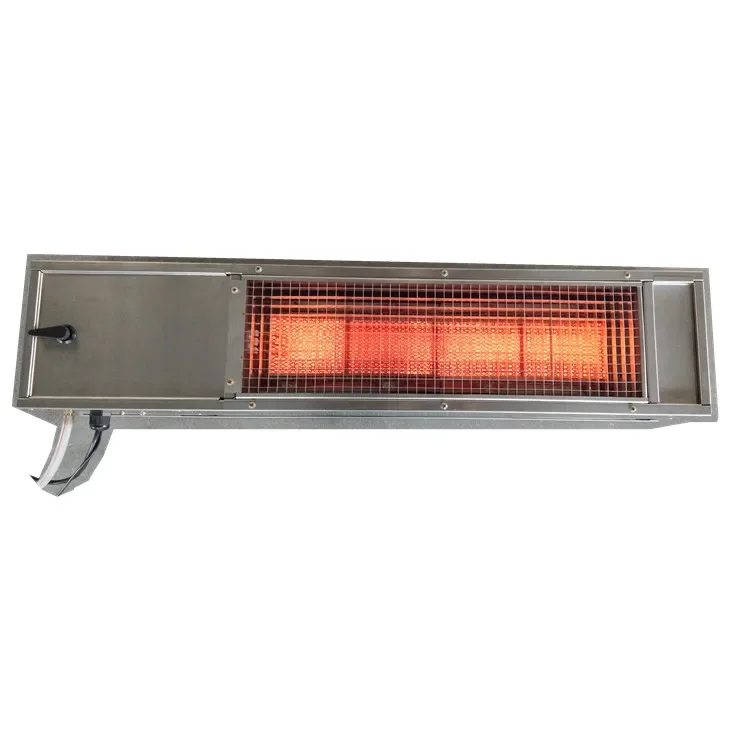

Infrared catalytic flameless natural gas patio heater
Please feel free to contact us for more info and timely service!!!

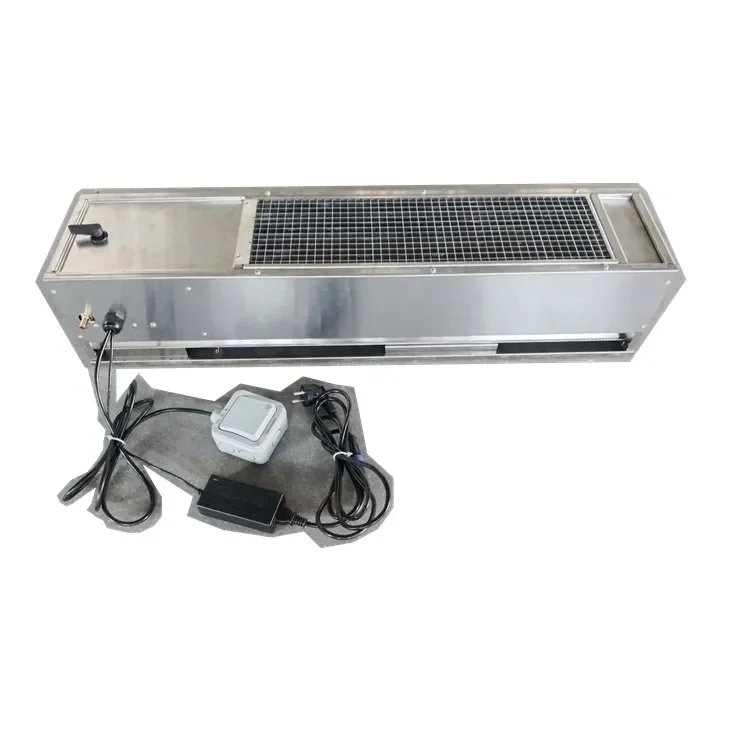

Product picture

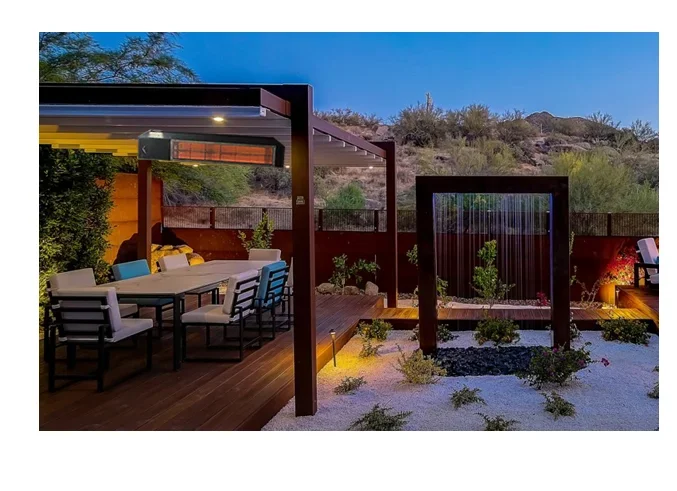

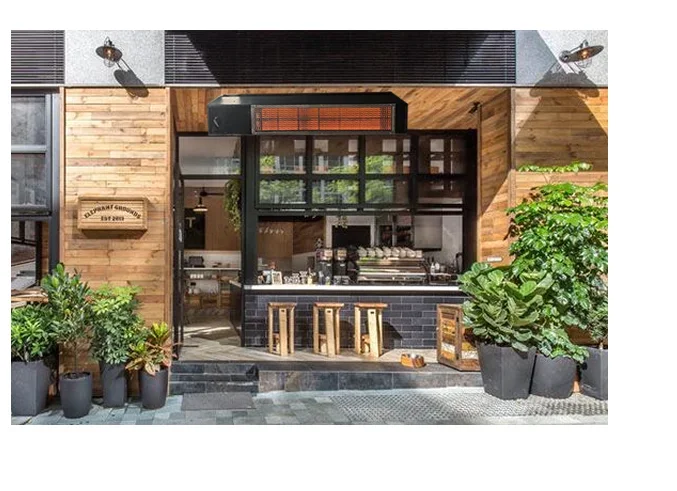

1. Commercial Heating of sports hall, church, terrace, garage, exhibition hall, public building

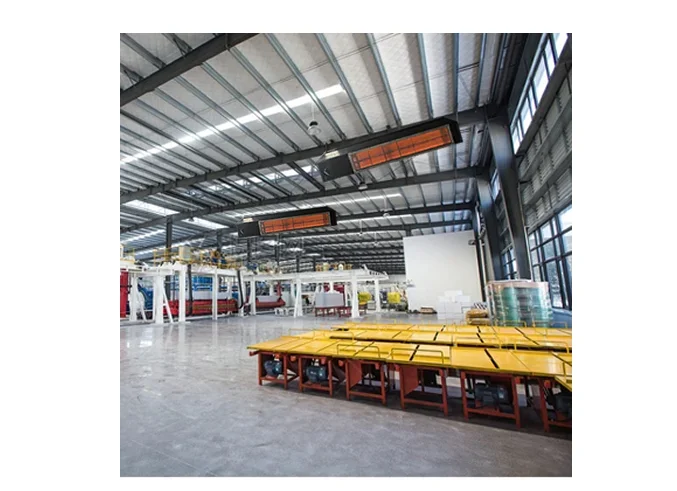

2. Industrial Heating: industrial building, workshop, vehicle repair, warehouse.
3. Poultry-livestock heating: widely used in poultry heating, farrowing, nursery, grower-finisher, wean-to-finish
| Gas Type | Natural Gas | LNG | LPG | Propane | Biogas |
| Gas pressure (Pascal) | 3000 to 4000 | 3000 to 4000 | 3000 to 5000 | 3000 to 5000 | at least 8000 |
Gas heater information:
| Model | Net Weight | Dimension | Gas Consumption | Heat Output | ||
| kg | mm | NG | LPG | kw/hour | kcal/hour | |
| THD930 | 18.3 | 1200*205*210 | 0.49 m3/hour | 0.45 kg/hour | 6.30 | 5400 |

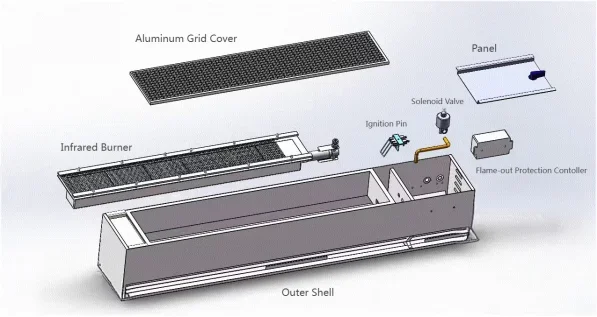

New type infrared catalytic flameless natural gas patio heater Feature

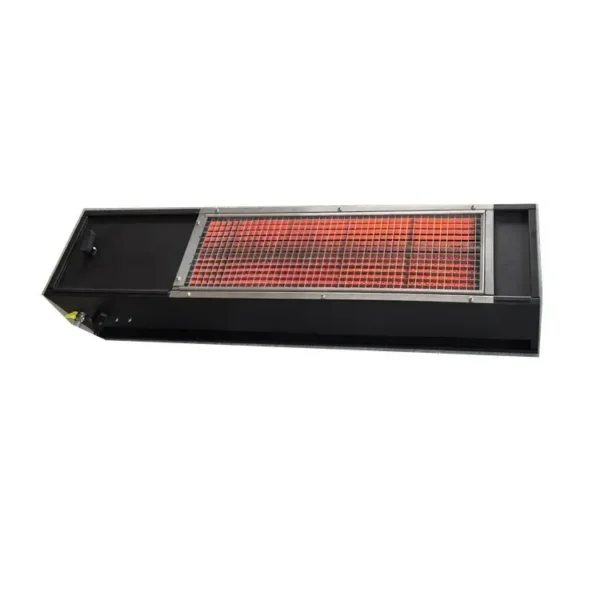

1. Shell Material: Stainless steel; Another type with powder spray;
2. 24VDC Electric pulse ignition, high efficiency and safe;
3. Energy efficient, as high as 20% energy can be saved every year;
4. Flame-out protection device, cut off the gas automatically;
5. Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm;
6. Less maintenance
7. Wide operating range
8. Reliability, Silent, light and compact
9. Long useful time: ≥11000hr
10. Security and reliability of temperature
Notice & FAQ
1. Pls keep the gas inlet pipe side downward sloping when installation the brooder(as shown above) to prevent overheating.
2. It’s normal phenomenon there is blue flame at beginning, after several minutes will disappear.
3. If the blue flame always stay on ceramic plate, pls check whether the pressure too low; If yes, pls adjust the booster pump.
4. If there is a big red flame, the reason maybe is:
a. the pressure is too high. Pls adjust the pressure reducing valve to required pressure.
b. oxygen lack. Pls keep room air circulation when brooder working.
c. ceramic plate is broken; Pls change the broken ceramic plate.
5. The heat area doesn't equal, pls check whether the feather block at filter net.

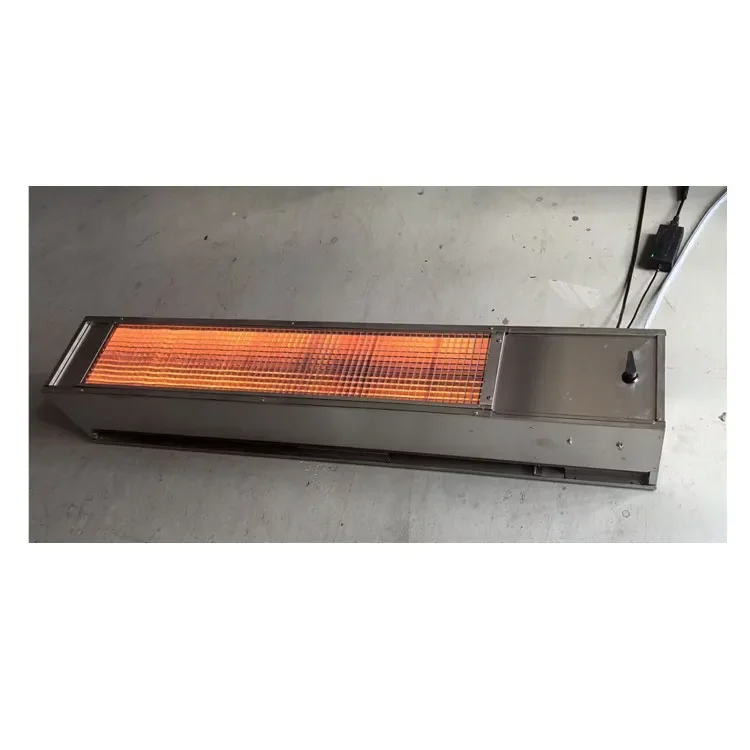

6. This product is flameless, only see the red heating surface no flame in normal working.
7. Pls check up and clean the complete system parts termly.
We are looking for dealers worldwide also,welcome to join us.
Pay on Alibaba online,you do not need to worry about anything.
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–19 unit: US $235 / unit
- 20–49 unit: US $225 / unit
- 50–99 unit: US $210 / unit
- 100+ unit: US $200 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this gas heater?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
