Key specification for this heavy duty slurry pump: power source Electric, material Cast Iron/Stainless Steel. Everything below is reproduced from the factory data sheet. Made by Hebei Minerco Machinery Co., Ltd. (1 year on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Heavy Duty Slurry Pump
- Power Source: Electric
- Horsepower: 30 hp-2900 hp
- Sealing Material: /
- Impeller Material: /
- Material: Cast Iron/Stainless Steel
- Membrane Material: /
Technical Specifications
| Application | Mining Industry |
|---|---|
| Structure | Single-stage Pump |
| Max Flow Rate | 10000m³/h |
| Max Pressure | 0.5bar-25bar |
| Power Source | Electric |
| Chemical Compatibility | / |
| Sealing Material | / |
| Impeller Material | / |
| Applicable Temperature | 0-80℃ |
| Outlet Size | 6 inch-48 inch |
| Import Size | / |
| Connection Type | flange |
| Suction Head | 150m |
| Outlet Type | 6 inch-48 inch |
| Discharge Pipe Size | 6 inch-48 inch |
| Displacement | / |
| Material | Cast Iron/Stainless Steel |
| Control Method | Semi-Automatic Control |
| Motor | 100% Copper Wire |
| Surface Treatment | / |
| Membrane Material | / |
| Warranty | 1 Year |
| Customized Support | OEM, obm, odm |
| Cable Length | / |
| Horsepower | 30 hp-2900 hp |
| Pressure | High Pressure |
| Dwell Time | / |
| Hardness | / |
| Flow Meter Specification | 100-10000m³/h |
| Filter Material | / |
| Outlet Water Oil Content | / |
| Place Of Origin | Hebei, China |
| Brand Name | minerco |
| Flow Rate | 1000m³/h |
| Selling Units | Single item |
Product Details

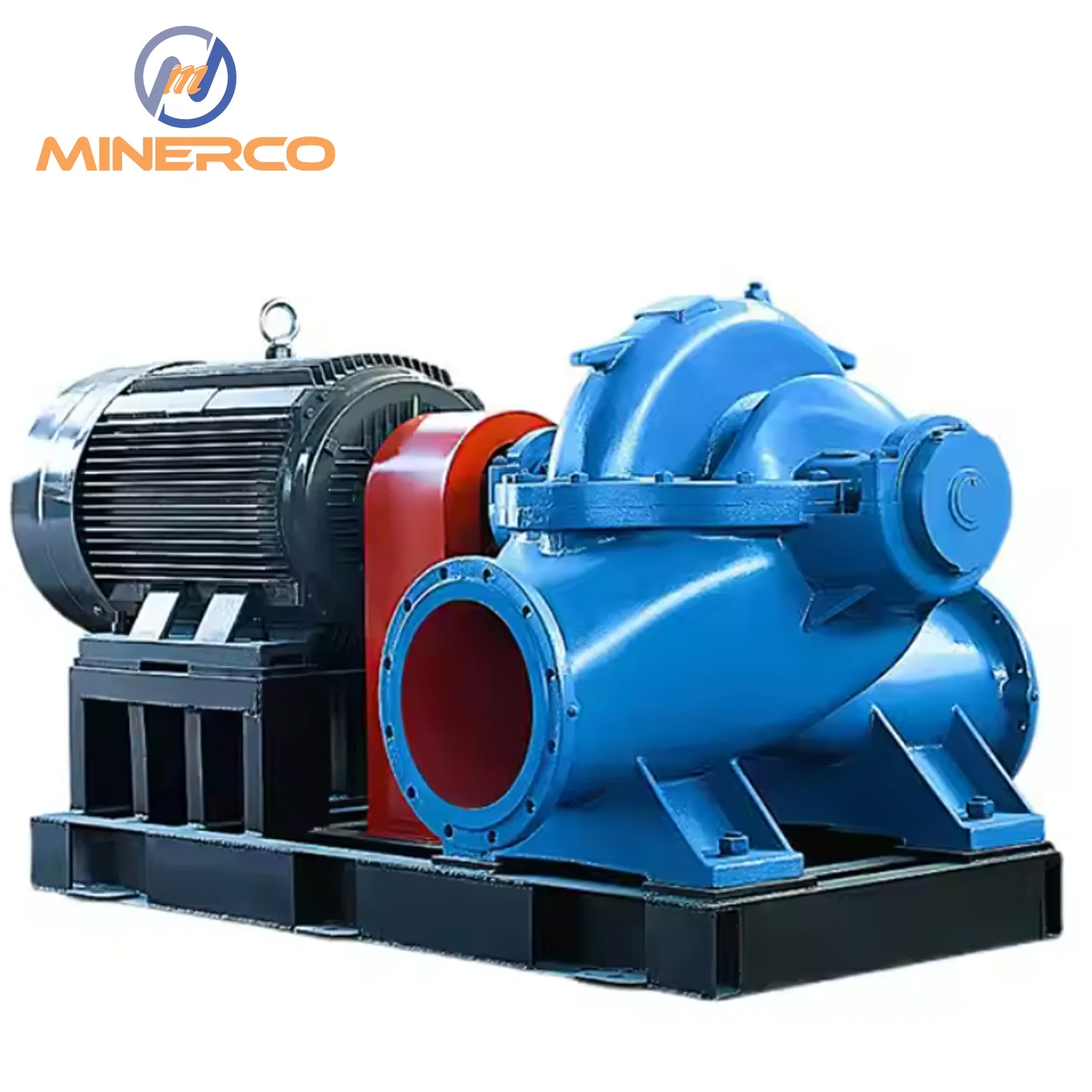

S/SH Split Case Pump
horizontally split casing with suction and discharge ports below the shaft centerline, enabling easy maintenance without pipe or
motor disconnection. These pumps rotate counterclockwise and are known for their reliability across various industries.
Durable Construction: Made from robust materials such as cast iron and high-quality carbon steel, ensuring longevity and
operational reliability.
Flexible Material Selection: Components like shafts, impellers, and sealing rings can be customized with materials such as cast
iron, cast steel, or stainless steel (SS304, SS410) to meet specific application requirements.
Sealing Options: Available with mechanical seals or packing seals, providing versatility for different operational conditions.
Easy Maintenance: Horizontally split casing allows for straightforward maintenance without disrupting inlet or outlet connections, minimizing downtime.
Model | Motor Power(kw) | Clear Water Performance | Impeller diameter (mm) | ||||||||||
Capacity | Head (m) | Speed (r/min) | Efficiency (%) | NPSH (m) | |||||||||
m³/h | L/S | ||||||||||||
150S 6SH | 30-55 | 111.6-200 | 31-55.56 | 35-85 | 2950 | 68-77.5 | 2.7-4.5 | 186-252 | |||||
200S 8SH | 37-132 | 180-351 | 50-97.5 | 31-108 | 2950 | 67-82 | 4.2-7 | 196-282 | |||||
250S 10SH | 22-132 | 320-576 | 88.89-160 | 8.6-71.5 | 1450 | 70-83.6 | 2.4-4.5 | 226-462 | |||||
300S 12SH | 30-300 | 504-972 | 140-270 | 8.7-98 | 1450 | 31-85 | 3.4-6.8 | 222-540 | |||||
350S 14SH | 55-680 | 328-1660 | 91.11-461.11 | 10-140 | 1450 | 63.5-86.2 | 3.5-8.2 | 265-655 | |||||
500S 20SH | 115-850 | 1296-2448 | 360-680 | 10.7-105 | 970 | 72-87.2 | 4-6.6 | 390-860 | |||||
600S 24SH | 190-780 | 2304-3960 | 640-1100 | 13-71 | 970 | 77-91 | 1.3-2.5 | 415-765 | |||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $980 / piece
- 5–9 piece: US $950 / piece
- 10+ piece: US $900 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this heavy duty slurry pump?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hebei Minerco Machinery Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Hebei Minerco Machinery Co., Ltd. range on HVACR Nexus.
