High-pressure electric blower — 48V, 120m3/h. The complete factory specification follows. Made by Ningbo Wonsmart Motor Fan Co., Ltd. (17 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This High-Pressure Electric Blower
- Model Number: WS10690-48-240-X200
- Power Source: Electric
- Power Cord Length: 200MM
- Rated Voltage: 48V
- Air Flow: 120m3/h
- Material: Aluminum
Technical Specifications
| Application | Air Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 48V |
| Electric Current Type | DC |
| Speed | 25000RPM |
| Material | Aluminum |
| Blade Material | Aluminum |
| Noise Level | 60-70dB |
| Pressure | High Pressure |
| Warranty | 1 Year |
| Customized Support | OEM, ODM, OBM |
| Power Cord Length | 200MM |
| Place Of Origin | Zhejiang, China |
| Brand Name | Wonsmart |
| Model Number | WS10690-48-240-X200 |
| Product Name | High pressure 48VDC industry airflow blower |
| Bearing | NMB Ball Bearing |
| Air Flow | 120m3/h |
| Air Pressure | 7Kpa |
| Part No | WS10690-48-240-X200 |
| Color | silver |
| Phase | Three phase |
| Speed Control | PWM or 0-5V |

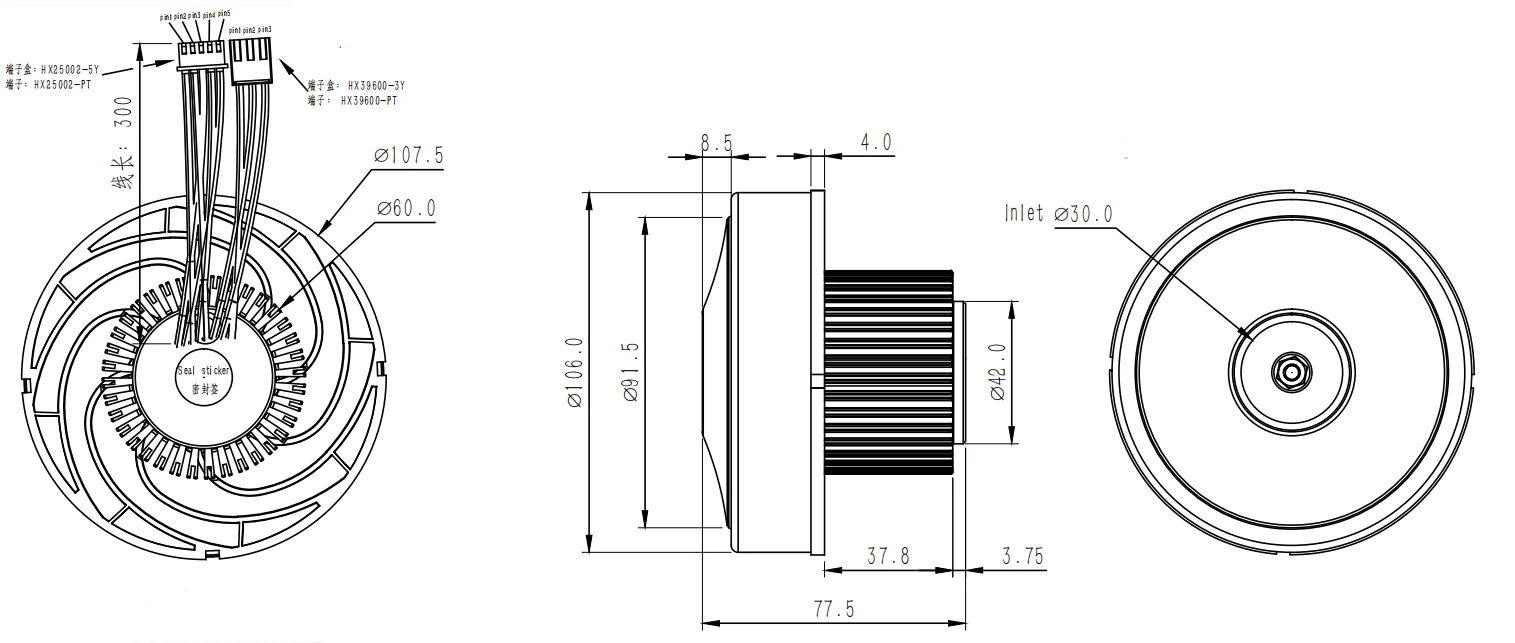

| Size | 106*90mm |
| Selling Units | Single item |
| Single Package Size | 11X11X11 cm |
| Single Gross Weight | 2.0 kg |
Product Details

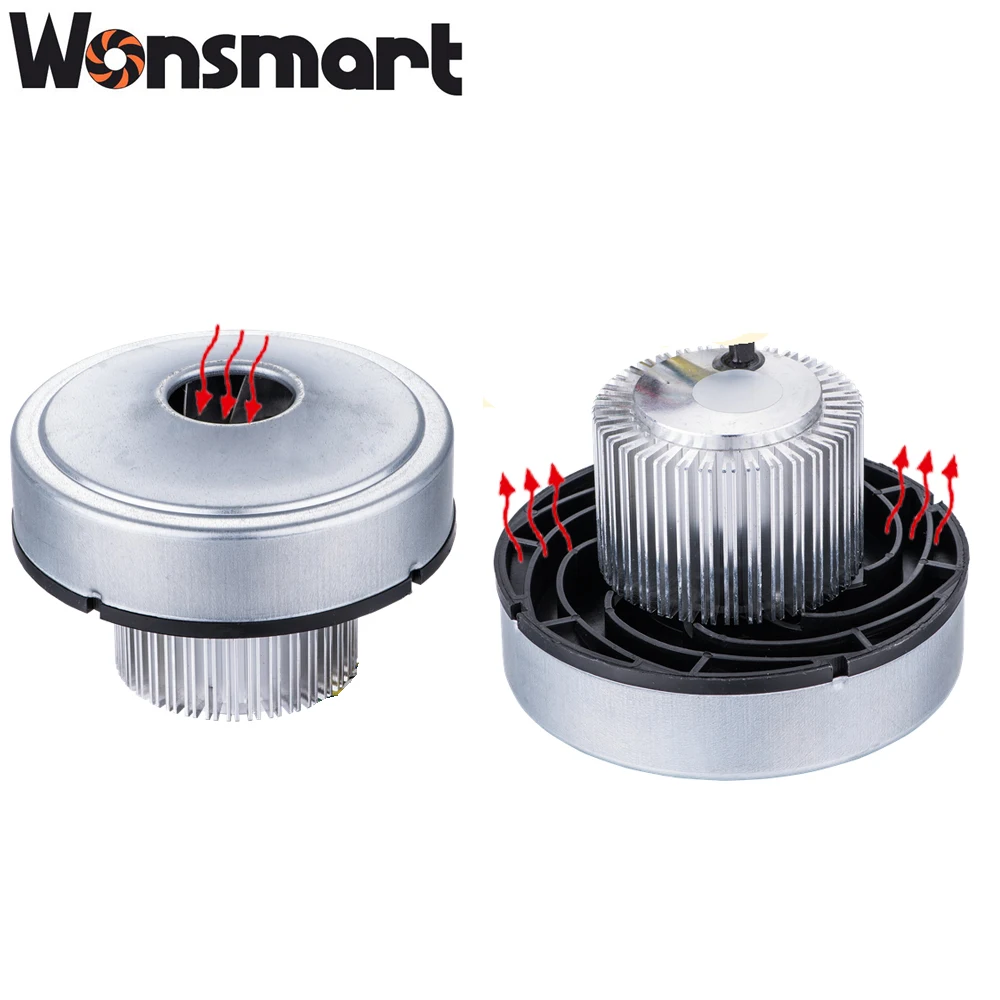

Part Name | DC Brushless centrifugal blower |
Part No | WS10690-48-240-X200 |
Vlotage | 48VDC |
Current Level | 2.75A-6A |
Life time (MTTF) | >15000hours |
Unit Weight | 365g |
Bearing | NMB Ball bearing |
Insulation class | Class F |

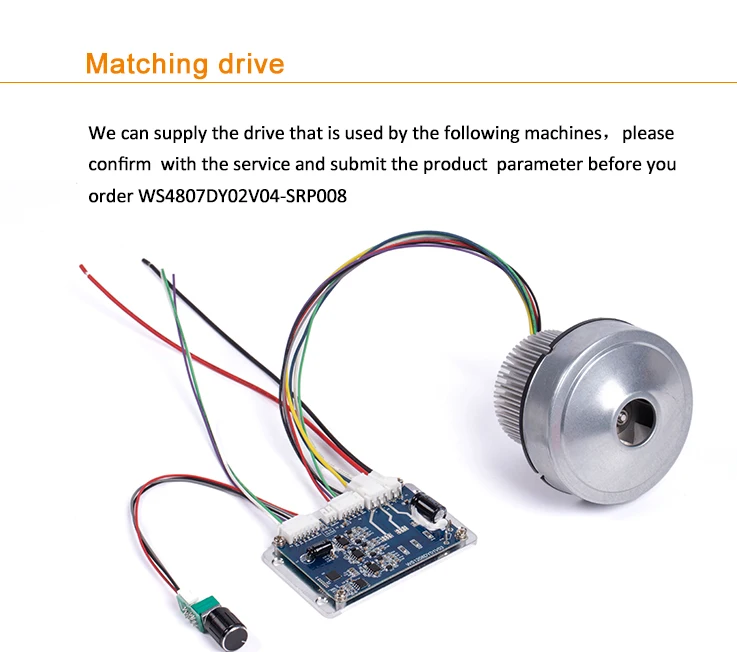

Driver board | External |
Speed control | PWM or 0~5V |
@Free blowing | @Working point | @Staic pressure | ||||||||||||
Speed | Current | Air flow | Current | Airflow | Pressure | Speed | Current | Pressure | ||||||
[rpm] | [A] | [m3/h] | [A] | [m3/h] | [kpa] | [rpm] | [A] | [kpa] | ||||||
25,000 | 6 | 120 | 5.5 | 67 | 7 | 29,000 | 2.75 | 10 | ||||||
inlet can make the blower run longer time
24 hours online customer service, please contact us!
Q1:Are you factory or trading company?
Q2:Can you design a new blower fan if we give you target performance?
Q3:Can we connect this centrifugal air blower directly onto power source?
Q4:What kind of power source shall we use to drive this blower fan?
Q5:How to change impeller speed if we use your controller board?
Q6: Can we use this centrifugal air blower to suct water?
Q7: What can do if the working condition is dirty?
Q8: How to decrease the noise of the blower?
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $42.9 / piece
- 11–49 piece: US $38.94 / piece
- 50–99 piece: US $33 / piece
- 100+ piece: US $31.02 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high-pressure electric blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the high-pressure electric blower be supplied for my local voltage?
The standard configuration is 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Wonsmart Motor Fan Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Wonsmart Motor Fan Co., Ltd. range on HVACR Nexus.
