Key specification for this high pressure electric blower: rated voltage 110/220 V, power source Electric. Everything below is reproduced from the factory data sheet. Made by ACTIVA INC. (15 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This High Pressure Electric Blower
- Model Number: ACB238182-P
- Power Source: Electric
- Rated Voltage: 110/220 V
- Material: Steel
- Blade Material: steel
- Noise Level: 60db
Technical Specifications
| Application | Industrial Blower |
|---|---|
| Power Source | Electric |
| Rated Voltage | 110/220 V |
| Electric Current Type | AC |
| Motor Type | Brushless Motor, AC Motor |
| Speed | 1500rpm |
| Material | Steel |
| Blade Material | steel |
| Noise Level | 60db |
| Pressure | High Pressure |
| Warranty | 1 years |
| Customized Support | OEM |
| Place Of Origin | Taiwan, China |
| Brand Name | SYMBANG |
| Model Number | ACB238182-P |

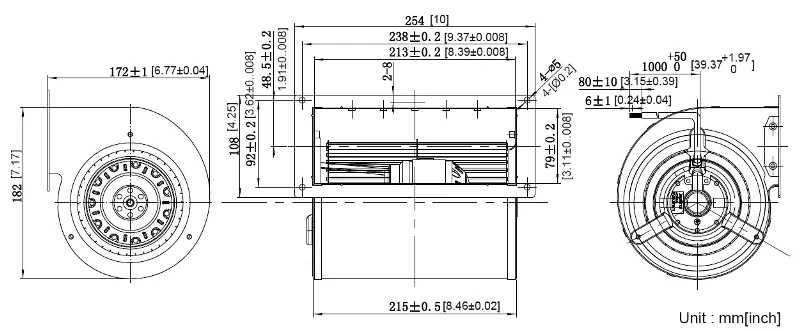

| Size | 254x182x172mm |
| Type | Blower |
| Selling Units | Single item |
| Single Package Size | 30X35X28 cm |
| Single Gross Weight | 4.5 kg |
Product Details

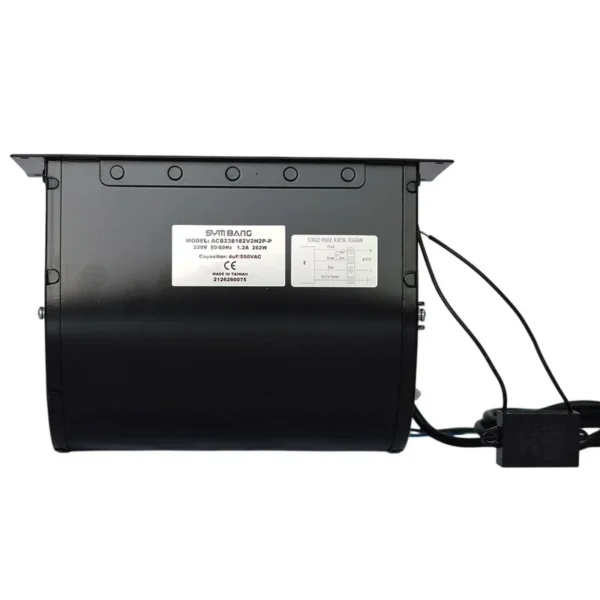

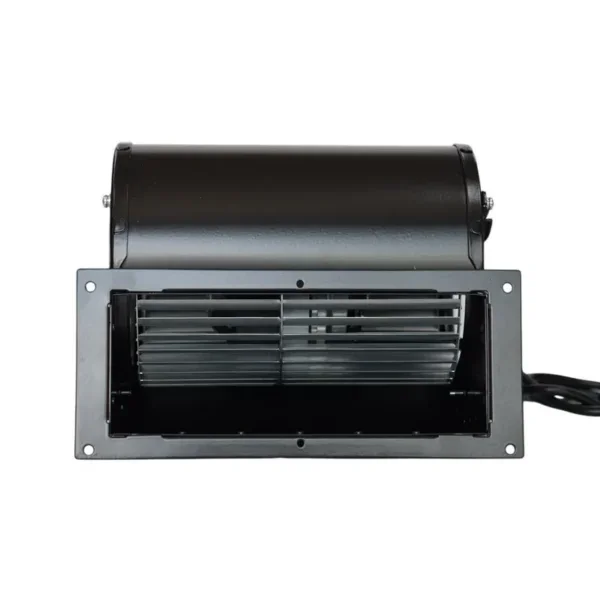

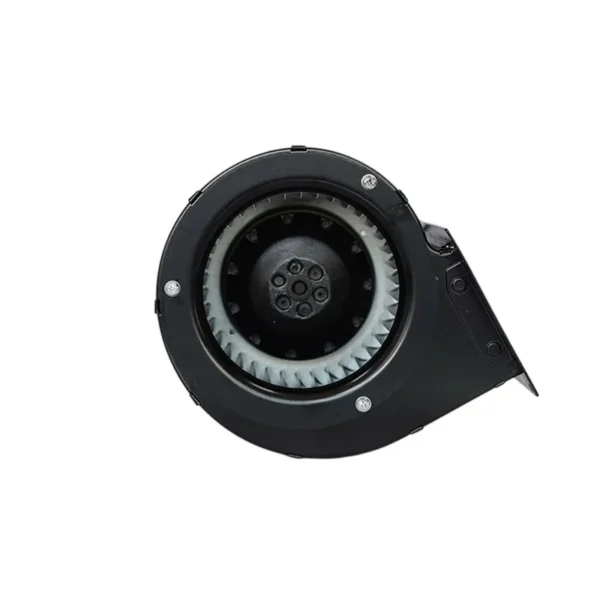

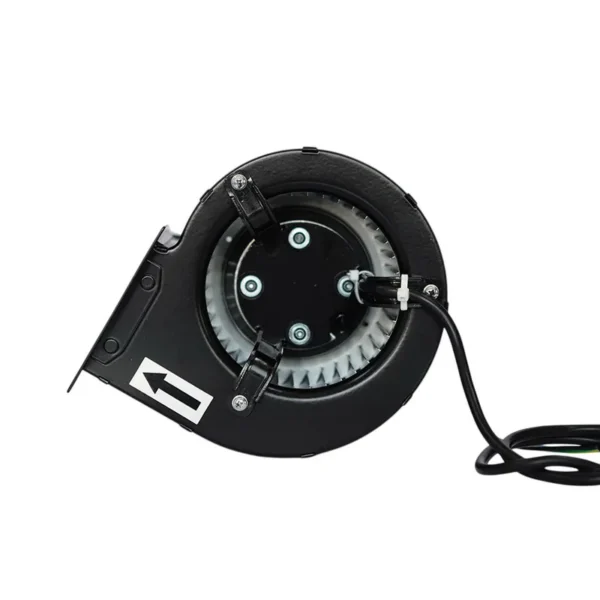

ACB238182-P 110V 220V AC Centrifugal Double Inlet Blower
| MOTOR | AC Capacitor Motor |
| HOUSING | Steel Painted Black Scroll |
| IMPELLER | Steel |
| BEARING | Ball |
| INSULATION | Class F |
| OPERATING TEMPERATURE | 0°C to + 65°C |
| DIELECTRIC STRENGTH | 5mA Max. at 1500 VAC for 1 second |
| INSULATION RESISTANCE | 10M Ω min. @500 VDC |
| SAFETY | Thermally Protected |
| WEIGHT | 4.15 Kg |
| ROHS COMPLIANCE | YES |

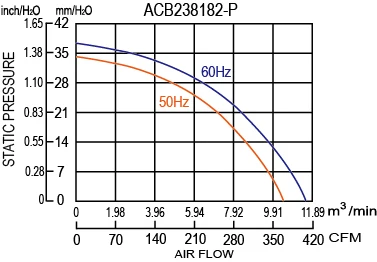

| Model No. | RATED VOLTAGE (V) | FREQUENCY (Hz) | RATED CURRENT (A) | INPUT POWER (W) | SPEED (RPM) | MAX. AIR PRESSURE | MAX. AIR FLOW | NOISE dB(A)@1M | ||
| inchH2O | mmH2O | CFM | m3/min | |||||||
| ACB238182V1HB-P | 110 | 50 | 1.7 | 200 | 1500 | 1.48 | 37.73 | 411.76 | 11.66 | 60 |
| ACB238182V2HB-P | 220 | 50/60 | 1.2/1.2 | 257/262 | 1520/1330 | 1.48/1.33 | 37.73/33.95 | 411.76/370.5 | 11.66/10.5 | 60 |
Activa Inc. is committed to the research & development of cooling fans & motors. Based on more than 20 years of experience in mold and component plastic injection manufacturing, SYM BANG has become a specialist manufacturer of exhaust fan through its advanced technology and full line of ventilation system.
We provide following products:
| AC Axial Fans & Blower | DC Axial Fans & Blowers | AC Cross Flow Fans |
| DC Cross Flow Fans | AC Sirocco Blowers | AC Centrifugal Fans & Blowers |
| DC Centrifugal Fans & Blowers | EC Centrifugal Fans & Blowers | Air Curtain |
| EC Axial Fans | Fan Accessories | EC Stand Fan |
| Blade | Duct fan |
|
Our factory :
Our Certificate :
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $103.12 / piece
- 100+ piece: US $83.07 / piece
- Ships from: TW
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this high pressure electric blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.
Can the high pressure electric blower be supplied for my local voltage?
The standard configuration is 110/220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
