Home hvac systems — capacity 9000-36000, power type DC. The complete factory specification follows. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Home Hvac Systems
- Power Type: DC
- Power Source: Electric
- Power (W): 1640
- Capacity (Btu): 9000-36000
- Maximum Airflow Rate: 850
- Refrigerant: R410A/R32
Technical Specifications

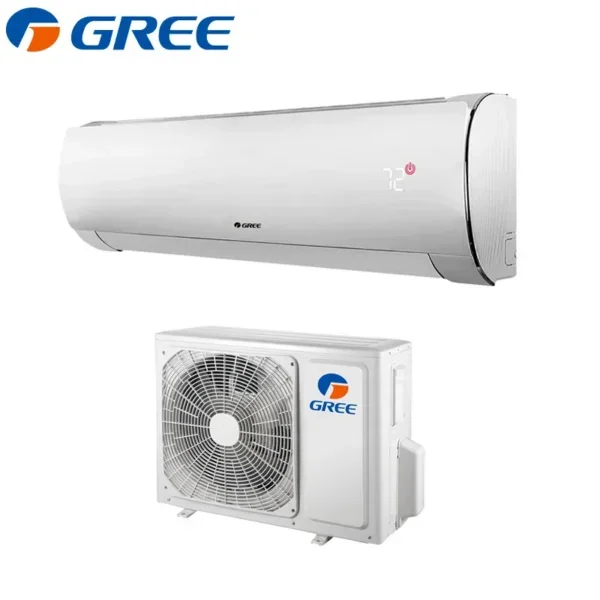

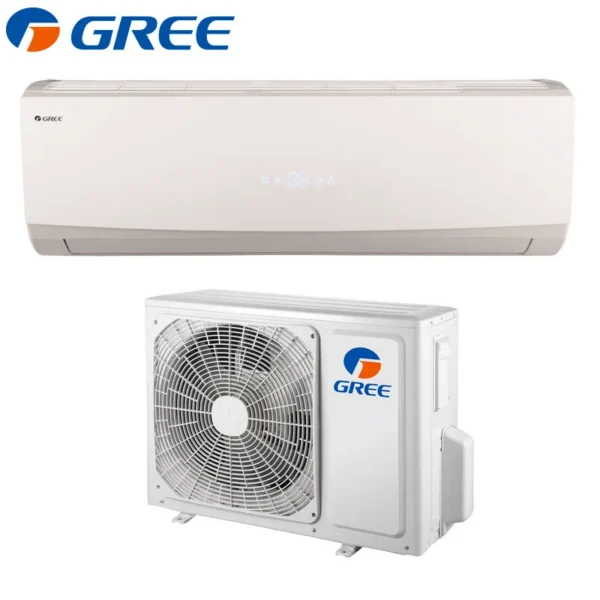

| Type | Split Wall Mounted Air Conditioners |
|---|---|
| Capacity (Btu) | 9000-36000 |
| Cooling/Heating | Cooling/Heating |
| Application | Hotel, Outdoor, Garage, Commercial, Household |
| EER | 3.21 |
| Fixed Frequency/Variable Frequency | Variable Frequency |
| Power Type | DC |
| Power Source | Electric |
| App-Controlled | Yes |
| Feature | Wifi, Energy-Saving, Remote Control, Voice Control, Sleep Mode, Humidity Adjustment, Air Purification Function |
| Remote Control | Yes |
| Power (W) | 1640 |
| Warranty | 3 Years |
| After-Sales Service Provided | Free Spare Parts, Onsite Installation |
| Packaging Types | Corrugated Box |
| Place Of Origin | Guangdong, China |
| Recommended Room Size（Square Feet） | 120 |
| Brand Name | GREE |
| Cop | 3.62 |
| Maximum Airflow Rate | 850 |

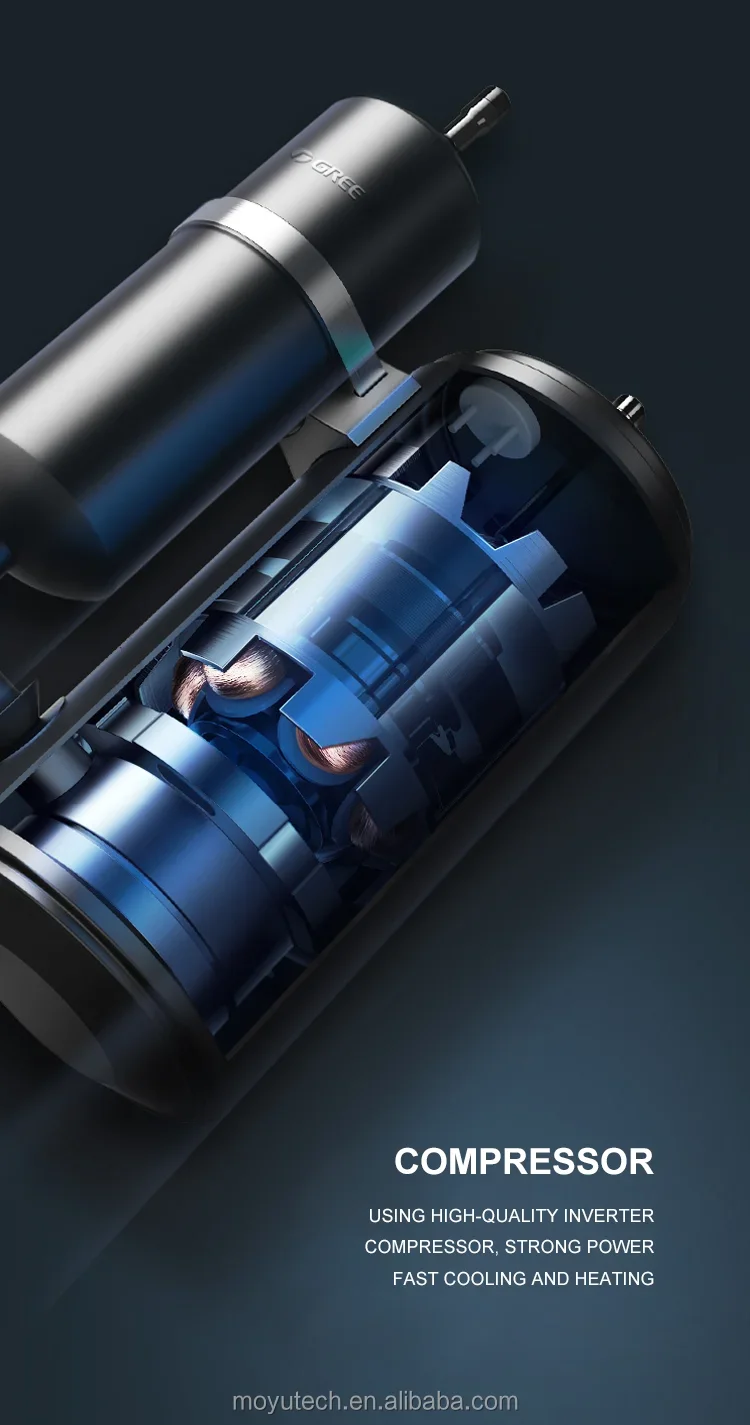

| Compressor Type | Triple-cylinder Two-stage Rotary Compressor of Variable Volume Ratio |
| Compressor Name | GREE |
| Applicable Temperature Range | -30℃~54℃ |
| Intelligent Defrosting | Yes |
| Anti-Corrosive Golden/Blue Fin | Yes |
| High Temp Resistance PCB | Fireproof |
| Refrigerant | R410A/R32 |
| Auto Clean | X-FAN |
| Use | Room |
| Certification | ce |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
MODEL | GMC09QB-K3NNB2A | GMC12QC-K3NNB2A | GMC18QD-K3NNB2A | GMC24QE-K3NNB2A |
Function | Cooling | Cooling | Cooling | Cooling |
Capacity-Cooling/BTU | 9500 | 12000 | 18000 | 22000 |
EER | 3.21 | 3.21 | 3.21 | 3.21 |
Energy Class | A | A | A | A |
Power Supply | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ | 1PH,220-240V,50HZ |
Power Input-Cooling/W | 870 | 1095 | 1630 | 2010 |
Rated Current-Cooling/A | 5.9 | 9 | 14 | 17 |
Airflow Volume-Indoor | 530/490/430/330 | 650/560/480/300 | 900/850/750/600 | 1200/1000/800/650 |
Sound Pressure Level-Indoor | 39/36/32/26 | 41/37/33/29 | 47/43/40/36 | 49/45/40/37 |
Outline Dimension-W*H*D/mm | 790*275*200 | 845*289*209 | 970*300*224 | 1078*325*246 |
Package Dimension-W*H*D/mm | 866*357*271 | 921*379*281 | 1041*383*320 | 1148*413*350 |
Net Weight/Gross Weight-Indoor/kg | 9/11 | 10.5/12.5 | 13.5/16.5 | 17/20.5 |
Sound Pressure Level-Outdoor | 51 | 52 | 53 | 55 |
Piping Connection-Gas/mm | φ9.52 | φ12 | φ12 | φ16 |
Piping Connection-Liquid/mm | φ6 | φ6 | φ6 | φ6 |
Outline Dimension | 776*540*320 | 848*540*320 | 899*596*378 | 913*680*378 |
-W*H*D/mm | ||||
Package Dimension-W*H*D/mm | 823*595*358 | 881*595*363 | 948*645*420 | 997*740*431 |
Net Weight/Gross Weight-Outdoor/kg | 26.5/29 | 31.5/34 | 45/48 | 52/56 |
Loading Quantity-40'GP/sets | 224 | 192 | 156 | 120 |
Loading Quantity-40'HQ/sets | 262 | 240 | 179 | 140 |
Ordering and Pricing
- Minimum order quantity: 1 unit
- Volume pricing:
- 1–49 unit: US $219 / unit
- 50–199 unit: US $215 / unit
- 200–999 unit: US $210 / unit
- 1000+ unit: US $128 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this home hvac systems?
The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this home hvac systems carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Moyu Technology Co., Ltd. Zhuhai, based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Moyu Technology Co., Ltd. Zhuhai range on HVACR Nexus.
