Products Description

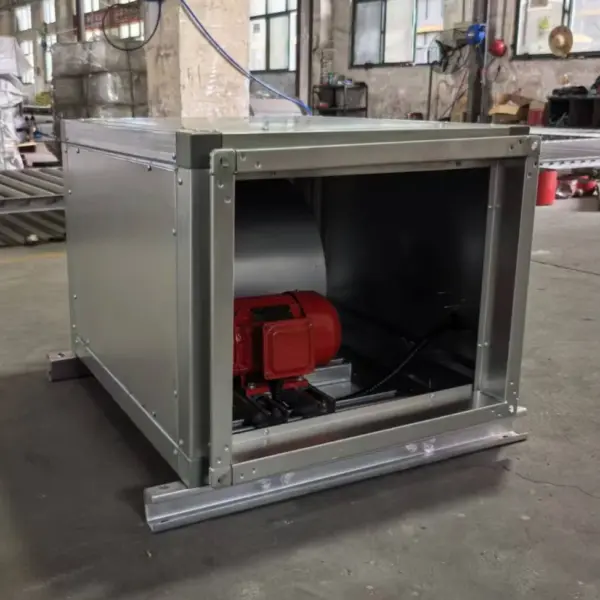

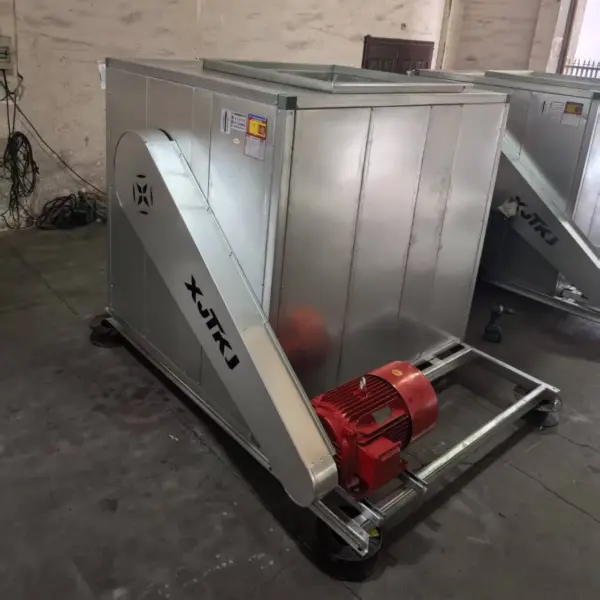

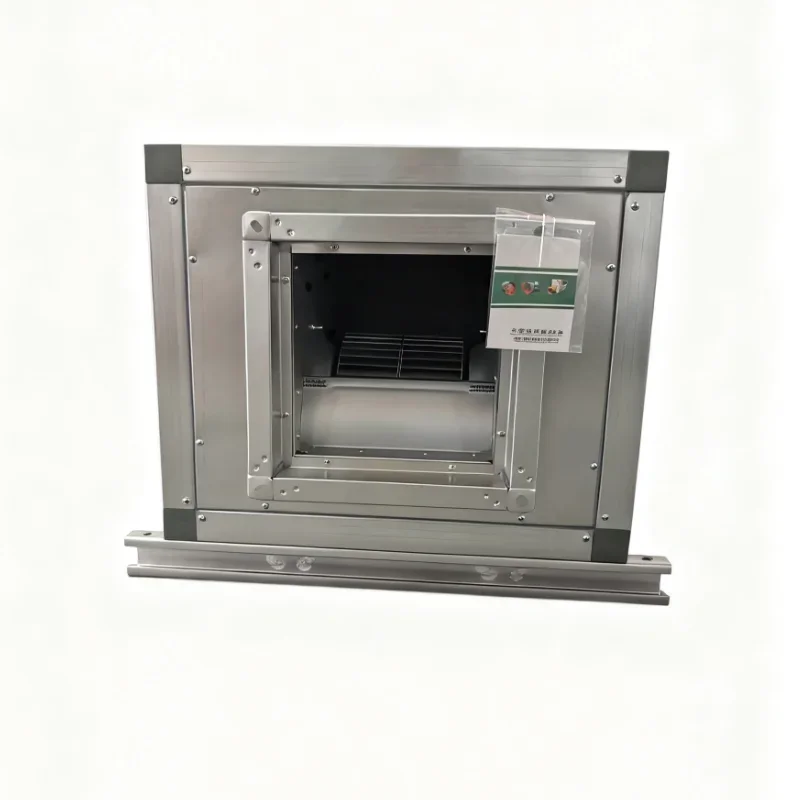

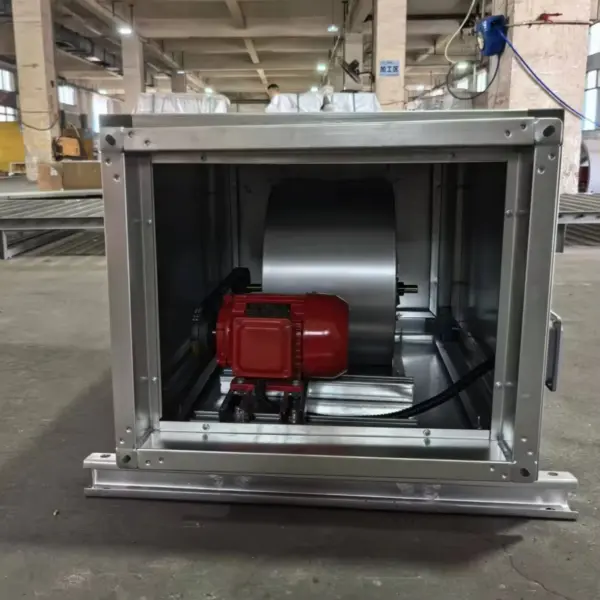

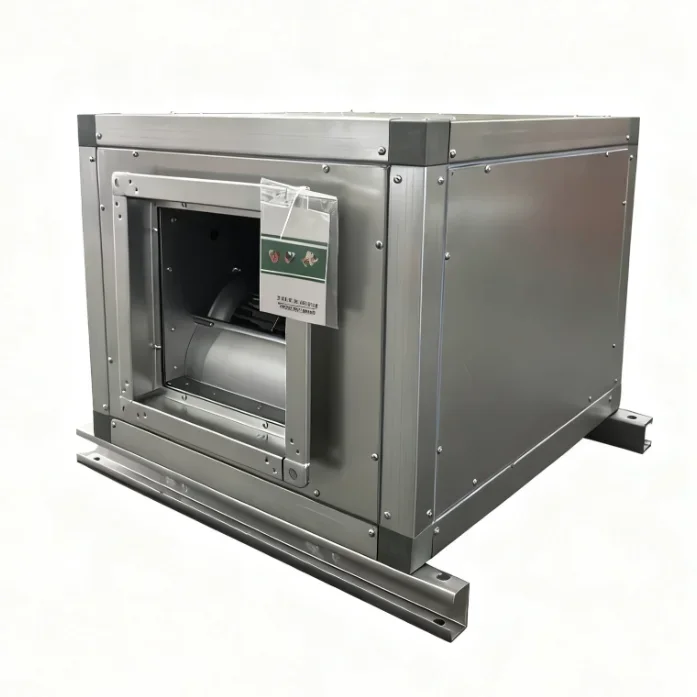

Cabinet-style centrifugal fans

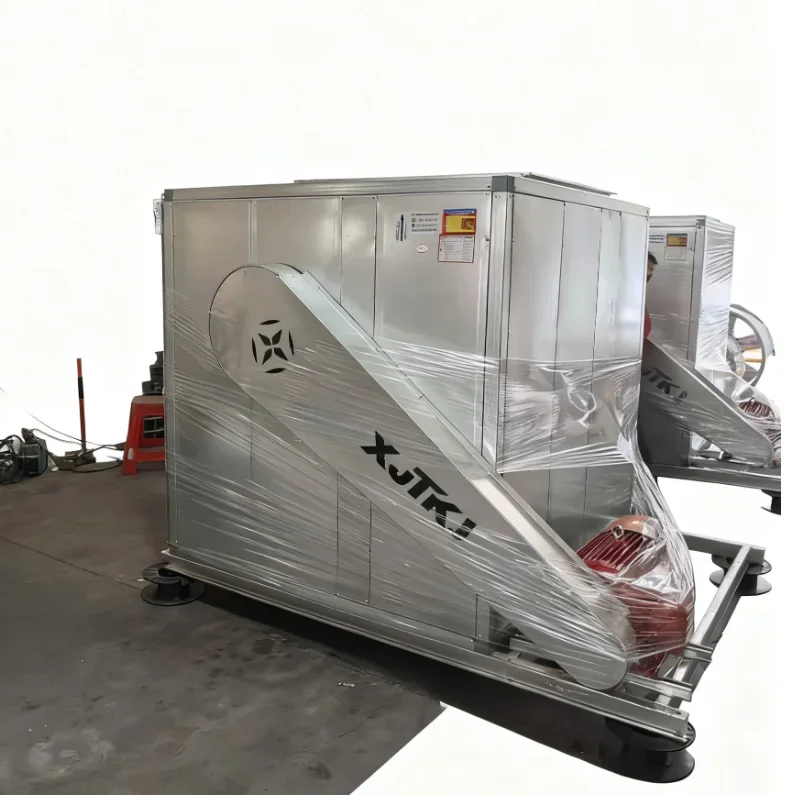

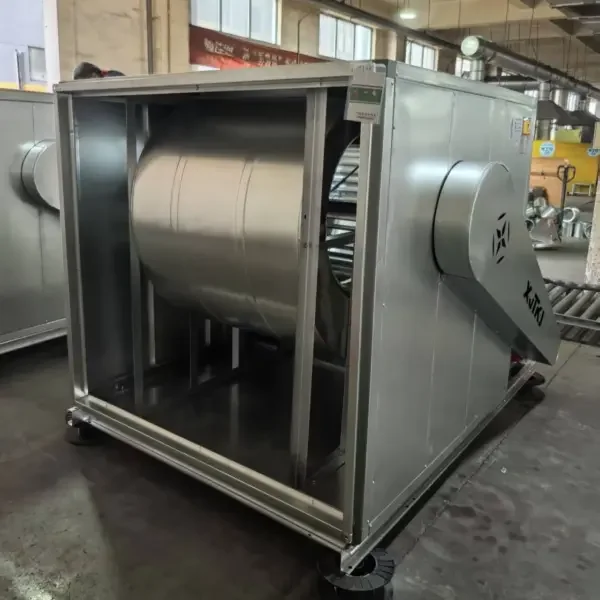

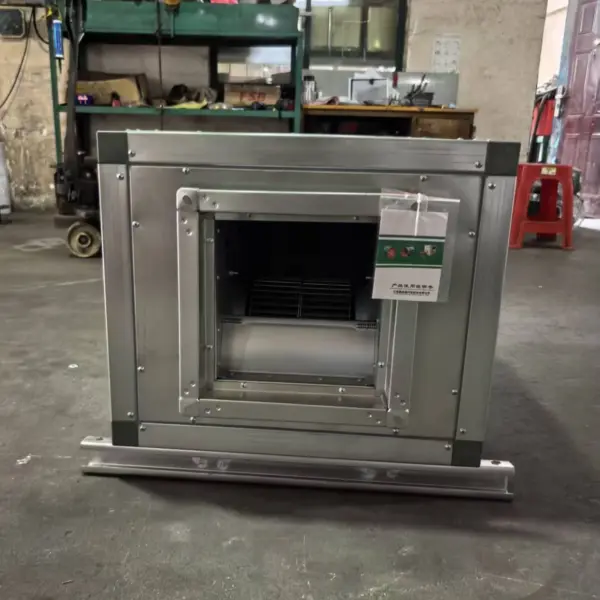

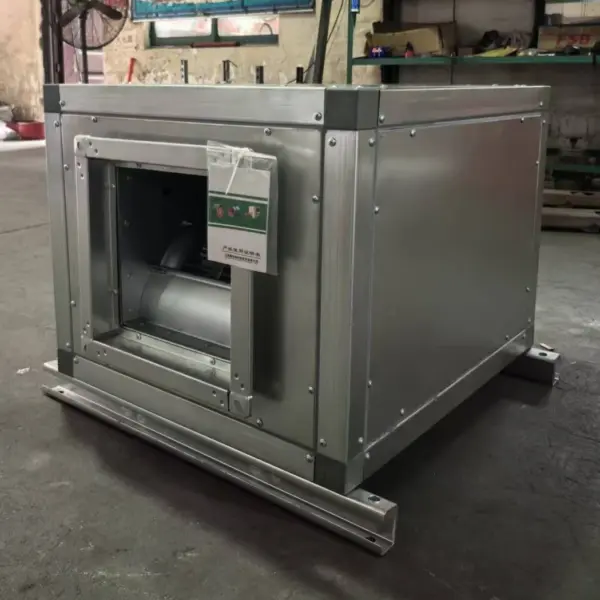

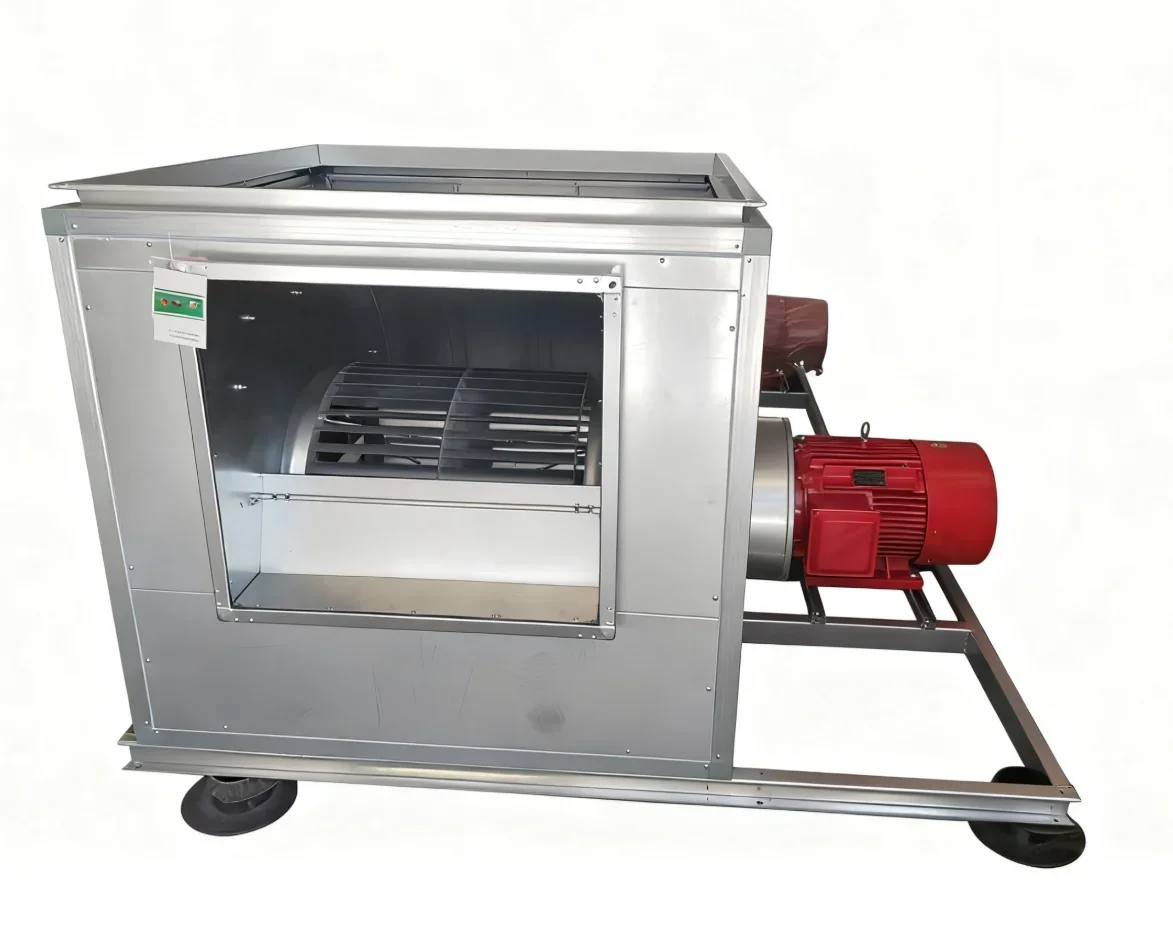

The HTFC type forward-leaning cabinet-style centrifugal fan is a high-efficiency, low-noise cabinet-style centrifugal fan. The product consists of a low-noise forward-leaning multi-blade centrifugal fan, motor, bearings, and transmission components. Depending on the installation location, there are 12 different angles for the inlet and outlet positions, catering to various installation needs of users.
Product Paramenters
|

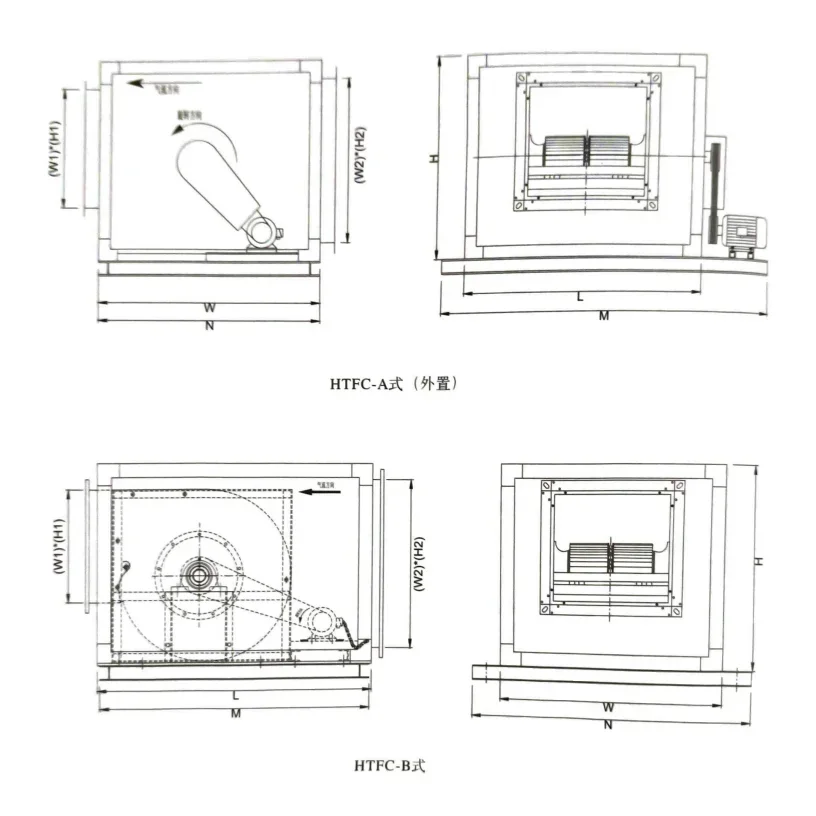

HTFC-A/B Type Forward-Inclined Cabinet Centrifugal Fan External Parameters Table
|
|||||||||
|
Fan model
|
L
|
W(wide)
|
H(high)
|
Air outlet
|
Underframe
|
||||
|
Type A
|
Type B
|
W1
|
H1
|
M(A)
|
M(B)
|
N
|
|||
|
HTFC-I-20
|
1120
|
1300
|
1100
|
1020
|
630
|
570
|
1870
|
1400
|
1180
|
|
HTFC-I-22
|
1240
|
1400
|
1160
|
1080
|
690
|
620
|
1990
|
1500
|
1240
|
|
HTFC-I-25
|
1380
|
1600
|
1320
|
1240
|
780
|
710
|
2180
|
1700
|
1400
|
|
HTFC-I-27.5
|
1500
|
1700
|
1460
|
1380
|
840
|
750
|
2250
|
1800
|
1540
|
|
HTFC-I-30
|
1600
|
1800
|
1580
|
1500
|
940
|
840
|
2550
|
1900
|
1640
|
|
HTFC-I-33
|
1680
|
1900
|
1730
|
1650
|
1070
|
1030
|
2630
|
2000
|
1810
|

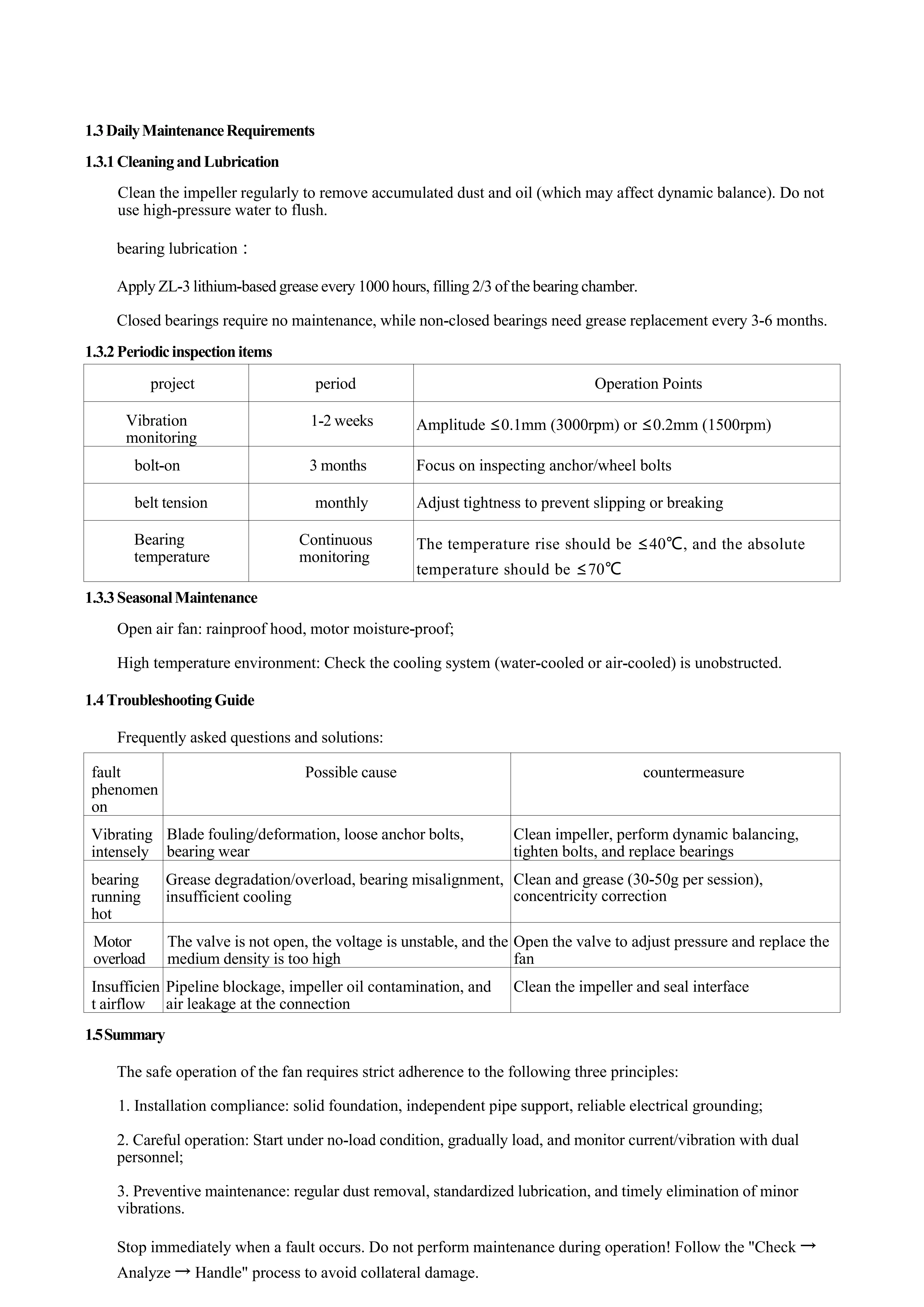

Installation Instructions
Company Profile
Our Services
Certifications

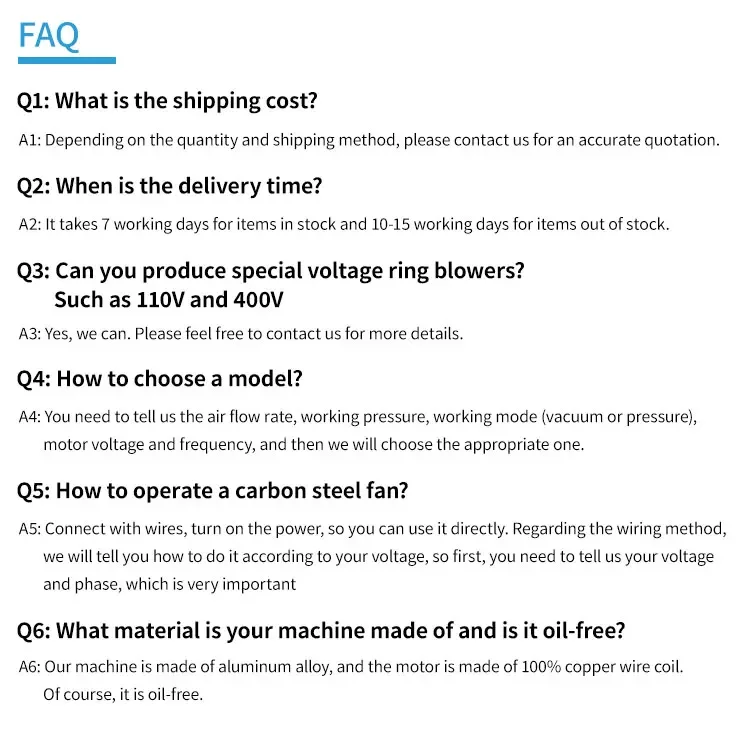

FAQ
